Dodge Dakota (ND). Manual

REMOVAL

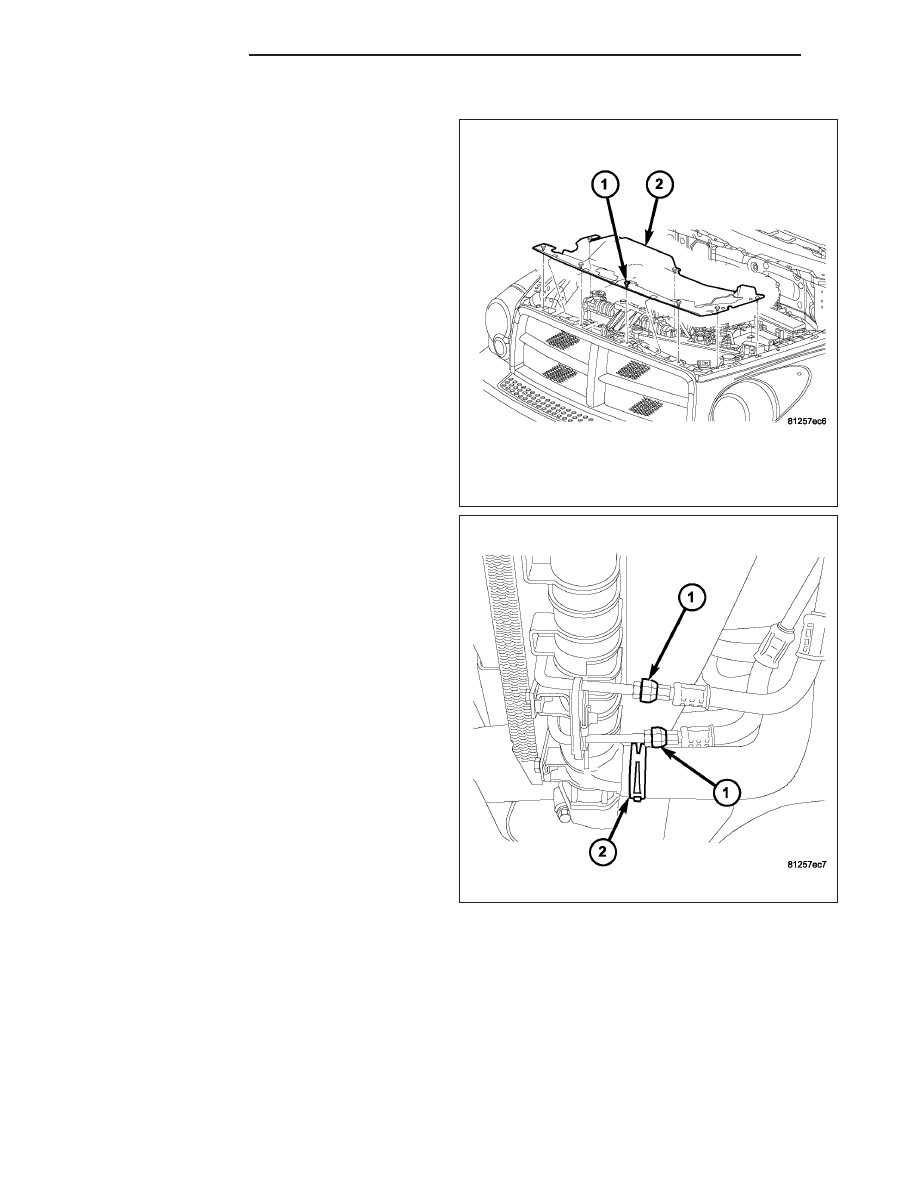

1. Remove pushpins (1) and the upper condensor/ra-

diator seal (2).

2. Remove upper radiator support.

3. Remove upper transmission cooler mounting bolt.

4. Raise vehicle.

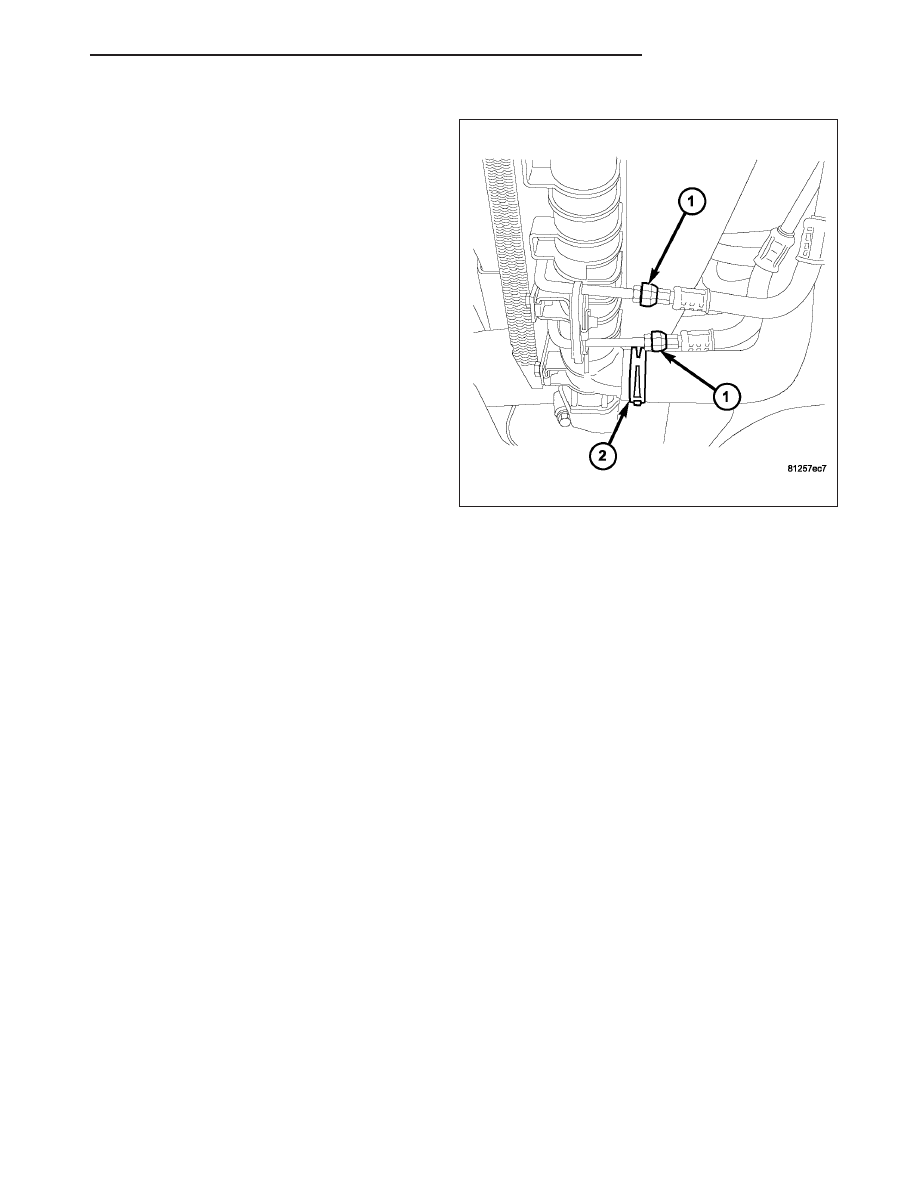

5. Disconnect the transmission cooler lines (1) (Refer

to 7 - COOLING/TRANSMISSION - STANDARD
PROCEDURE).

6. Remove lower transmission cooler mounting bolts.

7. Remove transmission cooler from vehicle.

7 - 52

TRANSMISSION

INSTALLATION

1. Position tramsmission cooler in vehicle.

2. Install lower transmission cooler mounting bolt.

Tighten to 10 N·NM (90 in. lbs.)

3. Connect transmission cooler lines (1).

4. Lower vehicle.

5. Install upper tranmission cooler mounting bolt.

Tighten bolt to 10 N·m (90 in. lbs.).

6. Install upper condenser/radiator seal.

7. Check transmission fluid level (Refer to 21 -

TRANSMISSION/TRANSAXLE/AUTOMATIC

45RFE/545RFE/FLUID

STANDARD

PROCEDURE).

TRANSMISSION

7 - 53

AUDIO/VIDEO

TABLE OF CONTENTS

page

AUDIO/VIDEO SYSTEMS - ELECTRICAL

DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

AUDIO/VIDEO - SERVICE INFORMATION . . . . . . 156

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

TABLE OF CONTENTS

page

AUDIO/VIDEO SYSTEMS - ELECTRICAL

DIAGNOSIS
DIAGNOSIS AND TESTING

B1401-FRONT LEFT AUDIO SPEAKER

OUTPUT CIRCUIT LOW . . . . . . . . . . . . . . . . . . 3

B1402-FRONT LEFT AUDIO SPEAKER

OUTPUT CIRCUIT HIGH . . . . . . . . . . . . . . . . . 6

B1403-FRONT LEFT AUDIO SPEAKER

OUTPUT CIRCUIT OPEN . . . . . . . . . . . . . . . . 10

B1405-FRONT RIGHT AUDIO SPEAKER

OUTPUT CIRCUIT LOW . . . . . . . . . . . . . . . . . 13

B1406-FRONT RIGHT AUDIO SPEAKER

OUTPUT CIRCUIT HIGH . . . . . . . . . . . . . . . . 16

B1407-FRONT RIGHT AUDIO SPEAKER

OUTPUT CIRCUIT OPEN . . . . . . . . . . . . . . . . 19

B1409-REAR LEFT AUDIO SPEAKER

OUTPUT CIRCUIT LOW . . . . . . . . . . . . . . . . . 22

B140A-REAR LEFT AUDIO SPEAKER

OUTPUT CIRCUIT HIGH . . . . . . . . . . . . . . . . 25

B140B-REAR LEFT AUDIO SPEAKER

OUTPUT CIRCUIT OPEN . . . . . . . . . . . . . . . . 29

B140D-REAR RIGHT AUDIO SPEAKER

OUTPUT CIRCUIT LOW . . . . . . . . . . . . . . . . . 32

B140E-REAR RIGHT AUDIO SPEAKER

OUTPUT CIRCUIT HIGH . . . . . . . . . . . . . . . . 35

B140F-REAR RIGHT AUDIO SPEAKER

OUTPUT CIRCUIT OPEN . . . . . . . . . . . . . . . . 39

B142A-RADIO UNIT HIGH TEMPERATURE

. . 42

B142D-AUDIO ANTENNA NOT CONNECTED

. 43

B142F-SATELLITE RADIO ANTENNA NOT

CONNECTED . . . . . . . . . . . . . . . . . . . . . . . . . 45

B221E-RADIO INTERNAL

. . . . . . . . . . . . . . . 47

B2222-SATELLITE RADIO RECEIVER

INTERNAL . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

B1428-REMOTE RADIO SWITCH INPUT

CIRCUIT STUCK . . . . . . . . . . . . . . . . . . . . . . 49

B1429-RADIO DISPLAY HIGH

TEMPERATURE . . . . . . . . . . . . . . . . . . . . . . . 53

B142E-GPS ANTENNA NOT CONNECTED

. . 54

B1421-AUDIO CD READ ERROR/

INOPERABLE DISC . . . . . . . . . . . . . . . . . . . . 56

B1422-AUDIO DVD READ ERROR/

INOPERABLE DISC . . . . . . . . . . . . . . . . . . . . 57

B221F-AMPLIFIER INTERNAL

. . . . . . . . . . . . 58

B210D-BATTERY VOLTAGE LOW

. . . . . . . . . 59

B210E-BATTERY VOLTAGE HIGH

. . . . . . . . . 60

B1488–CABIN EQ MISMATCH

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . 62

B1460-CHANNEL 1 AUDIO SPEAKER

OUTPUT CIRCUIT PERFORMANCE . . . . . . . . 64

B1461-CHANNEL 1 AUDIO SPEAKER

OUTPUT CIRCUIT LOW . . . . . . . . . . . . . . . . . 65

B1462-CHANNEL 1 AUDIO SPEAKER

OUTPUT CIRCUIT HIGH . . . . . . . . . . . . . . . . 68

B1463-CHANNEL 1 AUDIO SPEAKER

OUTPUT CIRCUIT OPEN . . . . . . . . . . . . . . . . 71

B1464-CHANNEL 1 AUDIO SPEAKER

OUTPUT CIRCUIT SHORTED TOGETHER . . . 74

B1465-CHANNEL 2 AUDIO SPEAKER

OUTPUT CIRCUIT PERFORMANCE . . . . . . . . 77

B1466-CHANNEL 2 AUDIO SPEAKER

OUTPUT CIRCUIT LOW . . . . . . . . . . . . . . . . . 78

B1467-CHANNEL 2 AUDIO SPEAKER

OUTPUT CIRCUIT HIGH . . . . . . . . . . . . . . . . 81

B1468-CHANNEL 2 AUDIO SPEAKER

OUTPUT CIRCUIT OPEN . . . . . . . . . . . . . . . . 84

B1469-CHANNEL 2 AUDIO SPEAKER

OUTPUT CIRCUIT SHORTED TOGETHER . . . 87

B146A-CHANNEL 3 AUDIO SPEAKER

OUTPUT CIRCUIT PERFORMANCE . . . . . . . . 90

B146B-CHANNEL 3 AUDIO SPEAKER

OUTPUT CIRCUIT LOW . . . . . . . . . . . . . . . . . 91

AUDIO/VIDEO

8A - 1
