B1043–PANEL MODE DOOR 1 CONTROL CIRCUIT OPEN

24 - 58

HVAC - ELECTRICAL DIAGNOSTICS

ND

B1043–PANEL MODE DOOR 1 CONTROL CIRCUIT OPEN (CONTINUED)

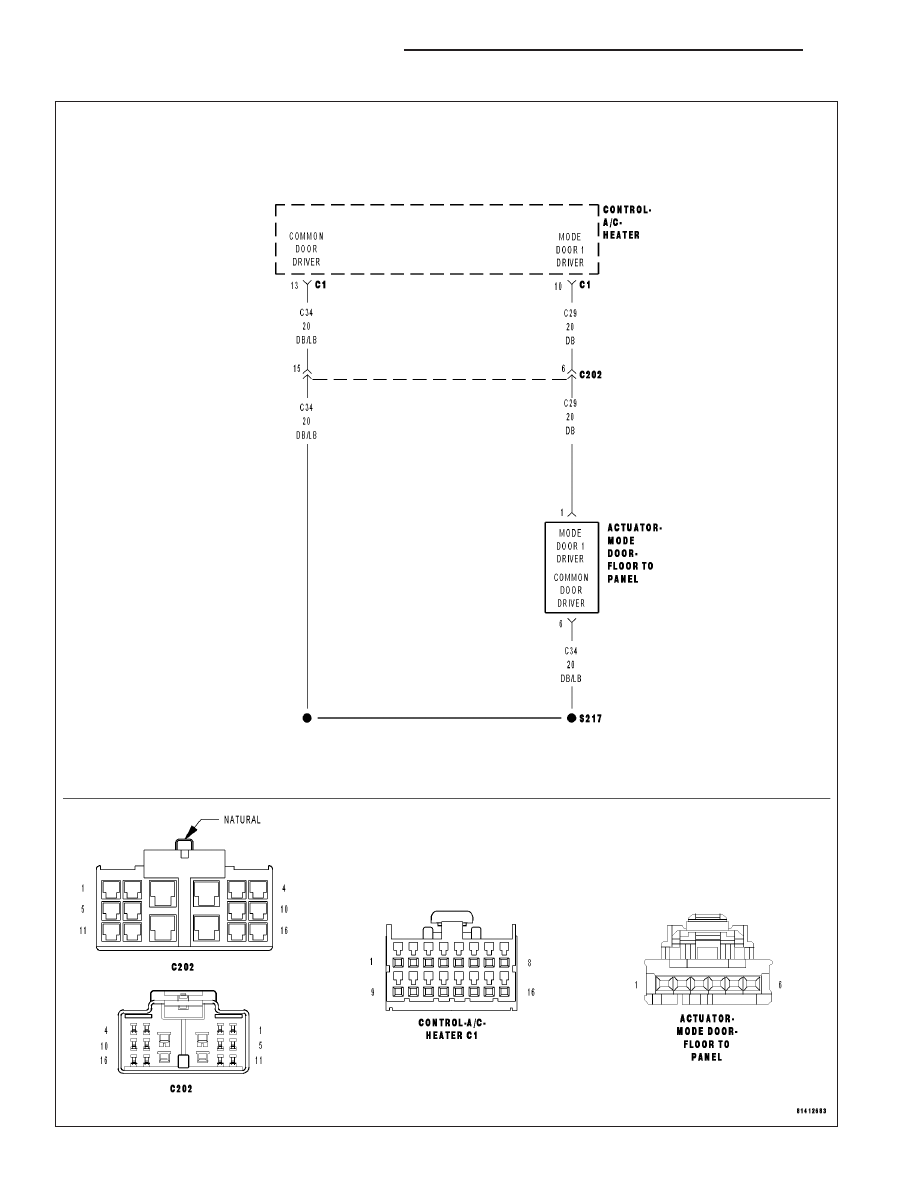

For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE-
MATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

Theory of Operation

The A/C Heater Control drives the Mode Door 1 (Floor to Panel) Actuator via the (C29) Mode Door 1 Driver circuit
and the (C34) Common Door Driver circuit. All of the door actuators share the (C34) Common Door Driver circuit.
Inside the A/C Heater Control, each door actuator has its own unique driver, but all share a single common door
driver circuit. Note that due to the shared circuitry similar DTCs can set at the same time for multiple actuators
depending upon the location of the open circuit and the direction the actuator is moving when the open is present.

When Monitored:
When actuator movement is requested.

Set Condition:
If the Mode Door 1 (Floor to Panel) Actuator’s electrical circuit is open. This DTC has a maturing time of 5
seconds and a de-maturing time of 10 seconds. If the DTC’s status changes from active to stored it will stay
in memory for 100 ignition cycles.

Possible Causes

(C29) MODE DOOR 1 DRIVER CIRCUIT OPEN

(C34) COMMON DOOR DRIVER CIRCUIT OPEN

MODE DOOR 1 (FLOOR TO PANEL) ACTUATOR

A/C HEATER CONTROL

NOTE: DTC B1043 must be active for the results of this test to be valid. Do not perform this test if DTC
B1043 is stored. Refer to HVAC System Test for stored DTC test procedures.

Diagnostic Test

1.

CHECK FOR ACTIVE CONTROL CIRCUIT/PERFORMANCE DTCs

Turn the ignition on.

With the scan tool, read active HVAC DTCs.

Does the scan tool display any active: XXXX CONTROL CIRCUIT/PERFORMANCE DTCs?

Yes

>> Diagnose and repair the DTC(s). Refer to the Table of Contents in this Section for a complete list of all

HVAC related symptoms.

No

>> Go To 2

ND

HVAC - ELECTRICAL DIAGNOSTICS

24 - 59

B1043–PANEL MODE DOOR 1 CONTROL CIRCUIT OPEN (CONTINUED)

2.

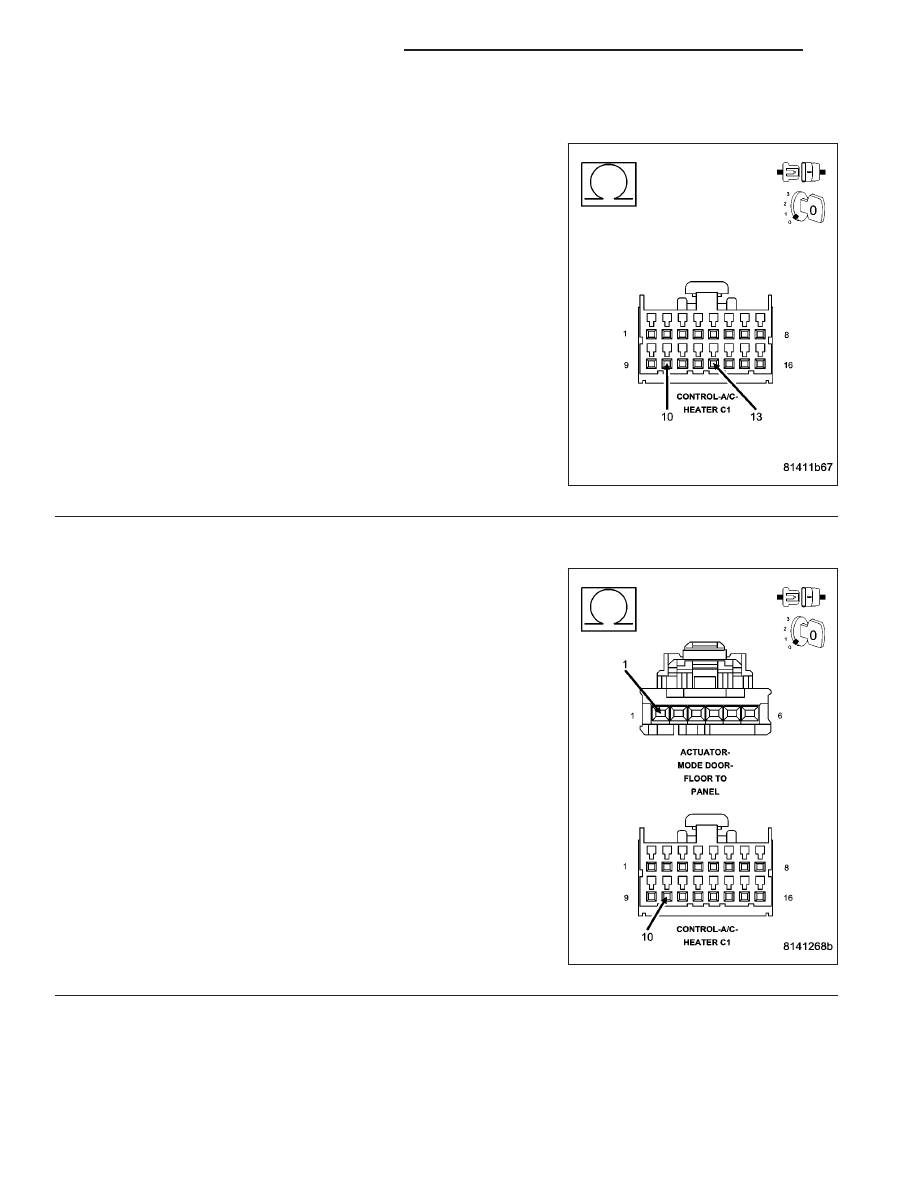

CHECK MODE DOOR 1 (FLOOR TO PANEL) ACTUATOR CIRCUIT RESISTANCE

Turn the ignition off.

Disconnect the A/C Heater Control C1 harness connector.

Measure the resistance between the (C29) Mode Door 1 Driver circuit
and the (C34) Common Door Driver circuit in the A/C Heater Control
C1 harness connector.

Is the resistance above 55 ohms?

Yes

>> Go To 3

No

>> Replace the A/C Heater Control in accordance with the

Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT

CONTROL

MODULE

-

DIAGNOSIS

AND

TESTING).

3.

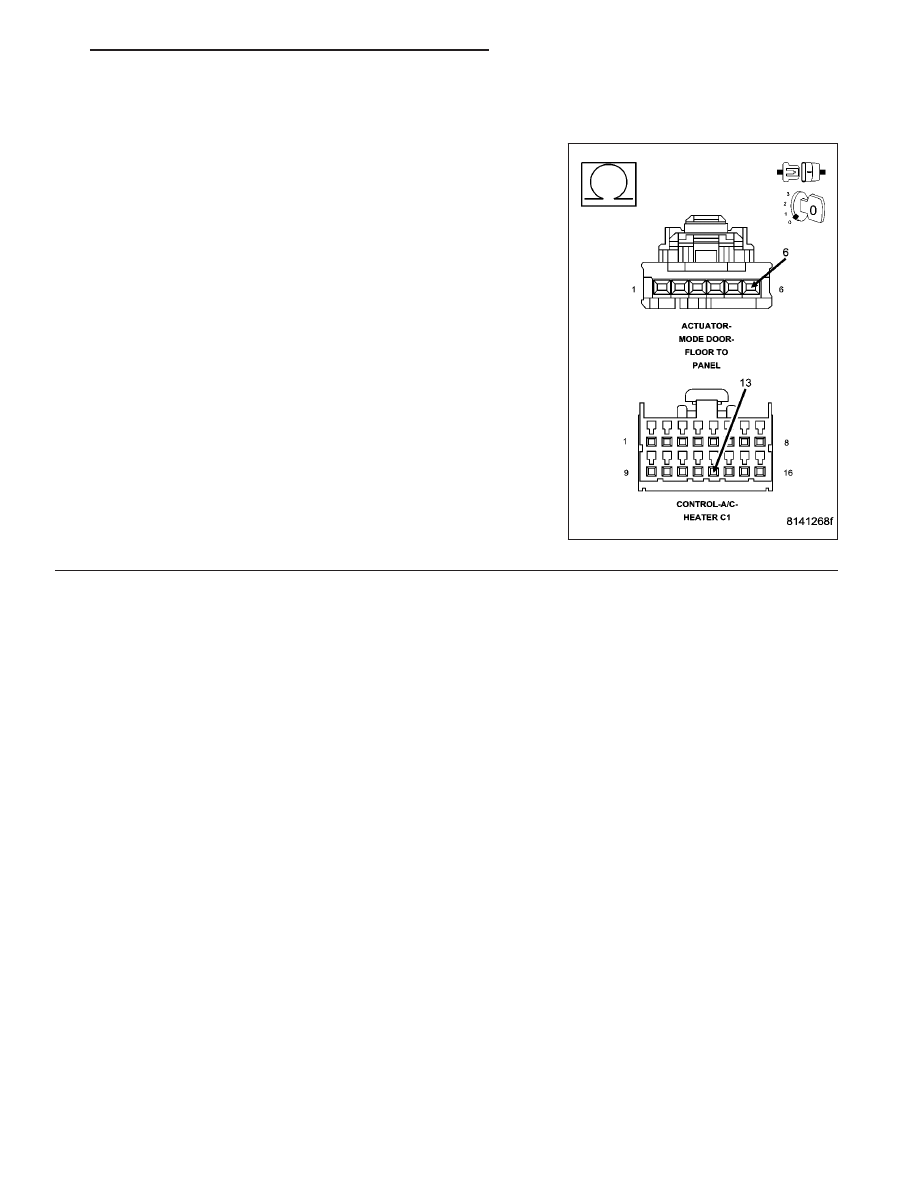

CHECK (C29) MODE DOOR 1 DRIVER CIRCUIT FOR AN OPEN

Disconnect the Mode Door 1 (Floor to Panel) Actuator harness con-
nector.

Measure the resistance of the (C29) Mode Door 1 Driver circuit
between the A/C Heater Control C1 harness connector and the Mode
Door 1 (Floor to Panel) Actuator harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (C29) Mode Door 1 Driver circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT

CONTROL

MODULE

-

DIAGNOSIS

AND

TESTING).

24 - 60

HVAC - ELECTRICAL DIAGNOSTICS

ND

B1043–PANEL MODE DOOR 1 CONTROL CIRCUIT OPEN (CONTINUED)

4.

CHECK (C34) COMMON DOOR DRIVER CIRCUIT FOR AN OPEN

Measure the resistance of the (C34) Common Door Driver circuit
between the A/C Heater Control C1 harness connector and the Mode
Door 1 (Floor to Panel) Actuator harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Mode Door 1 (Floor to Panel) Actuator in

accordance with the Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

No

>> Repair the (C34) Common Door Driver circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT

CONTROL

MODULE

-

DIAGNOSIS

AND

TESTING).

ND

HVAC - ELECTRICAL DIAGNOSTICS

24 - 61
