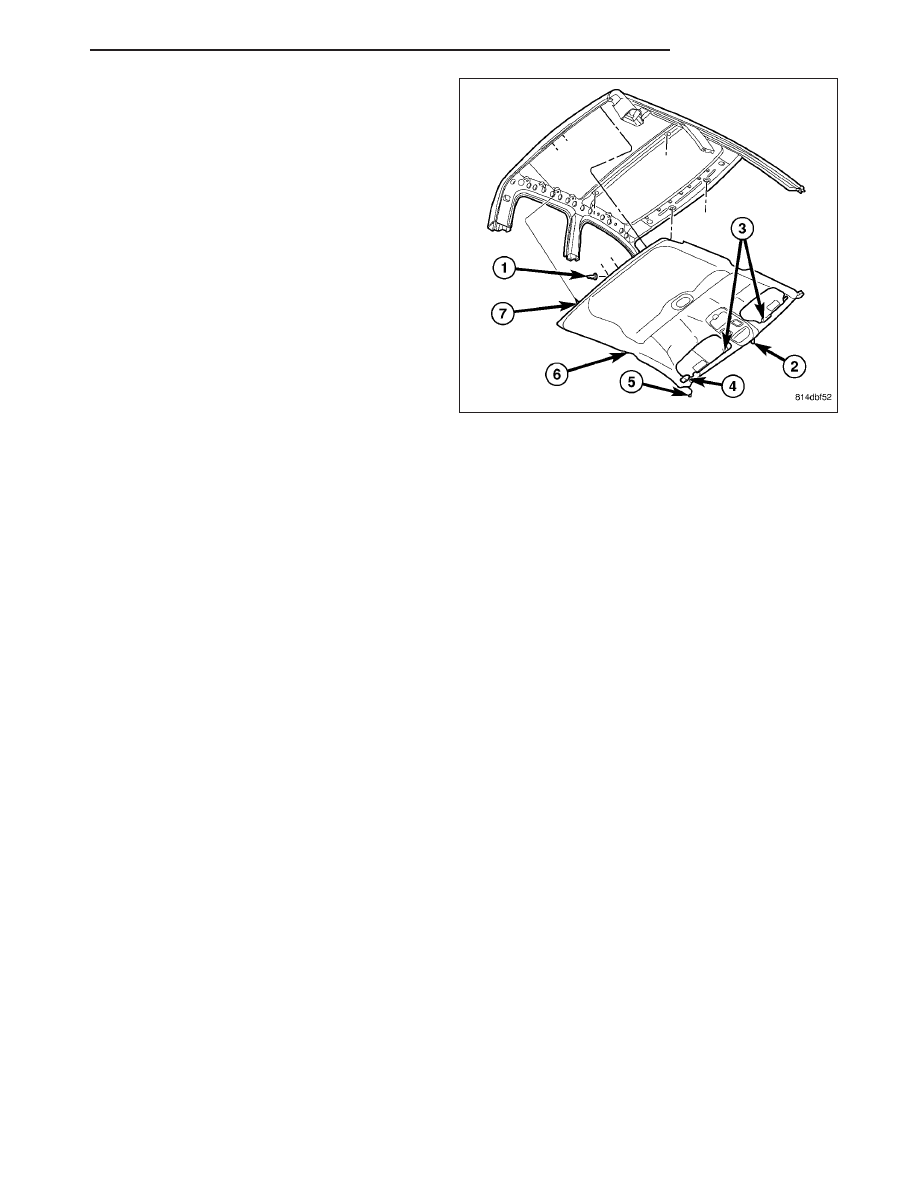

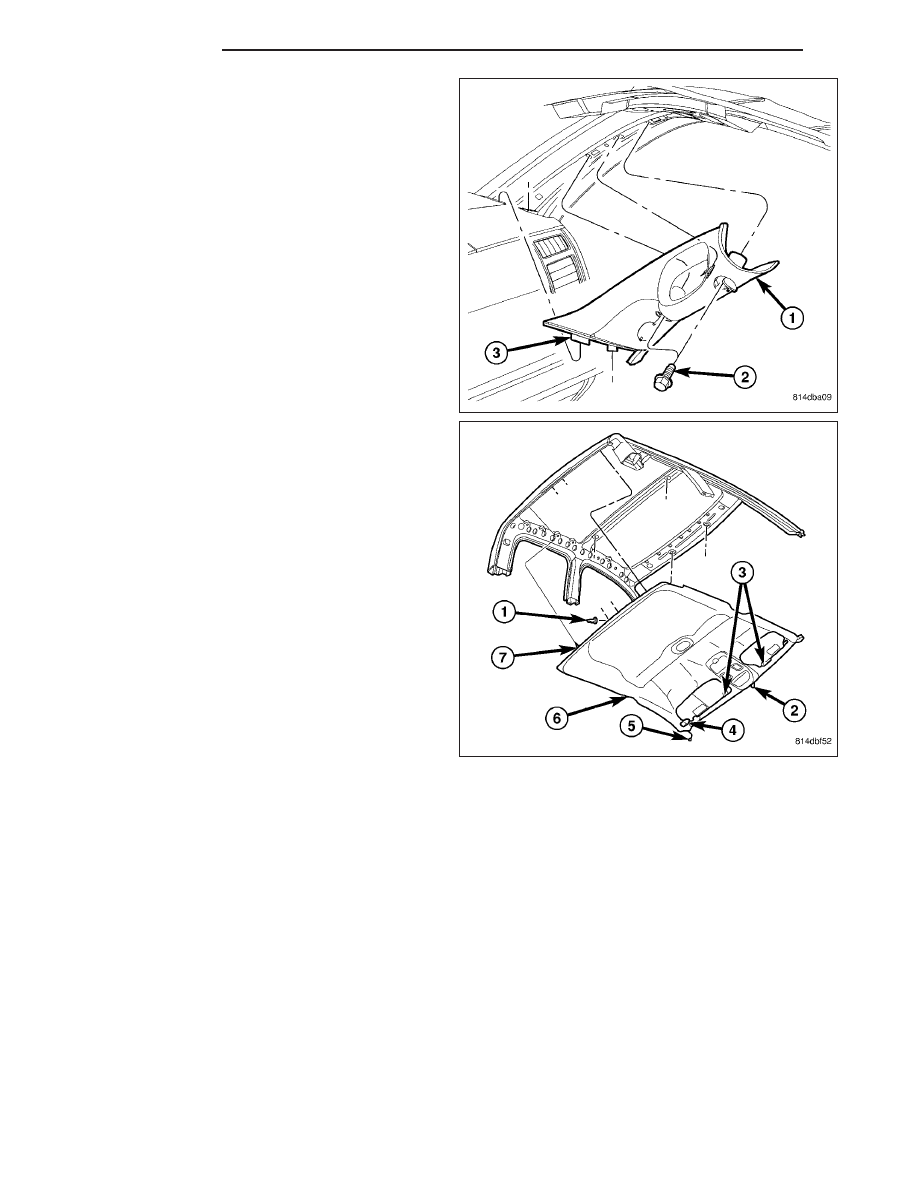

5. Remove the A-pillar trim panels, (Refer to 23 - BODY/INTERIOR/PANEL-A PILLAR TRIM - REMOVAL). NOTE: Headliner for Quad Cab models shown. 6. Disconnect the wire harness connector (5) located at the right A-pillar. 7. If equipped, disconnect the headliner wire harness connector (2) from the inside rear view mirror. 8. If equipped, remove the overhead console, (Refer to 8 - ELECTRICAL/OVERHEAD CONSOLE - 9. Remove the sun visors (4), (Refer to 23 - BODY/ INTERIOR/SUN VISOR - REMOVAL). 10. Remove the sun visor supports (3), (Refer to 23 - BODY/INTERIOR/SUN VISOR SUPPORT - REMOVAL). 11. If equipped, remove the front dome lamp, (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - INTERI- 12. If equipped, remove the rear dome lamp, (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - INTERIOR/REAR DOME LAMP - REMOVAL). 13. Remove the two coat hooks, (Refer to 23 - BODY/INTERIOR/COAT HOOK - REMOVAL). 14. Remove the front seat headrests. 15. Lower the rear of the headliner (7) and disconnect the headliner wire harness connector (1) from the center high mounted stop lamp. 16. Recline the front seats. 17. CAUTION: Be careful not to crease the headliner.Lower the front of the headliner and remove the headliner 23 - 216 INTERIOR ND |
