CAUTION: On vehicles equipped with the Occupant Classification System (OCS), never replace both the
Occupant Restraint Controller (ORC) and the Occupant Classification Module (OCM) at the same time. If
both require replacement, replace one. Then perform the supplemental restraint verification test before
replacing the other. Both the ORC and the OCM store OCS calibration data, which they transfer to one
another when one of them is replaced. If both are replaced at the same time, an irreversible fault will be set
in both modules.

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/INSTRUMENT PANEL - WARNING)

2. Disconnect and isolate battery negative cable.

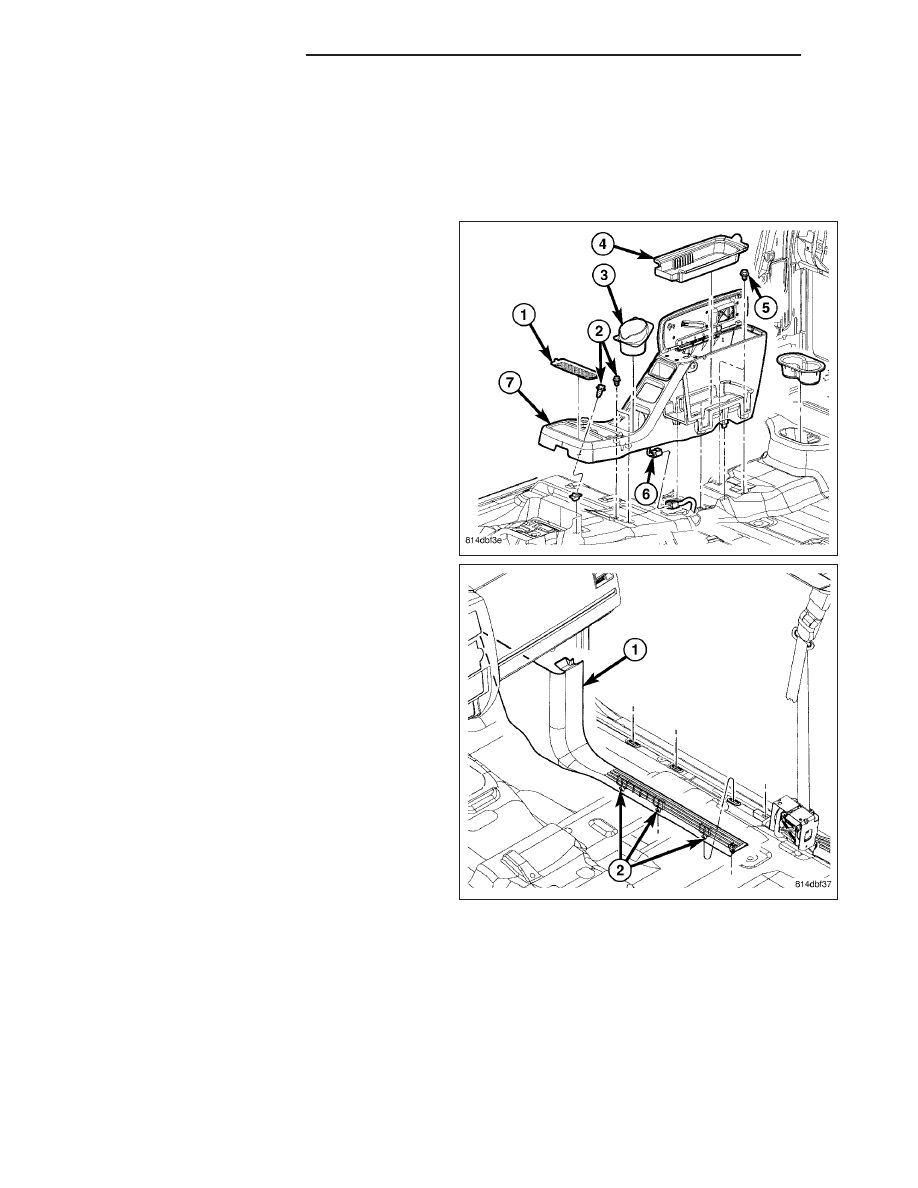

3. Remove the floor console (7). (Refer to 23 - BODY/

INTERIOR/CONSOLE-FLOOR - REMOVAL)

4. Remove the driver side door sill trim cover (1).

(Refer to 23 - BODY/INTERIOR/PANEL-COWL
TRIM - REMOVAL)

23 - 156

INSTRUMENT PANEL

ND

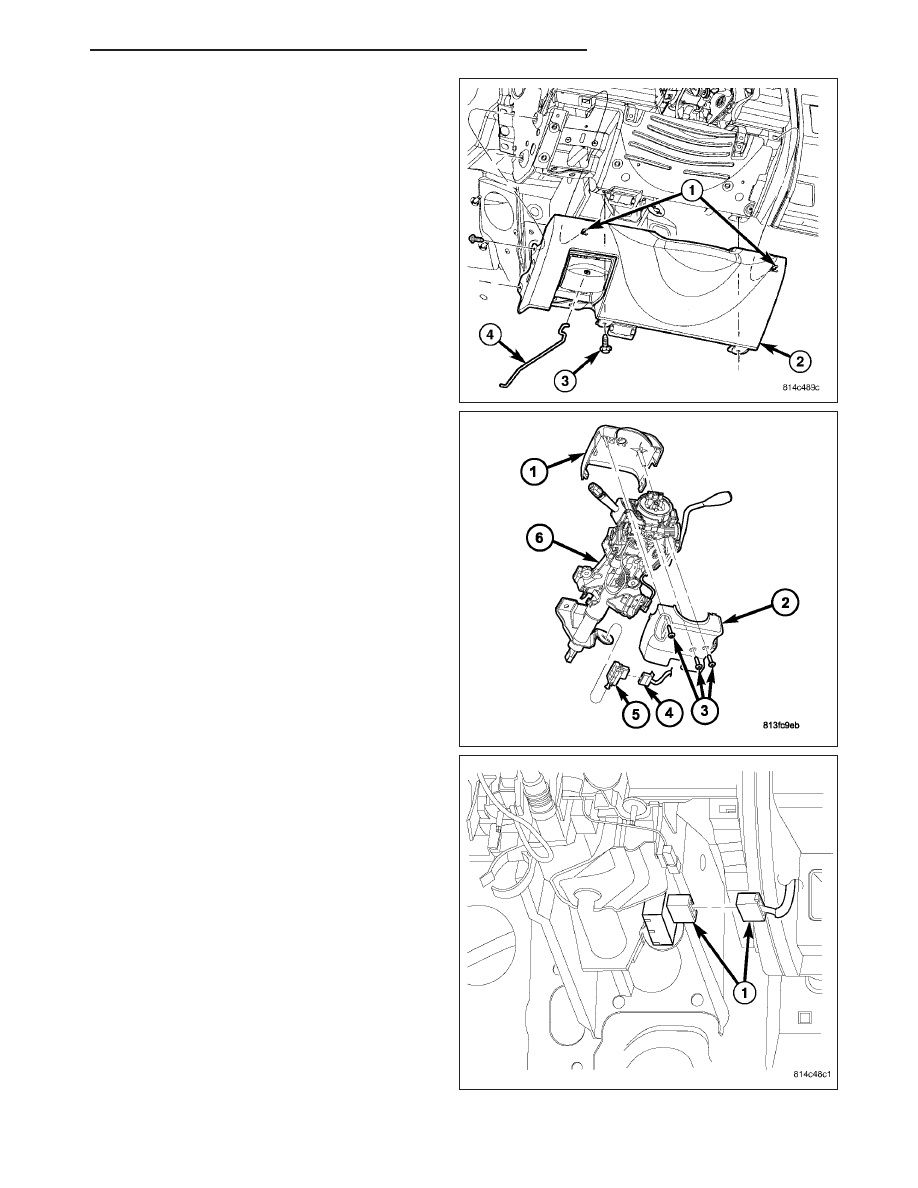

5. Remove the steering column opening cover (2).

(Refer to 23 - BODY/INSTRUMENT PANEL/COV-
ER-STEERING COLUMN OPENING - REMOVAL)

6. Position the front wheels straight ahead.

7. Remove the steering column tilt lever knob.

8. Remove the column shrouds (1& 2).

9. Disconnect the brake switch electrical connector

(1). (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING -
EXTERIOR/BRAKE LAMP SWITCH - REMOVAL).

ND

INSTRUMENT PANEL

23 - 157

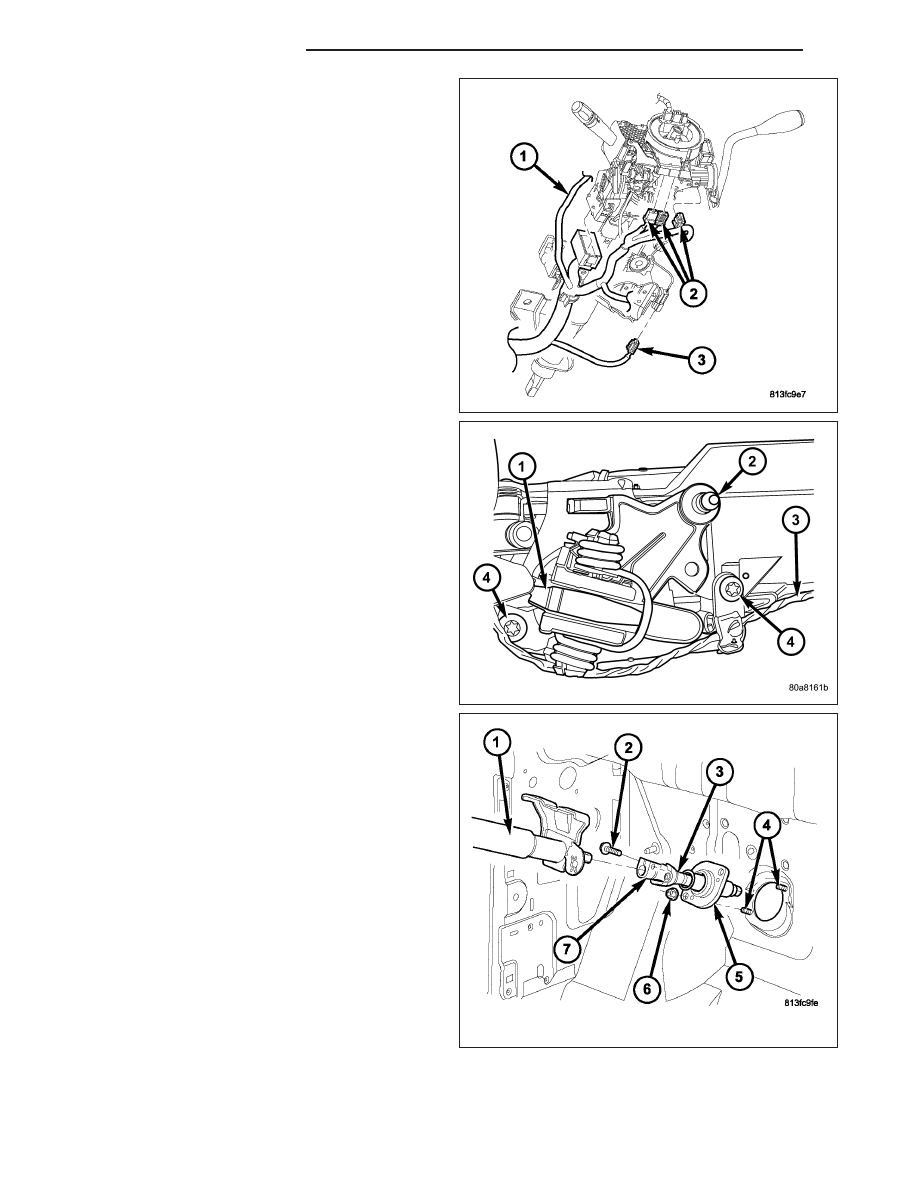

10. Disconnect the wiring harness to the column (1, 2

& 3).

11. Remove the shift cable (2) from the column shift

lever actuator (1) (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 32RH/GEAR SHIFT
CABLE - REMOVAL).

12. Release the shift cable from the column bracket

and remove it from the bracket.

13. Remove the SKIM module in order to disconnect

the electrical connector.

14. Remove the upper steering shaft coupler bolt (2)

from the column (1).

15. Separate the shaft from the coupler (7).

23 - 158

INSTRUMENT PANEL

ND

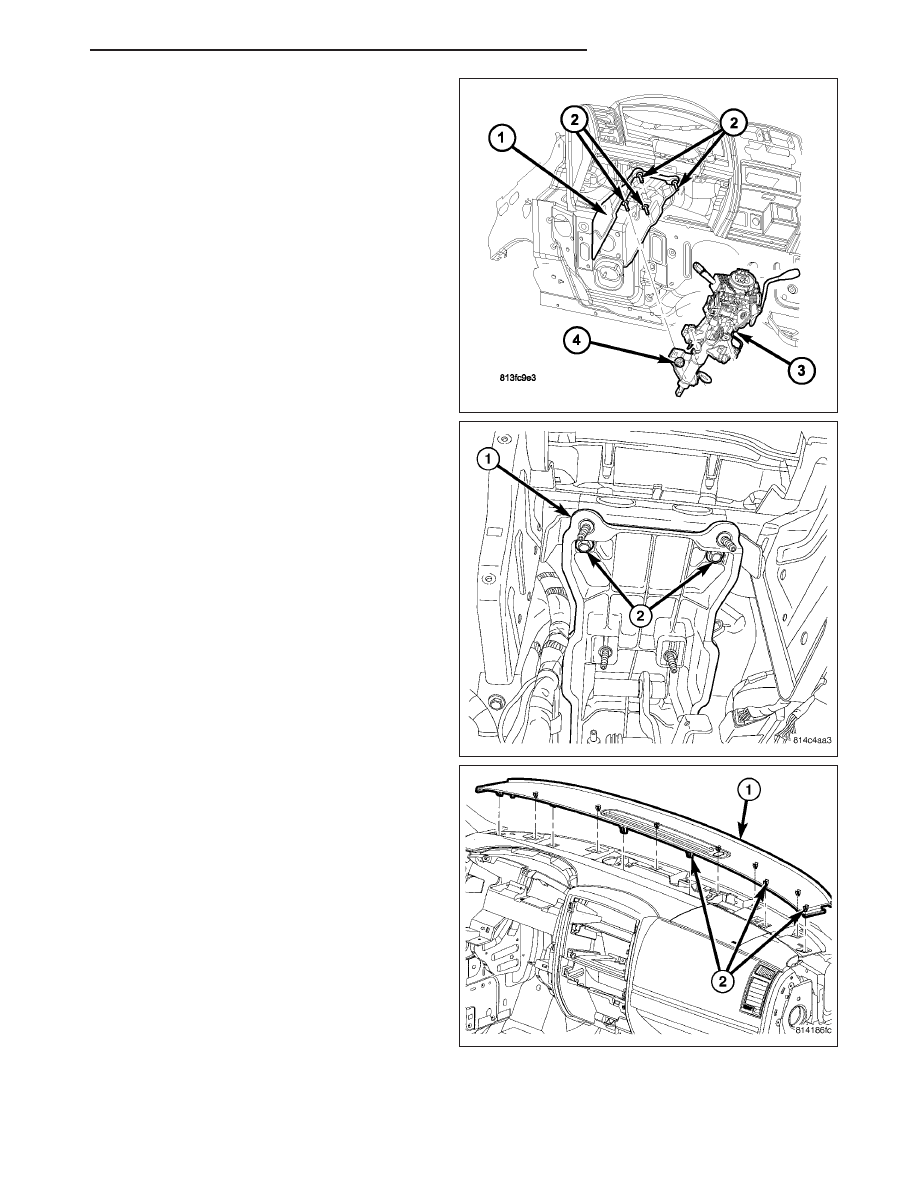

16. Remove the four steering column mounting nuts

(4).

17. Remove the steering column assembly (3) from

the vehicle.

18. Remove the bolts (2) from the pedal support (1).

19. Remove the defroster grille (1). (Refer to 23 -

BODY/INSTRUMENT

PANEL/GRILLE-DE-

FROSTER - REMOVAL)

ND

INSTRUMENT PANEL

23 - 159
