WARNING: To avoid personal injury or death, when handling a seat belt tensioner retractor, proper care
should be exercised to keep fingers out from under the retractor cover and away from the seat belt webbing
where it exits from the retractor cover.

WARNING: To avoid personal injury or death, replace all restraint system components only with parts spec-
ified in the daimlerchrysler mopar parts catalog. Substitute parts may appear interchangeable, but internal
differences may result in inferior occupant protection.

WARNING: To avoid personal injury or death, the fasteners, screws, and bolts originally used for the
restraint system components must never be replaced with any substitutes. These fasteners have special
coatings and are specifically designed for the restraint system. Any time a new fastener is needed, replace
it with the correct fasteners provided in the service package or specified in the daimlerchrysler mopar parts
catalog.

WARNING: To avoid personal injury or death, when a steering column has an airbag unit attached, never
place the column on the floor or any other surface with the steering wheel or airbag unit face down.

BEZEL-CLUSTER

REMOVAL

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/INSTRUMENT PANEL - WARNING)

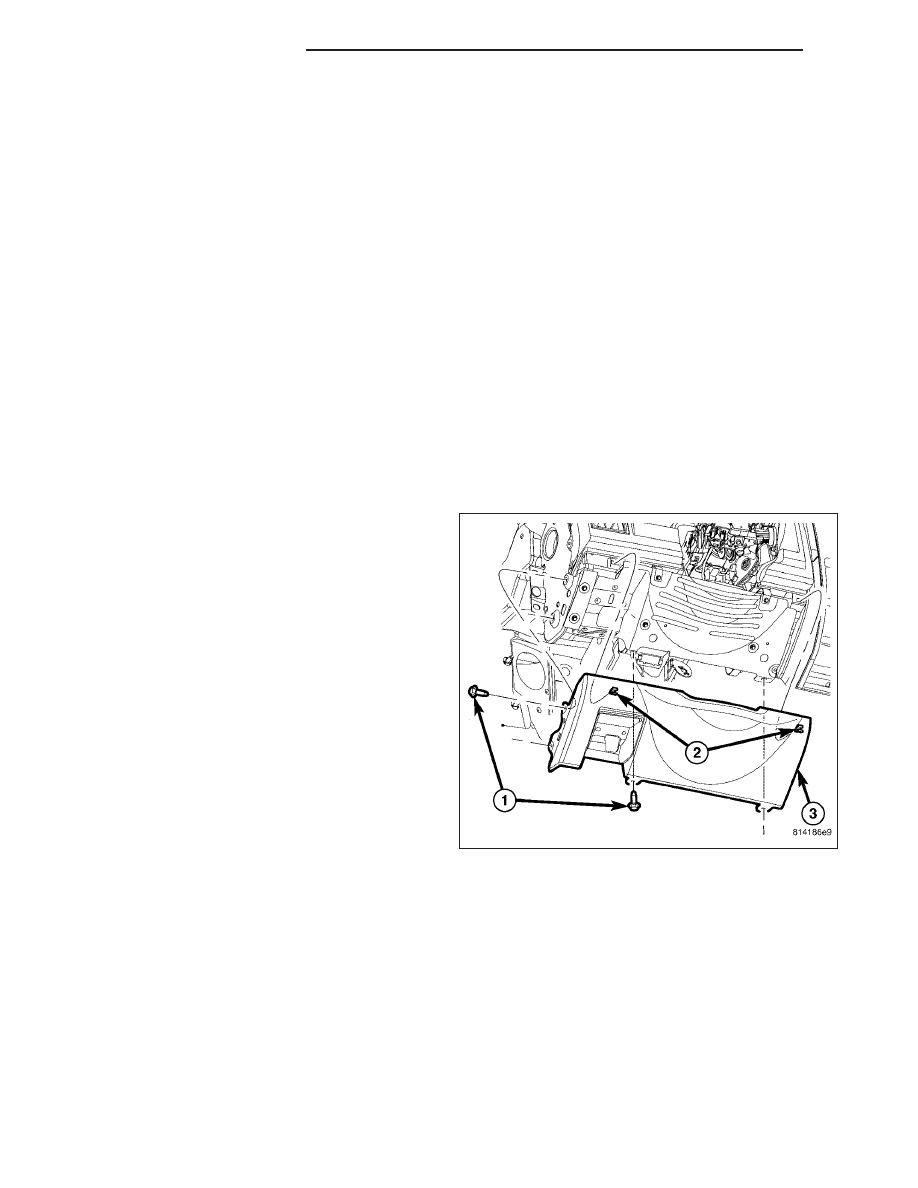

2. Remove the steering column opening cover (3).

(Refer

to

23

-

BODY/INSTRUMENT

PANEL/

STEERING

COLUMN

OPENING

COVER

-

REMOVAL)

23 - 148

INSTRUMENT PANEL

ND

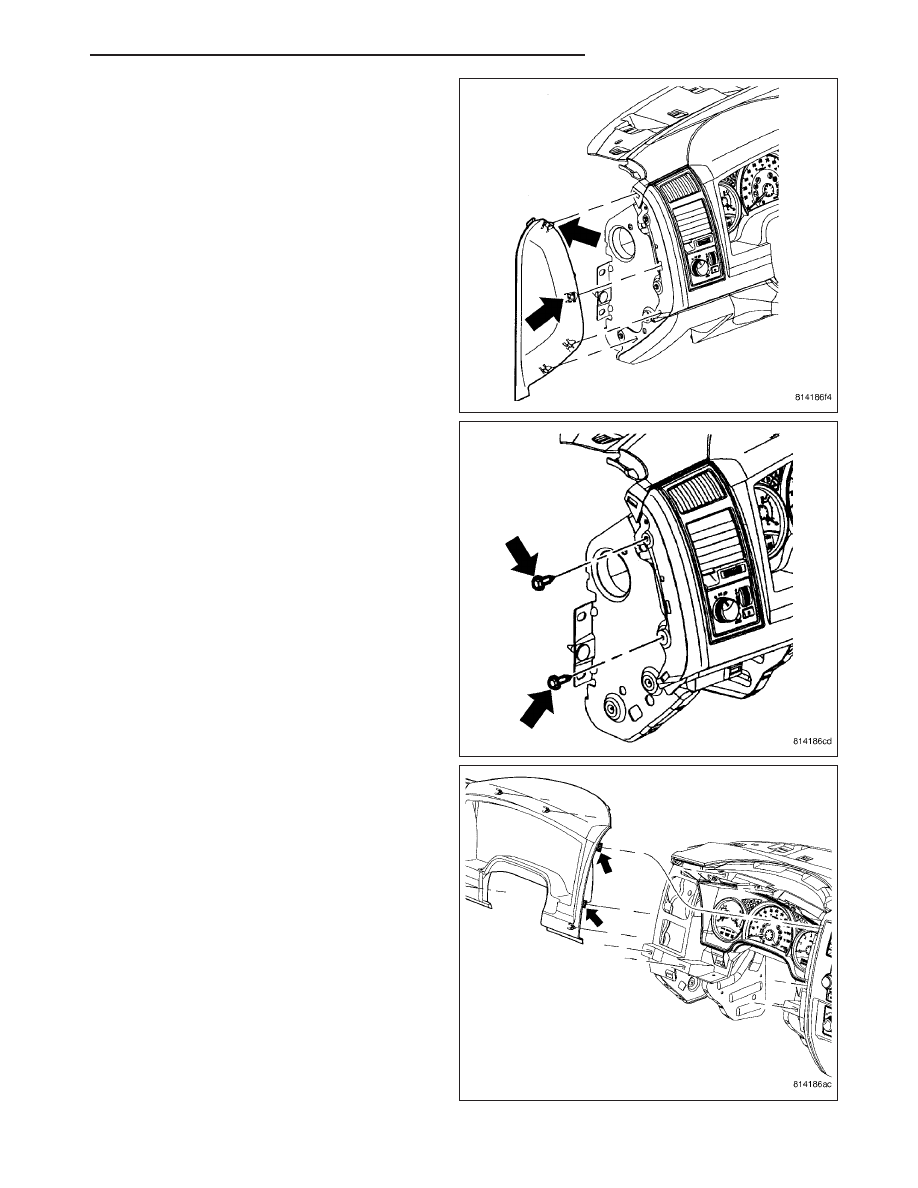

3. Using a trim stick C-4755 or equivalent, separate

the end cap retaining clips and remove the end
cap.

4. Remove the screws.

5. Using a trim stick C-4755 or equivalent, separate

the cluster bezel from the instrument panel.

ND

INSTRUMENT PANEL

23 - 149

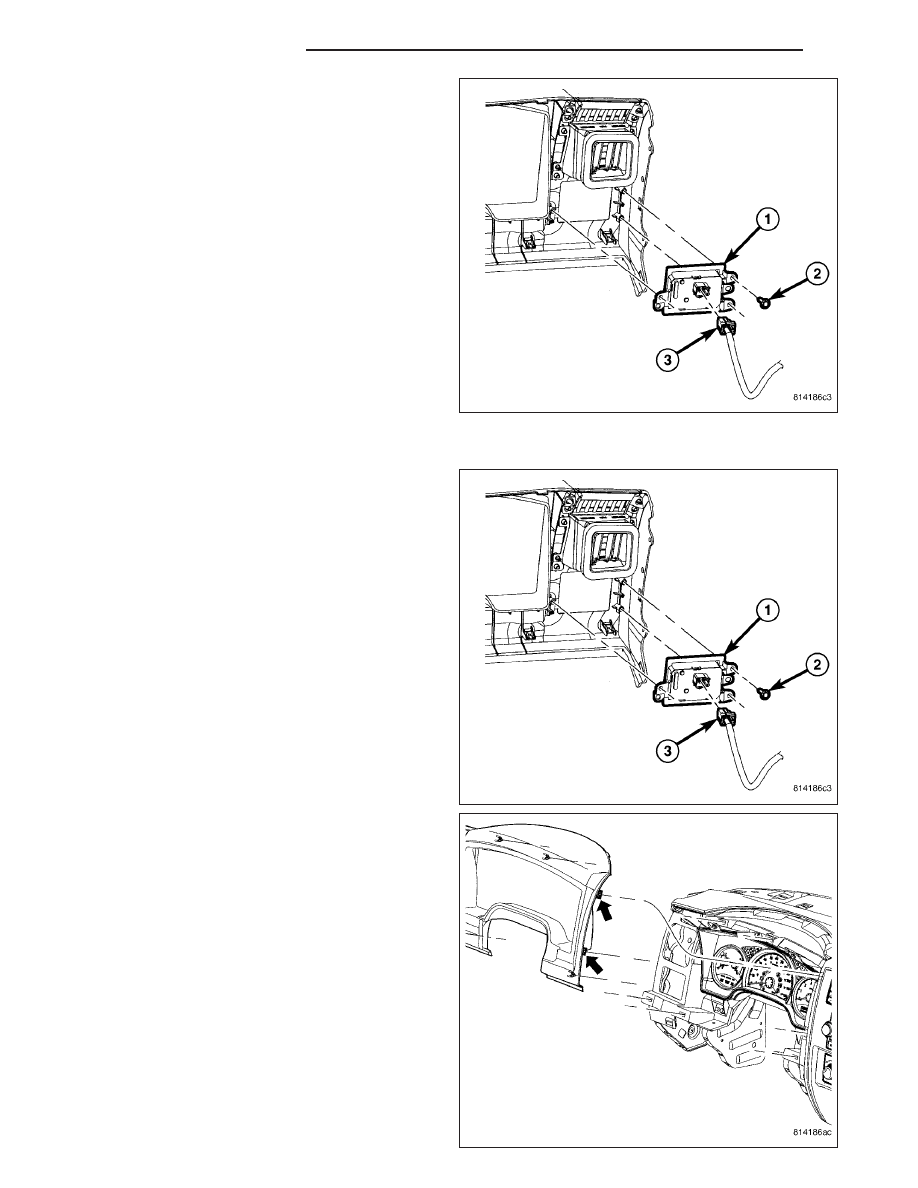

6. Disconnect

the

electrical

connectors

(3),

if

equipped.

INSTALLATION

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/INSTRUMENT PANEL - WARNING)

2. Connect the electrical connectors (3), if equipped.

3. Position the bezel onto the instrument panel and

seat the retaining clips fully.

23 - 150

INSTRUMENT PANEL

ND

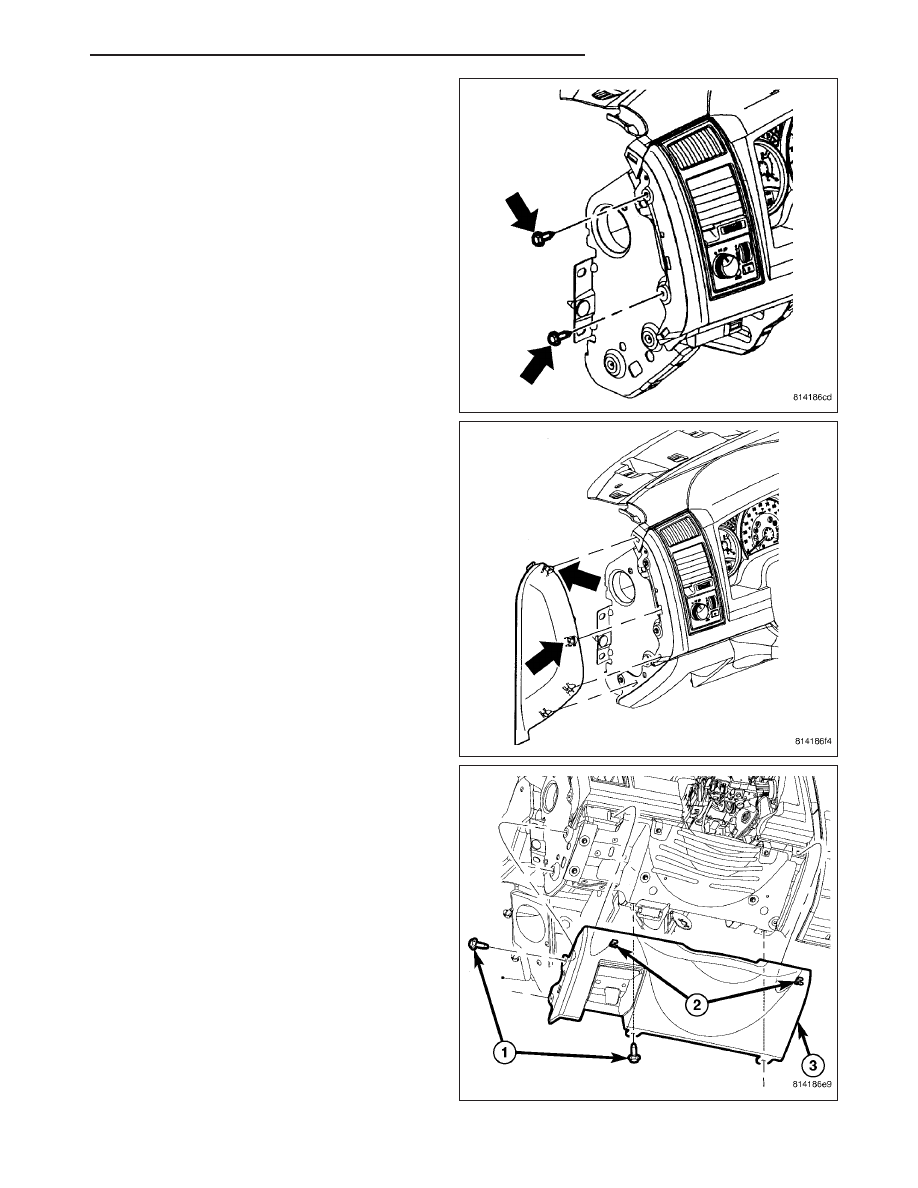

4. Install the screws.

5. Position the end cap and seat the retaining clips

fully.

6. Install the steering column opening cover (3).

(Refer

to

23

-

BODY/INSTRUMENT

PANEL/

STEERING

COLUMN

OPENING

COVER

-

INSTALLATION)

ND

INSTRUMENT PANEL

23 - 151
