Dodge Dakota (ND). Manual - part 1150

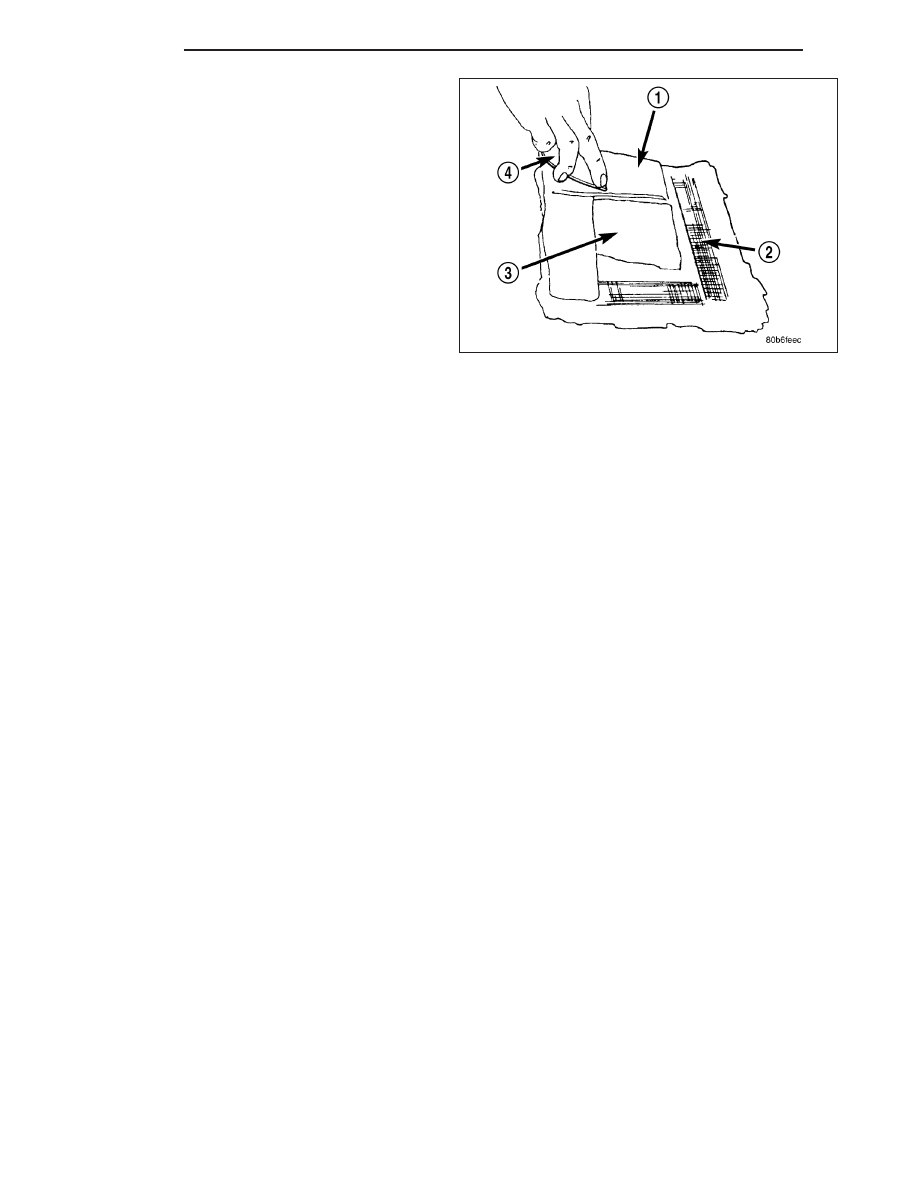

20. Apply adhesive over the mesh around patch, and
smooth epoxy with a wide spreader to reduce fin-
ish grinding. Use two to three layers of mesh and
adhesive to create a stronger repair.
PATCHED PANEL SURFACING
After patch panel is installed, the patch area can be finished using the same methods as finishing other types of
body panels. If mesh material is exposed in the patched area, grind surface down, and apply a coat of high quality
rigid plastic body filler. Prime, block sand, and paint as required.
BUZZ, SQUEAK & RATTLE
Buzz, Squeak & Rattles (BSR) may be caused by any one or more of the following and may be corrected as indi-
cated:
•
Loose fasteners should be tightened to specifications.
•
Damaged or missing clips should be replaced.
•
Damaged trim panels should be replaced.
•
Incorrectly installed trim panels should be reinstalled properly.

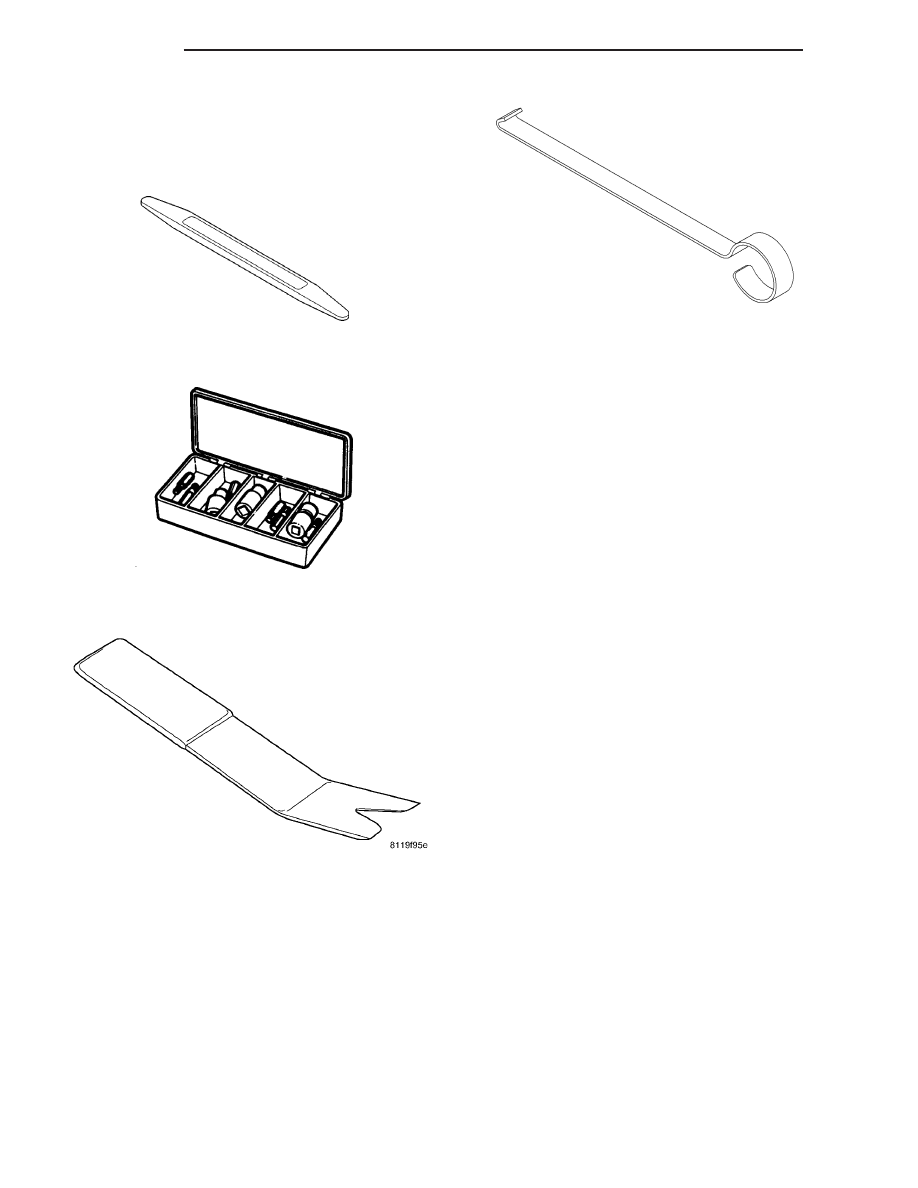

Many BSR complaints such as loose trim, can be serviced using the Mopar
T
Parts BSR Noise Reduction Kit. This
kit contains various tapes including foam, flock and anti-squeak used to eliminate noises caused by metal, plastic
and vinyl components. Long life lubricants and greases can also be used on a variety of components. Refer to the
Buzz, Squeak & Rattle Kit table for material contents and usage.
23 - 12
BODY
ND
