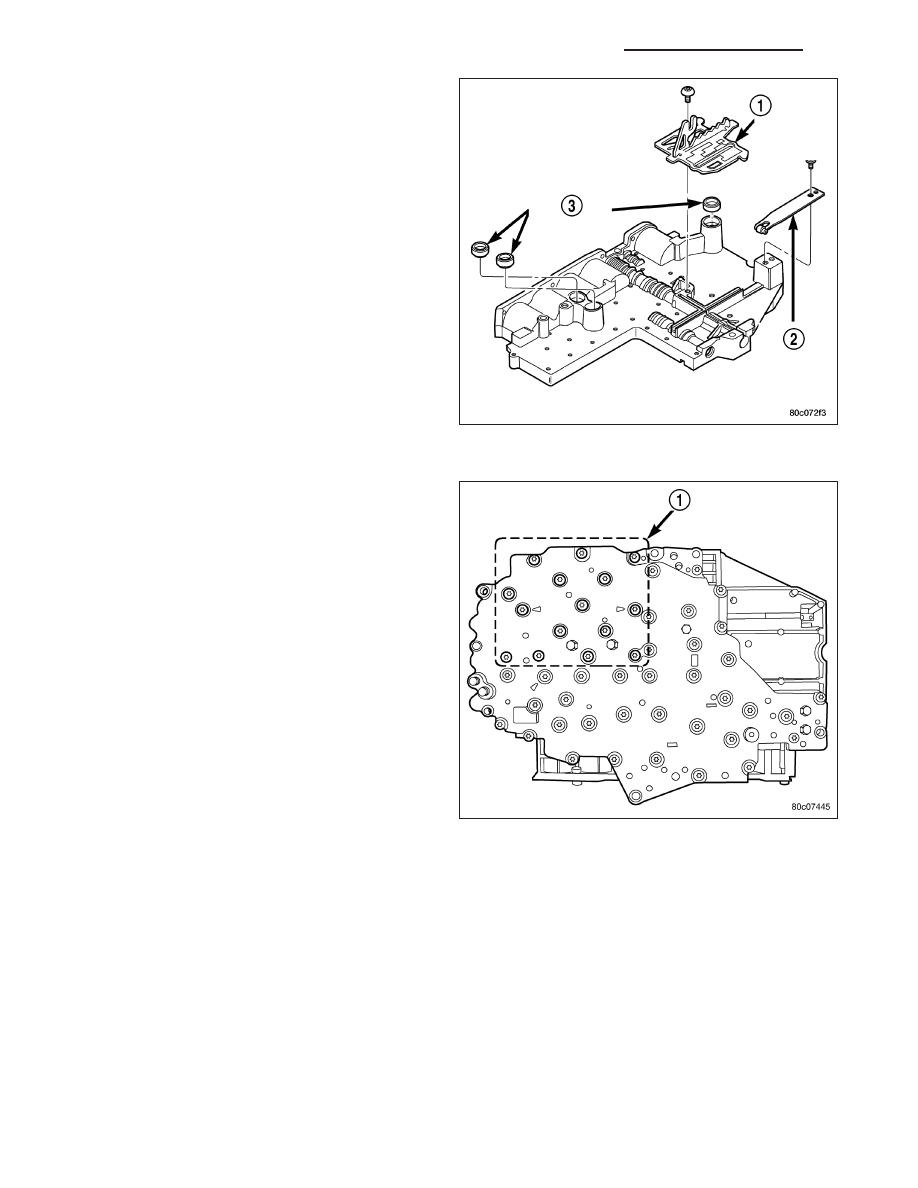

10. Install the TRS selector plate (1) onto the valve body and the manual valve. 11. Position the detent spring (2) onto the valve body. 12. Install the screw to hold the detent spring (2) onto the valve body. Tighten the screw to 4.5 N·m (40 13. Install new clutch passage seals (3) onto the valve body, if necessary. 14. Install the solenoid and pressure switch assembly onto the valve body. 15. Install the bolts (1) to hold the solenoid and pres- sure switch assembly onto the valve body. Tighten 21 - 824 AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION ND |
