Dodge Dakota (ND). Manual - part 97

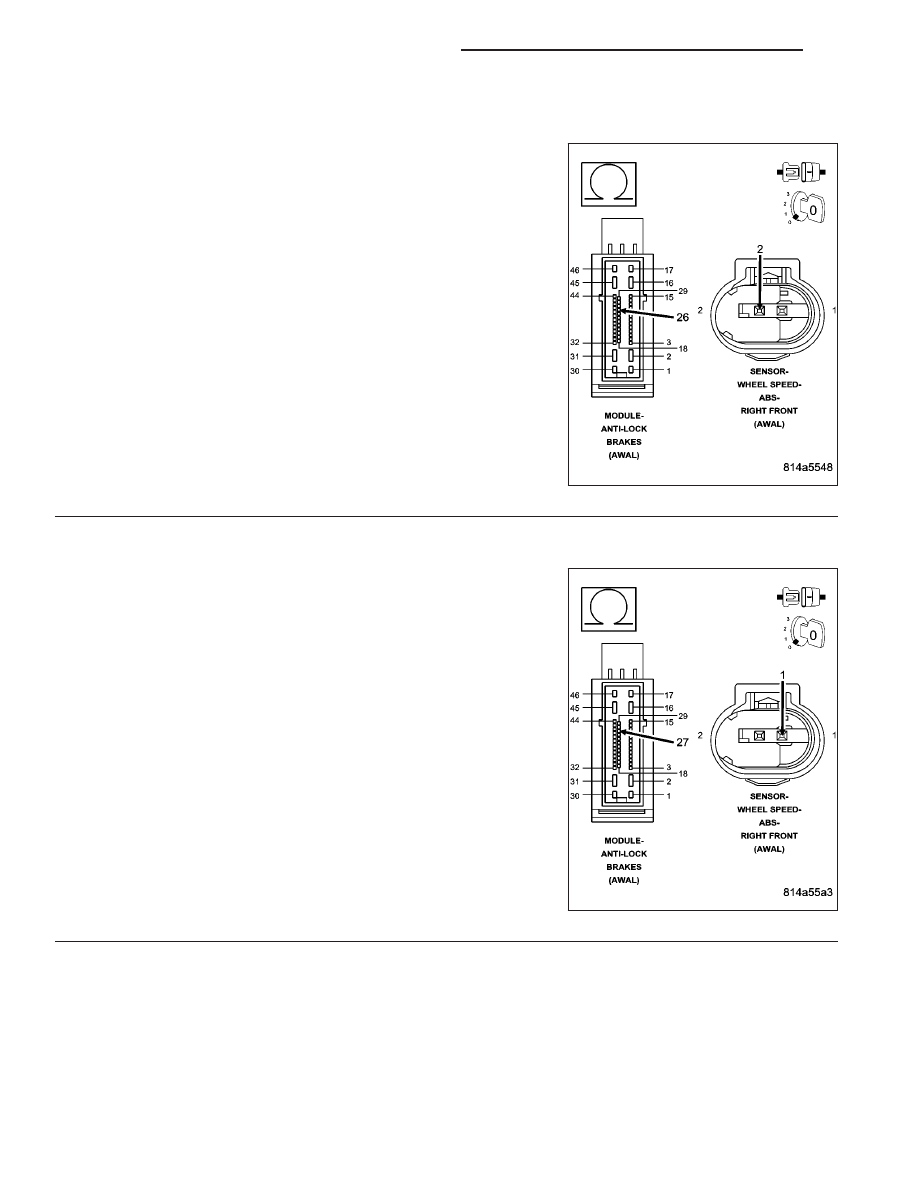

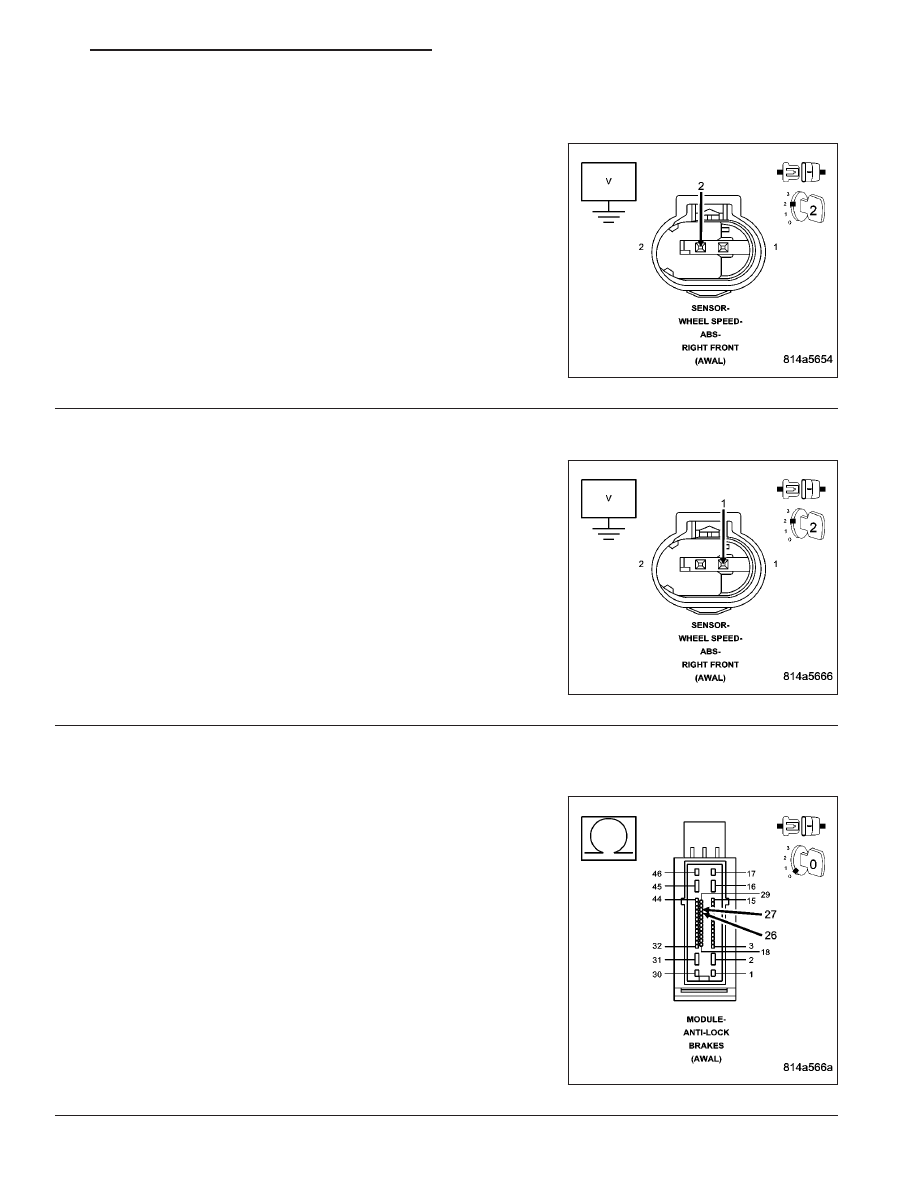

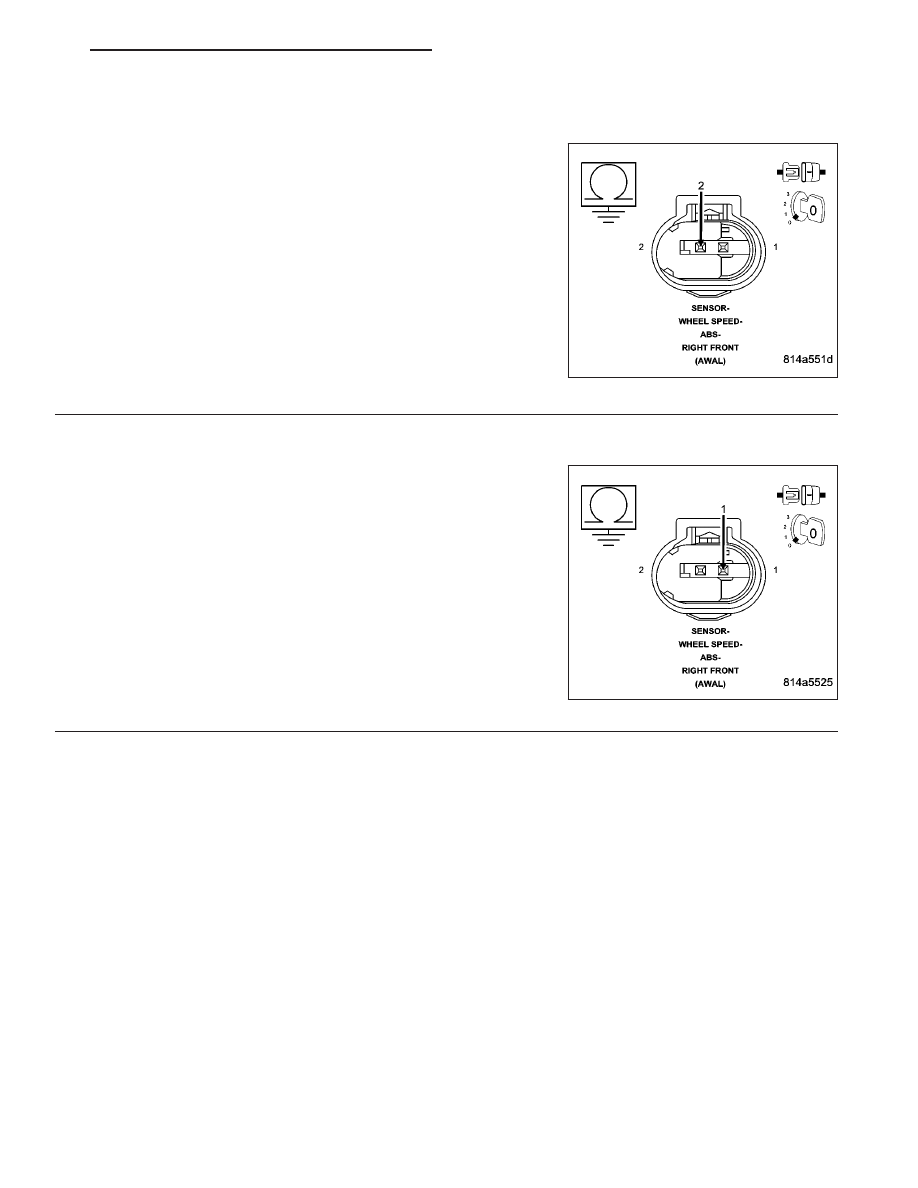

C1015-RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT (340) (CONTINUED)
2.
WHEEL SPEED SENSOR INSPECTION
Turn the ignition off.
Inspect the Wheel Speed Sensor for proper mounting.
Inspect the Wheel Speed Sensor harness and connector.
Inspect the Wheel Speed Sensor for excessive debris on the sensor.
Were any problems found?
Yes
>> Repair as necessary in accordance with the Service Information.
Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)
No
>> Go To 3
3.
TONE WHEEL DAMAGED/MISSING
Inspect the Tone Wheel in accordance with the Service Information.
NOTE: The Tone Wheel Teeth should be perfectly square, not bent or nicked.
Were any problems found?
Yes
>> Replace the Tone Wheel in accordance with the Service Information.
Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)
No
>> Go To 4
4.
EXCESSIVE WHEEL SPEED SENSOR AIR GAP
Measure the Wheel Speed Sensor Air Gap in accordance with the Service Information.
Were any problems found?
Yes
>> Repair as necessary in accordance with the Service Information.
Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)
No
>> Go To 5
5.
WHEEL BEARING LOOSE/BINDING
Inspect the wheel bearings for excessive run out or improper clearance in accordance with the Service Information.
Were any problems found?
Yes
>> Repair as necessary in accordance with the Service Information.
Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)
No
>> Go To 6
5 - 158
BRAKES - ABS ELECTRICAL DIAGNOSTICS
ND
