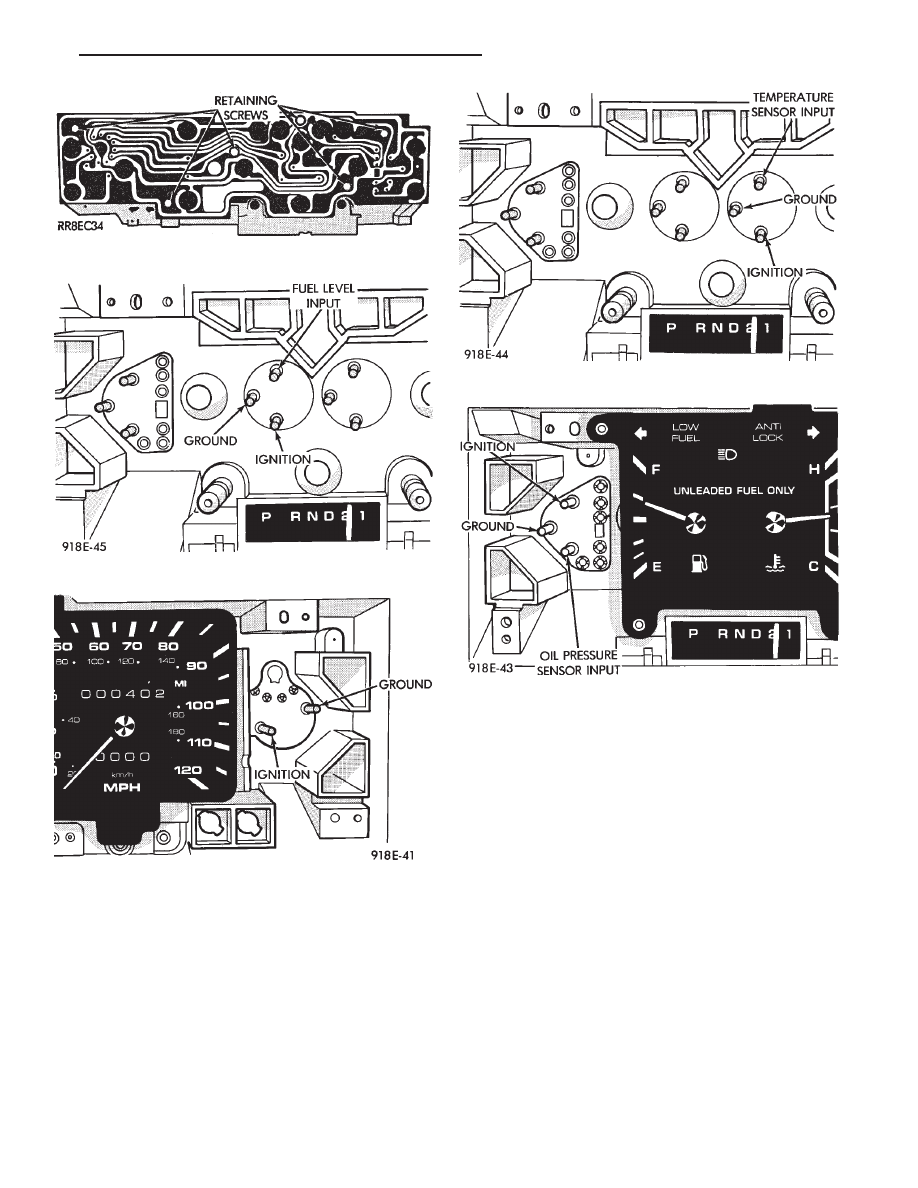

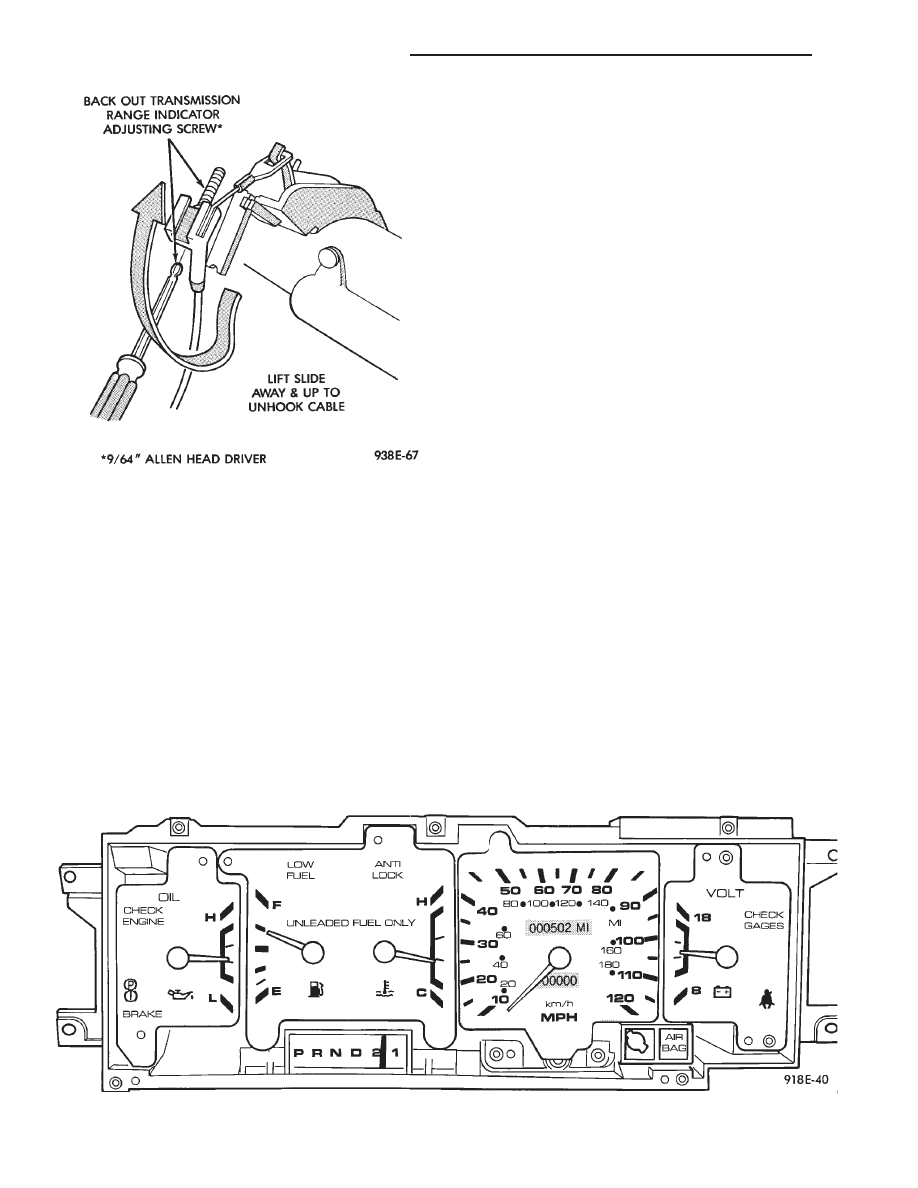

or bind the transmission range indicator guide tube (5) Adjust with tool if necessary to center pointer on N (Neutral) and check in other gears (Fig. 14). (6) Install upper and lower steering column cover. dio bezel. (8) Install cluster bezel. REMOVAL—CLUSTER WITHOUT TRANSMISSION RANGE (1) Remove cluster bezel (Fig. 10). panel. (3) Pull cluster rearward carefully, reach behind and disconnect the two harness connectors. (4) Carefully rotate cluster and remove the two transmission range indicator screws. (5) Remove cluster assembly. (a) Do not kink guide tube when installing clus- ter. (b) Replace guide tube behind fuse block. GAUGES It is not necessary to remove instrument cluster from vehicle for gauge replacement. When removing MULTIPLE GAUGE MALFUNCTION If all the instrument cluster gauges appear to be malfunctioning, remove the cluster assembly. • Check for ignition voltage between the IGN cavity • Check for continuity between the wire harness GAUGE INOPERATIVE (FIG. 17 THROUGH 20) (1) Remove gauge in question. voltage at ignition pin of gauge. Check for ground at (a) If no voltage or ground at gauge pins. Check cavity D red cluster connector for ignition voltage (b) If no voltage or ground, repair as necessary. Refer to 8W, Wiring Diagrams. Fig. 15 Cluster With Mask and Lens Removed Fig. 14 Transmission Range Indicator Step 4 8E - 28 INSTRUMENT PANEL AND GAUGES Ä |
