Chrysler Le Baron, Dodge Dynasty, Plymouth Acclaim. Manual - part 284

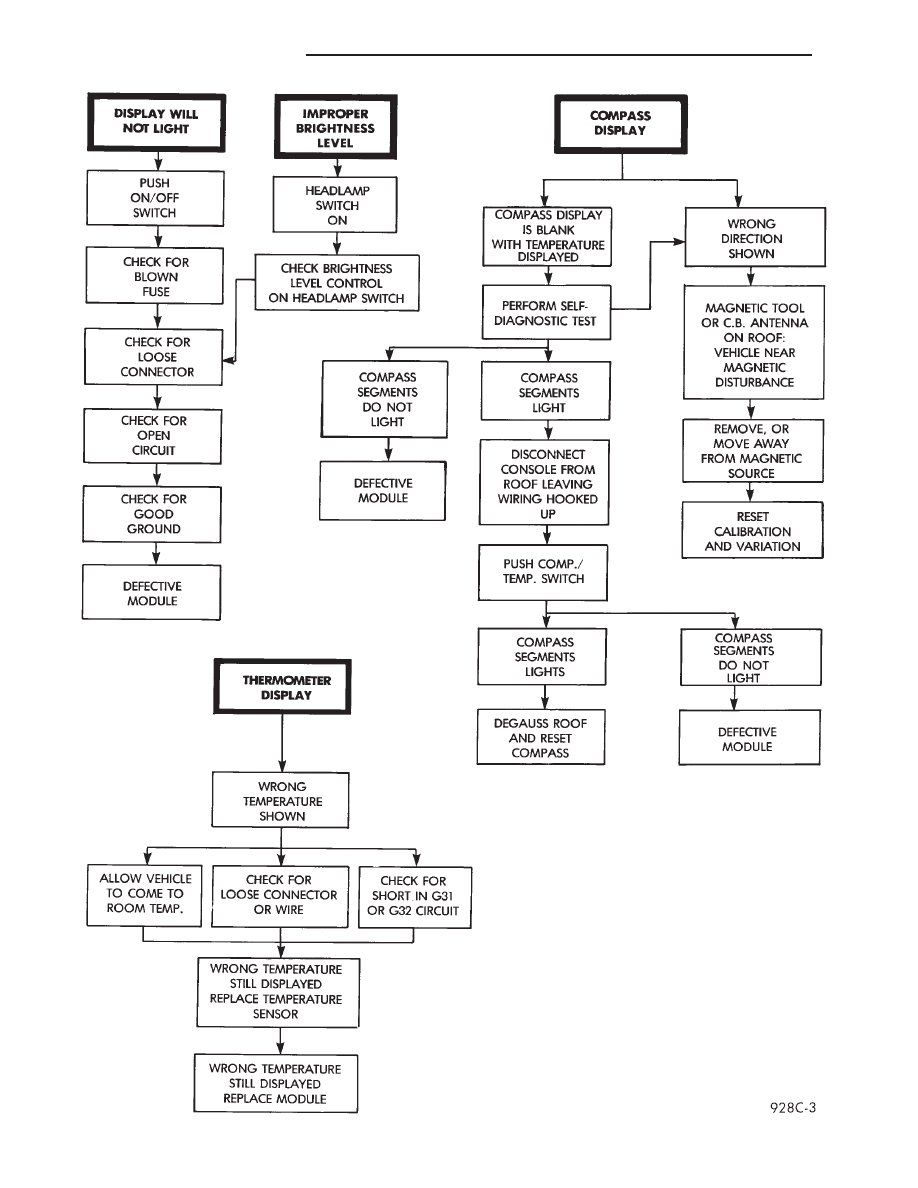

Fig. 5 Compass and Thermometer Diagnosis

8C - 24

OVERHEAD CONSOLE

Ä

Test 3 (d3) performs a walking segment test which,

sequentially puts different directions and numbers on
the display. If any segment fails, replace the compass
module.

OVERHEAD CONSOLE REPLACEMENT

(1) Unscrew the mounting screw in sun glass bin

compartment (Fig. 6).

(2) Slide console forward toward windshield until

the console unhooks from roof bracket.

(3) Disconnect wire harness from console.
(4) For installation reverse above procedures.

COMPASS MODULE REPLACEMENT

(1) Remove overhead console (Fig 6).
(2) Using a small screwdriver, release the 2 snaps

at rear of compass module (Fig. 7).

(3) After releasing the 2 snaps, slide compass mod-

ule rearward until free of mounting bar.

(4) For installation reverse above procedures.

AMBIENT TEMPERATURE SENSOR REMOVAL

(1) Raise and support vehicle on safety stands.
(2) Behind front bumper fascia, remove screw at-

taching sensor to radiator closure panel (Fig. 8).

(3) For installation, reverse above procedures.

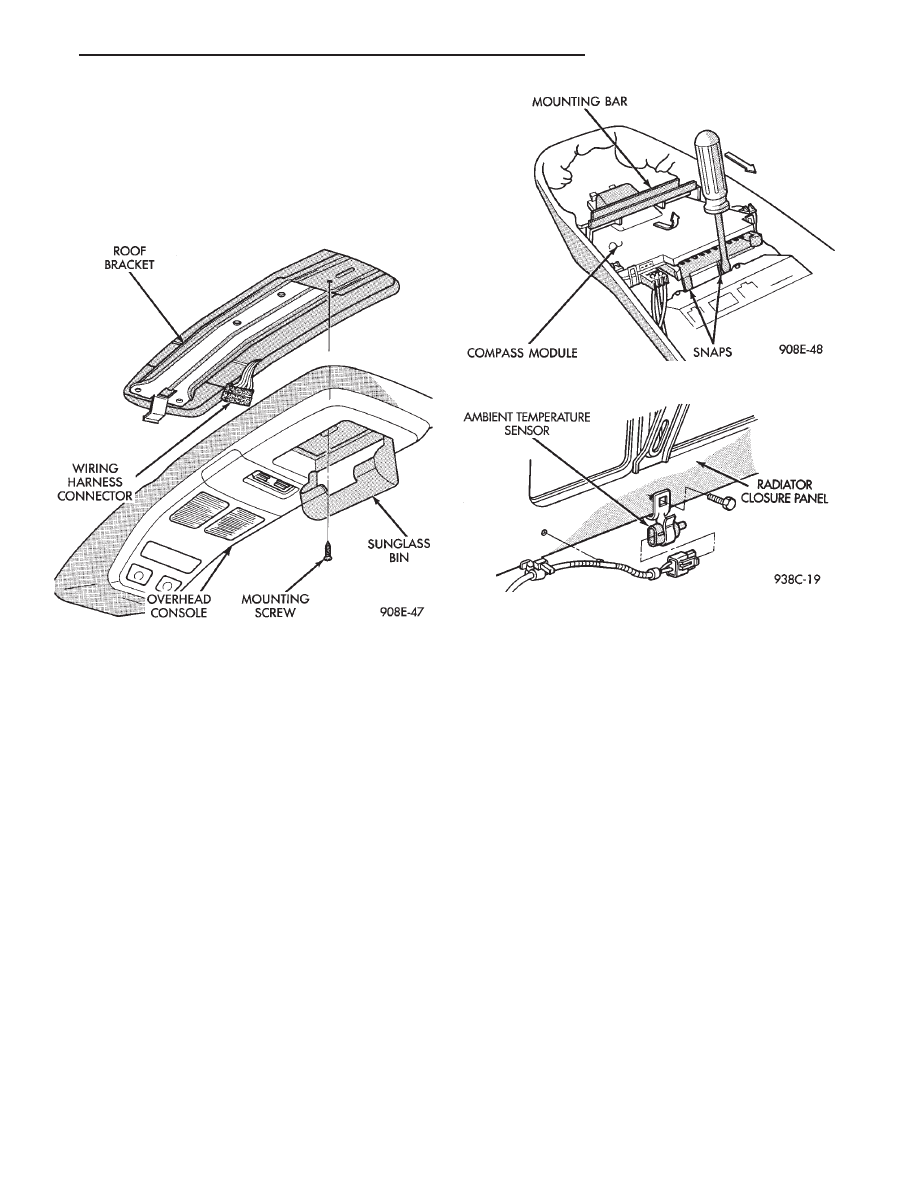

Fig. 6 Overhead Console Mounting

Fig. 7 Compass Module Removal

Fig. 8 Ambient Temperature Sensor

Ä

OVERHEAD CONSOLE

8C - 25

IGNITION SYSTEMS

CONTENTS

page

page

2.2L TBI, 2.5L TBI, 2.5L MPI AND 3.0L IGNITION

SYSTEMS—DIAGNOSTIC PROCEDURES

. . . . . 11

2.2L TBI, 2.5L TBI, 2.5L MPI AND 3.0L IGNI-

TION SYSTEMS—SERVICE PROCEDURES

14

2.2L TBI, 2.5L TBI, 2.5L MPI AND 3.0L IGNI-

TION SYSTEMS—SYSTEM OPERATION

. . . . 1

2.2L TURBO III, 3.3L AND 3.8L IGNITION

SYSTEM—DIAGNOSTIC PROCEDURES

. . . . 35

2.2L TURBO III, 3.3L AND 3.8L IGNITION

SYSTEM—SYSTEM OPERATION

. . . . . . . . . 24

2.2L TURBO III, 3.3L AND 3.8L IGNITION

SYSTEMS—SERVICE PROCEDURES

. . . . . . 39

IGNITION SWITCH

. . . . . . . . . . . . . . . . . . . . . . 45

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . . 47

GENERAL INFORMATION

Throughout this group, references are made to par-

ticular vehicles by letter designation. A chart ex-
plaining the designations appears in the Introduction
Section of this manual.

2.2L TBI, 2.5L TBI, 2.5L MPI AND 3.0L IGNITION SYSTEMS—SYSTEM

OPERATION

INDEX

page

page

Auto Shutdown (ASD) Relay and Fuel Pump Relay . 8
Coolant Temperature Sensor

. . . . . . . . . . . . . . . . . 7

Distributor Cap

. . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Distributor Pick-Up—3.0L Engine

. . . . . . . . . . . . . . 7

Distributor Pick-Up—PCM Input

. . . . . . . . . . . . . . . 6

General Information

. . . . . . . . . . . . . . . . . . . . . . . . 1

Ignition Coil

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Manifold Absolute Pressure (MAP) Sensor

. . . . . . 8

Powertrain Control Module (PCM)

. . . . . . . . . . . . . 6

Rotor

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Spark Plug Cables

. . . . . . . . . . . . . . . . . . . . . . . . 2

Spark Plugs

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

GENERAL INFORMATION

This section describes the ignition systems of the

2.2L TBI, 2.5L TBI, 2.5L MPI (flexible fuel AA-body)
and 3.0L engines.

The Fuel Injection sections of Group 14 explain On

Board Diagnostics.

Group 0, Lubrication and Maintenance, contains

general maintenance information for ignition related
items. The Owner’s Manual also contains mainte-
nance information.

DISTRIBUTOR CAP

Remove the distributor cap and inspect the inside

for flash over, cracking of carbon button, lack of
spring tension on carbon button, cracking of cap, and
burned, worn terminals (Fig. 1). Also check for bro-
ken distributor cap towers. If any of these conditions
are present the distributor cap and/or cables should
be replaced.

When replacing the distributor cap, transfer cables

from the original cap to the new cap one at a time.
Ensure each cable is installed into the corresponding

tower of the new cap. Fully seat the wires into the
towers. If necessary, refer to the appropriate engine
firing order diagram (Fig. 2 or Fig. 3).

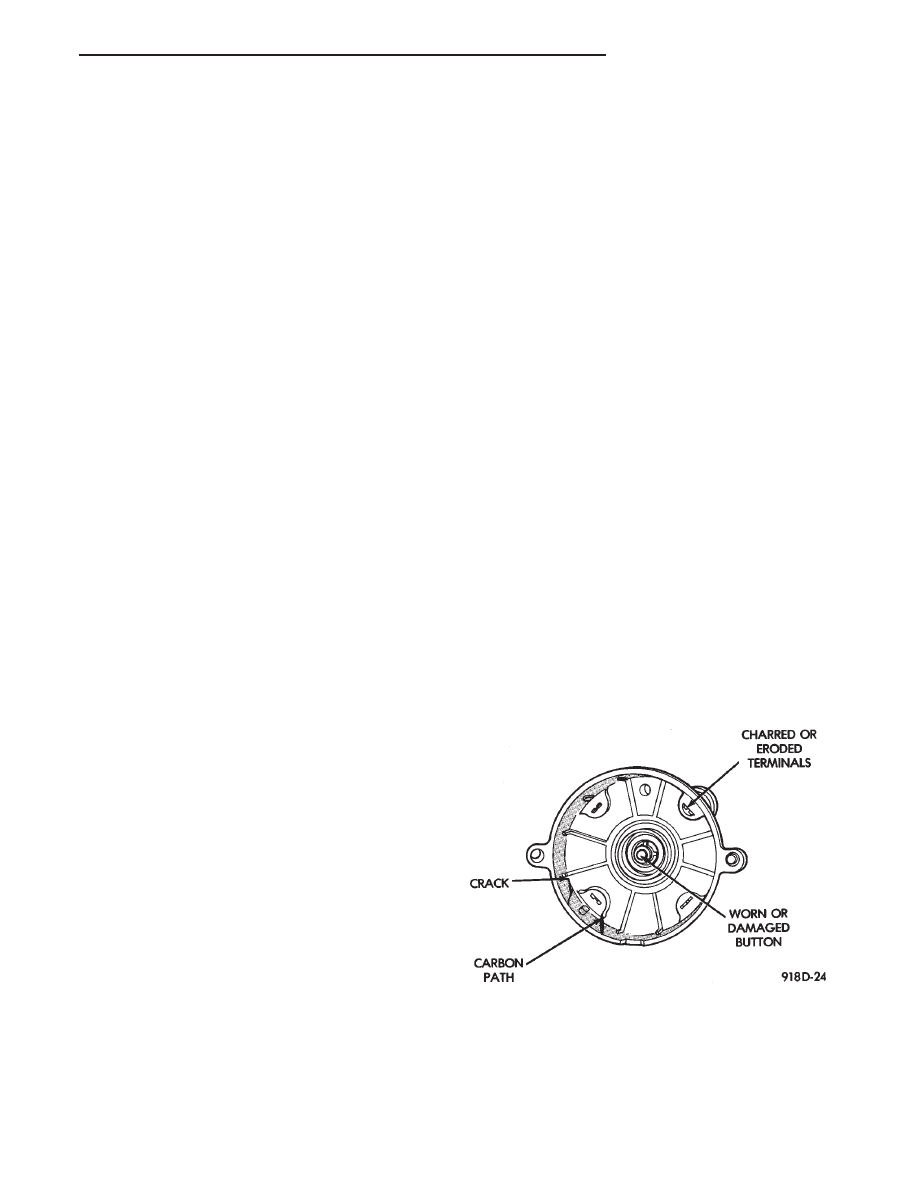

Fig. 1 Distributor Cap Inspection

Ä

IGNITION SYSTEMS

8D - 1
