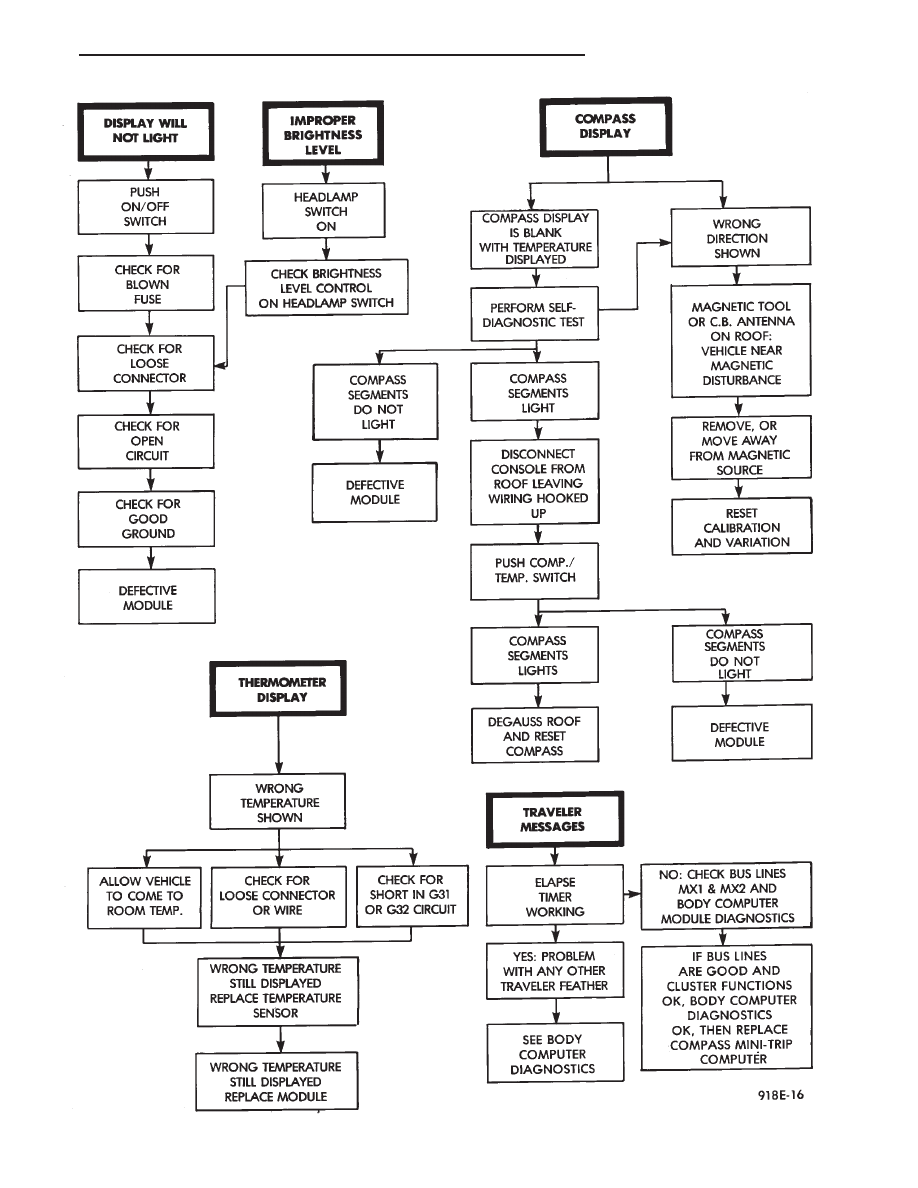

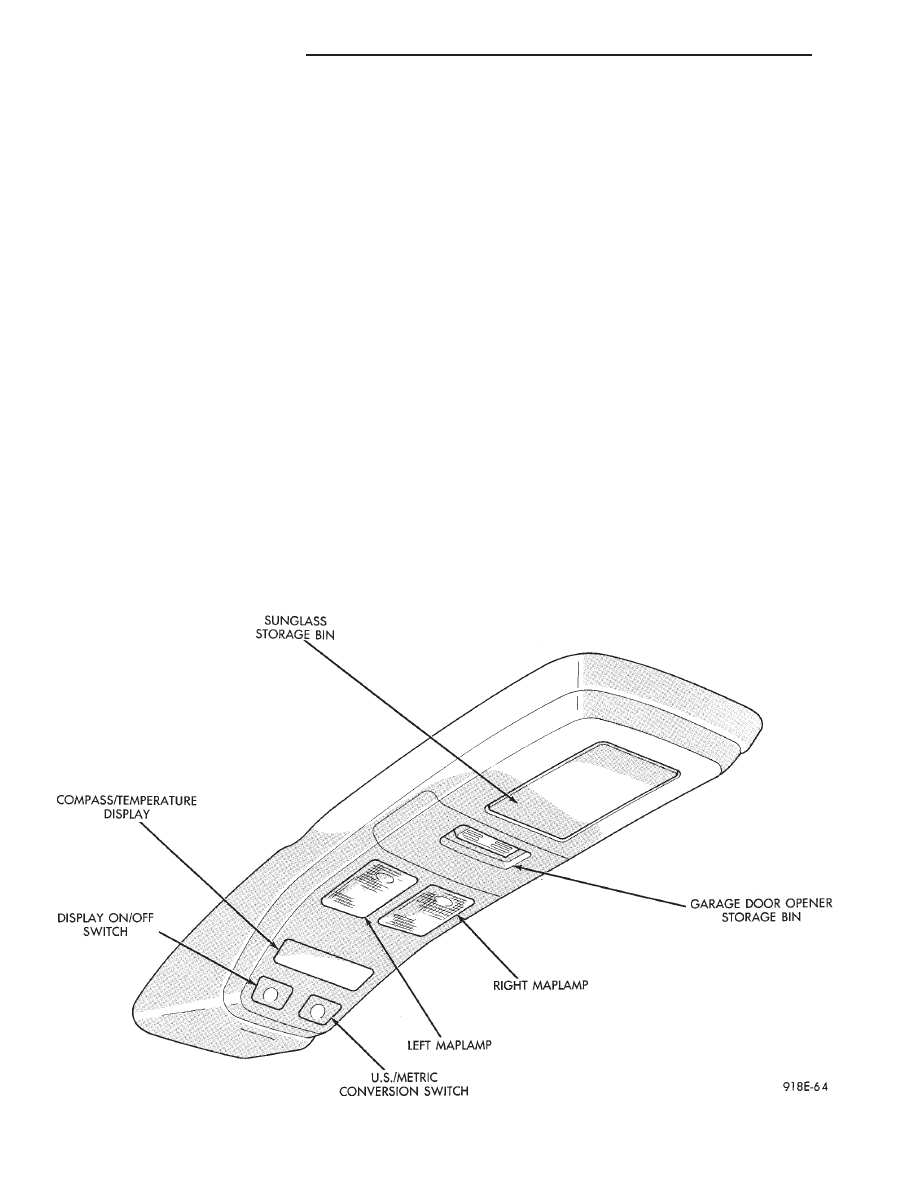

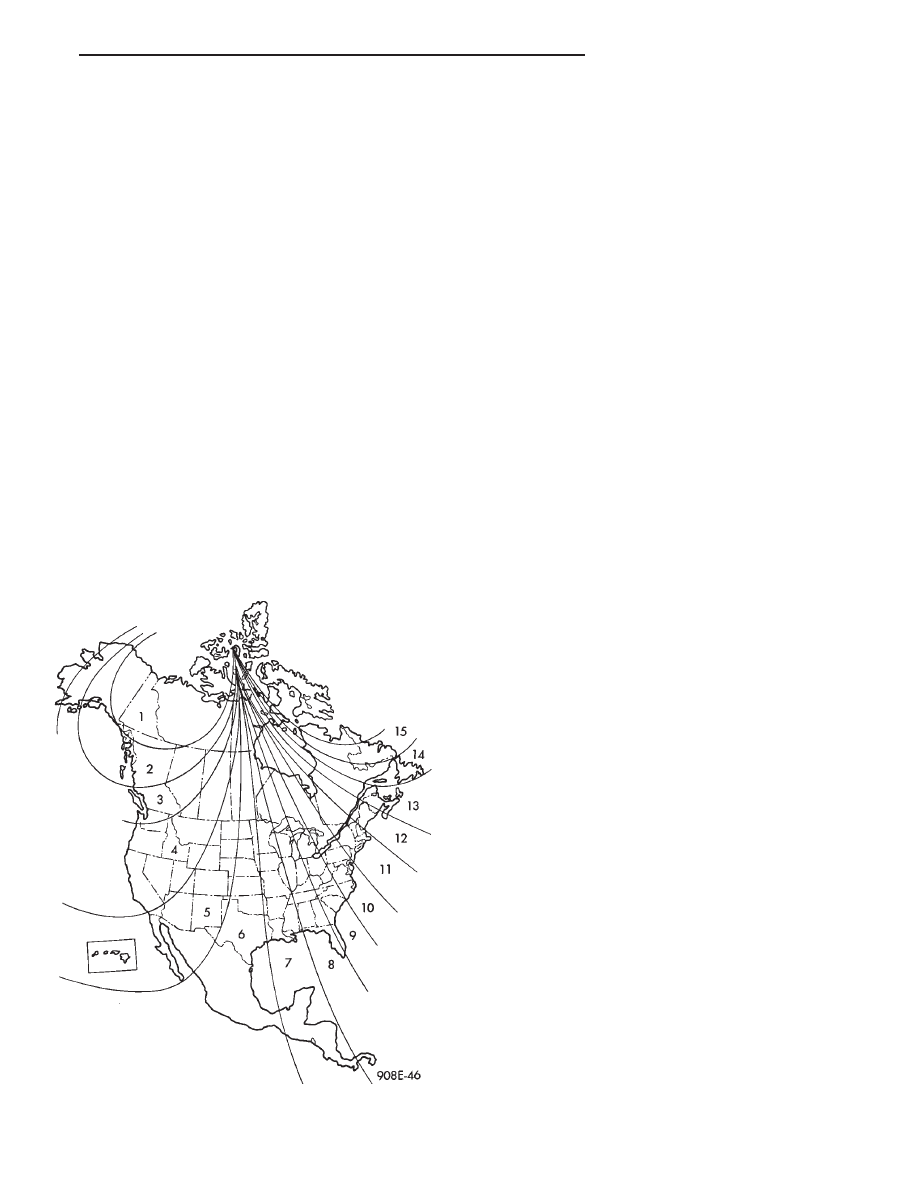

The Engine Compartment Node is located behind the grille. For complete diagnostic procedures for the Engine Compartment Node, refer to the Body Diagnostic ENGINE COMPARTMENT NODE COMPASS Automatic or Manual Calibration, refer to AY Body Compass Calibration. THERMOMETER AND COMPASS OPERATION The ignition switch must be in the ON or ACCES- SORY position before the temperature and compass When the vehicle is standing still, engine compart- ment temperatures may be radiated to the tempera- When the ignition switch is in the ON position the temperature display is updated every 5 minutes. the ignition switch is turned on again the thermom- COMPASS CALIBRATION Do not attempt to set the compass near large metal objects, such as, other vehicles, large buildings, or The compass unit automatically calibrates itself as the vehicle is driven; therefore, no calibration should If the vehicle’s compass headings are inaccurate, the compass also can be manually calibrated using (1) Depress and hold down both the Comp/Temp button and the U.S./Metric button. (2) The display will go off and after 5 seconds the VAR light will come on. Continue to hold both but- (3) In approximately 10 seconds, the CAL light will come on. Release both buttons and the display Fig. 4 Overhead Console 8C - 16 OVERHEAD CONSOLE Ä |
