Chrysler Le Baron, Dodge Dynasty, Plymouth Acclaim. Manual - part 133

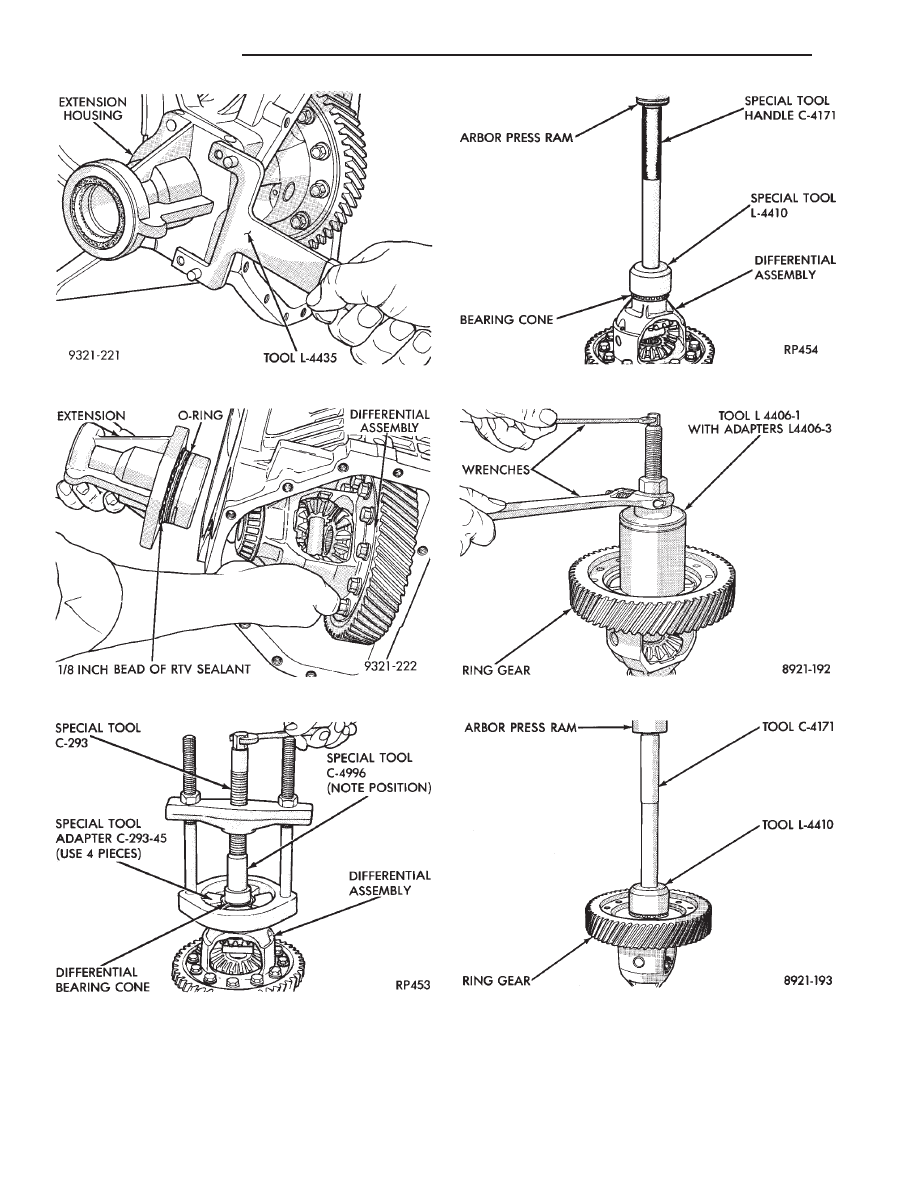

Fig. 9 Remove or Install Extension

Fig. 10 Differential and Extension

Fig. 11 Remove Differential Bearing Cone

Fig. 12 Install Differential Bearing Cone

Fig. 13 Remove Differential Bearing Cone

Fig. 14 Install Differential Bearing Cone

21 - 138

TRANSAXLE

Ä

CAUTION: Always install NEW ring gear bolts. Bolts
must be properly torqued.

CAUTION: Side gear end play must be within .001
to .013 inch.

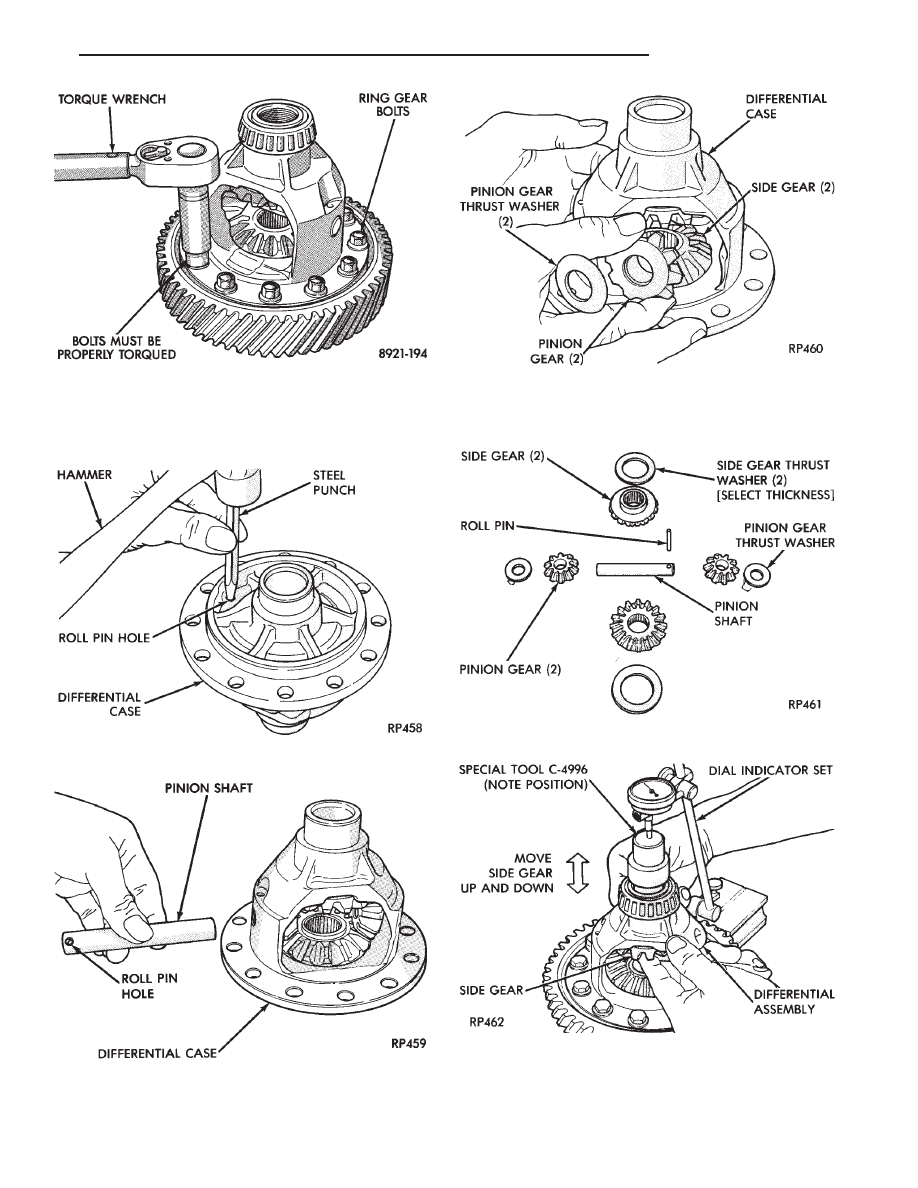

Fig. 15 Torque New Ring Gear Bolts to 95 N

I

m (70

ft. lbs.)

Fig. 16 Remove Pinion Shaft Roll Pin

Fig. 17 Remove or Install Pinion Shaft

Fig. 18 Remove or Install Pinion Gears, Side Gears,

and Tabbed Thrust Washers, by Rotating Pinion

Gears to Opening in Differential Case

Fig. 19 Differential Gears

Fig. 20 Checking Side Gear End Play

Ä

TRANSAXLE

21 - 139

Four select thrust washers are available: .032,

.037, .042, and .047 inch.

CAUTION: Side gear end play must be within .001
to .013 inch.

Four select thrust washers are available: .032,

.037, .042, and .047 inch.

DETERMINING SHIM THICKNESS

Shim thickness need only be determined if any of

the following parts are replaced:
• Transaxle case

• Differential carrier

• Differential bearing retainer

• Extension housing

• Differential bearing cups and cones

Refer to Bearing Adjustment Procedure in rear

of this section to determine proper shim thickness for
correct bearing preload and proper bearing turning
torque.

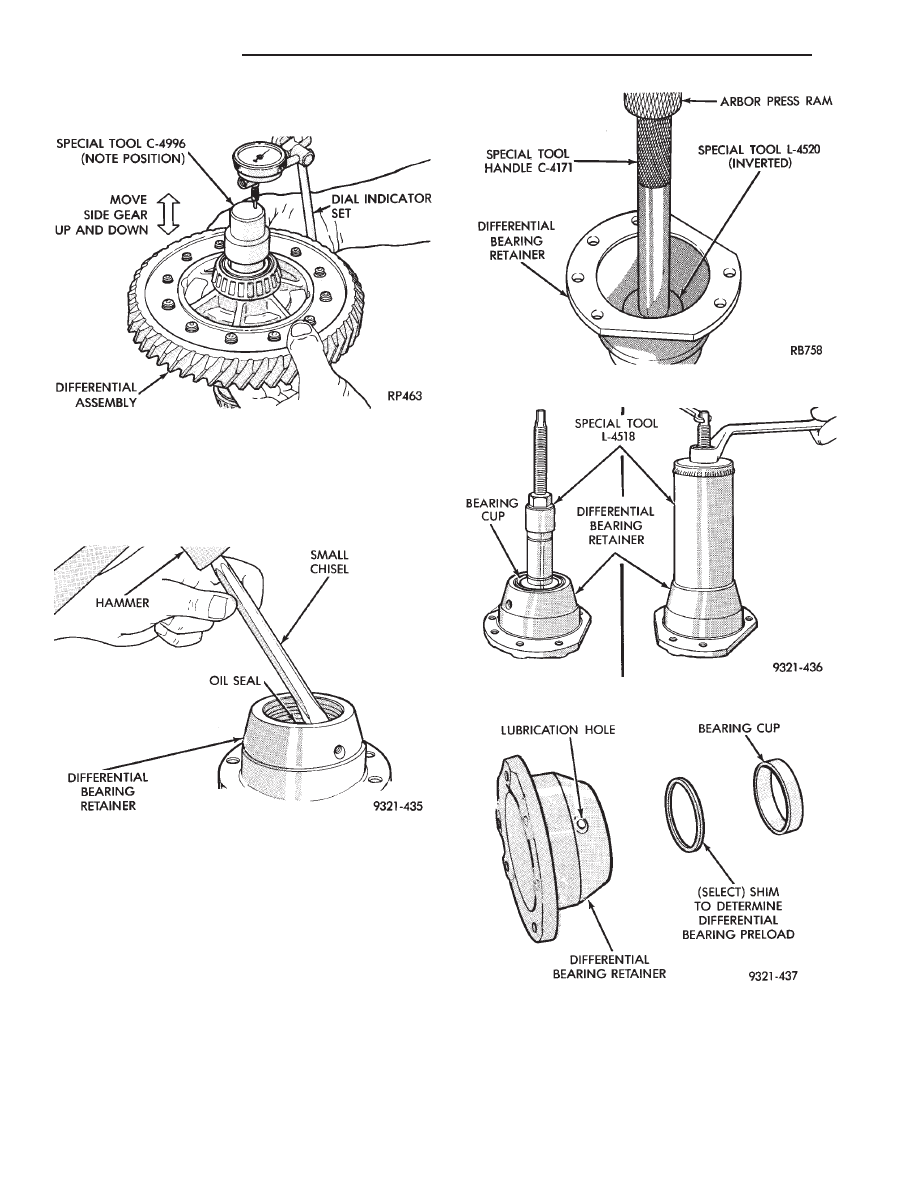

Fig. 21 Checking Side Gear End Play

Fig. 22 Remove Oil Seal

Fig. 23 Install New Oil Seal

Fig. 24 Remove Bearing Cup

Fig. 25 Differential Bearing Retainer

21 - 140

TRANSAXLE

Ä

When rebuilding, reverse the above procedure.
Remove old sealant before applying new seal-

ant. Use MOPAR

Adhesive Sealant on retainer

to seal retainer to case.

BEARING ADJUSTMENT PROCEDURE

GENERAL RULES ON SERVICING BEARINGS

(1) Take extreme care when removing and in stalling

bearing cups and cones. Use only an arbor press for
installation,
as a hammer may not properly align the
bearing cup or cone. Burrs or nicks on the bearing seat
will give a false end play reading, while gauging for
proper shims. Improperly seated bearing cup and cones
are subject to low-mileage failure.

(2) Bearing cups and cones should be replaced if they

show signs of pitting or heat distress.

If distress is seen on either the cup or bearing rollers,

both cup and cone must be replaced.

Bearing end play and drag torque specifica-

tions must be maintained to avoid premature
bearing failures.

Used (original) bearing may lose up to 50
of the original drag torque after break-in.
All bearing adjustments must be made with no

other component interference or gear inter-
mesh, except the transfer gear bearing.

Oil all bearings before checking turning torque.

OUTPUT GEAR BEARING

With output gear removed:
(1) Install a 4.50 mm (0.177 inch) gauging shim on

the rear carrier assembly hub, using grease to hold the
shim in place.

(2) Install output gear and bearing assembly. Torque

to 271 N

Im (200 ft. lbs.).

(3) To measure bearing end play:

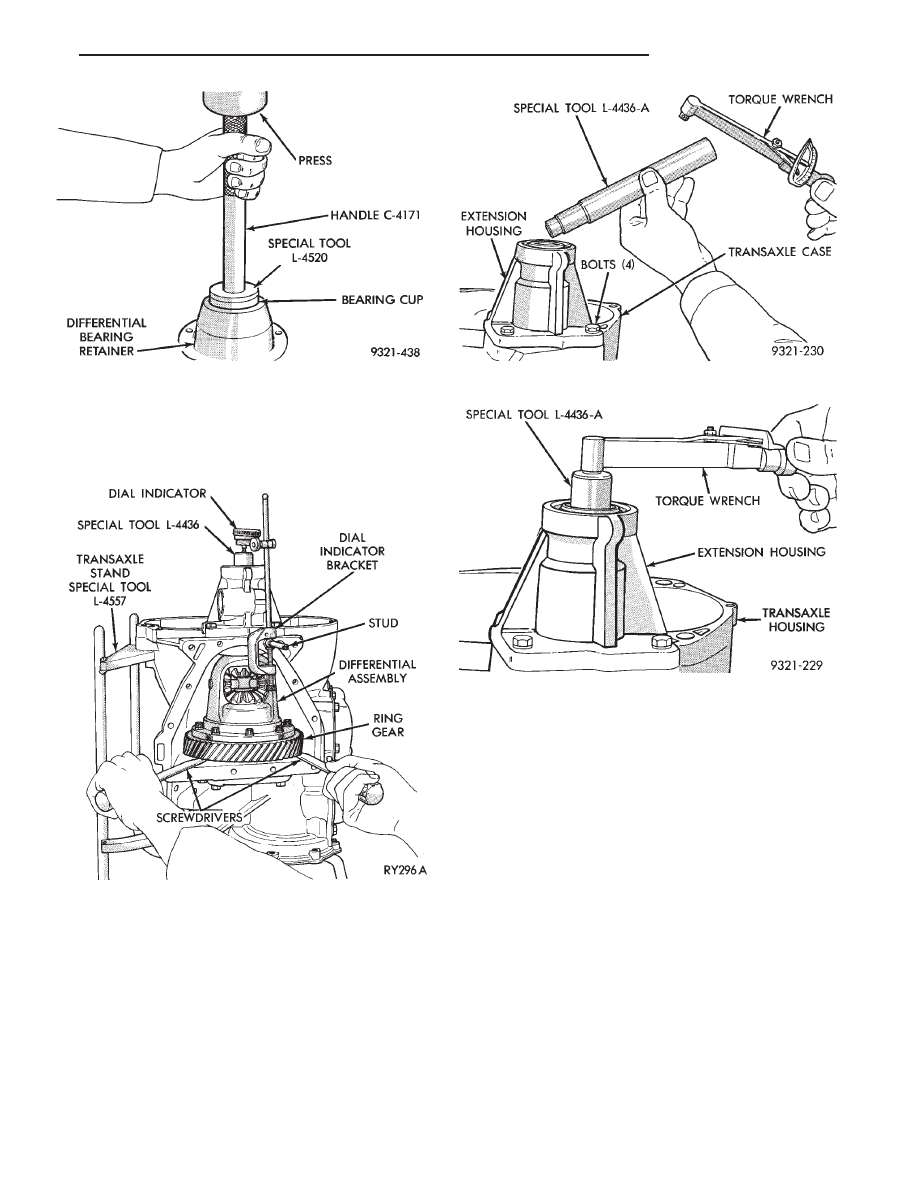

Fig. 26 Install Bearing Cup

Fig. 27 Checking Differential End Play

Fig. 28 Tool L-4436 and Torque Wrench

Fig. 29 Checking Differential Bearings Turning

Torque

Ä

TRANSAXLE

21 - 141
