WARNING: HOLD ONTO DIFFERENTIAL ASSEMBLY
TO PREVENT IT FROM ROLLING OUT OF HOUSING.

Use MOPAR

t Adhesive Sealant when installing ex-

tension housing.

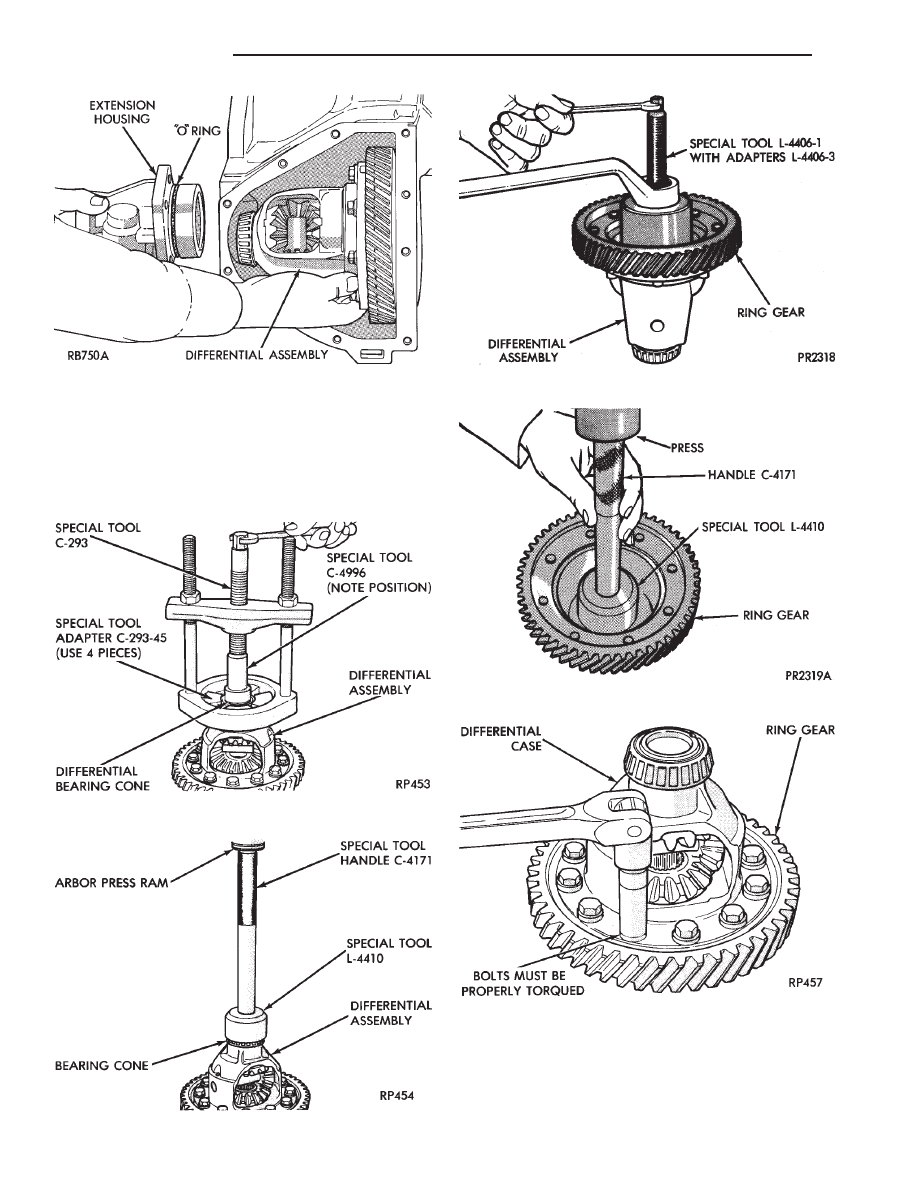

Fig. 10 Differential and Extension

Fig. 11 Remove Differential Bearing Cone

Fig. 12 Install Differential Bearing Cone

Fig. 13 Remove Differential Bearing Cone

Fig. 14 Install Differential Bearing Cone

Fig. 15 Remove or Install Ring Gear Bolts and Ring

Gear

21 - 78

TRANSAXLE

Ä

CAUTION: Always install new ring gear bolts. Bolts
must be properly torqued.

CAUTION: Side gear end play must be within .001
to .013 inch.

Four select thrust washers are available: .032,

.037, .042, and .047 inch.

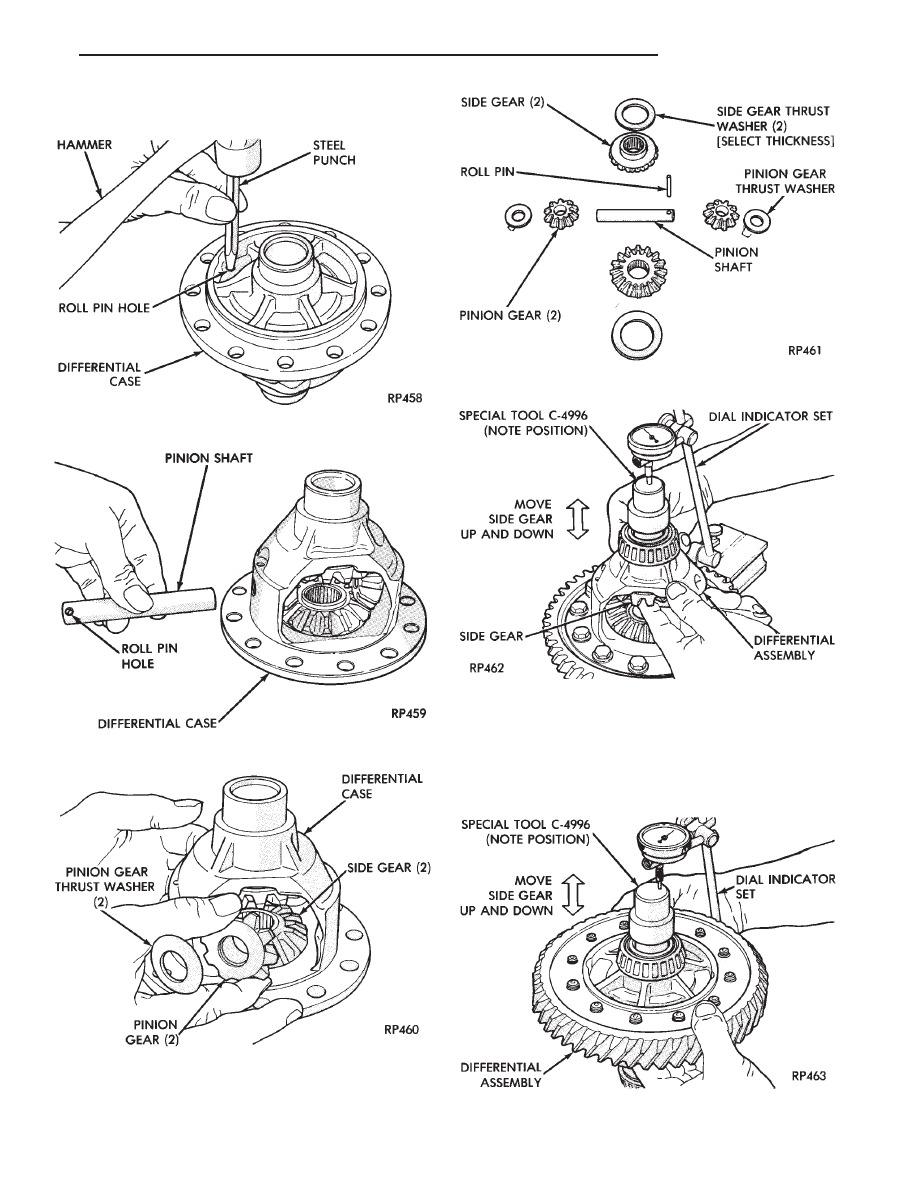

Fig. 16 Remove Pinion Shaft Roll Pin

Fig. 17 Remove or Install Pinion Shaft

Fig. 18 Remove or Install Pinion Gears, Side Gears,

and Tabbed Thrust Washers, by Rotating Pinion

Gears to Opening in Differential Case

Fig. 19 Differential Gears

Fig. 20 Checking Side Gear End Play

Fig. 21 Checking Side Gear End Play

Ä

TRANSAXLE

21 - 79

CAUTION: Side gear end play must be within .001 to
.013 inch.

Four select thrust washers are available: .032,

.037, .042, and .047 inch.

DETERMINING SHIM THICKNESS

Shim thickness need only be determined if any of

the following parts are replaced:
• Transaxle case

• Differential carrier

• Differential bearing retainer

• Extension housing

• Differential bearing cups and cones

Refer to Bearing Adjustment Procedure in rear

of this section to determine proper shim thickness for
correct bearing preload and proper bearing turning
torque.

When rebuilding, reverse the above procedure.

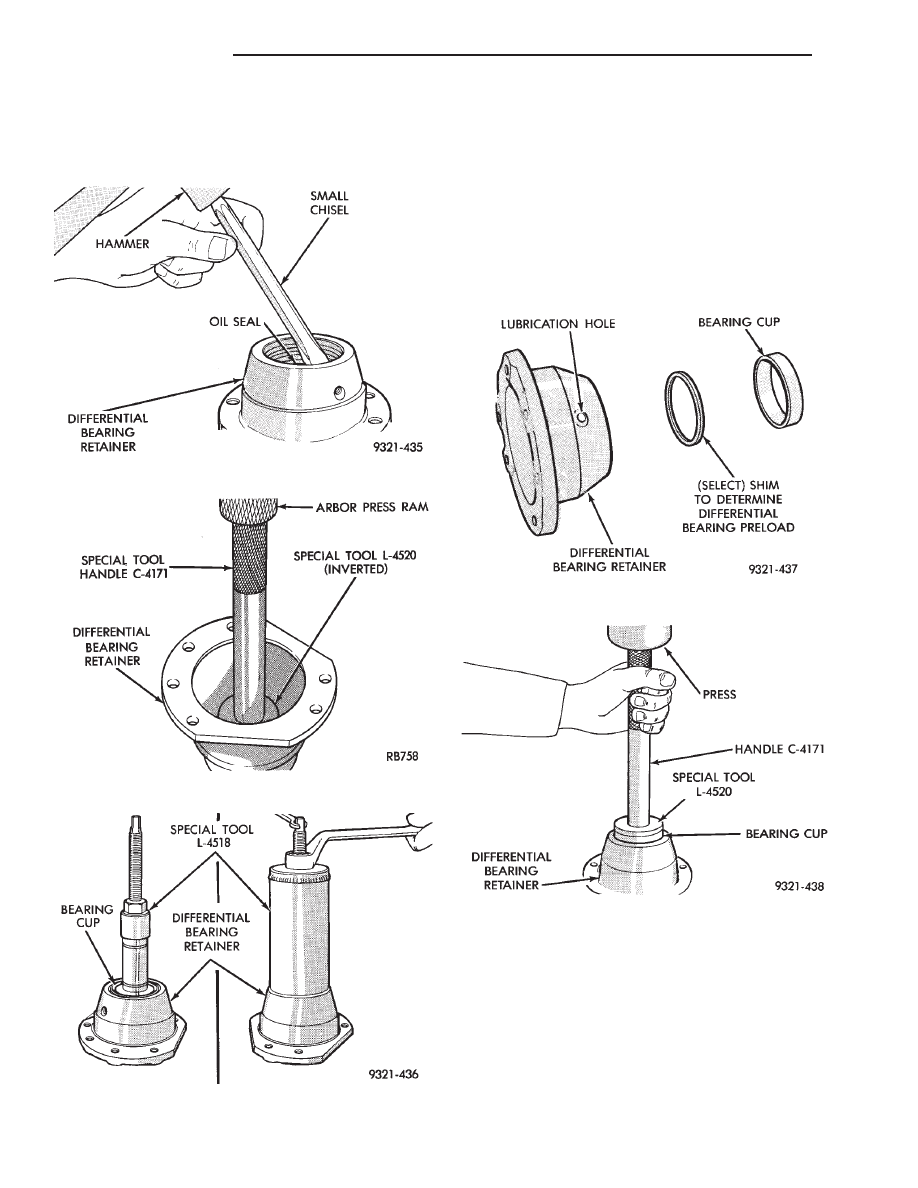

Fig. 25 Differential Bearing Retainer

Fig. 26 Install Bearing Cup

Fig. 22 Remove Oil Seal

Fig. 23 Install New Oil Seal

Fig. 24 Remove Bearing Cup

21 - 80

TRANSAXLE

Ä

Remove old sealant before applying new seal-

ant. Use MOPAR

Adhesive Sealant on retainer

to seal retainer to case.

BEARING ADJUSTMENT PROCEDURES

GENERAL RULES ON SERVICING BEARINGS

(1) Take extreme care when removing and in stalling

bearing cups and cones. Use only an arbor press for
installation,
as a hammer may not properly align the
bearing cup or cone. Burrs or nicks on the bearing seat
will give a false end play reading, while gauging for
proper shims. Improperly seated bearing cup and cones
are subject to low-mileage failure.

(2) Bearing cups and cones should be replaced if they

show signs of pitting or heat distress.

If distress is seen on either the cup or bearing rollers,

both cup and cone must be replaced.

Bearing end play and drag torque specifica-

tions must be maintained to avoid premature
bearing failures.

Used (original) bearing may lose up to 50 of the

original drag torque after break-in.

All bearing adjustments must be made with no

other component interference or gear inter-
mesh, except the transfer gear bearing.

OUTPUT SHAFT BEARING

With output shaft gear removed.
(1) Install a 13.65 mm (.537 inch) and a 1.34 mm

(.053 inch) gauging shims on the planetary rear annu-
lus gear hub using grease to hold the shims in place.
The 13.65 mm shim has a larger inside diameter and
must be installed over the output shaft first. The 1.34
mm shim pilots on the output shaft.

(2) Install output shaft gear and bearing assembly,

torque to 271 N

Im (200 ft. lbs.).

(3) To measure bearing end play:

(a) Attach Tool L-4432 to the output shaft gear.
(b) Mount a steel ball with grease into the end of

the output shaft.

(c) Push and pull the gear while rotating back and

forth to insure seating of the bearing rollers.

(d) Using a dial indicator, mounted to the tran-

saxle case, measure output shaft end play.
(4) Once bearing end play has been determined,

refer to the output shaft bearing shim chart for the
required shim combination to obtain proper bearing
setting.

(a) The 12.65 mm (.498 inch), 13.15 mm (.518 inch)

or 13.65 mm (.537 inch) shims are always in-

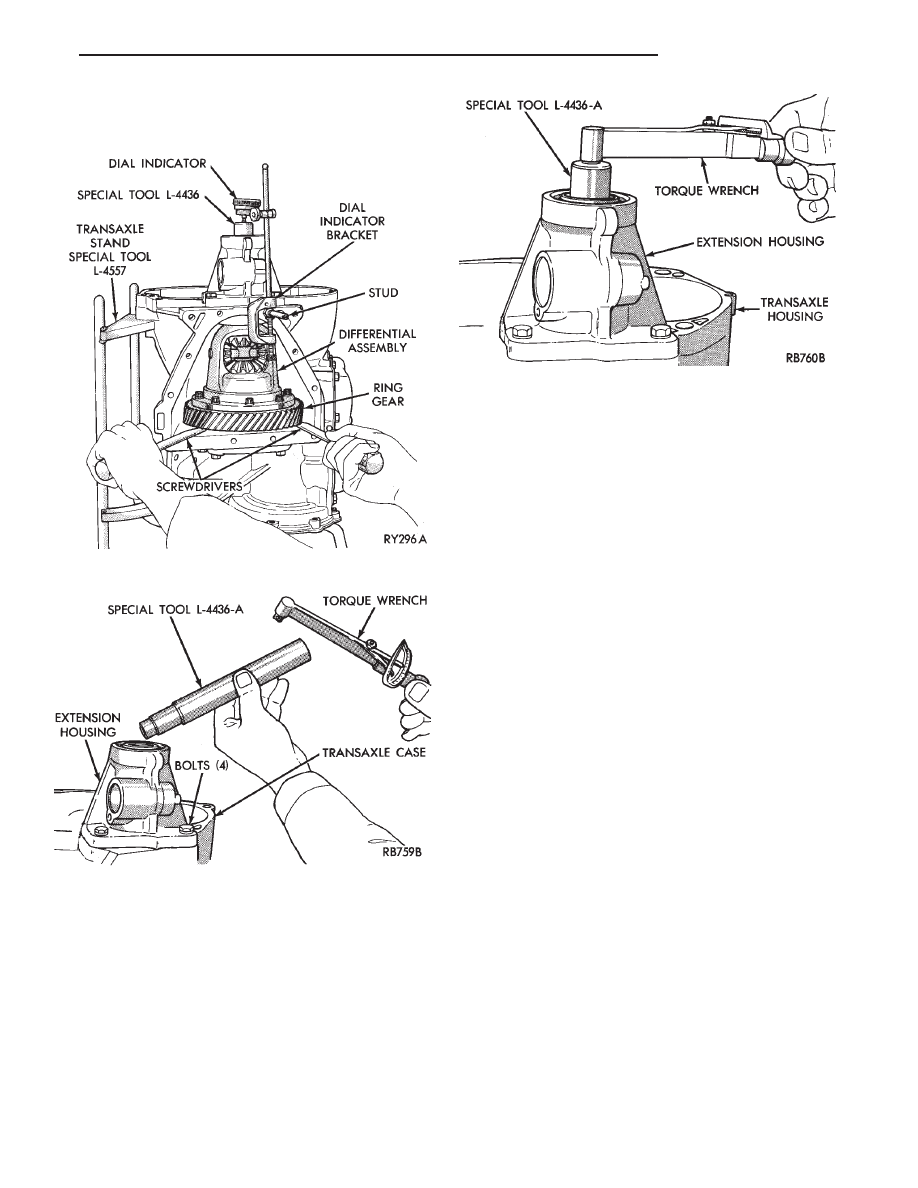

Fig. 27 Checking Differential End Play

Fig. 28 Tool L-4436 and Torque Wrench

Fig. 29 Checking Differential Bearings Turning

Torque

Ä

TRANSAXLE

21 - 81
