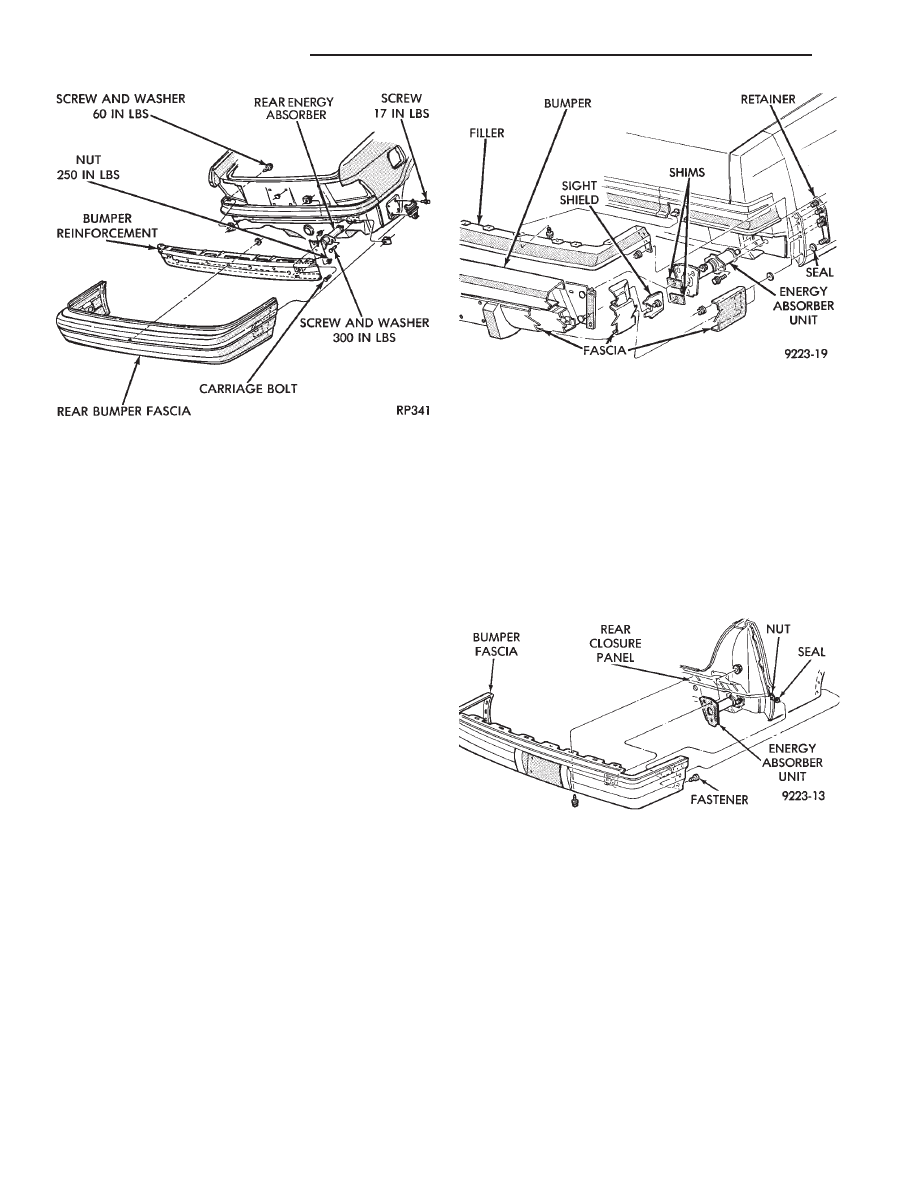

AY-VEHICLE REAR BUMPER REAR BUMPER REMOVAL—AY/P-BODY (FIG. (1) Remove nuts holding fascia to quarter panel ends. (2) Support bumper assembly on suitable lifting device and remove bolts holding bumper reinforce- (3) Separate bumper from vehicle. INSTALLATION Reverse the preceding operation. Align bumper height to fit flush to bottom of tail lamp. REAR BUMPER OVERHAUL—AY/P-BODY (1) Position bumper assembly on a suitable padded work surface to avoid damage to painted fascia. (2) Remove bolts holding bumper face bar to rein- forcement and separate face bar from assembly. (3) Remove push-in fasteners holding fascia to re- inforcement. (4) Remove upper reinforcement to fascia attaching bolts and separate reinforcement from fascia. REAR BUMPER ASSEMBLY Reverse the preceding operation. REAR BUMPER REMOVAL—AY/S-BODY (FIG. (1) In luggage compartment, separate liners from quarter panels to gain access to fascia nuts. (2) Remove nuts holding bumper fascia to quarter panels. (3) Remove fasteners holding bumper fascia to wheel opening flange. (4) Disconnect license plate lamp wire connectors. panel. (6) Remove nuts holding bumper to energy ab- sorber units. (7) Separate bumper from vehicle. INSTALLATION Reverse the preceding operation. Fig. 20 Rear Bumper—AP-Vehicle Fig. 21 Rear Bumper—AY/P-Body Fig. 22 Rear Bumper—AY/S-Body 13 - 8 FRAME AND BUMPERS Ä |
