DAF 95XF. Manual - part 761
9
TECHNICAL DATA
Stabilisers, torque rods and leaf suspension
2-8

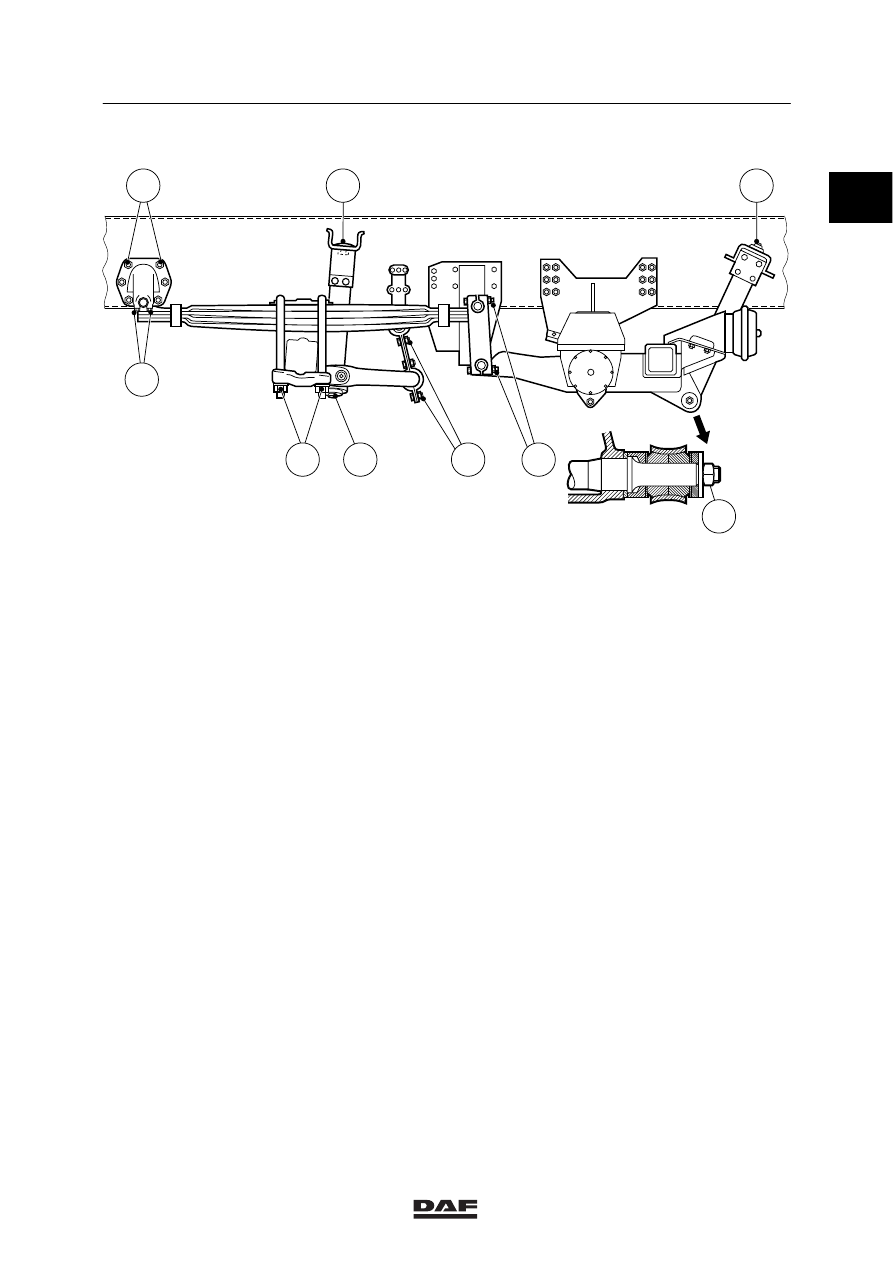

Dual front axle

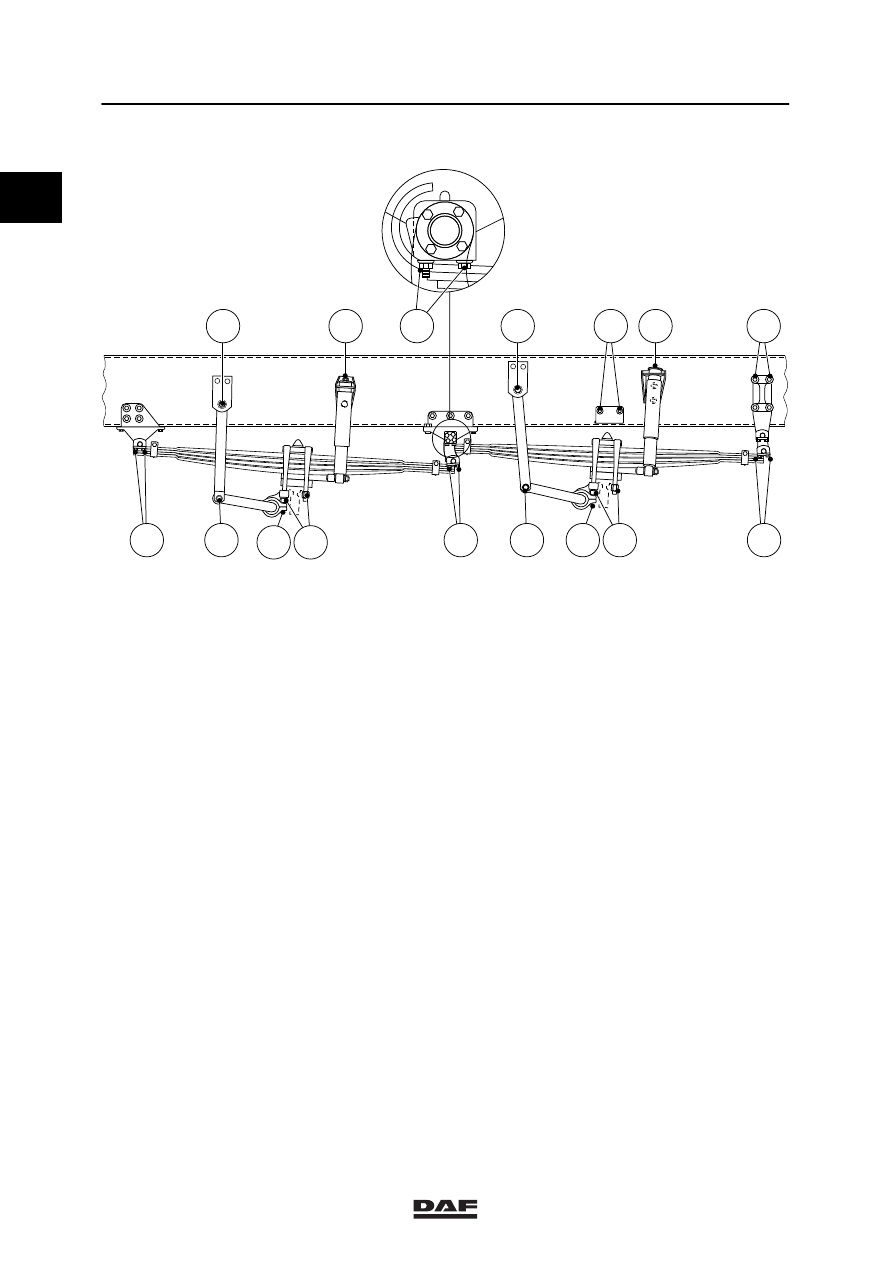

C9 00 418
A
B
A
B
C
D
E
F
G
F
F
A
A
H
G
H
A
Attachment bolt/nut M16 for
stabiliser/shackle, property class
10.9/10
260
ᐔ 20 Nm
B
Self-locking nut M16 for shock absorber
65 Nm
C
Attachment bolt/nut for spring
attachment
-
if M10, property class 8.8/8
46
ᐔ 4 Nm
-
if M10, property class 10.9/10
60
ᐔ 4 Nm
D
Attachment bolt/nut M16 for stop plate
of bump stop, property class 10.9/10
260
ᐔ 20 Nm
E
Attachment bolt/nut M16 for spring
bracket, property class 10.9/10
260
ᐔ 20 Nm
F
Spring locking plate attachment bolt
60
ᐔ 4 Nm
-
if M10, property class 8.8/8
46
ᐔ 4 Nm
-
if M10, property class 10.9/10
60
ᐔ 4 Nm
G
U-bolt nut
-
if yellow high hexagonal nut M22
with yellow washer
480
ᐔ 40 Nm
(1)
-
if flange nut M22
700
ᐔ 50 Nm
(2)
H
Attachment bolt/nut M12 for silentbloc
bracket, property class 10.9/10
110
ᐔ 8 Nm
Notes:
1.
The high hexagonal nut can be recognised
by its height being 1.5 times the thread
diameter. Evenly tighten the two U-bolt
nuts alternately.
2.
Evenly tighten the two U-bolt nuts
alternately.
