DAF 95XF. Manual - part 701
7
TECHNICAL DATA

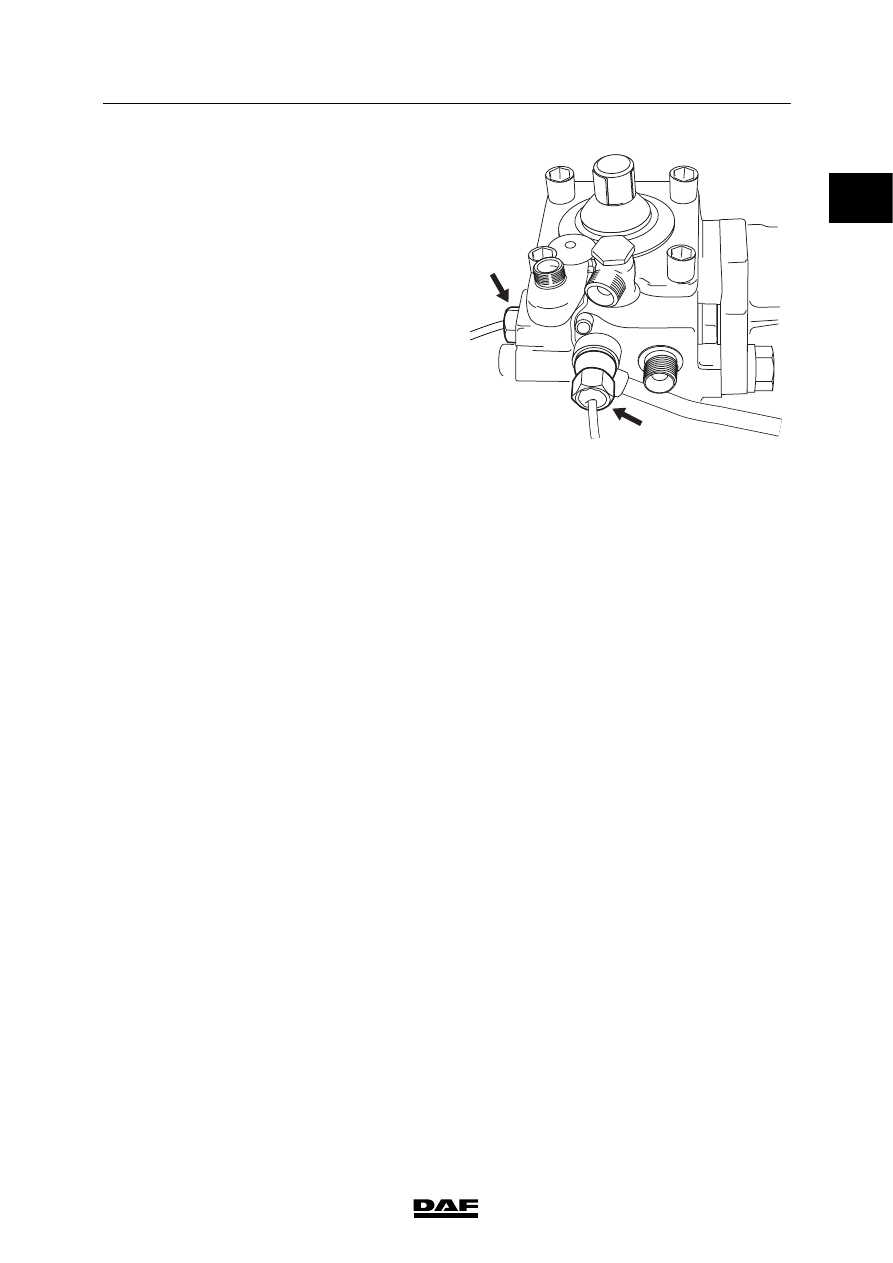

Steering box
2-4
E.
Attachment bolt, steering column
universal joint
56 Nm
(2)
F.
Pressure-limiting valve plug
41 Nm
G.
Lock nut for pressure-point adjusting bolt
60 Nm
H.
Steering box side cover attachment bolts
-
if TAS 75/THP 80
180 Nm
-
if TAS 85/86/87
240 Nm

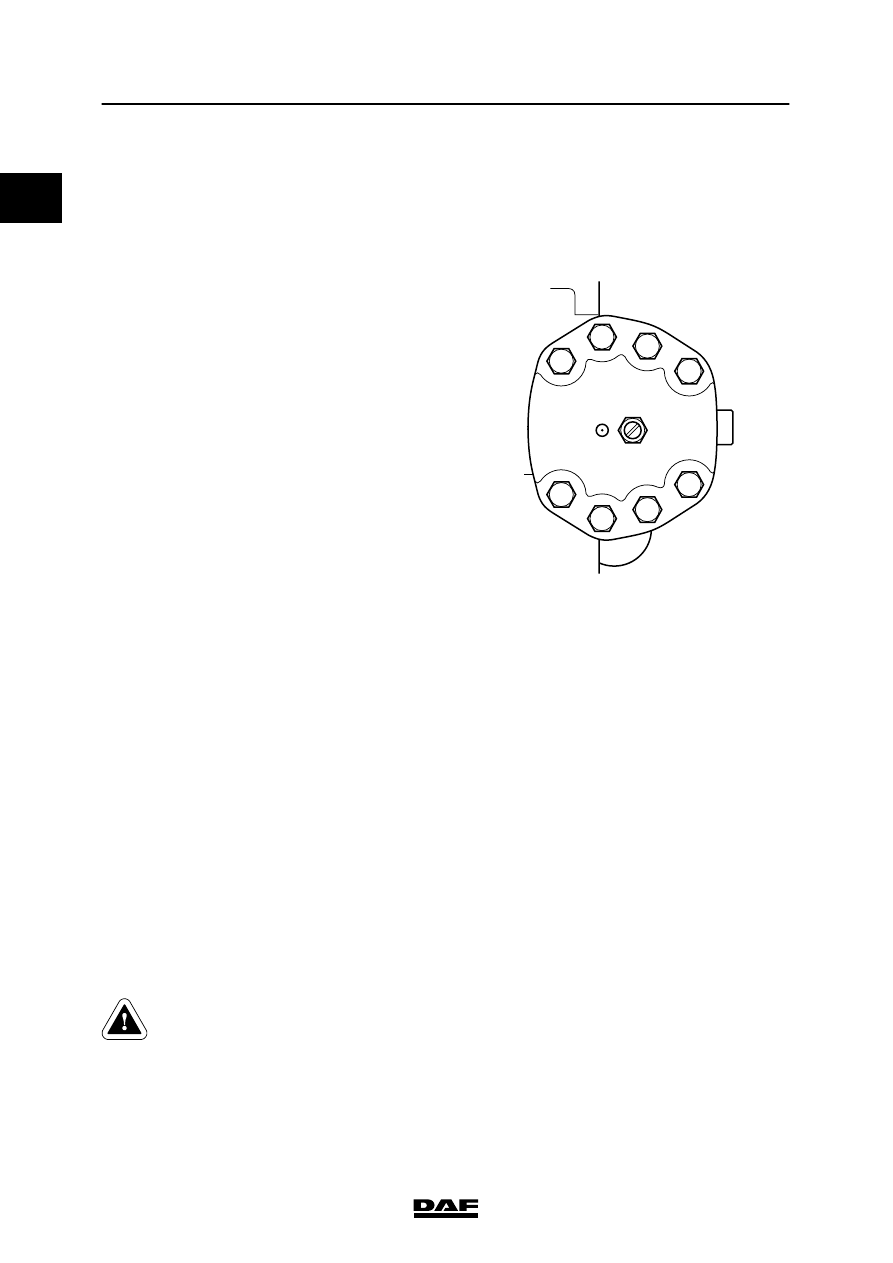

Tightening sequence of attachment bolts
on the side cover of the steering box.
See illustration.
1
8
6
4
2
3
5
7
S7 00 449
I.
Lock nut of wheel-deflection limiting
valve adjusting bolt
50 Nm
K.
Steering rod nut
-
if M20 castle nut
225 Nm
(3)
-
if M24 castle nut
285 Nm
(3)
-
if self-locking M20 nut
225 Nm
(4)
-
if self-locking M24 nut
285 Nm
(4)
M.
Bolt, steering rod clamping bracket
-
if M10
47 Nm
(5)
-
if M12
80 Nm
(5)
(1)
Only use new attachment bolts.
(2)
Fit new original bolt and self-locking nut.
(3)
Tighten until the split pin fits (max. 60
°).
It is not allowed to fit a self-locking nut instead of a
castle nut.
(4)
Check the thread of the ball end for damage before
fitting a new self-locking nut to the ball end. Screw a
new non-self locking nut onto the ball end by hand to
check it. If the new non-self locking nut cannot be
screwed down over the whole thread by hand, the ball
end must be replaced. Fit new self-locking nut. Apply
Loctite 243 to the nut.
(5)
Fit new self-locking nut.
If a new self-locking nut is fitted to a
ball end with a damaged thread, this
can give rise to dangerous
situations.
