DAF 95XF. Manual - part 585





8

SINGLE REAR AXLE 1354

Removal and installation

3-10

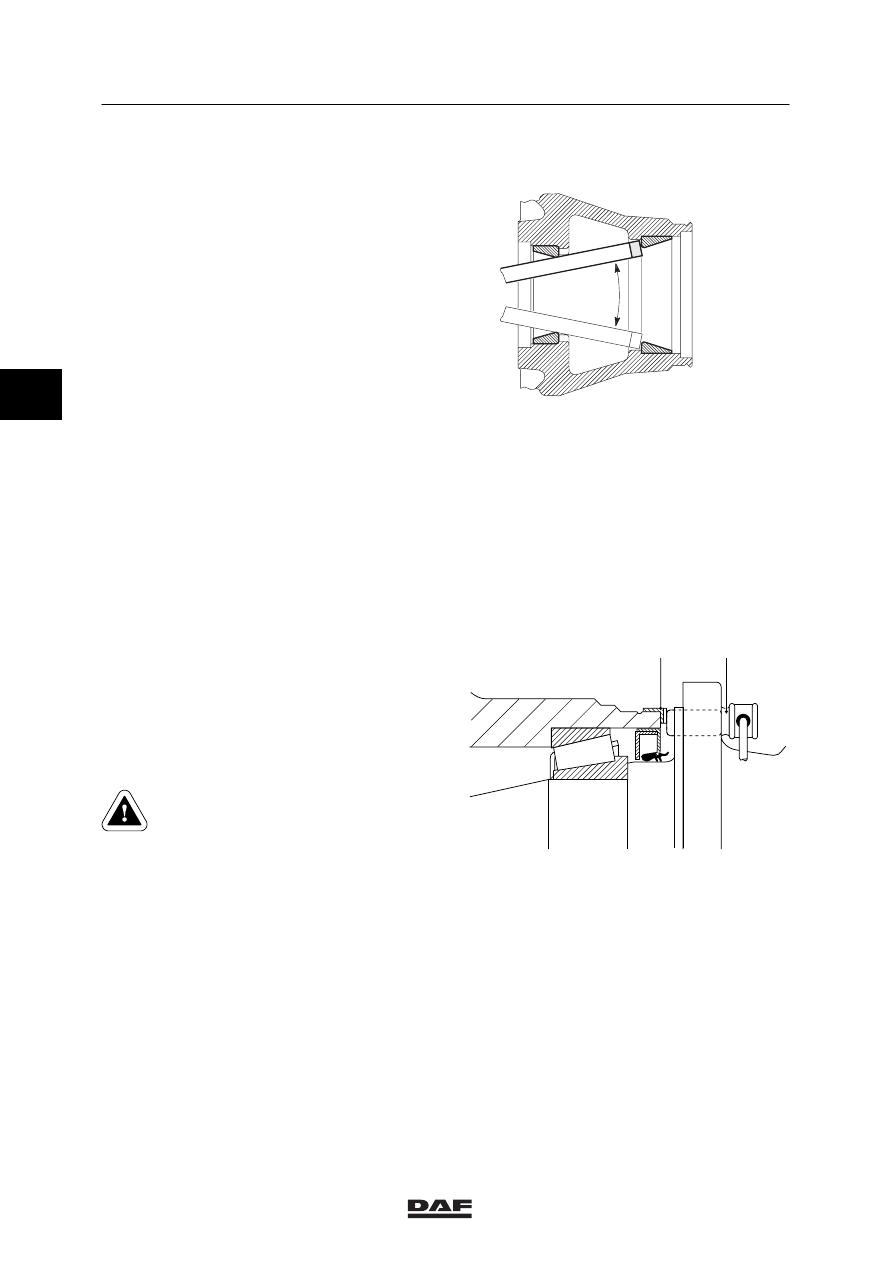

3.6 REMOVAL AND INSTALLATION, WHEEL BEARINGS

Removal of the wheel bearings
1.

Remove the wheel hub.

2.

Remove the hub oil seal.

3.

Remove the inner bearing.

4.

If the wheel bearings need replacing, the
outer bearing races can be tapped from the
hub using a driver. For this purpose, the hub
has been fitted with two recesses (A and B).

Installation of the wheel bearings
1.

Clean the bearings and check them for
damage.

2.

Fit the outer bearing races into the hub
using a driving tool and a hydraulic press, or
by tapping the outer bearing races evenly
using a driver.

3.

Fit the inner bearing with hub oil seal.

4.

Fit the wheel hub.

B

A

M8120

3.7 REMOVAL AND INSTALLATION, ABS SENSOR RING

Removing the ABS sensor ring
1.

Remove the ABS sensor (6).

2.

Remove the hub from the axle stub.

3.

Remove the sensor ring (5) from the hub
using a puller. Make sure that the clamping
face of the sensor ring on the hub is not
damaged in the process.

Once removed, a sensor ring
should not be re-installed.

S7 00 186

6

5

3

ǹ 0001

8

Removal and installation

SINGLE REAR AXLE 1354

3-11

S7 00 181

A

B C

D

E

1

2

3

F

H

G

5

4

I

K L

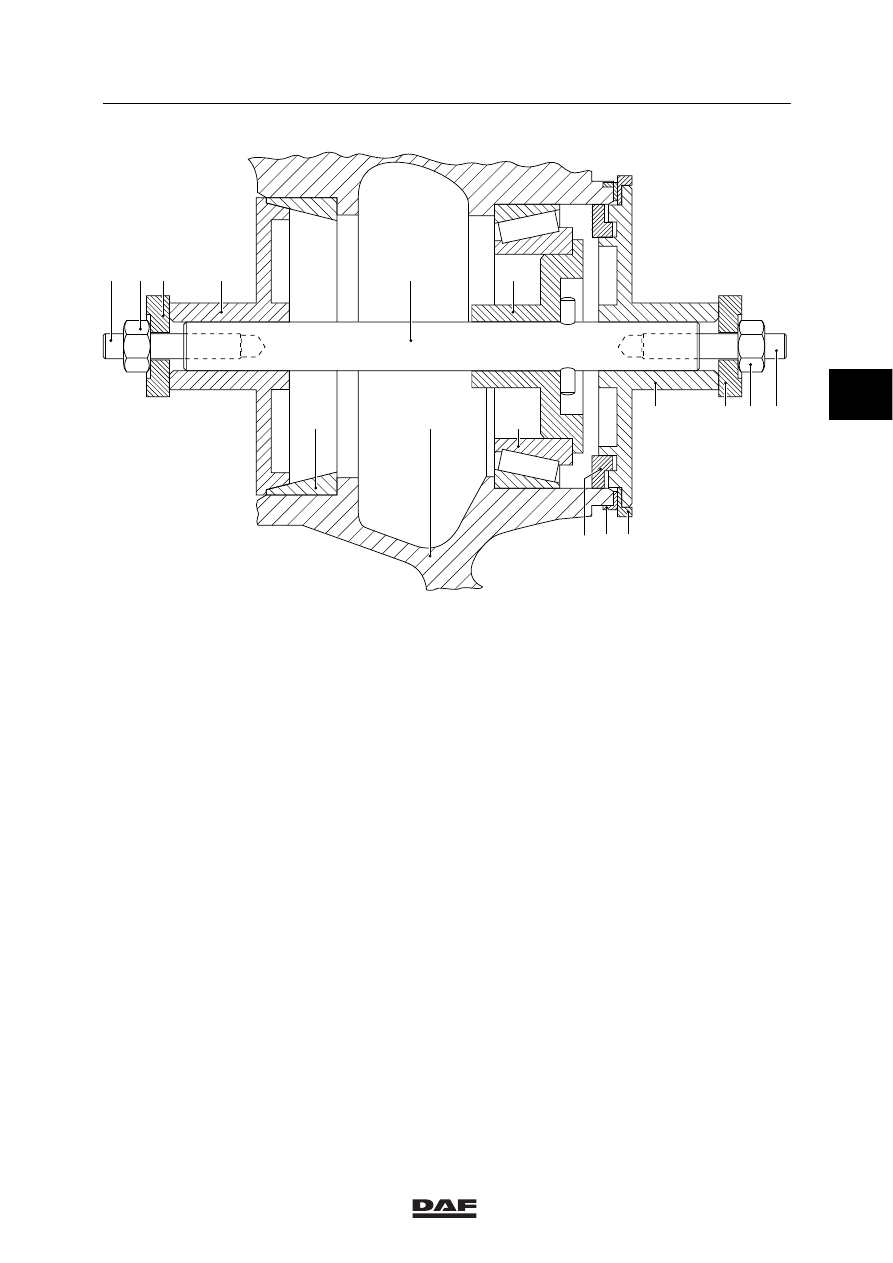

Installing the ABS sensor ring
1.

Check the clamping surface of the sensor
ring on the hub for damage.

2.

Check the new sensor ring carefully for
possible transport damage.

3.

Clean and degrease the contact surfaces of
the hub (2) and the sensor ring (5).

4.

The special tool is assembled as follows:
screw the threaded ends (A and L) into the
centring spindle (E).
The shorter threaded end (L) is fitted on the
side where the pin is inserted into the
centring spindle (E).

5.

Slide the appropriate centring flange (F)
over the centring spindle (E).

6.

Install the inner wheel bearing (3).
Slide the centring axle (E) with the centring
flange (F) into the hub (2).

7.

Press the centring flange (F) into the inner
wheel bearing (3).

3

ǹ 0001

8

SINGLE REAR AXLE 1354

Removal and installation

3-12

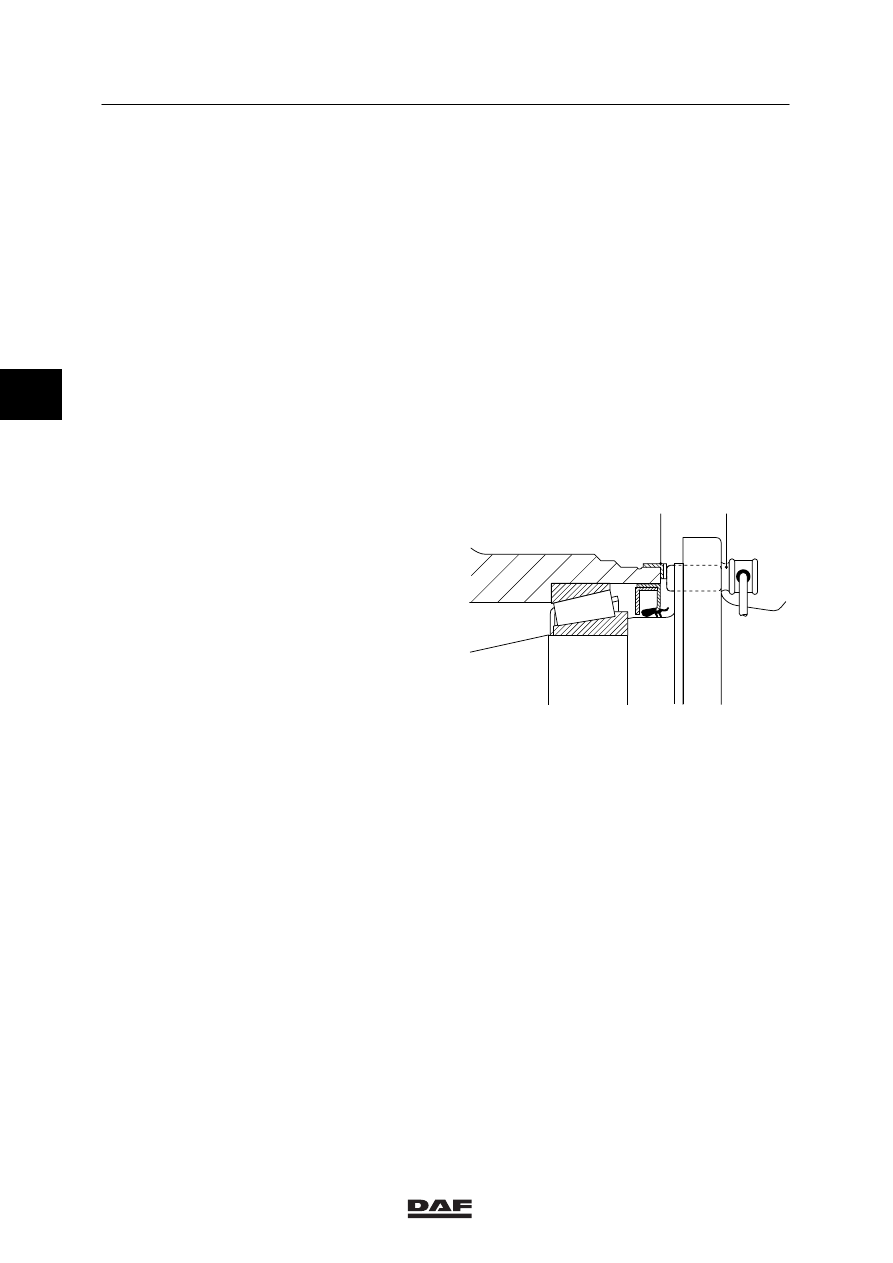

8.

Slide the appropriate centring flange (D)
over the centring spindle (E).

9.

Fit the lock plate (C) and the nut (B) onto
the centring spindle (E).

10. Align the centring flange (D) on the outer

race of the outer wheel bearing and
hand-tighten nut (B) (max. 20 Nm). The
centring axle (E) should be free from play in
the hub (2).

11. Install the dummy sensor ring (G) on the

draw-in flange (H).

12. Position the sensor ring (5) before the hub.

Slide the draw-in flange (H) with the dummy
sensor ring (G) over the centring spindle (E)
until it abuts the sensor ring (5).

13. Fit the lock plate (I) and the nut (K).

14. Press the sensor ring (5) evenly onto the

hub (2) using the nut (K) until the sensor
ring is completely flush.

15. Install the hub on the axle stub.

16. Install the ABS sensor (6) and press it

against the sensor ring (5).
While the vehicle is being driven, the air gap
between the sensor and the sensor ring is
adjusted automatically.

S7 00 186

6

5

3

ǹ 0001

8

Removal and installation

SINGLE REAR AXLE 1354

3-13

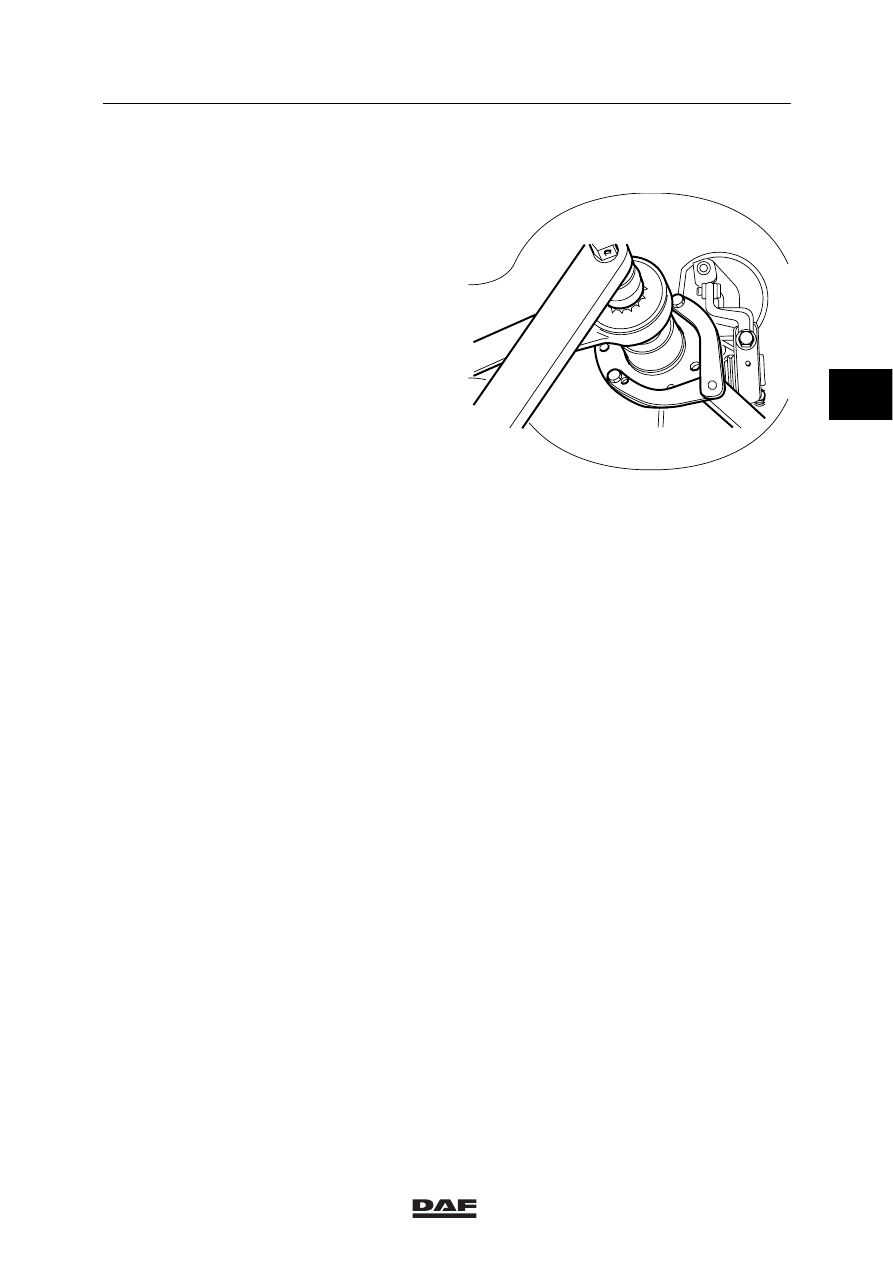

3.8 REMOVAL AND INSTALLATION OF THE DRIVE FLANGE

Removal of the drive flange
1.

Remove the drive shaft from the drive
flange.

2.

Fit the drive flange with the special tool
(DAF no. 0484977) to prevent it from being
turned, and remove the drive-flange nut
using a torque amplifier.

3.

Remove the drive flange. If necessary, use
a puller.

Installing the drive flange
1.

Before installation check the drive flange at
the oil-seal running surface for grooves
and/or sharp edges. If required, replace the
drive flange.

2.

Fit the drive flange.

3.

Apply a small amount of grease to the first
turn of the drive-flange nut.

4.

Apply locking compound to the screw
thread, see main group “Technical data”.

5.

Fit the drive flange with the special tool
(DAF no. 0484977) to prevent it from being
turned and tighten the drive-flange nut to
the specified tightening torque, see main
group “Technical data”.

6.

Fit the drive shaft to the drive flange.

A800052

ǹ 0001

3
