SINGLE REAR AXLE 1354

Removal and installation

3-2

3.2 REMOVAL AND INSTALLATION, AXLE SHAFTS

Removal of the axle shafts
1.

Jack up the rear axle and support the axle
on stands.

2.

Drain the hub oil, see chapter “Draining and
filling”.

3.

Remove the attachment bolts from the hub
cover and remove the hub cover.

4.

Pull the axle shaft from the wheel hub.

Installation of the axle shafts
1.

Fit the axle shaft into the wheel hub.

2.

Rotate the planet-wheel shafts so that the
blunt sides point outward.

3.

Check the O ring in the hub cover. If
required, replace the O ring and apply
silicone paste to it.

4.

Install the hub cover. Tighten the fixing bolts
to the specified tightening torque. See main
group “Technical data”.

5.

Fill the hub with oil, see chapter “Draining
and filling”.

A800289

A800040

ǹ 0001

3

8

Removal and installation

SINGLE REAR AXLE 1354

3-3

3.3 REMOVAL AND INSTALLATION, WHEEL HUB

Removal of the wheel hub
1.

Jack up the rear axle and support the axle
on stands.

2.

Remove the wheels.

3.

Release the brakes and remove the brake
drum.

4.

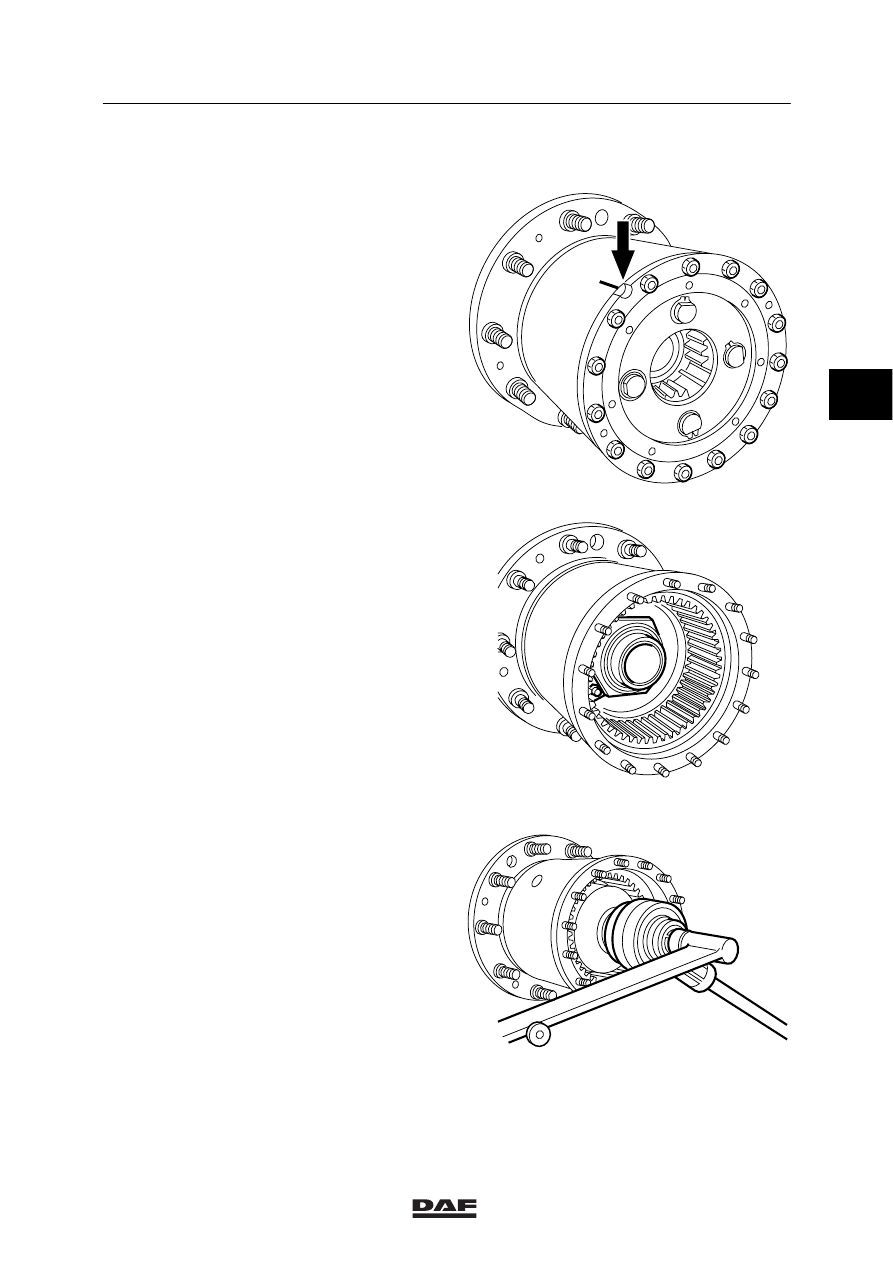

Mark the hub at the semicircular hole in the
cover.

5.

Drain the oil, see chapter “Draining and
filling”.

6.

Remove the hub cover.

7.

Remove the axle shaft.

8.

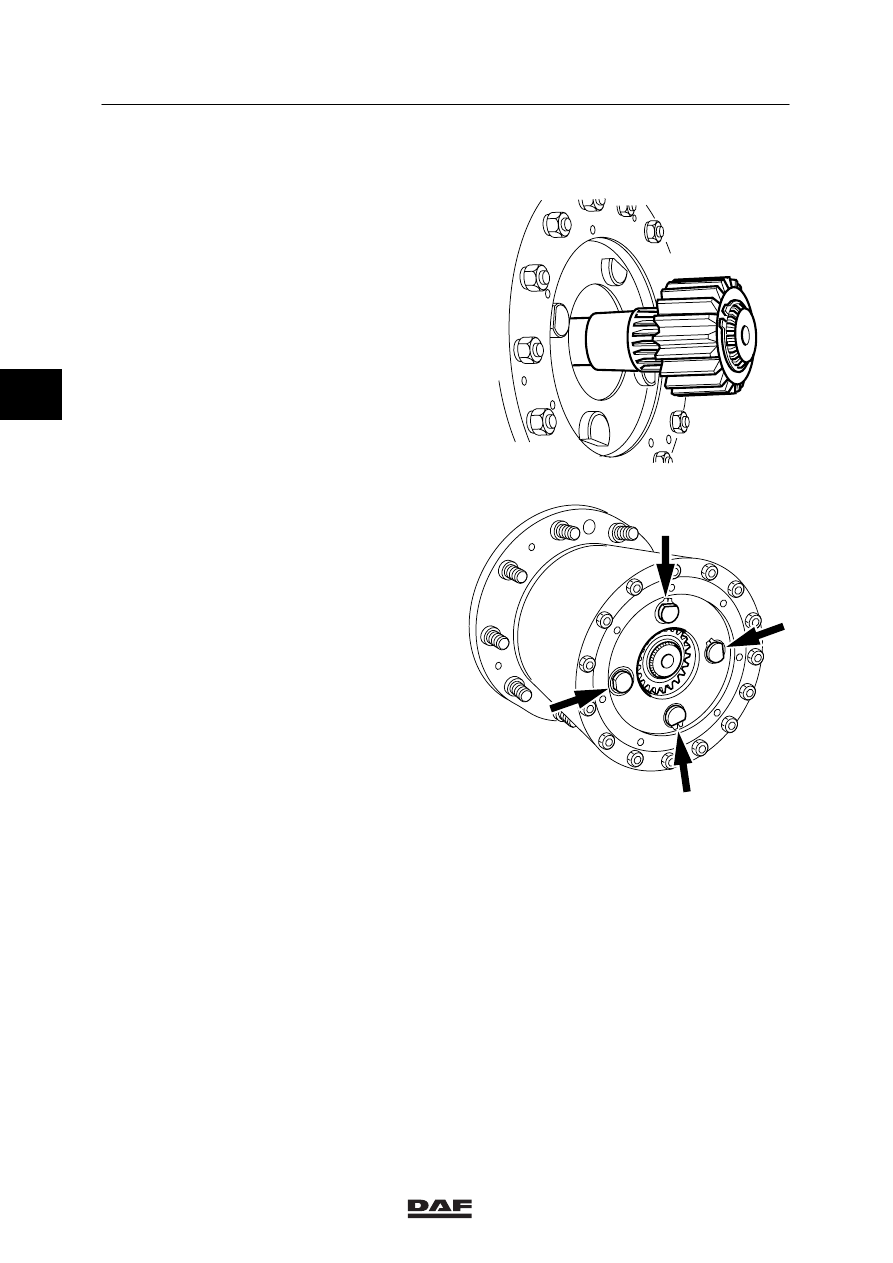

Remove the attachment nuts and conical
spring washers.
Push the planet-wheel gear from the hub
using three jack screws.

Note:
Make sure that the planetary gear is
installed with the circlips upward. This will
prevent the pins from falling out.

9.

Remove the thrust washer from the axle
stub.

10. Remove the attachment bolts from the

locking plate and remove the locking plate.

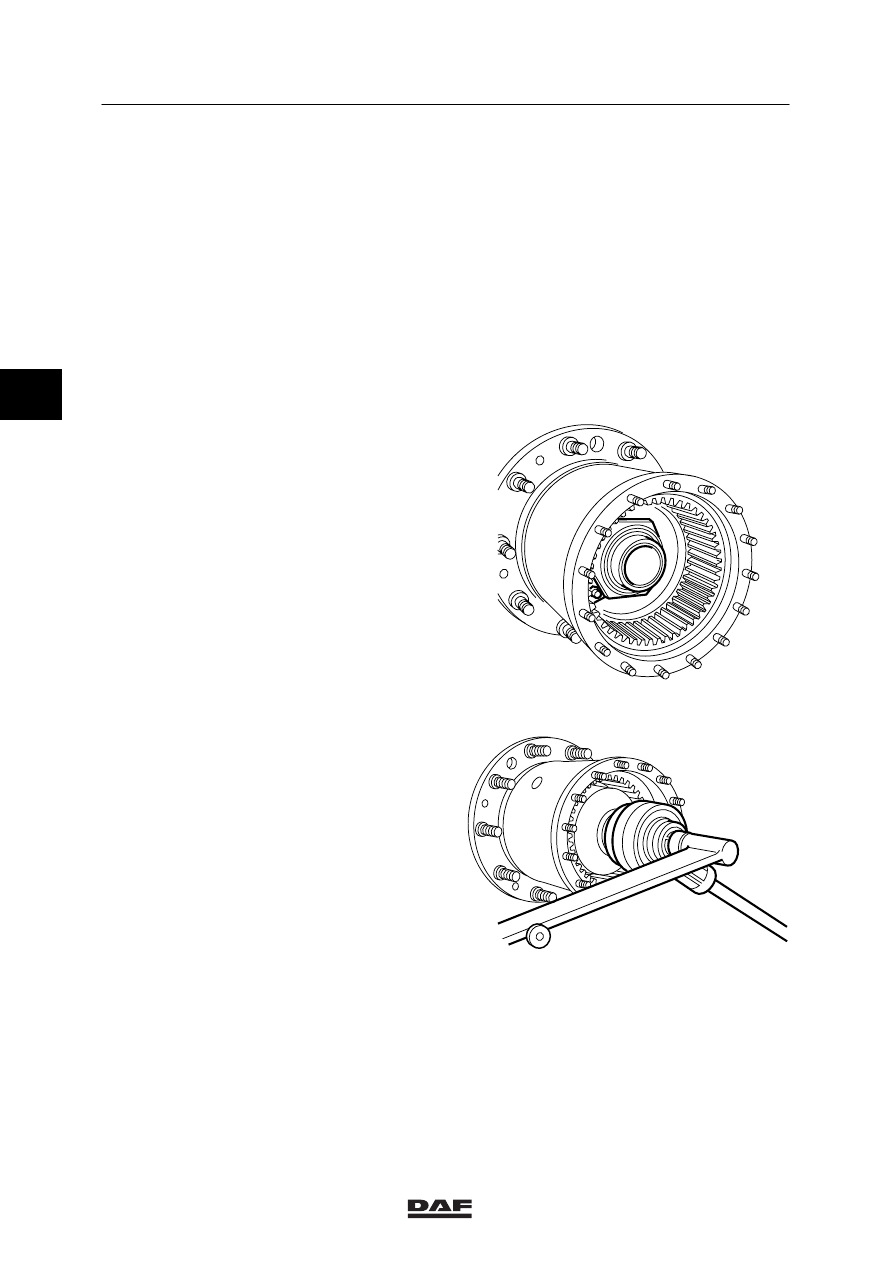

11. Remove the hub nut using the special tool

(DAF no. 0535705) and a torque amplifier
(ratio 1 : 5).

12. Support the hub and pull it from the axle

stub. The annular gear holder with the
annular gear, the bearings and the bearing
sleeve with spacers will also come out with
the hub.

13. Remove the annular gear holder and the

annular gear from the hub.

A800290

A800107

A800038

ǹ 0001

3

8

SINGLE REAR AXLE 1354

Removal and installation

3-4

Installation of the wheel hub

Note:
If the wheel bearings have not been
replaced and the original spacer sleeve with
spacers is installed, it is not necessary to
readjust the wheel bearing pre-load.

If the wheel bearings have been replaced,
the wheel bearing pre-load should be
re-adjusted, see chapter “Checking and
adjusting”.
The wheel bearing pre-load should be
adjusted before the hub oil seal is fitted.

1.

Replace the hub oil seal.

2.

Check the parts for wear and/or damage.

3.

Replace the O rings.

4.

Fill the wheel bearings with oil.

5.

Install the hub on the axle stub.

6.

Fit the original spacer sleeve and spacers.

7.

Fit the inner race of the outer wheel bearing
on the axle stub.

8.

Fit the annular gear holder with the annular
gear in the hub and onto the splines of the
axle stub.

9.

Fit the hub nut and tighten it using the
special tool (DAF no. 0535705) and a
torque amplifier (ratio 1 : 5).
Tighten the hub nut to the specified
tightening torque, see main group
“Technical data”.
Turn the hub while tightening the hub nut.

A800107

A800038

ǹ 0001

3

8

Removal and installation

SINGLE REAR AXLE 1354

3-5

10. Fit the lock plate. Apply locking compound

to the attachment bolts and tighten these to
the specified tightening torque, see main
group “Technical data”.

11. Install the thrust washer.

12. Fit the planetary gear in its original position

in the hub (watch the markings).

13. Fit the conical spring washers and tighten

the attachment bolts to the specified
tightening torque, see main group
“Technical data”.

14. Fit the axle shaft.

15. Install the hub cover. Tighten the fixing bolts

to the specified tightening torque. See main
group “Technical data”.

16. Fill the hub with oil, see chapter “Draining

and filling”.

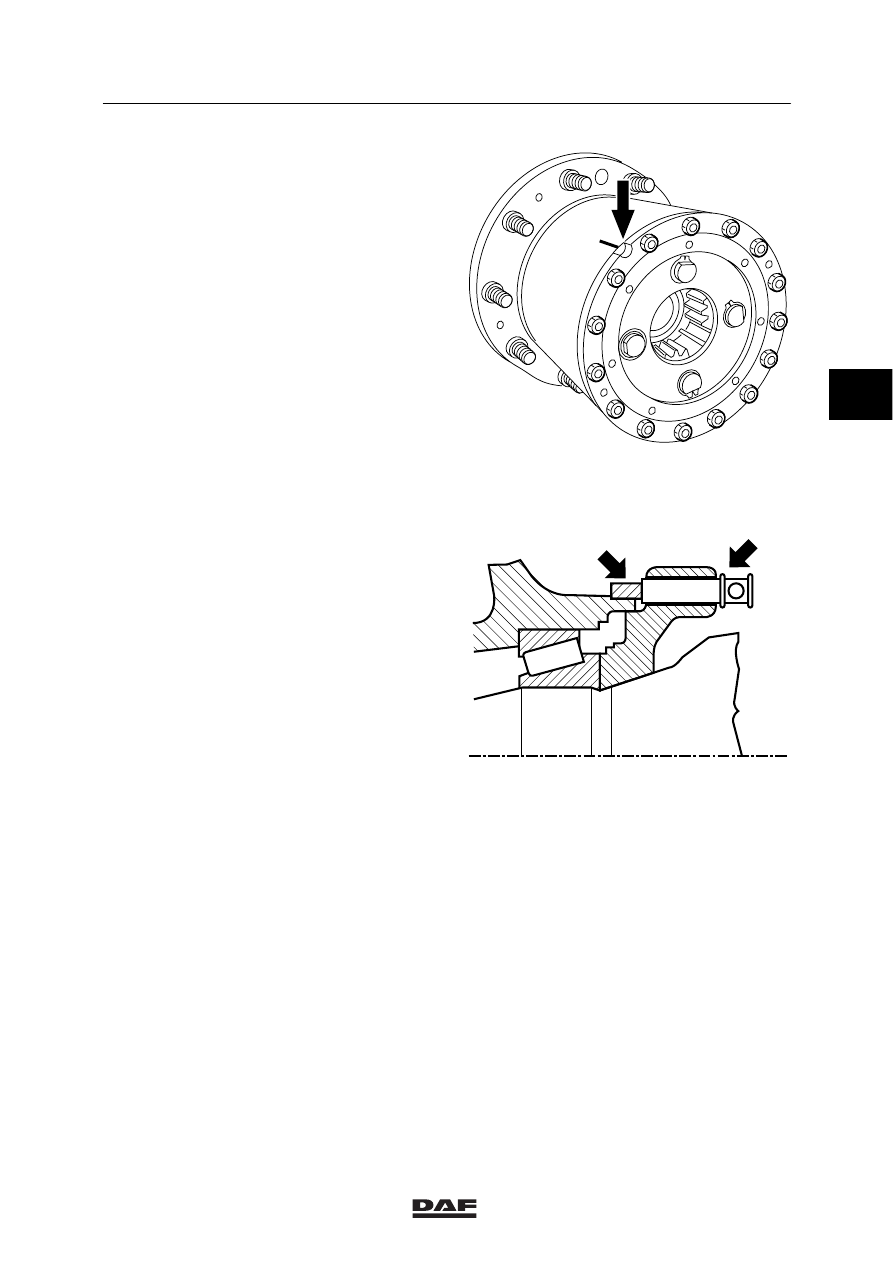

17. Push the sensor (1) against the sensor ring

(2), if the vehicle is equipped with ABS.
While the vehicle is being driven, the air gap
between the sensor and the sensor ring is
adjusted automatically.

A800290

2

1

A800147

ǹ 0001
