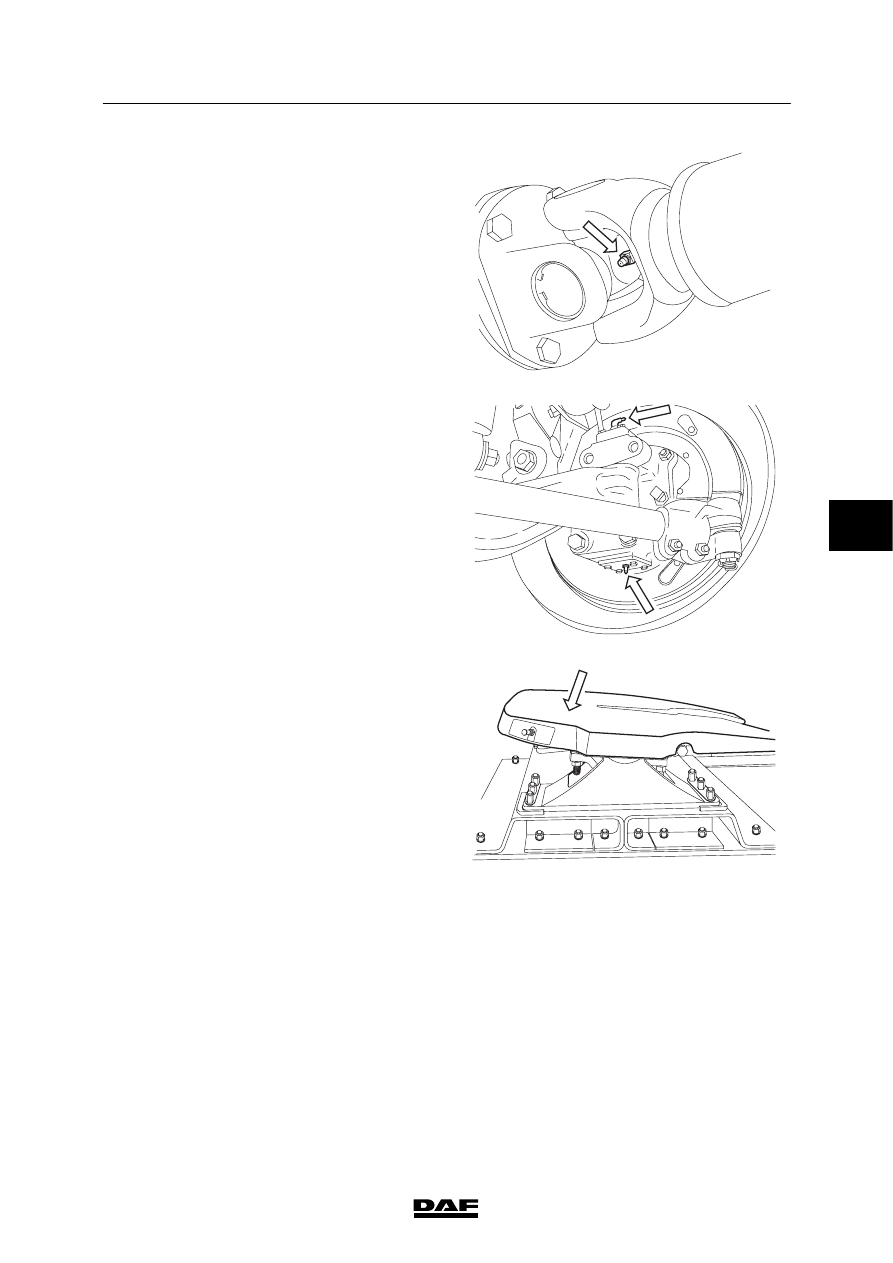

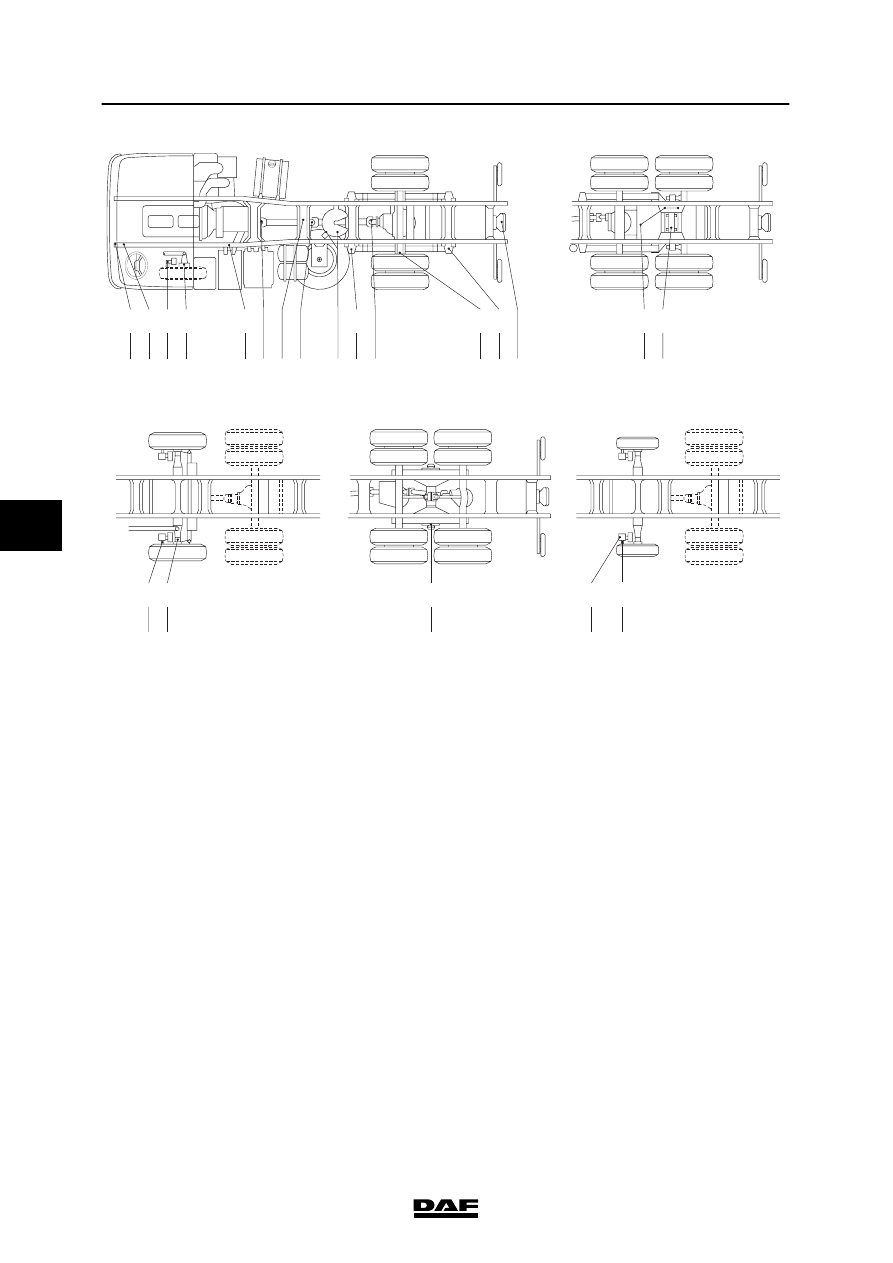

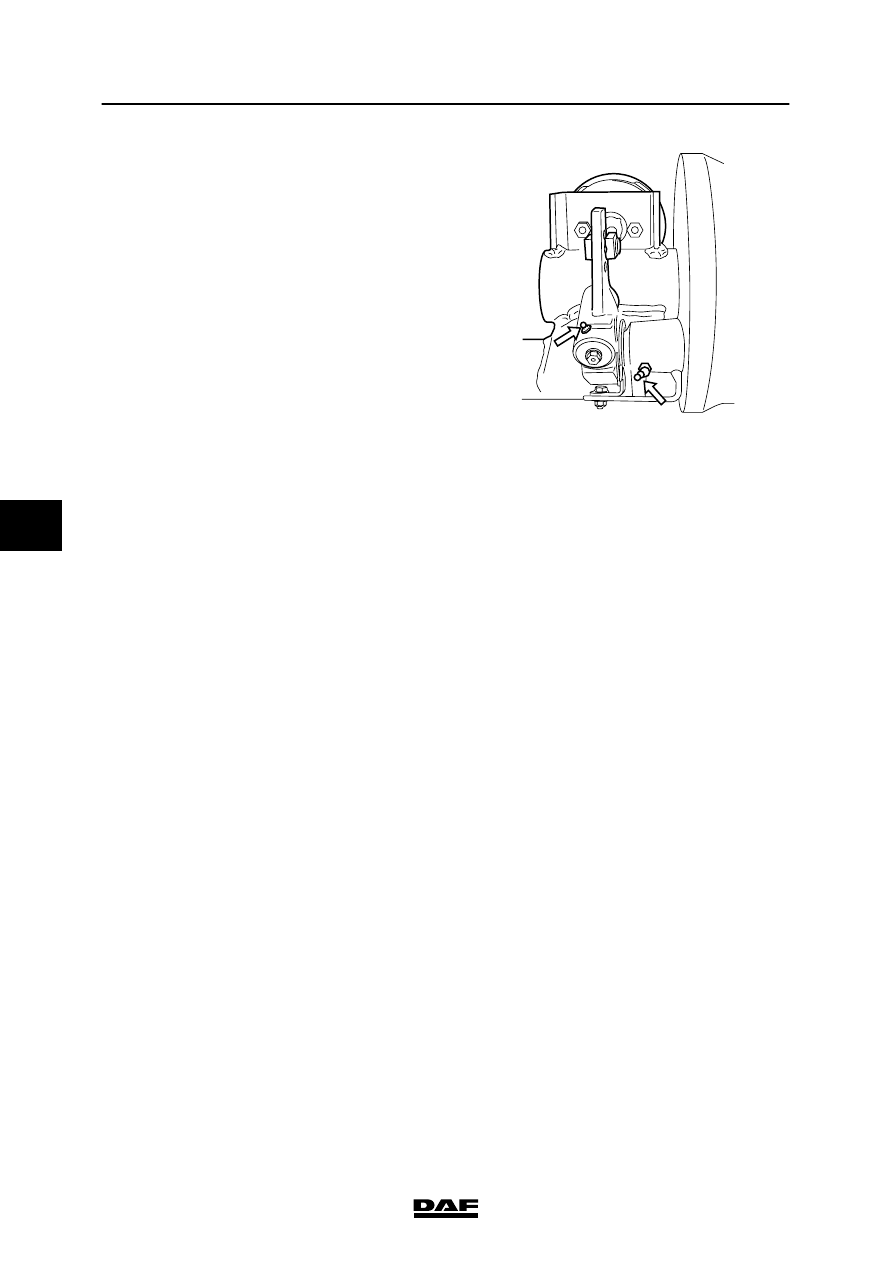

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES Lubrication 7-2 C9 00 345 S S 13 14 11 10 S S 12 8 9 S 6 6 7 6 5 S S 3 S 4 S 2 S 1 16 S S 15 18 S S 19 17 S S = SYMMETRIC 1. Cab hinge pins 2. Shackle pins, front axle 3. Brake camshafts, front axle 4. King pins, front axle 5. Spring shackles, front axle 6. Universal joint 7. Centre bearing 8. Fifth wheel 9. Shackle pins, rear axle 10. Brake camshafts, rear axle Spring shackles, rear axle 12. Drawn vehicle coupling device (leaf sprung) 14. Pivoting points of trailing axle (leaf sprung) rear axle 19. Brake camshafts, FTP leading rear axle 5 200424 |
