DAF 95XF. Manual - part 438

3

TECHNICAL DATA

PTO

2-2

6.3 FILLING CAPACITIES

Check oil level in gearbox after installation
of PTO.

Additional filling capacities PTOs

PTO type

Additional filling capacity

(litres)

N71/1b

0.2

N71/1c

0.2

N71/2b

0.5

N71/2c

0.5

N221/10

1.0

N353/1b

0.2

N353/1c

0.2

N353/2b

0.5

N353/2c

0.5

0

ǹ 0002

0

3

Pneumatically assisted gearbox control (Servo shift)

TECHNICAL DATA

3-1

7. PNEUMATICALLY ASSISTED GEARBOX CONTROL

(SERVO SHIFT)

7.1 GENERAL

Servo shift unit
Service pressure

max. 10 bar

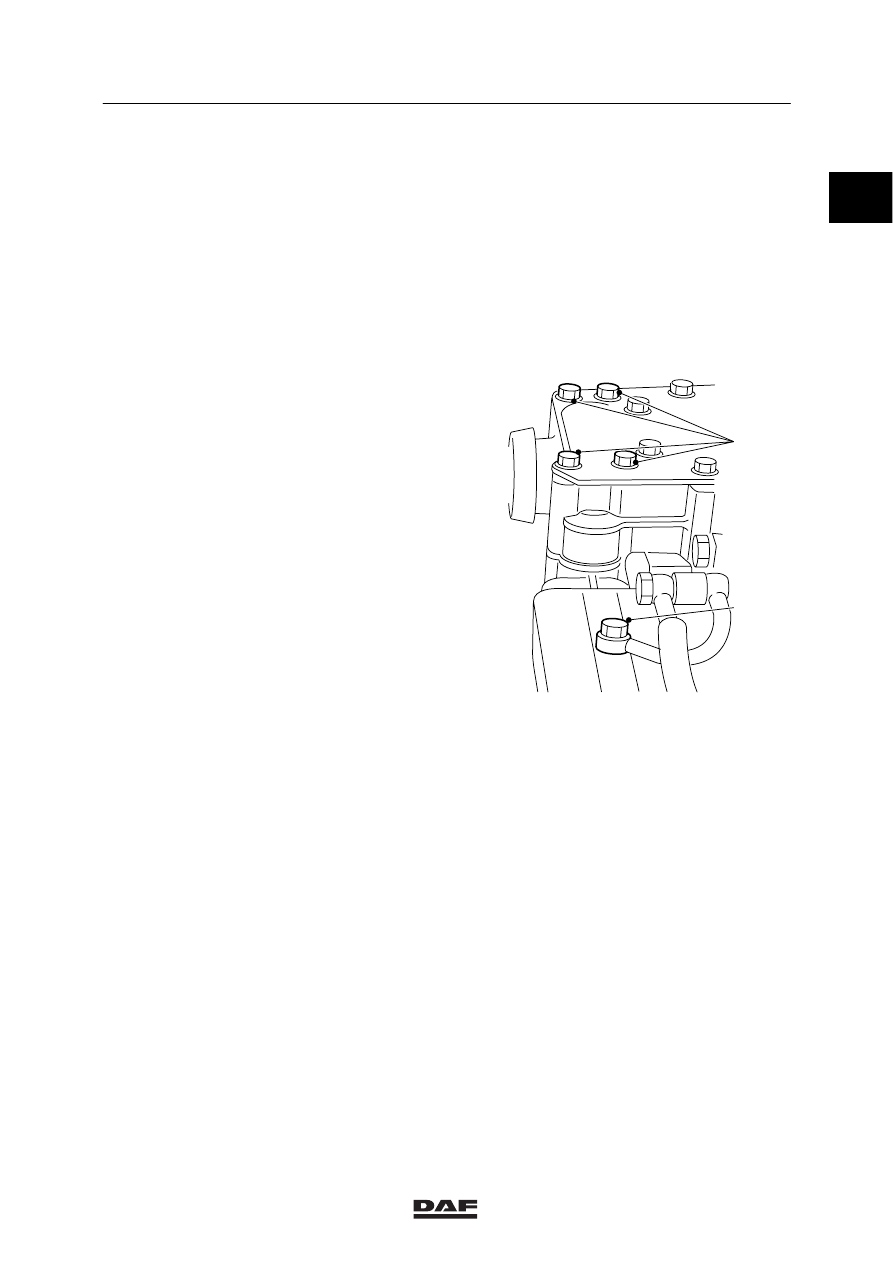

7.2 TIGHTENING TORQUES

Servo shift unit fixing
bolts (1)

23 Nm

Air line banjo bolt (2)

38 Nm

V300328

2

1

ǹ 0002

3

TECHNICAL DATA

Pneumatically assisted gearbox control (Servo shift)

3-2

0

ǹ 0002

0

3

Pneumatic gearbox components

TECHNICAL DATA

4-1

8. PNEUMATIC GEARBOX COMPONENTS

8.1 GENERAL

Frequency table

Engine type

Gear-box type

Intarder

Transfer

box

Gate safety (Hz)

Speed-range

safety (Hz)

VF/XF/XE

16S-181/221

(DD)

--

--

29

57

VF/XF/XE

16S-181/221

(DD)

intarder

--

33

77

VF/XF/XE

16S-181/221

(OD)

--

--

29

68

VF/XF/XE

16S-181/221

(OD)

intarder

--

38

94

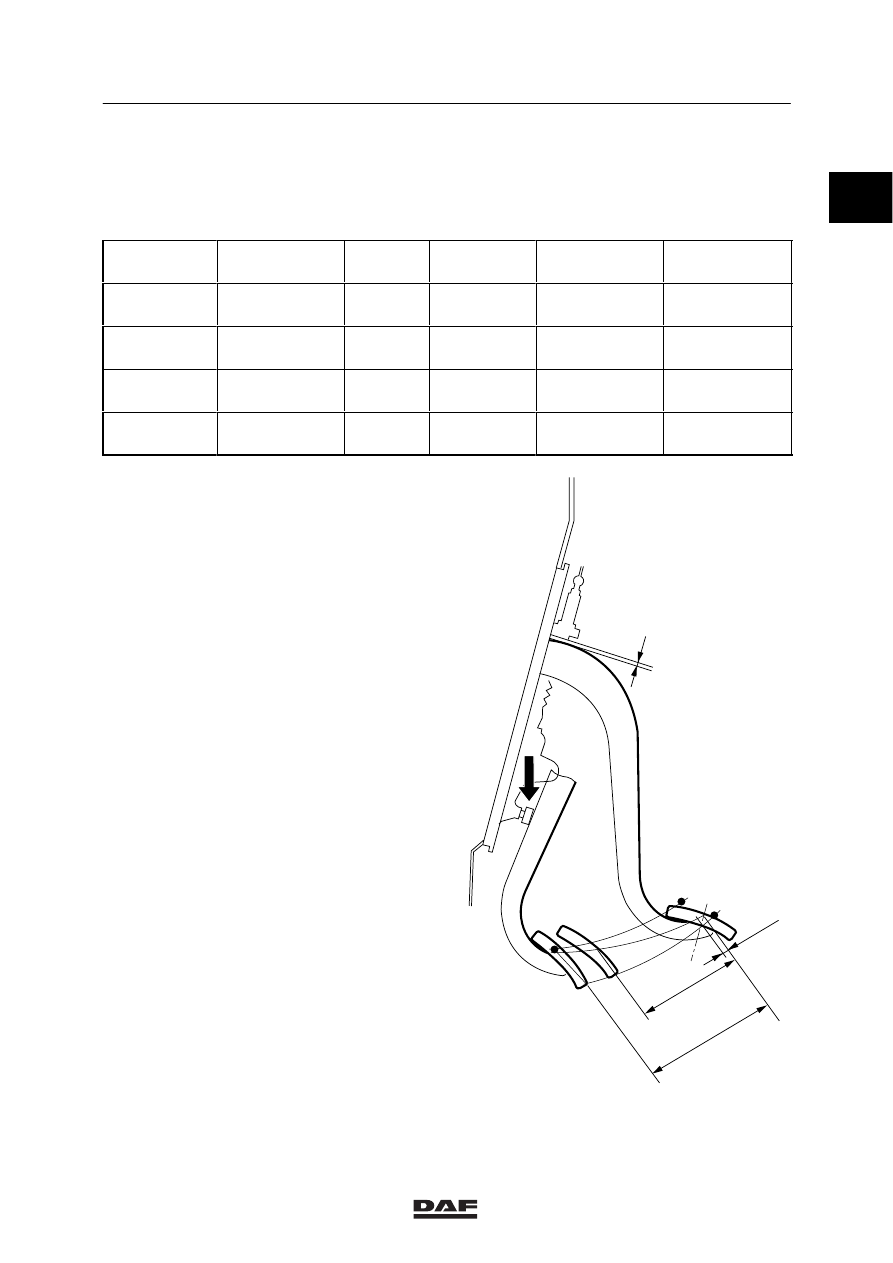

GV valve
GV valve starts to open (C)

140

 2 mm

Full travel distance clutch
pedal (D)

150

 2 mm

Neutral position valve
2 x 3/2-way valve
Service pressure

6.5 to 10 bar

Line connection

M14 x 1.5

V300315

C

D

B

1

A
