Electrical installation
ELECTRICAL INSTALLATION
2-75
RED INTERIOR NIGHTLIGHT

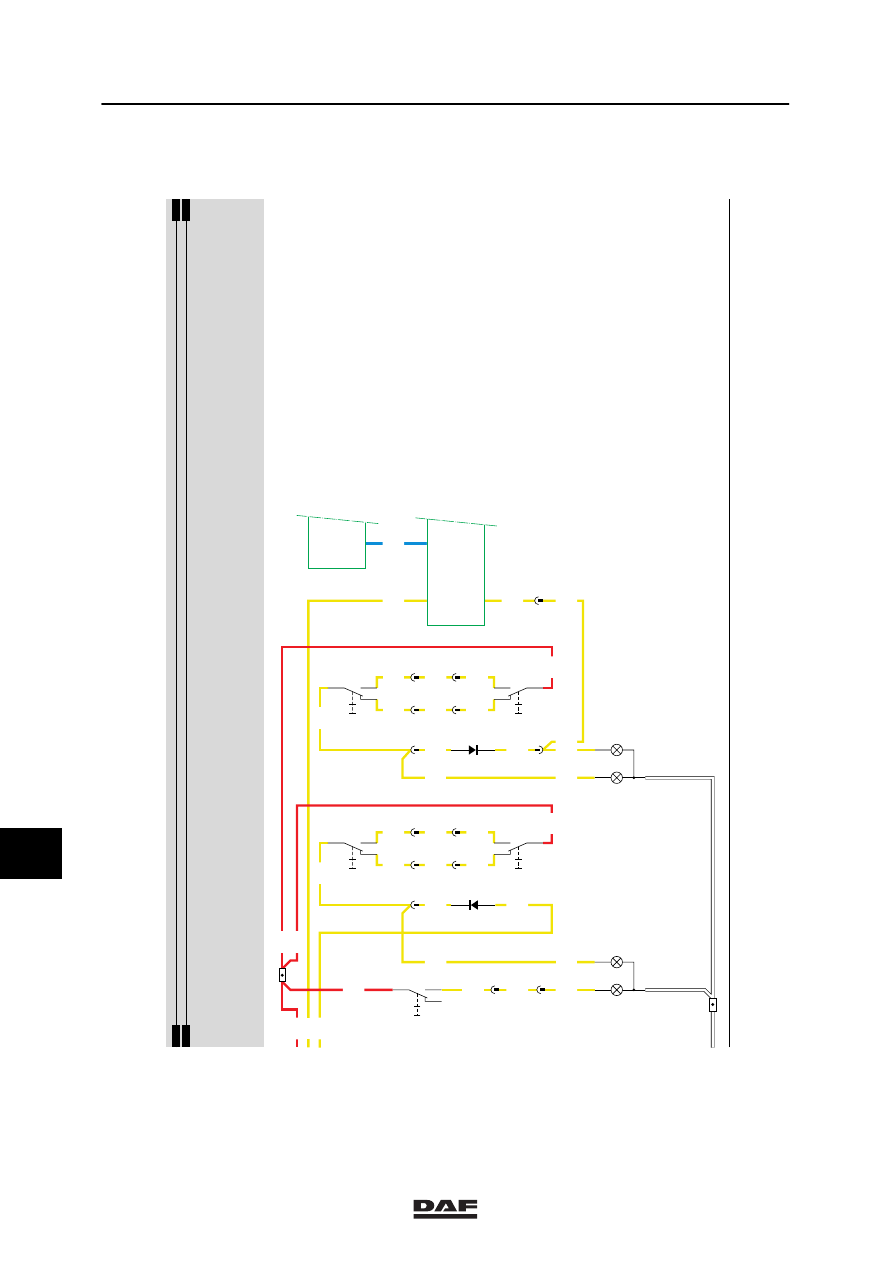

A voltage is also applied to switch C735 (interior
nightlight switch) through fuse E028 and wire
1107. Depending on the switch position, C148
(interior nightlight, driver’s side) will light up.
INTERIOR BED LIGHTING, DRIVER’S SIDE

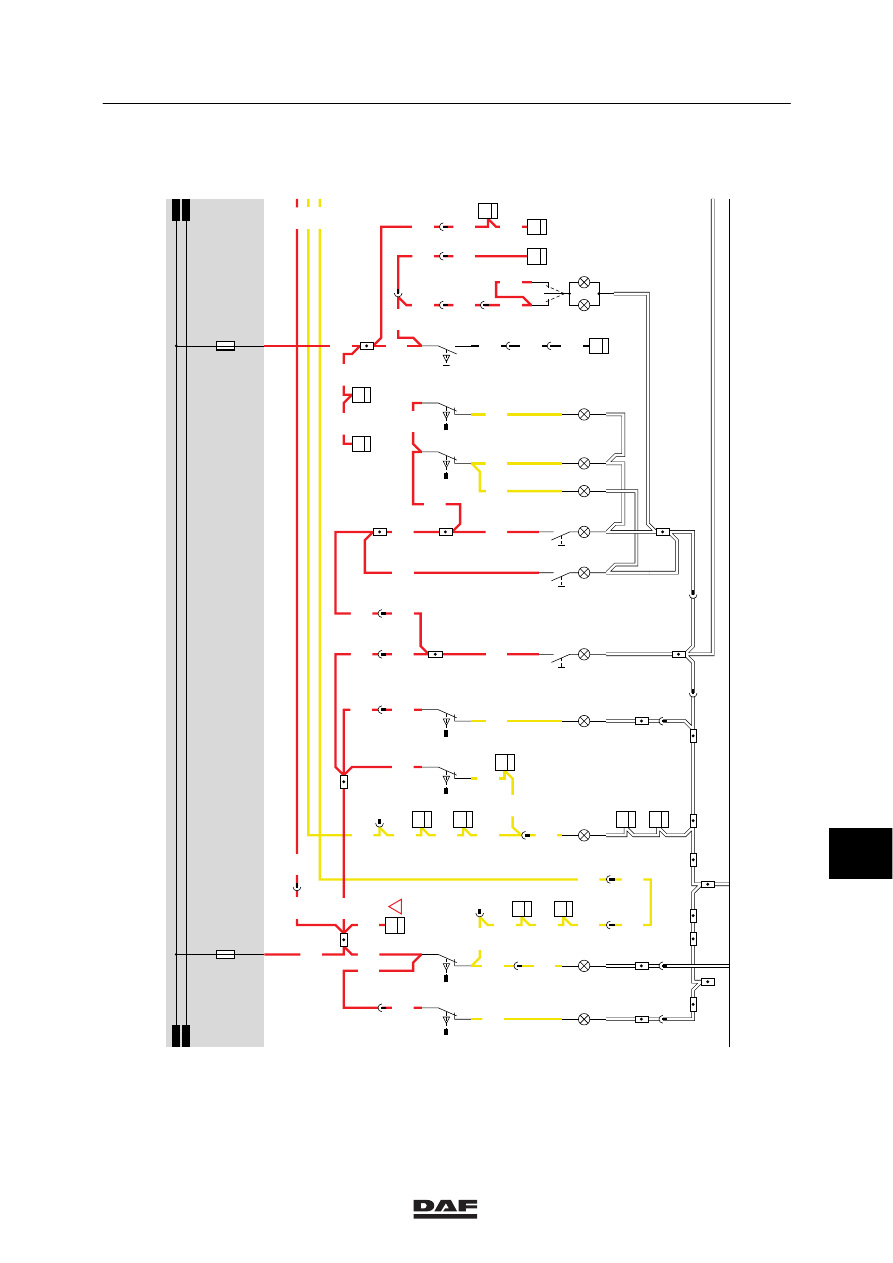

A voltage is applied to connection point 5 of
switch C733 (interior bed lighting, driver’s side)
through fuse E028 and wire 1107. If a connection
is made in switch C733 (contacts 5 and 7), a
voltage will be applied through wire 2644 and
switch C734 (contacts 7 and 5) and wire 2632 to
both of C149’s bulbs.
INTERIOR BED LIGHTING, CO-DRIVER’S SIDE
A voltage is applied to connection point 5 of
switch C731 (interior bed lighting, co-driver’s side)
through fuse E028 and wire 1107. If a connection
is made in switch C731 (contacts 5 and 7), a
voltage will be applied through wire 2611 and
switch C732 (contacts 7 and 5) and wire 2633 to
bulb C148 (normal interior lighting).
BUNK LAMP
The bunk light C115 can be switched with a
switch through fuse E028.
The bunk lamp is independent of the contact
switch position.
STORAGE COMPARTMENT LIGHTING
A voltage is applied to switches E525 (central
upper storage compartment lighting switch) and
E527 (right-hand storage compartment lighting
switch) through fuse E028 and wire 1107. Switch
E525 is used to switch on/off lamp C064 (upper
storage compartment lighting). Switch E527 is
used to switch on/off lamp C066 (right-hand
storage compartment lighting).
TOOLBOX LIGHTING
A voltage is applied to switches E528 (left-hand
toolbox lighting switch) and E529 (right-hand
toolbox lighting switch) through fuse E028 and
wire 1107. Switches E528 and E529 are used to
switch on/off lamps C067 and C068 respectively.
