NOTES

164

8.0

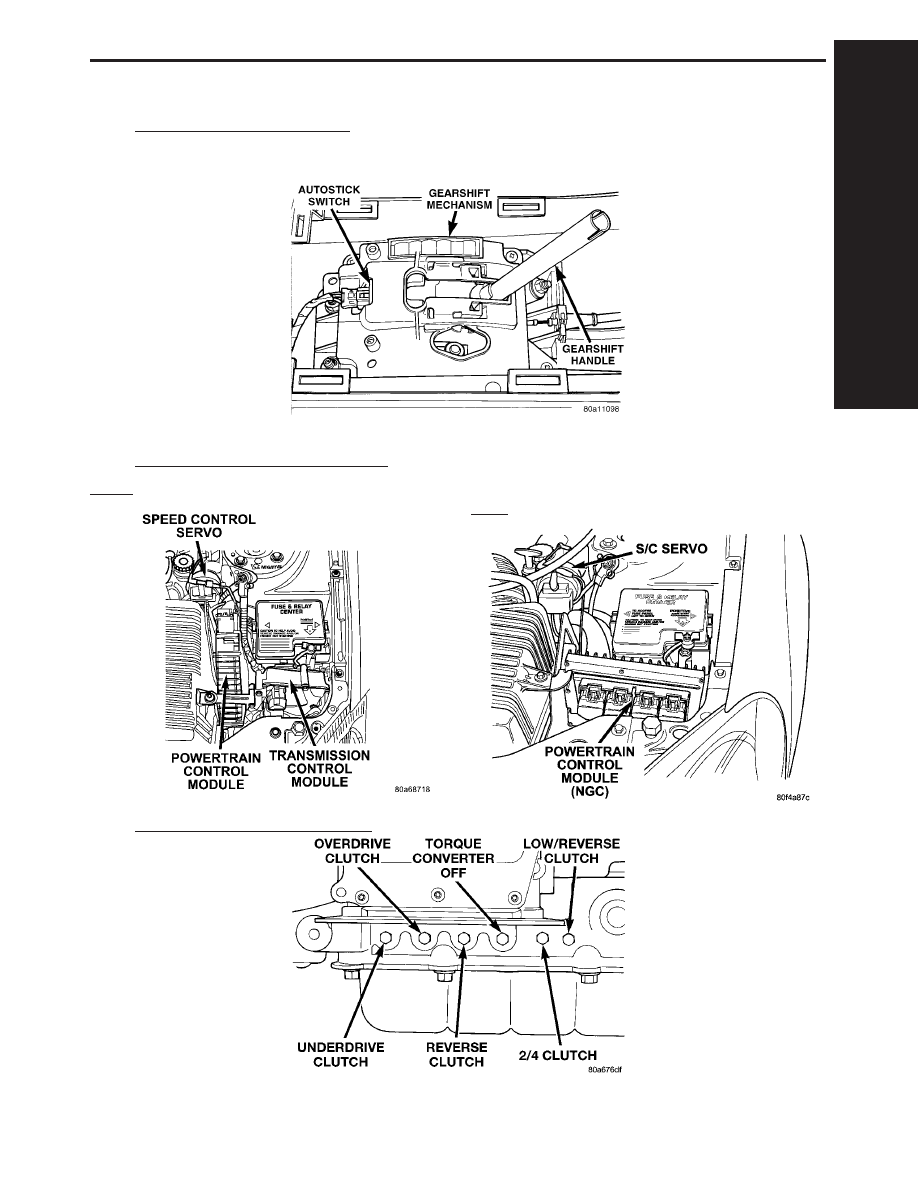

COMPONENT LOCATIONS

8.1

AUTOSTICK (IF EQUIPPED)

8.2

CONTROL MODULE LOCATIONS

EATX

NGC

8.3

PRESSURE PORT LOCATIONS

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

165

COMPONENT LOCATIONS

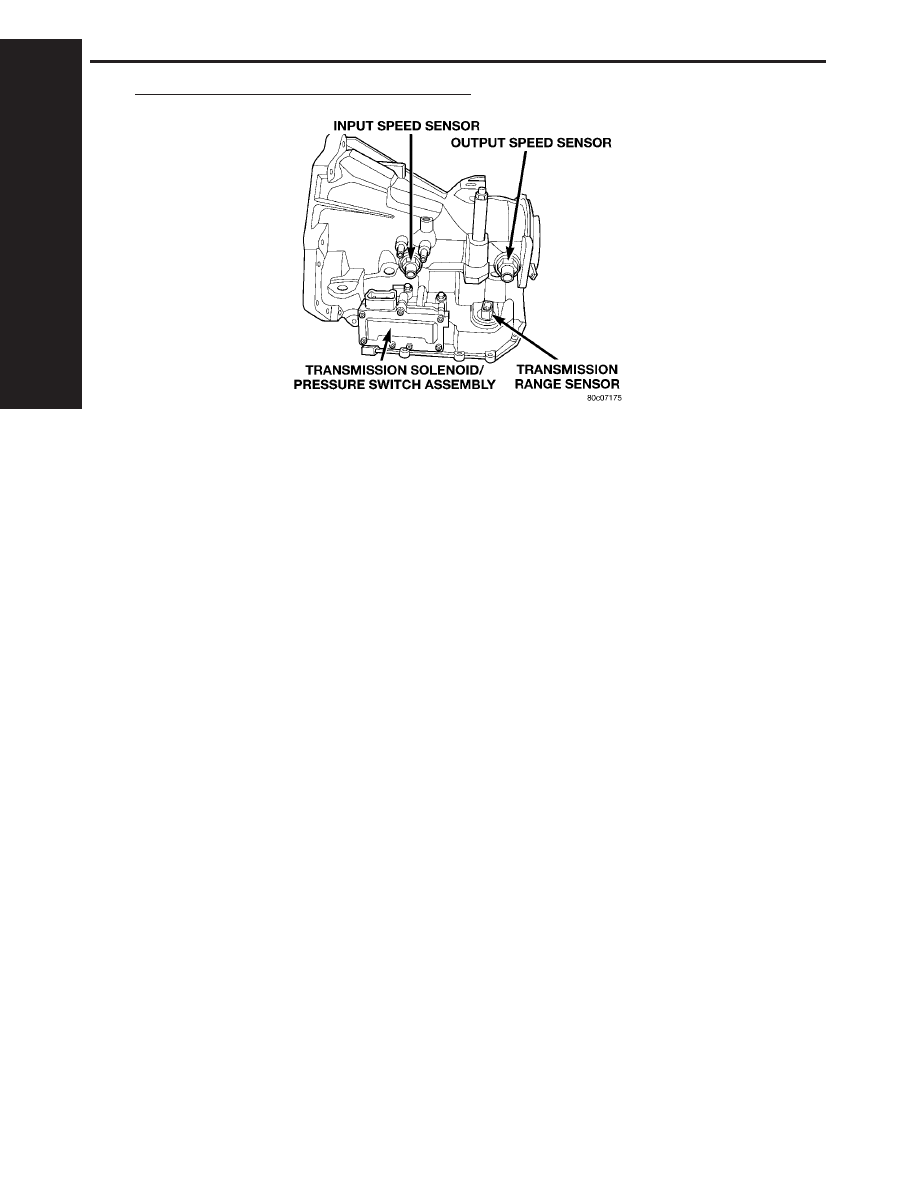

8.4

TRANSMISSION COMPONENT LOCATIONS

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

166

COMPONENT LOCATIONS

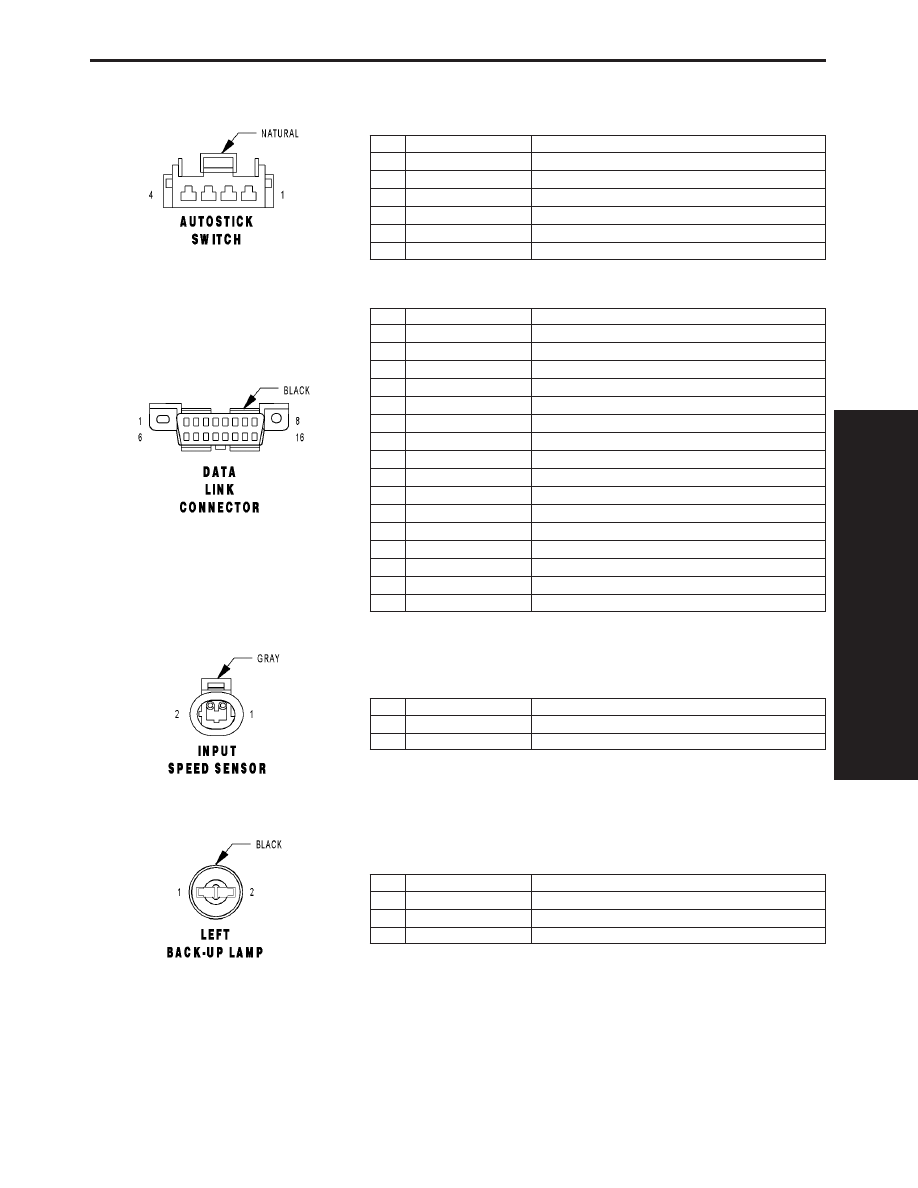

9.0

CONNECTOR PINOUTS

AUTOSTICK SWITCH - NATURAL 4 WAY

CAV

CIRCUIT

FUNCTION

1

T44 20YL (JR27)

AUTOSTICK DOWNSHIFT SWITCH SIGNAL

1

T44 20YL/LB (JR41)

AUTOSTICK DOWNSHIFT SWITCH SIGNAL

2

T5 20LG (JR27)

AUTOSTICK UPSHIFT SWITCH SIGNAL

2

T5 20LG/LB (JR41)

AUTOSTICK UPSHIFT SWITCH SIGNAL

3

Z191 20BK

GROUND

4

F11 20RD/WT

FUSED IGNITION SWITCH OUTPUT (OFF-RUN-START)

DATA LINK CONNECTOR - BLACK 16 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

D25 20VT/YL

PCI BUS (DLC)

3

-

-

4

Z305 20BK/YL

GROUND

5

Z306 20BK/VT

GROUND

6

-

-

7

D21 20PK

SCI TRANSMIT

8

F11 20RD/WT

FUSED IGNITION SWITCH OUTPUT (OFF-RUN-START)

9

D6 20PK/LB

SCI RECEIVE (TCM)

10

-

-

11

-

-

12

D20 20LG

SCI RECEIVE

13

-

-

14

-

-

15

D15 20WT/DG

SCI TRANSMIT (TCM)

16

M1 20PK

FUSED B(+)

INPUT SPEED SENSOR - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

T13 18DB/BK

SPEED SENSOR GROUND

2

T52 18RD/BK

INPUT SPEED SENSOR SIGNAL

LEFT BACK-UP LAMP - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z149 18BK (JR27)

GROUND

1

Z150 18BK (JR41)

GROUND

2

L1 18VT/BK

BACK-UP LAMP FEED

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

167

CONNECTOR PINOUTS
