DITIONING/CONTROLS/A/C

COMPRESSOR

CLUTCH - INSTALLATION).

(3) To duplicate a high-ambient temperature condi-

tion (high head pressure), restrict the air flow
through the A/C condenser. Install a manifold gauge
set to be certain that the discharge pressure does not
exceed 2070 kPa (300 psi).

(4) Check the A/C refrigerant system plumbing for

incorrect routing, rubbing or interference, which can
cause unusual noises. Also check the refrigerant lines
for kinks or sharp bends that will restrict refrigerant
flow, which can cause noises.

(5) If the noise is from opening and closing of the

high pressure relief valve, recover, evacuate, and
recharge the refrigerant system (Refer to 24 - HEAT-
ING & AIR CONDITIONING/PLUMBING - STAN-
DARD PROCEDURE - REFRIGERANT SYSTEM
RECOVERY) and (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING - STANDARD PRO-
CEDURE - REFRIGERANT SYSTEM EVACUATE)
and (Refer to 24 - HEATING & AIR CONDITION-
ING/PLUMBING

-

STANDARD

PROCEDURE

-

REFRIGERANT SYSTEM CHARGE). If the high
pressure relief valve still does not seat properly,
replace the A/C compressor or compressor manifold,
depending on A/C compressor application.

(6) If the noise is from liquid slugging on the A/C

suction line, check the refrigerant oil level and the
refrigerant system charge.

(7) If the noise continues, replace the A/C compres-

sor and repeat Step 1.

REMOVAL

A/C COMPRESSOR

WARNING: Refer to the applicable warnings and
cautions for this system before performing the fol-
lowing operation (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING - WARNINGS) and (Refer
to 24 - HEATING & AIR CONDITIONING/PLUMBING -
CAUTIONS). Failure to follow the warnings and cau-
tions could result in possible personal injury or
death.

NOTE: The A/C compressor may be removed and
repositioned without disconnecting the refrigerant
lines or discharging the refrigerant system. Dis-
charging is not necessary if servicing the A/C
clutch, clutch field coil or engine.

(1) Recover the refrigerant from the refrigerant

system (Refer to 24 - HEATING & AIR CONDITION-
ING/PLUMBING

-

STANDARD

PROCEDURE

-

REFRIGERANT SYSTEM RECOVERY).

(2) Disconnect and isolate the negative battery

cable.

(3) Remove the serpentine drive belt (Refer to 7 -

COOLING/ACCESSORY

DRIVE/BELTS-DRIVE

-

REMOVAL).

(4) Disconnect the wire harness connector from the

A/C compressor clutch coil connector.

(5) Remove the bolts that secure the A/C suction

line and A/C discharge line to the A/C compressor
(Fig. 4).

(6) Disconnect the A/C suction and discharge lines

from the A/C compressor and remove and discard the
O-ring seals.

(7) Install plugs in, or tape over all of the opened

refrigerant line fittings and the compressor ports.

(8) Raise and support vehicle.
(9) Remove the bolts that secure the A/C compres-

sor to the mounting bracket.

(10) Remove the A/C compressor from the engine

compartment.

COMPRESSOR MANIFOLD AND GASKET

CAUTION: To prevent the entrance of dirt and mois-
ture into the A/C compressor, have all replacement
components readily available to minimize the time
the system must be opened.

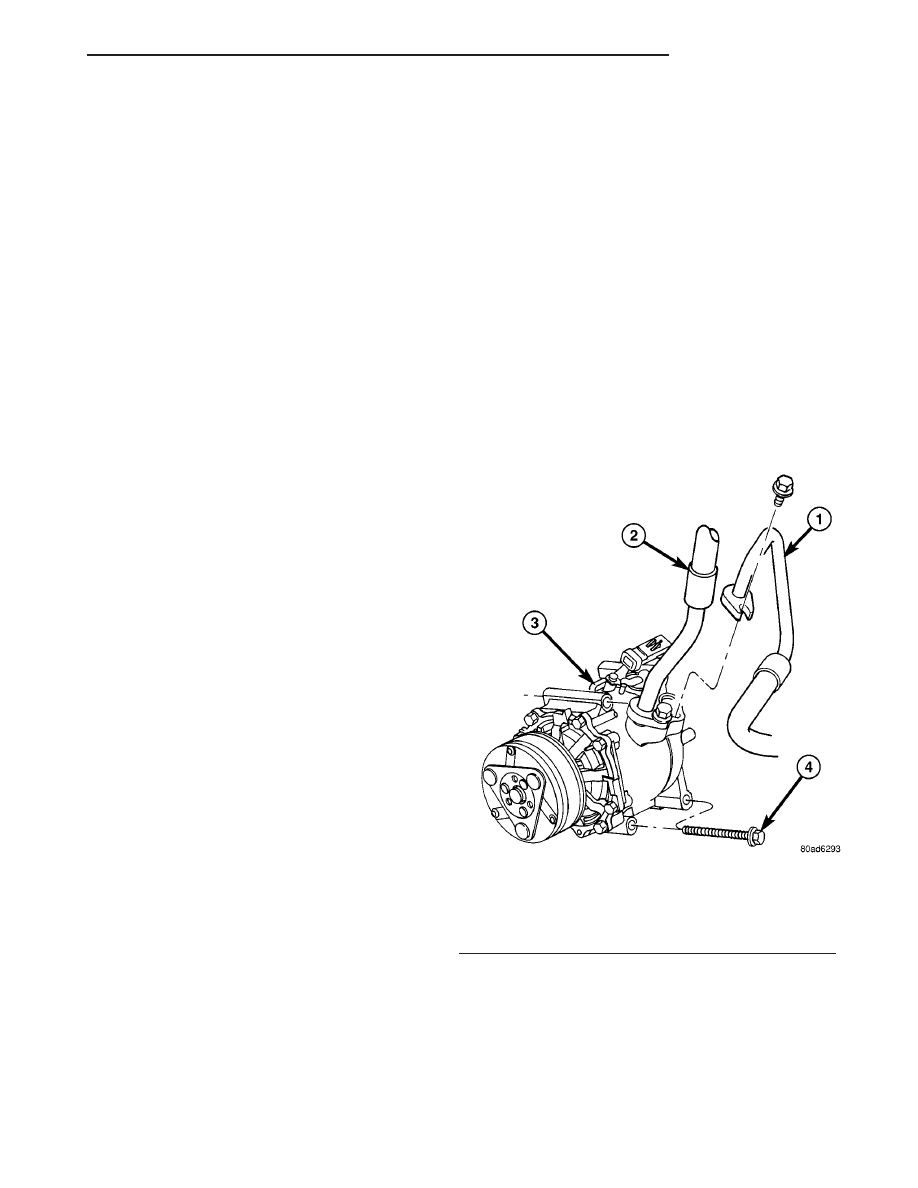

Fig. 4 A/C Compressor - Typical

1 - A/C DISCHARGE LINE
2 - A/C SUCTION LINE
3 - A/C COMPRESSOR
4 - BOLT (4)

JR

PLUMBING

24 - 63

A/C COMPRESSOR (Continued)

NOTE: The Visteon HS-15 A/C compressor has a
replaceable compressor manifold which contains
the fittings for the refrigerant lines and the high
pressure relief valve.

(1) Recover the refrigerant from the refrigerant

system (Refer to 24 - HEATING & AIR CONDITION-
ING/PLUMBING

-

STANDARD

PROCEDURE

-

REFRIGERANT SYSTEM RECOVERY).

(2) Remove the bolts that secure the A/C suction

line and A/C discharge line to the A/C compressor
manifold.

(3) Disconnect the A/C suction and discharge lines

from the A/C compressor manifold and remove and
discard the O-ring seals.

(4) Install plugs in, or tape over all of the opened

refrigerant line fittings and the compressor manifold
ports.

(5) Remove the four bolts that secure the compres-

sor manifold to the A/C compressor (Fig. 5).

(6) Remove the compressor manifold and gasket

from the A/C compressor.

(7) To minimize the chance of compressor damage,

go directly to the Compressor Manifold and Gasket
Installation procedure.

INSTALLATION

A/C COMPRESSOR

NOTE: Be certain to check the refrigerant oil level if
the A/C compressor is being replaced. See Refriger-
ant Oil Level in this group for the procedures. Use
only refrigerant oil of the type recommended for the
A/C compressor in the vehicle.

(1) Position the A/C compressor onto the mounting

bracket.

(2) Install the bolts that secure the A/C compressor

to the mounting bracket. Tighten the bolts to 28 N·m
(20 ft. lbs.).

(3) Lower the vehicle.
(4) Remove the tape or plugs from the opened fit-

tings on the A/C suction line and the A/C discharge
line and the compressor ports.

(5) Lubricate the new O-ring seals with clean

refrigerant oil and install them onto the suction and
the discharge line fittings. Use only the specified
seals as they are made of a special material for the
R-134a system. Use only refrigerant oil of the type
recommended for the A/C compressor in the vehicle.

(6) Install the A/C suction and discharge lines onto

the A/C compressor.

(7) Install the bolts that secure the A/C suction

and discharge lines to the A/C compressor. Tighten
the bolts to 22 N·m (16 ft. lbs.).

(8) Connect the wire harness connector to the A/C

compressor clutch coil connector.

(9) Install the serpentine drive belt (Refer to 7 -

COOLING/ACCESSORY

DRIVE/BELTS-DRIVE

-

INSTALLATION).

(10) Reconnect the negative battery cable.
(11) Evacuate the refrigerant system (Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE - REFRIGERANT SYS-
TEM EVACUATE).

(12) Charge the refrigerant system (Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE - REFRIGERANT SYS-
TEM CHARGE).

COMPRESSOR MANIFOLD AND GASKET

CAUTION: To prevent the entrance of dirt and mois-
ture into the A/C compressor, have all replacement
components readily available to minimize the time
the system must be opened.

(1) Position the compressor manifold and a new

gasket onto the A/C compressor.

(2) Install the bolts that secure the compressor

manifold to the A/C compressor. Tighten the bolts to
22 N·m (16 ft. lbs.).

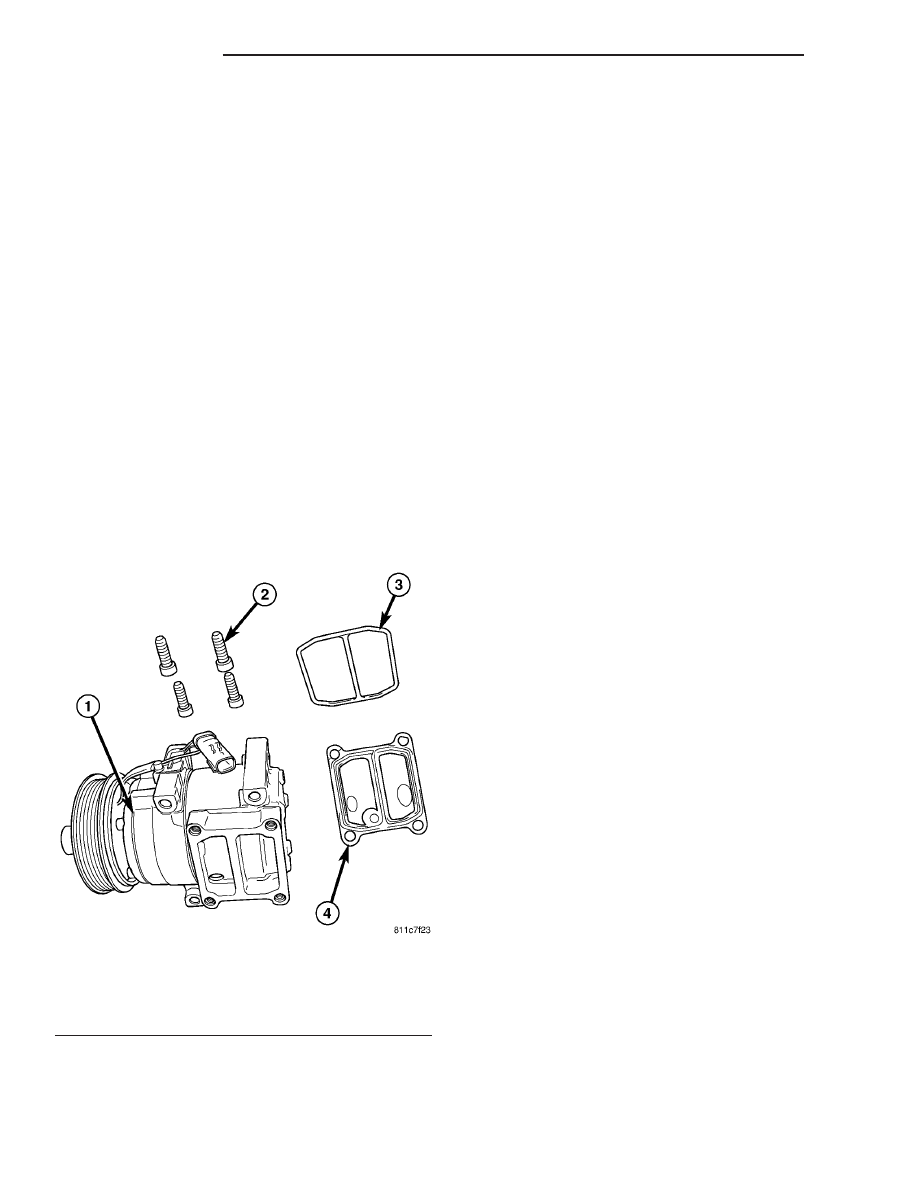

Fig. 5 A/C Compressor Manifold

1 - HS-15 A/C COMPRESSOR
2 - BOLT (4)
3 - GASKET
4 - MANIFOLD

24 - 64

PLUMBING

JR

A/C COMPRESSOR (Continued)

(3) Remove the tape or plugs from the opened fit-

tings on the A/C suction line and the A/C discharge
line and the compressor manifold ports.

(4) Lubricate the new O-ring seals with clean

refrigerant oil and install them onto the suction and
the discharge line fittings. Use only the specified
seals as they are made of a special material for the
R-134a system. Use only refrigerant oil of the type
recommended for the A/C compressor in the vehicle.

(5) Install the A/C suction and discharge lines onto

the A/C compressor manifold.

(6) Install the bolts that secure the A/C suction

and discharge lines to the A/C compressor manifold.
Tighten the bolts to 22 N·m (16 ft. lbs.).

(7) Evacuate the refrigerant system (Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE - REFRIGERANT SYS-
TEM EVACUATE).

(8) Charge the refrigerant system (Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE - REFRIGERANT SYS-
TEM CHARGE).

A/C CONDENSER

DESCRIPTION

The A/C condenser (Fig. 6) is located in the front of

the engine compartment behind the front fascia. The
A/C condenser is a heat exchanger that allows the
high-pressure refrigerant gas being discharged by the
A/C compressor to give up its heat to the air passing
over the condenser fins, which causes the refrigerant
to cool and change to a liquid state.

The A/C condenser is equipped with tapping blocks

or a quick connect fitting for refrigerant line connec-
tions (depending on engine application), tapping
blocks for the integral automatic transmission cooler
and mounting provisions for the power steering
cooler, when equipped.

OPERATION

When air passes through the fins of the A/C con-

denser, the high-pressure refrigerant gas within the
A/C condenser gives up its heat. The refrigerant then
condenses as it leaves the A/C condenser and
becomes a high-pressure liquid. The volume of air
flowing over the condenser fins is critical to the
proper cooling performance of the A/C system. There-
fore, it is important that there are no objects placed
in front of the radiator grille openings at the front of
the vehicle or foreign material on the condenser fins
that might obstruct proper air flow. Also, any factory-
installed air seals or shrouds must be properly rein-
stalled following radiator or A/C condenser service.

The A/C condenser cannot be repaired and, if

faulty or damaged, it must be replaced.

REMOVAL

WARNING: Refer to the applicable warnings and
cautions for this system before performing the fol-
lowing operation (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING - WARNINGS) and (Refer
to 24 - HEATING & AIR CONDITIONING/PLUMBING -
CAUTIONS). Failure to follow the warnings and cau-
tions could result in possible personal injury or
death.

(1) Recover the refrigerant from the refrigerant

system (Refer to 24 - HEATING & AIR CONDITION-
ING/PLUMBING

-

STANDARD

PROCEDURE

-

REFRIGERANT SYSTEM RECOVERY).

(2) Disconnect and isolate the negative battery

cable.

(3) Remove the front fascia (Refer to 13 - FRAME

&

BUMPERS/BUMPERS/FRONT

FASCIA

-

REMOVAL).

(4) Remove the upper radiator support crossmem-

ber (Refer to 23 - BODY/EXTERIOR/RADIATOR
SUPPORT CROSSMEMBER - REMOVAL)

(5) If equipped, disconnect the automatic transmis-

sion cooler lines from the left end of the A/C con-
denser and install plugs in, or tape over the cooler
line fittings and the cooler ports.

(6) Disconnect the A/C discharge line and the A/C

liquid line from A/C condenser (Refer to 24 - HEAT-

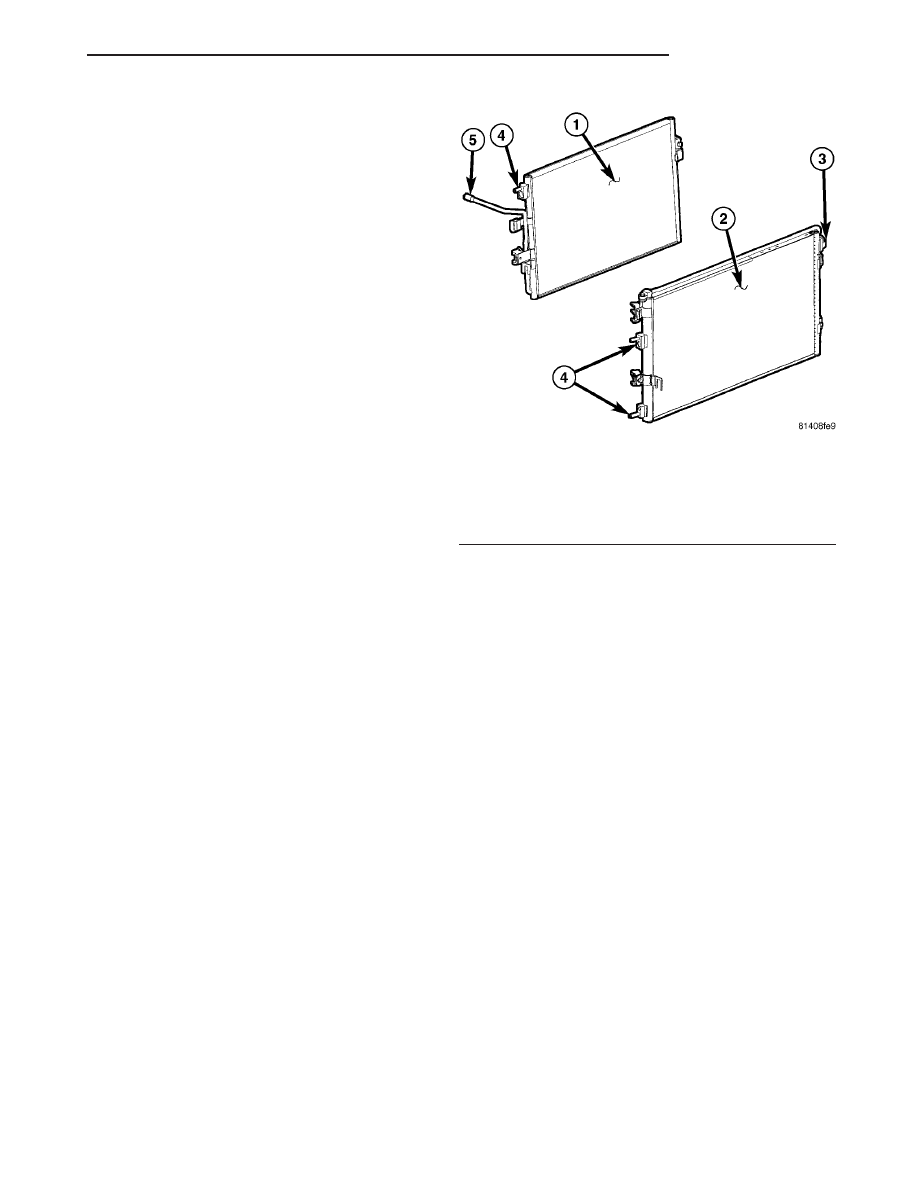

Fig. 6 A/C Condenser-Description

1 - A/C CONDENSER (2.4L TURBO)
2 - A/C CONDENSER (2.0L, 2.4L NA, 2.7L)
3 - AUTO TRANS COOLER TAPPING BLOCK
4 - REFRIGERANT LINE TAPPING BLOCK
5 - REFRIGERANT LINE QUICK CONNECT FITTING

JR

PLUMBING

24 - 65

A/C COMPRESSOR (Continued)

ING & AIR CONDITIONING/PLUMBING/LINE-A/C
LIQUID - REMOVAL) and (Refer to 24 - HEATING
& AIR CONDITIONING/PLUMBING/LINE-A/C DIS-
CHARGE - REMOVAL) (Fig. 7) and (Fig. 8).

(7) If equipped, remove the power steering fluid

cooler from the A/C condenser and position it out of
the way (Refer to 19 - STEERING/PUMP/FLUID
COOLER - REMOVAL).

(8) Remove the two bolts that secure the A/C con-

denser to the radiator.

(9) Carefully lift the A/C condenser straight up

and out of the engine compartment.

INSTALLATION

NOTE: If the A/C condenser is being replaced, add
30 milliliters (1 fluid ounce) of refrigerant oil to the
refrigerant system. Use only refrigerant oil of the
type recommended for the A/C compressor in the
vehicle.

Carefully position the A/C condenser onto the radi-

ator in the engine compartment.

(1) Install the two bolts that secure the A/C con-

denser to the radiator. Tighten the bolts to 5 N·m (45
in. lbs.).

(2) If equipped, install the power steering fluid

cooler onto the A/C condenser (Refer to 19 - STEER-
ING/PUMP/FLUID COOLER - INSTALLATION).

(3) Connect the A/C discharge line and the A/C liq-

uid line onto the A/C condenser (Refer to 24 - HEAT-
ING & AIR CONDITIONING/PLUMBING/LINE-A/C
DISCHARGE - INSTALLATION) and (Refer to 24 -
HEATING

&

AIR

CONDITIONING/PLUMBING/

LINE-A/C LIQUID - INSTALLATION).

(4) If equipped, remove the tape or plugs from the

automatic transmission cooler lines and the cooler
ports located on the left end of the A/C condenser and
connect the lines to the ports (Refer to 7 - COOLING/
TRANSMISSION

-

STANDARD

PROCEDURE

-

TRANSMISSION

COOLER

LINE

QUICK

CON-

NECT FITTING).

(5) Install the upper radiator support crossmember

(Refer to 23 - BODY/EXTERIOR/RADIATOR SUP-
PORT CROSSMEMBER - INSTALLATION.)

(6) Install the front fascia (Refer to 13 - FRAME &

BUMPERS/BUMPERS/FRONT FASCIA - INSTAL-
LATION).

(7) Reconnect the negative battery cable.
(8) Evacuate the refrigerant system (Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE - REFRIGERANT SYS-
TEM EVACUATE).

(9) Charge the refrigerant system (Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE - REFRIGERANT SYS-
TEM CHARGE).

Fig. 7 A/C Condenser - 2.4L Turbo Engine

1 - LIQUID LINE
2 - SECONDARY RETAINING CLIP
3 - A/C CONDENSER
4 - NUT
5 - BOLT
6 - A/C PRESSURE TRANSDUCER
7 - DISCHARGE LINE

Fig. 8 A/C Condenser - All Other Engines

1 - NUT (2)
2 - BOLT (2)
3 - A/C CONDENSER
4 - A/C DISCHARGE LINE
5 - A/C LIQUID LINE
6 - A/C PRESSURE TRANSDUCER

24 - 66

PLUMBING

JR

A/C CONDENSER (Continued)















Content   ..  739  740  741  742   ..
