Fig. 212 INNER QUARTER PANEL REINFORCEMENT TO INNER QUARTER PANEL TO BODY SIDE APERTURE

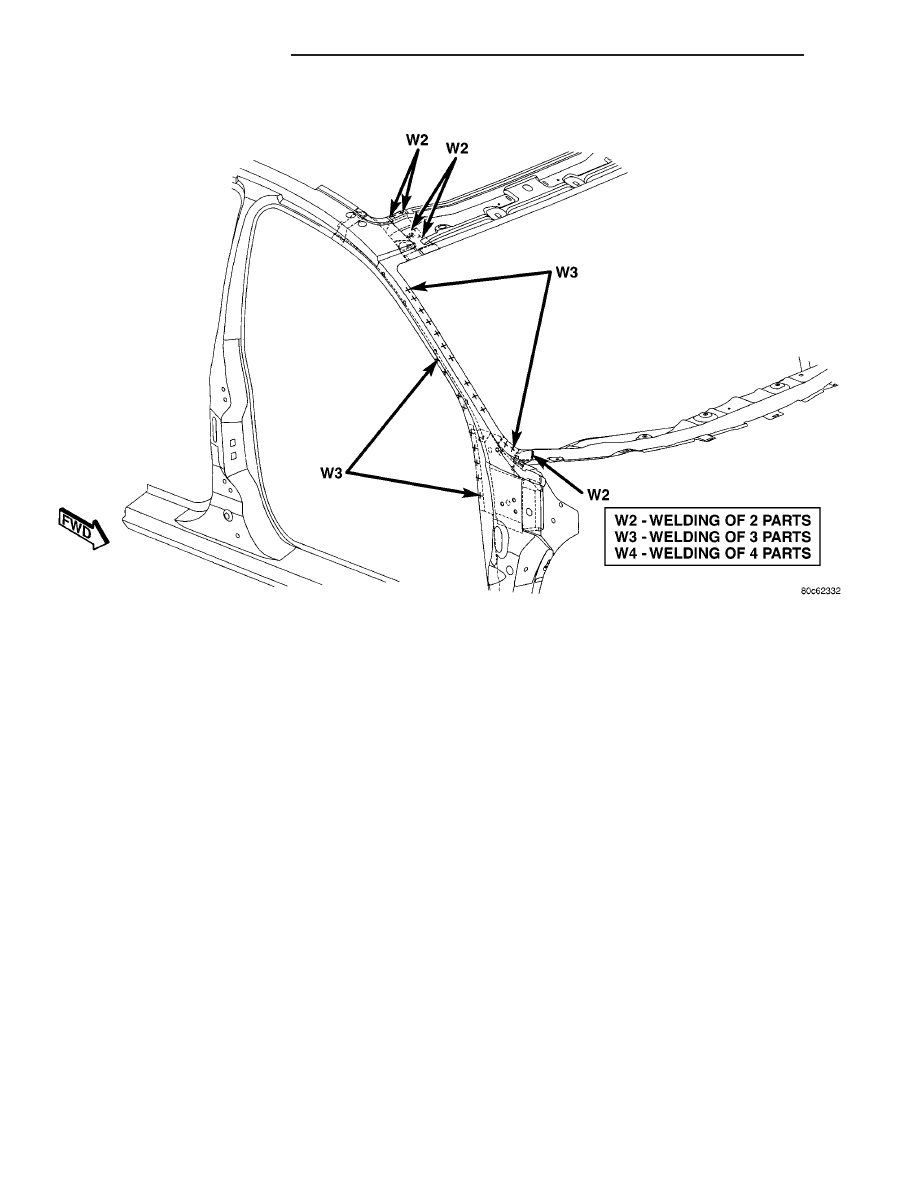

Fig. 213 DRIP RAIL/ROOF SUPPORT TO BODY SIDE APERTURE

JR

BODY STRUCTURE

23 - 281

WELD LOCATIONS (Continued)

Fig. 214 OUTER WINDSHIELD FRAME TO INNER WINDSHIELD FRAME TO COWL SIDE PANEL

23 - 282

BODY STRUCTURE

JR

WELD LOCATIONS (Continued)

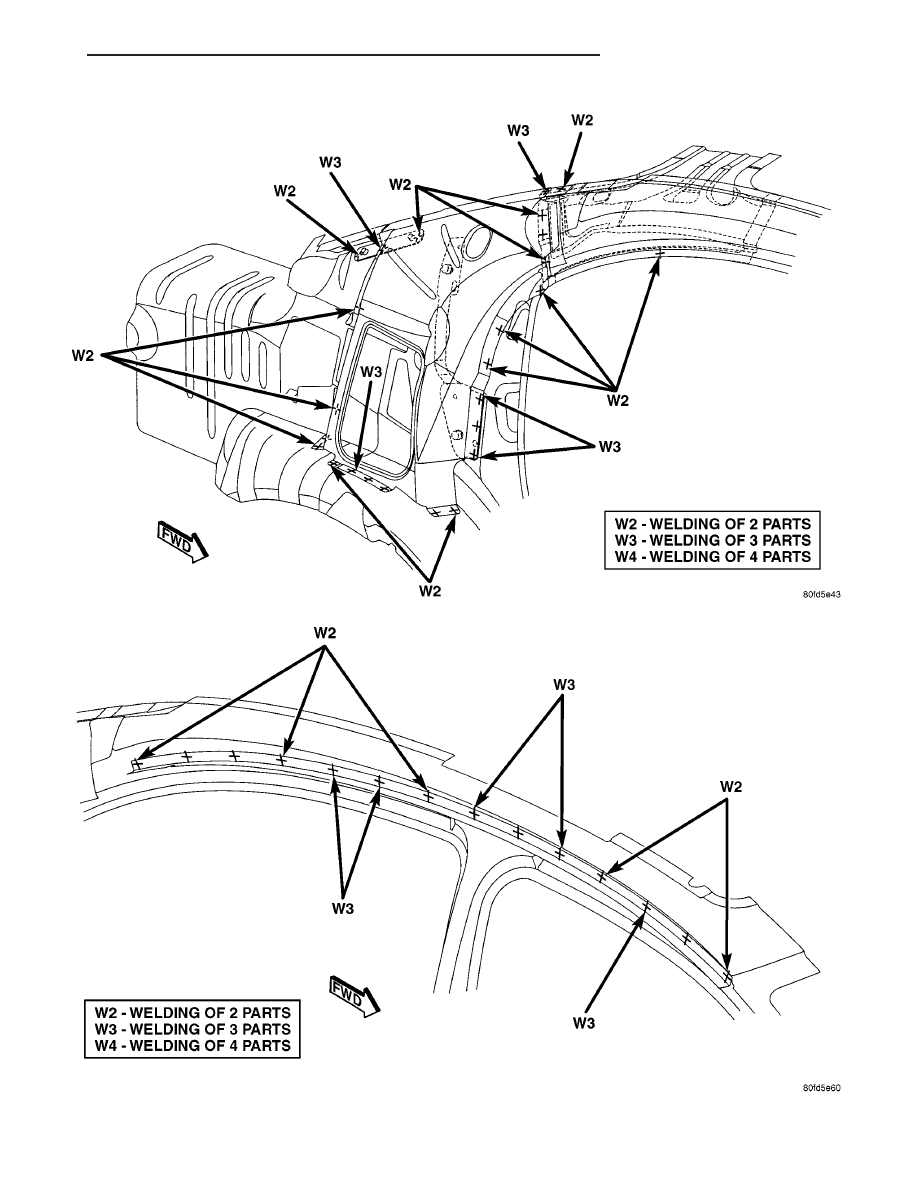

Fig.

215

OUTER

REAR

WHEELHOUSE

&

REAR

SILL

T

O

BODY

SIDE

APER

TURE

ROOF

BOWS

T

O

CENTER

PILLAR

REINFORCEMENT

JR

BODY STRUCTURE

23 - 283

WELD LOCATIONS (Continued)

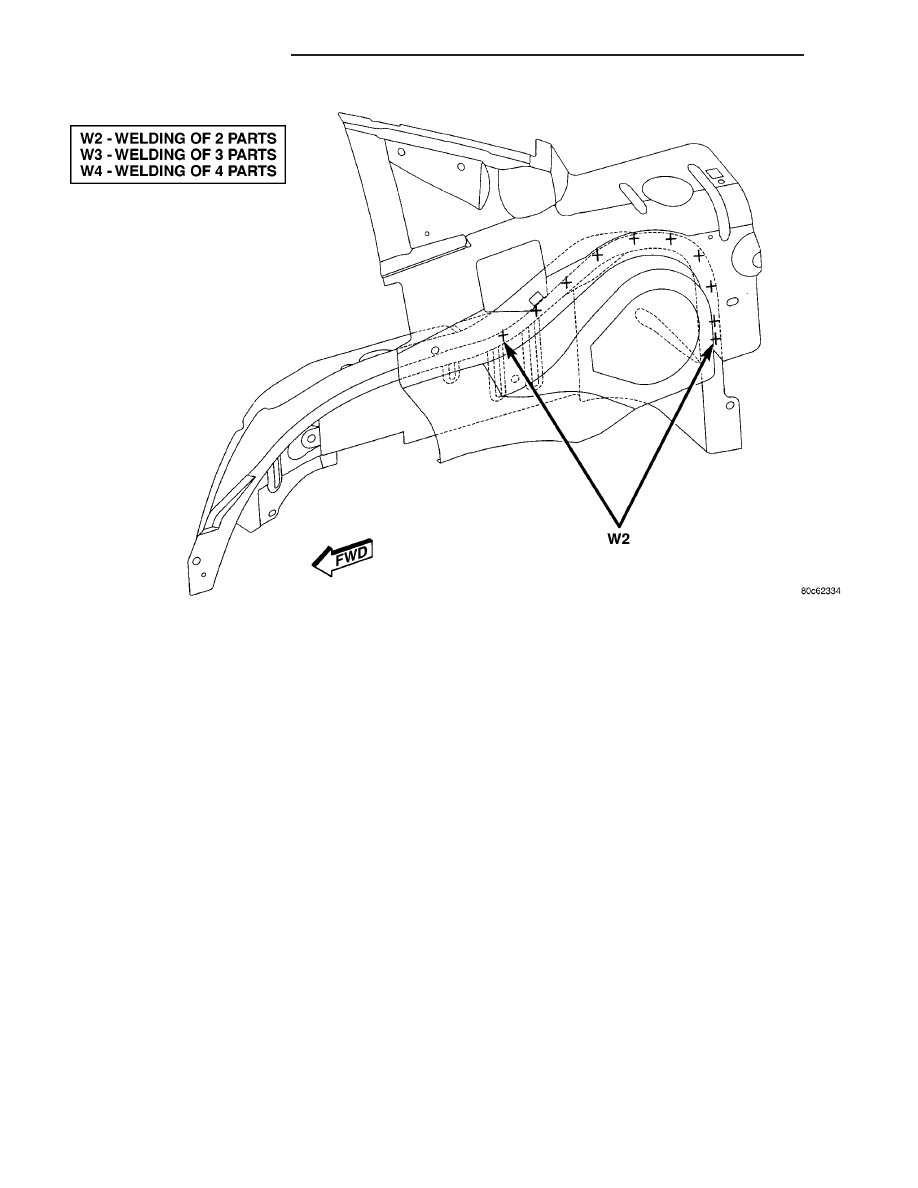

Fig. 216 REAR INNER WHEELHOUSE TO REAR OUTER WHEELHOUSE

23 - 284

BODY STRUCTURE

JR

WELD LOCATIONS (Continued)
