Chrysler Sebring, Stratus sedan, Sebring Convertible. Manual - part 665





WINDOW REGULATOR

REMOVAL

(1) Remove door waterdam. (Refer to 23 - BODY/

DOORS - REAR/WATERDAM - REMOVAL)

(2) Remove glass from regulator roller channel.

Secure glass in the up position in the door frame.

(3) Disconnect power window motor wire connec-

tor, if equipped.

(4) Loosen screw attaching regulator scissor chan-

nel to door panel (Fig. 14).

(5) Remove screw and bolt heads from keyhole

slots in door panel.

(6) Loosen bolts attaching regulator to door panel.
(7) Remove regulator from door panel.
(8) Slide regulator rearward and rotate forward

end of roller channel through access hole in door
panel.

INSTALLATION

(1) Position regulator on door panel through access

hole in door panel.

(2) Tighten bolts attaching regulator to door panel.
(3) Install screw and bolt heads on scissor channel

to keyhole slots in door panel.

(4) Tighten screw attaching regulator scissor chan-

nel to door panel.

(5) Connect power window motor wire connector, if

equipped.

(6) Position glass to regulator roller channel.
(7) Tighten fasteners attaching door glass to roller

channel.

(8) Install door waterdam. (Refer to 23 - BODY/

DOORS - REAR/WATERDAM - INSTALLATION)

WATERSHIELD

REMOVAL

(1) Remove door trim panel. (Refer to 23 - BODY/

DOORS - REAR/TRIM PANEL - REMOVAL)

(2) Remove door speaker, if equipped. (Refer to 8 -

ELECTRICAL/AUDIO/SPEAKER - REMOVAL)

CAUTION: Do not use dirty hands or lint type
gloves when removing the watershield, adhesive
bead will be ruined.

(3) Peel watershield and adhesive away from the

door inner panel. Start in one corner, carefully work-
ing towards the opposite corner.

(4) Store watershield flat, adhesive side up, cover-

ing with wax paper or similar if available to prevent
contaminating the adhesive bead.

INSTALLATION

(1) Insure that the adhesive bead is not broken, so

the complete perimeter of the door seal will be main-
tained. Replace any loose/damaged adhesive with
butyl sealer or similar. If sealing repair is not possi-
ble, replace with a new watershield

(2) Place the watershield into position using the

two depressions that locate into the corresponding
holes in the door inner panel. (Fig. 39)

(3) Firmly press the adhesive around the perime-

ter of the door insure complete sealing. Make sure to
properly route wiring and linkages.

(4) Install door speaker, if equipped. (Refer to 8 -

ELECTRICAL/AUDIO/SPEAKER - INSTALLATION)

(5) Install door trim panel. (Refer to 23 - BODY/

DOORS - REAR/TRIM PANEL - INSTALLATION)

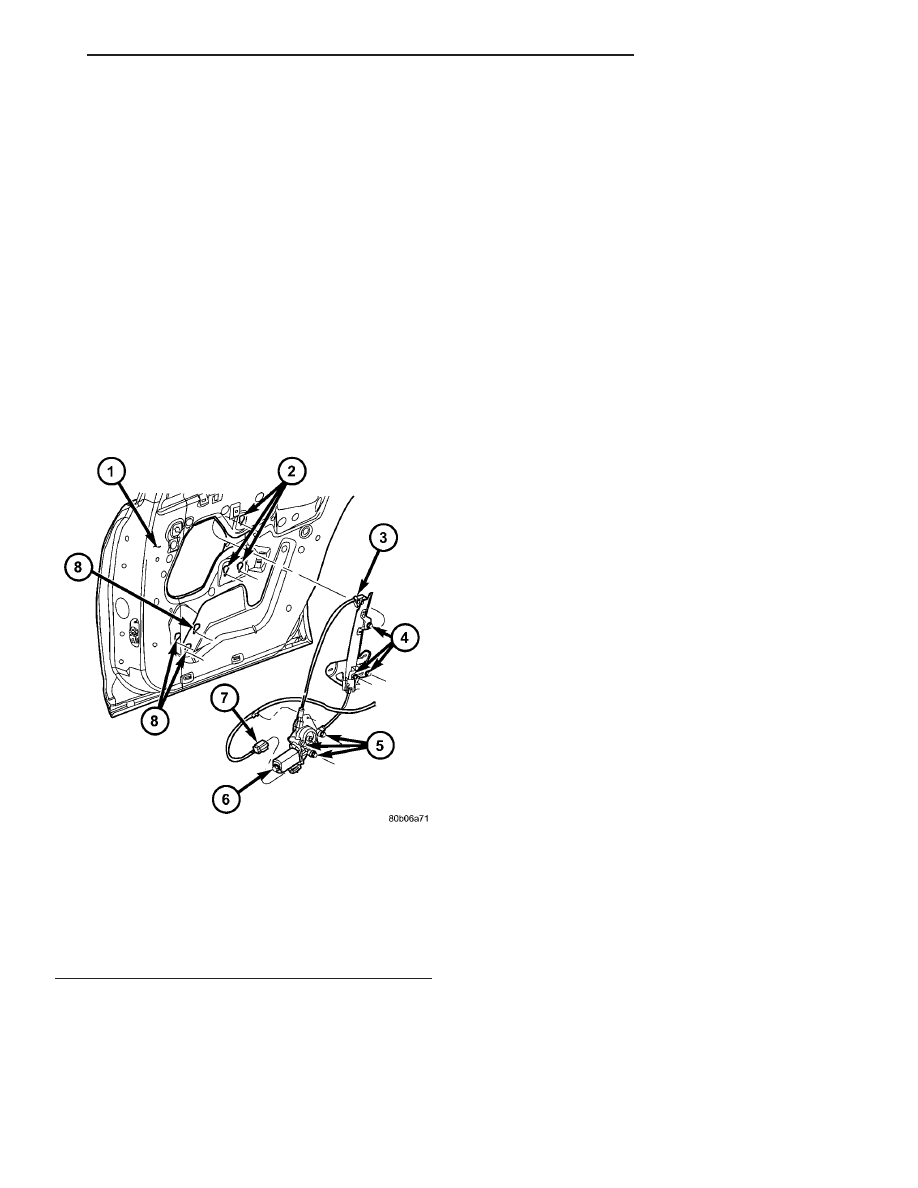

Fig. 14 REAR DOOR REGULATOR

1 - REAR DOOR
2 - MOUNTING SLOTS
3 - REAGULATOR
4 - BOLTS
5 - BOLTS
6 - MOTOR
7 - ELECTRICAL CONNECTOR
8 - MOUNTING SLOTS

JR

DOORS - REAR

23 - 57

EXTERIOR

TABLE OF CONTENTS

page

page

ACCESSORY DRIVE BELT SPLASH SHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 58

BATTERY SPLASH SHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 59

BODY SIDE MOLDINGS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 59

COWL COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 60

EXTERIOR NAME PLATES

REMOVAL - FOAM TAPE

. . . . . . . . . . . . . . . . . 60

INSTALLATION - FOAM TAPE

. . . . . . . . . . . . . . 60

FRONT FENDER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 61

FUEL FILL DOOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 62

GRILLE

REMOVAL

REMOVAL - JR-41

. . . . . . . . . . . . . . . . . . . . . 62

REMOVAL - JR-27

. . . . . . . . . . . . . . . . . . . . . 63

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . 63

INSTALLATION - JR-27

. . . . . . . . . . . . . . . . . 63

LEFT FRONT WHEELHOUSE SPLASH SHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 64

RADIATOR SUPPORT CROSSMEMBER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 64

REAR WHEELHOUSE SPLASH SHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 64

RIGHT FRONT WHEELHOUSE SPLASH SHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 65

SIDE VIEW MIRROR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 65

SIDE VIEW MIRROR GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 66

SPOILER

REMOVAL

REMOVAL - JR-41

. . . . . . . . . . . . . . . . . . . . . 66

REMOVAL - JR-27

. . . . . . . . . . . . . . . . . . . . . 67

INSTALLATION

INSTALLATION - JR-41

. . . . . . . . . . . . . . . . . 67

INSTALLATION - JR-27

. . . . . . . . . . . . . . . . . 67

TAPE STRIPE

REMOVAL - ADHESIVES

. . . . . . . . . . . . . . . . . 67

INSTALLATION - ADHESIVES

. . . . . . . . . . . . . . 67

ACCESSORY DRIVE BELT
SPLASH SHIELD

REMOVAL

(1) Remove the right front wheelhouse splash shield.

(Refer

to

23

-

BODY/EXTERIOR/RIGHT

FRONT

WHEELHOUSE SPLASH SHIELD - REMOVAL)

(2) Remove the six push-in fasteners attaching acces-

sory drive belt splash shield to frame rail (Fig. 1).

(3) Remove accessory drive belt splash shield from

vehicle.

INSTALLATION

(1) Install splash shield and install the six push-in

fasteners attaching accessory drive belt splash shield
to frame rail.

(2) Install

the

right

front

wheelhouse

splash

shield. (Refer to 23 - BODY/EXTERIOR/RF WHEEL-
HOUSE SPLASH SHIELD - INSTALLATION)

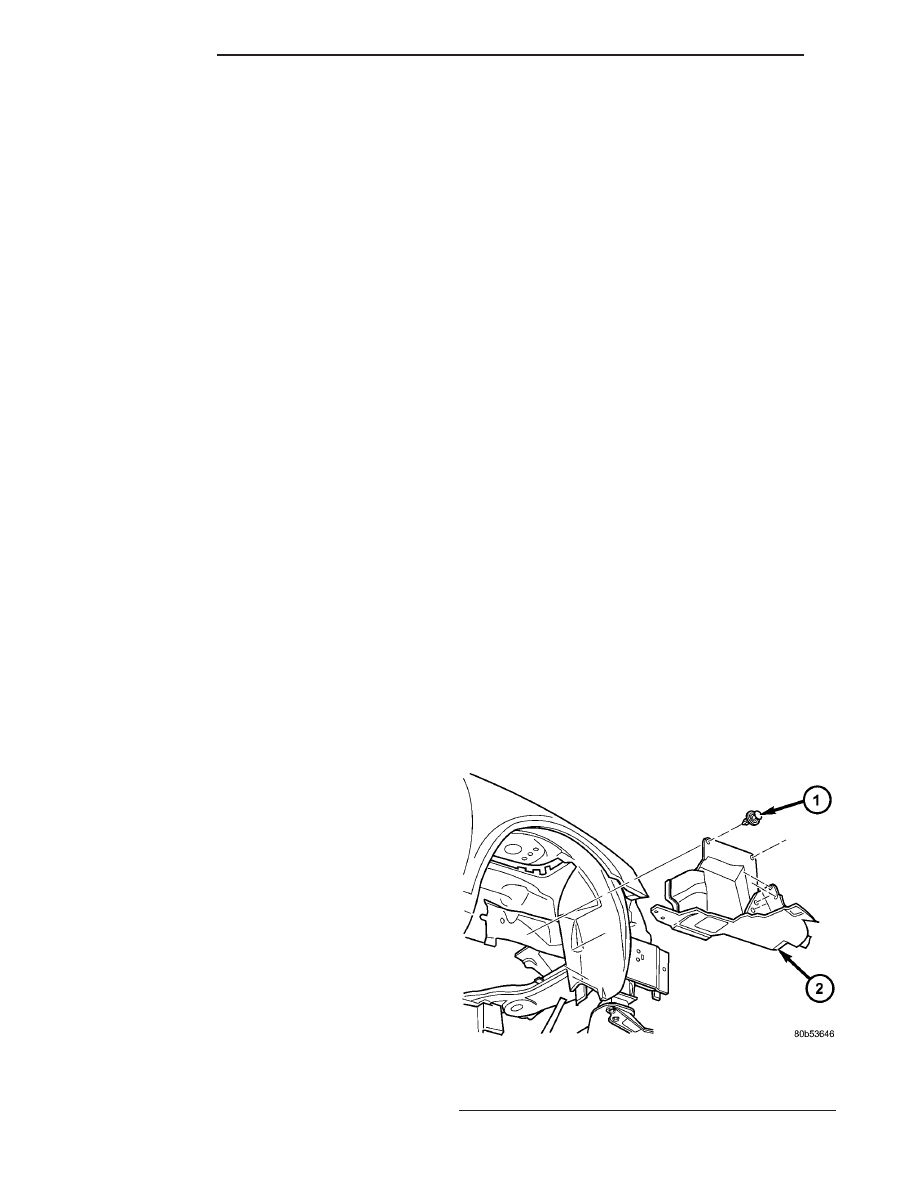

Fig. 1 ACCESSORY DRIVE BELT SPLASH SHIELD

1 - PUSH-PIN FASTENERS
2 - SPLASH SHIELD

23 - 58

EXTERIOR

JR

BATTERY SPLASH SHIELD

REMOVAL

(1) Remove

the

three

push-pin

fasteners

and

remove the splash shield (Fig. 2).

INSTALLATION

(1) Install the splash shield and install the 3 push-

pin fasteners.

BODY SIDE MOLDINGS

REMOVAL

(1) Warm the affected body side molding and body

metal to approximately 38° C (100° F) using a suit-
able heat lamp or heat gun.

(2) Pull body side molding from vehicle (Fig. 3).
(3) Remove adhesive tape residue from surface of

vehicle.

INSTALLATION

(1) If molding is to be reused, remove tape residue

from molding. Clean back of molding with Mopar

t

Super Kleen solvent or equivalent. Wipe molding dry
with lint free cloth. Apply new body side molding
(two sided adhesive) tape to back of molding.

(2) Clean body surface with Mopar

t Super Kleen

solvent or equivalent. Wipe surface dry with a lint
free cloth.

(3) Apply a length of masking tape on the body

parallel to the top edge of the molding to use as a
guide, if necessary.

(4) Remove protective cover from tape on back of

molding. Apply molding to body below the masking
tape guide.

(5) Remove masking tape guide. Heat body metal

and body side molding to approximately 38° C (100°
F) using a suitable heat lamp or heat gun.

(6) Firmly press body side molding to body surface

to insure adhesion.

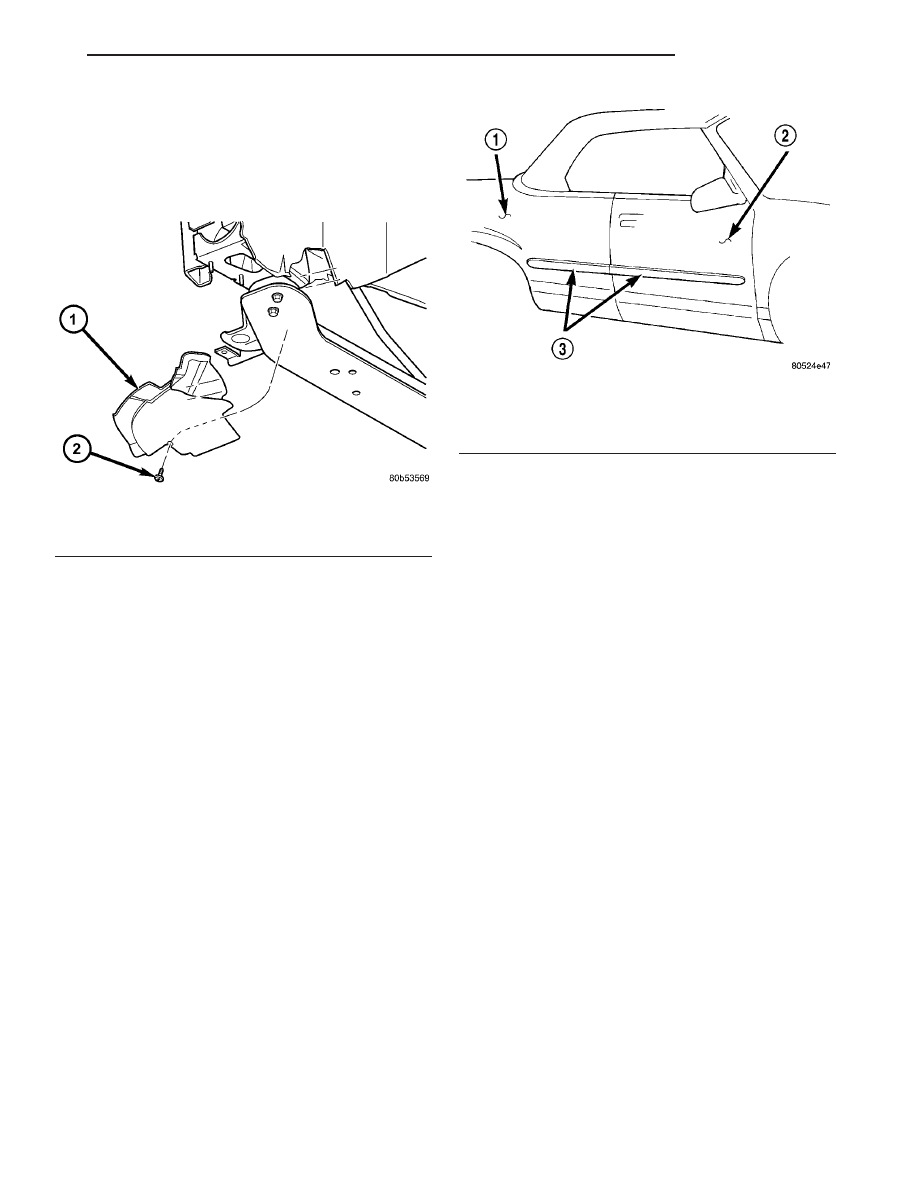

Fig. 2 BATTERY SPLASH SHIELD

1 - SPLASH SHIELD
2 - PUSH-PIN FASTENERS

Fig. 3 Body Side Molding

1 - QUARTER PANEL
2 - DOOR
3 - BODYSIDE MOLDING

JR

EXTERIOR

23 - 59

COWL COVER

REMOVAL

(1) Release hood latch and open hood.
(2) Remove windshield wiper arms (Refer to 8 -

ELECTRICAL/WIPERS/WASHERS/WIPER ARMS -
REMOVAL).

(3) Remove screws attaching cowl cover to cowl

(Fig. 4).

(4) Remove the seal, cowl screen to hood inner

panel.

(5) Remove clips attaching cowl cover to cowl ple-

num under hood to cowl bulb seal.

(6) Remove cowl cover from vehicle.

INSTALLATION

(1) Position cowl cover to vehicle.
(2) Install clips attaching cowl cover to cowl ple-

num.

(3) Install the seal, cowl screen to hood inner

panel.

(4) Install screws attaching cowl cover to cowl.
(5) Install windshield wiper arms (Refer to 8 -

ELECTRICAL/WIPERS/WASHERS/WIPER ARMS -
INSTALLATION).

EXTERIOR NAME PLATES

REMOVAL - FOAM TAPE

(1) Mark reference points before removing.
(2) Using a heat gun gently apply heat in a circu-

lar motion to loosen the adhesive bond.

(3) Using a trim stick C 4755 or equivalent, gently

pry up at corners and remove.

(4) Clean off all traces of adhesive or double sided

tape from the panel with a general purpose adhesive
remover.

INSTALLATION - FOAM TAPE

(1) Clean panel surface with isopropyl alcohol.
(2) Align badging to reference points.
(3) Install and press securely to full adhesive con-

tact

(4) Clean away any reference points.

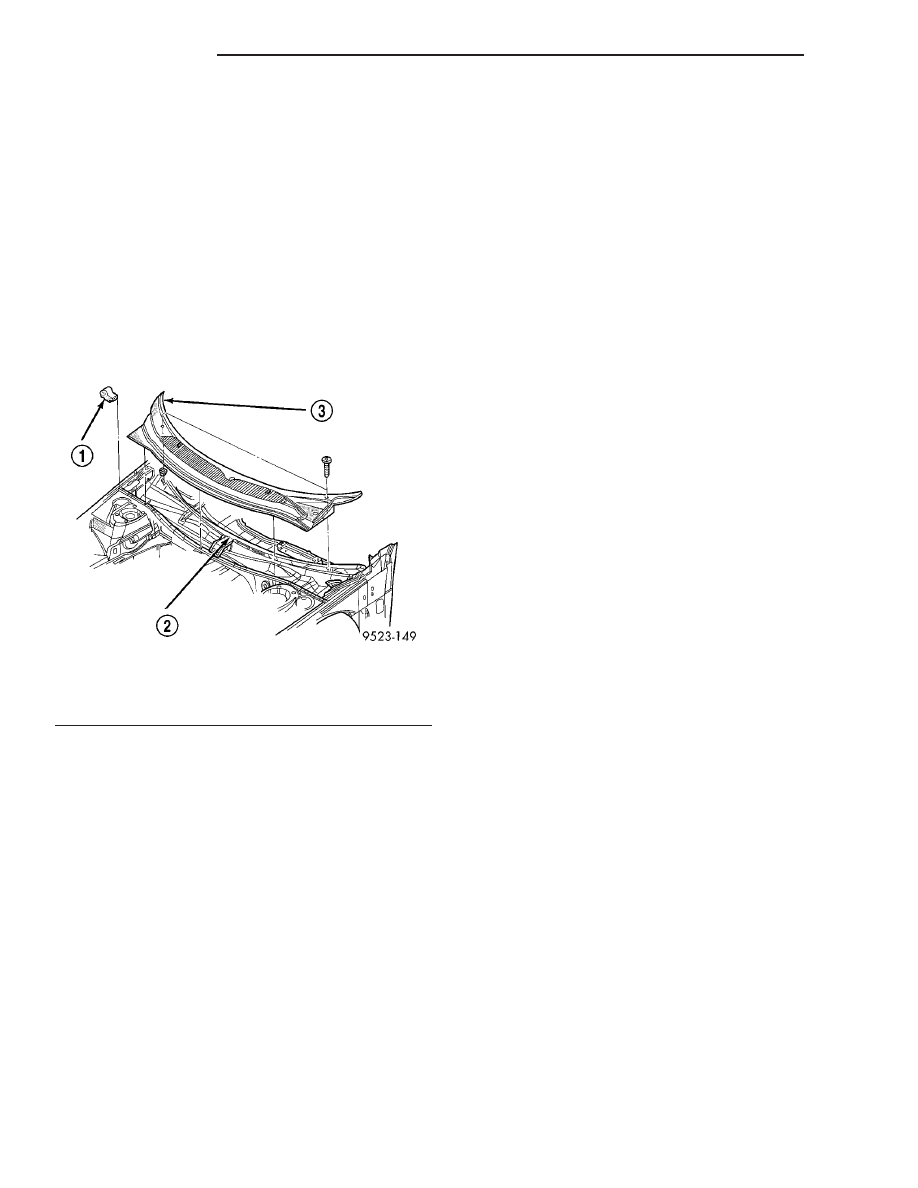

Fig. 4 Cowl Cover

1 - SEAL
2 - COWL
3 - COWL COVER

23 - 60

EXTERIOR

JR
