(8) Position an appropriate piece of Plastigage

across both pump gears.

(9) Align the Plastigage to a flat area on the reac-

tion shaft support housing.

(10) Install the reaction shaft to the pump housing

(Fig. 275). Tighten the bolts to 27 N·m (20 ft. lbs.).

(11) Remove bolts and carefully separate the hous-

ings. Measure the Plastigage following the instruc-
tions supplied.

(12) Clearance between both gear end faces and

the reaction shaft support should be 0.020-0.046 mm
(0.0008-0.0018 in.).

ASSEMBLY

(1) Assemble oil pump as shown in (Fig. 281).

(2) Install and torque reaction shaft support-to-oil

pump housing bolts to 28 N·m (20 ft. lbs.) torque
(Fig. 282).

PLANETARY GEARTRAIN

DESCRIPTION

The planetary geartrain is located between the

input clutch assembly and the rear of the transaxle
case. The planetary geartrain consists of two sun
gears, two planetary carriers, two annulus (ring)
gears, and one output shaft (Fig. 283).

OPERATION

The planetary geartrain utilizes two planetary gear

sets that connect the transmission input shaft to the
output shaft. Input and holding clutches drive or lock
different planetary members to change output ratio
or direction.

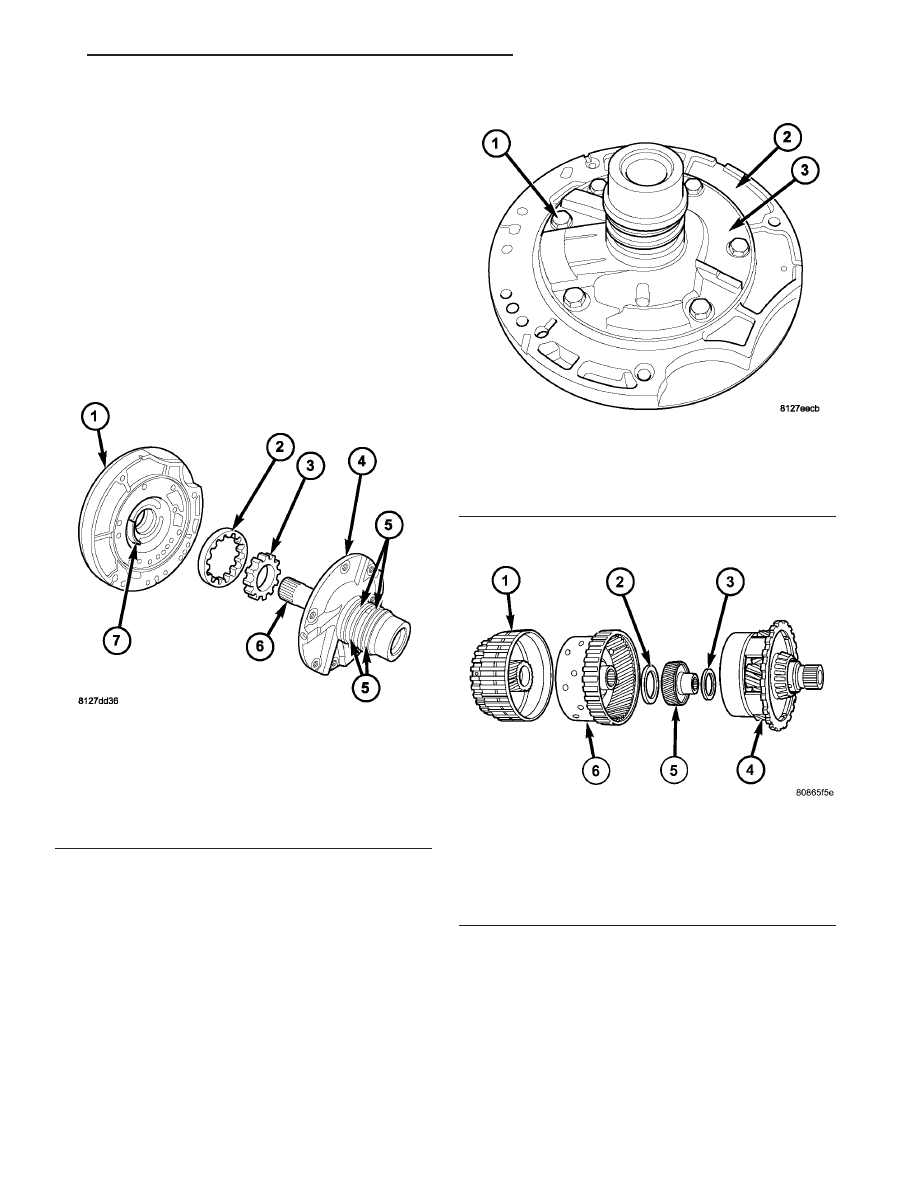

Fig. 281 Oil Pump Assembly

1 - PUMP BODY
2 - OUTER GEAR
3 - INNER GEAR
4 - REACTION SHAFT SUPPORT
5 - SEAL RINGS (4)
6 - REACTION SHAFT
7 - CRESCENT

Fig. 282 Reaction Support-to-Pump Body Bolts

1 - BOLT (6)
2 - PUMP BODY
3 - REACTION SHAFT SUPPORT

Fig. 283 Planetary Geartrain

1 - FRONT SUN GEAR ASSEMBLY
2 - #6 THRUST BEARING
3 - #7 THRUST BEARING
4 - REAR CARRIER/FRONT ANNULUS ASSEMBLY
5 - REAR SUN GEAR
6 - FRONT CARRIER/REAR ANNULUS ASSEMBLY

40TE AUTOMATIC TRANSAXLE

21 - 161

OIL PUMP (Continued)

SEAL - OIL PUMP

REMOVAL

(1) Remove transaxle from vehicle (Refer to 21 -

TRANSMISSION/TRANSAXLE/AUTOMATIC - 41TE
- REMOVAL).

(2) Using Tool C-3981-B, remove oil pump seal

(Fig. 284).

INSTALLATION

(1) Using Tool C-4193, install oil pump seal (Fig.

285).

(2) Install transaxle to vehicle (Refer to 21 -

TRANSMISSION/TRANSAXLE/AUTOMATIC - 41TE
- INSTALLATION).

SHIFT INTERLOCK CABLE

DESCRIPTION

The Brake Transmission Shifter/Ignition Interlock

(BTSI) is a cable and solenoid operated system that
prevents the transmission gear shifter from being
moved out of PARK without a driver in place.

Refer to the following chart that expected shifter

response, depending on ignition key/switch (Fig. 286)
and brake pedal positions.

OPERATION

The Brake Transmission Shifter/Ignition Interlock

(BTSI) is engaged whenever the ignition switch is in
the LOCK or ACCESSORY position (Fig. 286). An
additional electrically activated feature will prevent
shifting out of the PARK position unless the brake
pedal is depressed at least one-half inch. A magnetic
holding device integral to the interlock cable is ener-
gized when the ignition is in the ON/RUN position.
When the key is in the ON/RUN position and the
brake pedal is depressed, the shifter is unlocked and
will move into any position. The interlock system
also prevents the ignition switch from being turned
to the LOCK or ACCESSORY position, unless the
shifter is in the gated PARK position.

The following chart describes the normal operation

of the Brake Transmission Shift Interlock (BTSI) sys-
tem. If the “expected response” differs from the vehi-
cle’s response, then system repair and/or adjustment
is necessary.

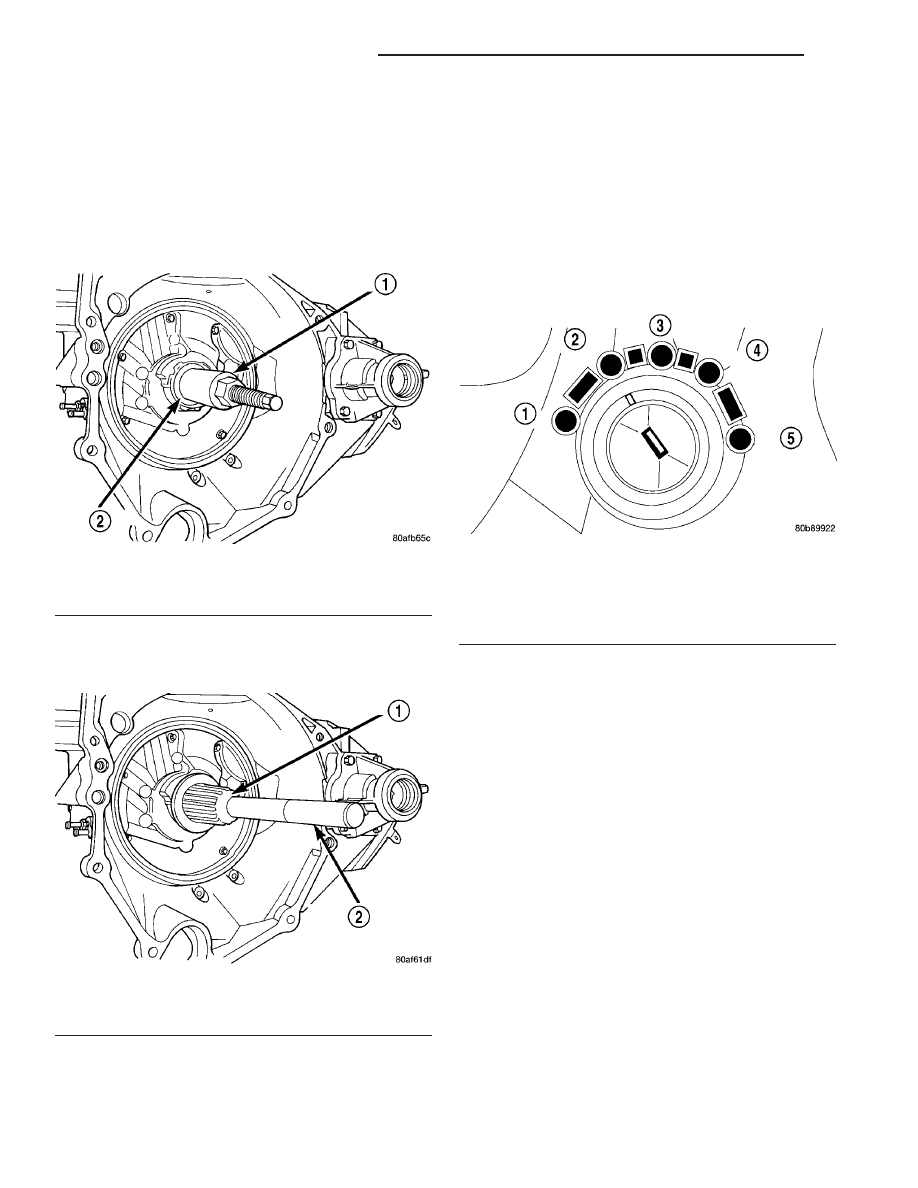

Fig. 284 Remove Oil Pump Seal

1 - TOOL C-3981–B
2 - OIL PUMP SEAL

Fig. 285 Install Oil Pump Seal

1 - TOOL C-4193
2 - HANDLE TOOL C-4171

Fig. 286 Ignition Key/Switch Positions

1 - ACC
2 - LOCK
3 - OFF
4 - ON/RUN
5 - START

21 - 162

40TE AUTOMATIC TRANSAXLE

ACTION

EXPECTED RESPONSE

1. Turn key to the

OFF

position.

1. Shifter CAN be shifted
out of park.

2. Turn key to the

ON/RUN

position.

2. Shifter CANNOT be
shifted out of park.

3. Turn key to the

ON/RUN

position and

depress the brake pedal.

3. Shifter CAN be shifted
out of park.

4. Leave shifter in any
gear and try to return key
to the

LOCK

ACC

position.

4. Key cannot be
returned to the

LOCK

ACC

position.

5. Return shifter to

PARK

and try to remove

the key.

5. Key can be removed
(after returning to

LOCK

position).

6. With the key removed,
try to shift out of

PARK

6. Shifter cannot be
shifted out of

PARK

NOTE: Any failure to meet these expected
responses requires system adjustment or repair.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the gearshift knob set screw and knob

(Fig. 287).

(3) Remove gearshift bezel (Fig. 288).
(4) Remove center console assembly (Fig. 289).

(5) Release interlock cable adjuster end by insert-

ing pointed object into shift bracket to disengage lock

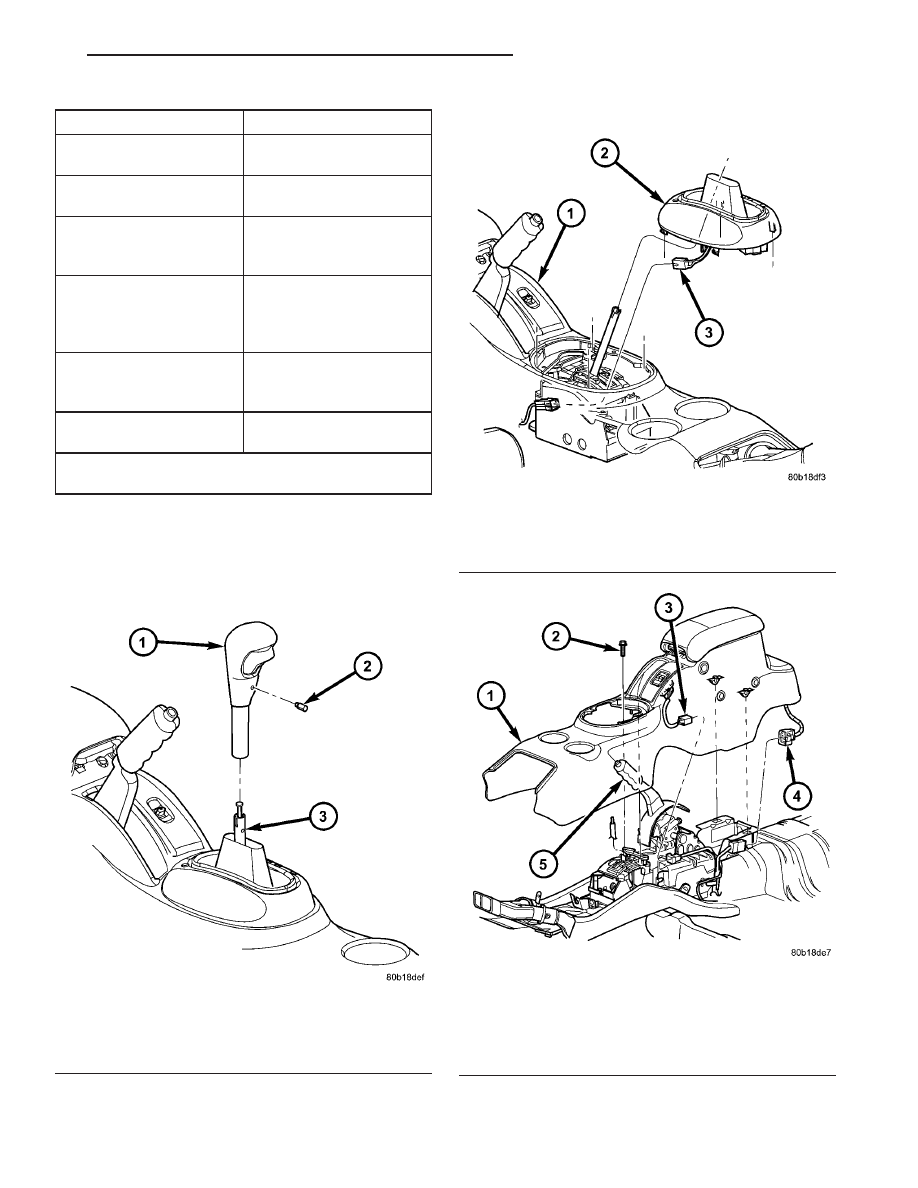

Fig. 287 Gearshift Knob

1 - GEARSHIFT KNOB
2 - SET SCREW
3 - GEARSHIFT MECHANISM

Fig. 288 Gearshift Bezel

1 - CENTER CONSOLE ASSEMBLY
2 - GEARSHIFT BEZEL
3 - LAMP CONNECTOR

Fig. 289 Center Console Assembly

1 - CENTER CONSOLE
2 - SCREW
3 - IF EQUIPPED
4 - IF EQUIPPED
5 - PARK BRAKE HANDLE

40TE AUTOMATIC TRANSAXLE

21 - 163

SHIFT INTERLOCK CABLE (Continued)

(Fig. 290). Unsnap the shifter/ignition interlock cable
adjuster end from the slot in the gearshift mecha-
nism bracket and disconnect cable core from shifter
assembly (Fig. 291).

(6) Remove fuse panel cover from left end of

instrument panel. Remove screw holding end of
instrument panel top cover (Fig. 292).

(7) Remove lower knee bolster screws and knee

bolster.

(8) Remove steering column lower shroud (Fig.

293).

(9) Tilt wheel to full down position and remove

upper steering column shroud.

(10) Disconnect interlock solenoid connector.
(11) Disconnect nylon cable retainer from lower

column mounting stud.

(12) Place the ignition key in the ON/RUN position

(Fig. 294). Grasp the interlock cable clip and connec-
tor. Remove the cable from the interlock housing
(Fig. 295).

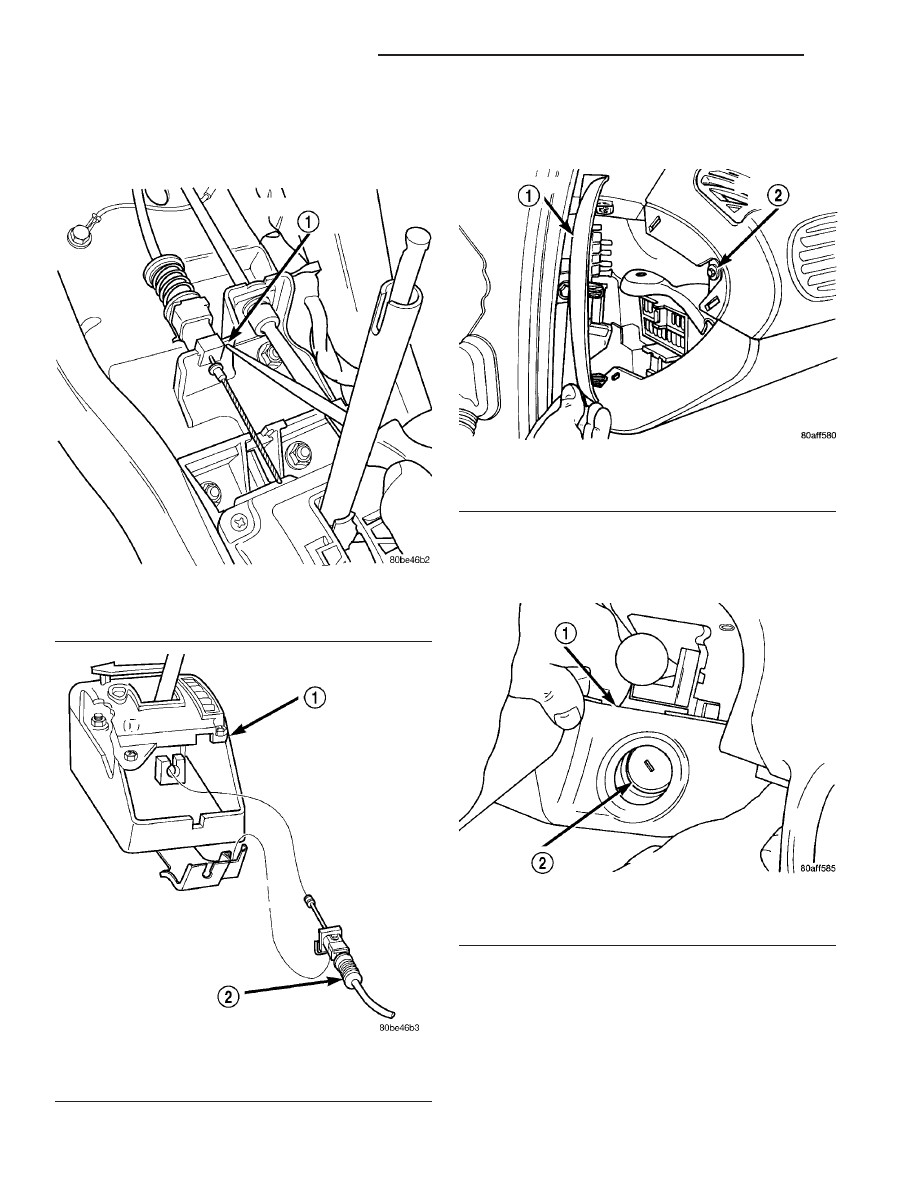

Fig. 290 Release Cable from Bracket at Retainer

Lock

1 - RELEASE CABLE HERE

Fig. 291 Interlock Cable at Floor Shifter Assembly

1 - SHIFTER ASSEMBLY
2 - INTERLOCK CABLE

Fig. 292 Instrument Panel Top

1 - FUSE PANEL COVER
2 - SCREW

Fig. 293 Steering Column Lower Shroud

1 - STEERING COLUMN LOWER SHROUD
2 - IGNITION CYLINDER

21 - 164

40TE AUTOMATIC TRANSAXLE

SHIFT INTERLOCK CABLE (Continued)
