SCHEMATICS AND DIAGRAMS

4XTE TRANSAXLE HYDRAULIC SCHEMATICS

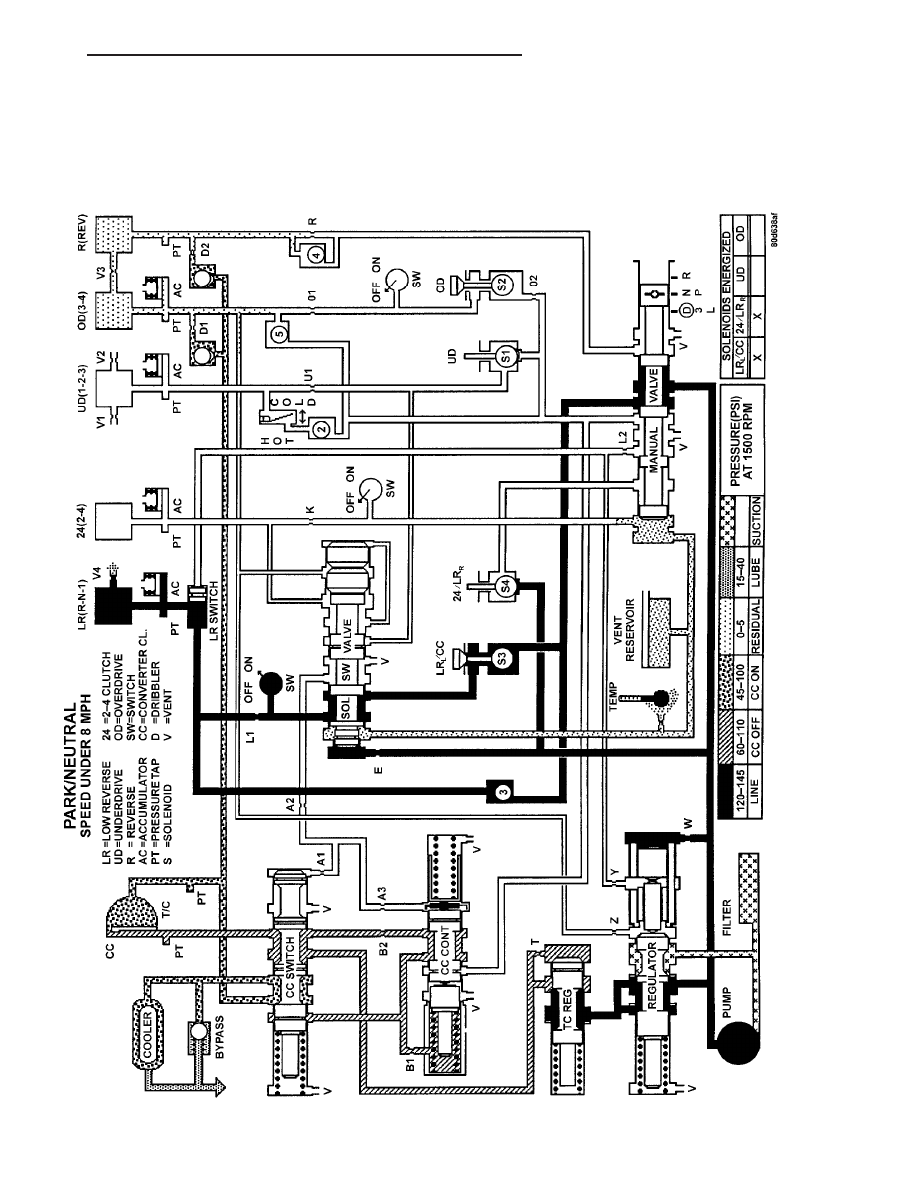

Park/Neutral

(Speed

Under

8

MPH)

JR

40TE AUTOMATIC TRANSAXLE

21 - 93

40TE AUTOMATIC TRANSAXLE (Continued)

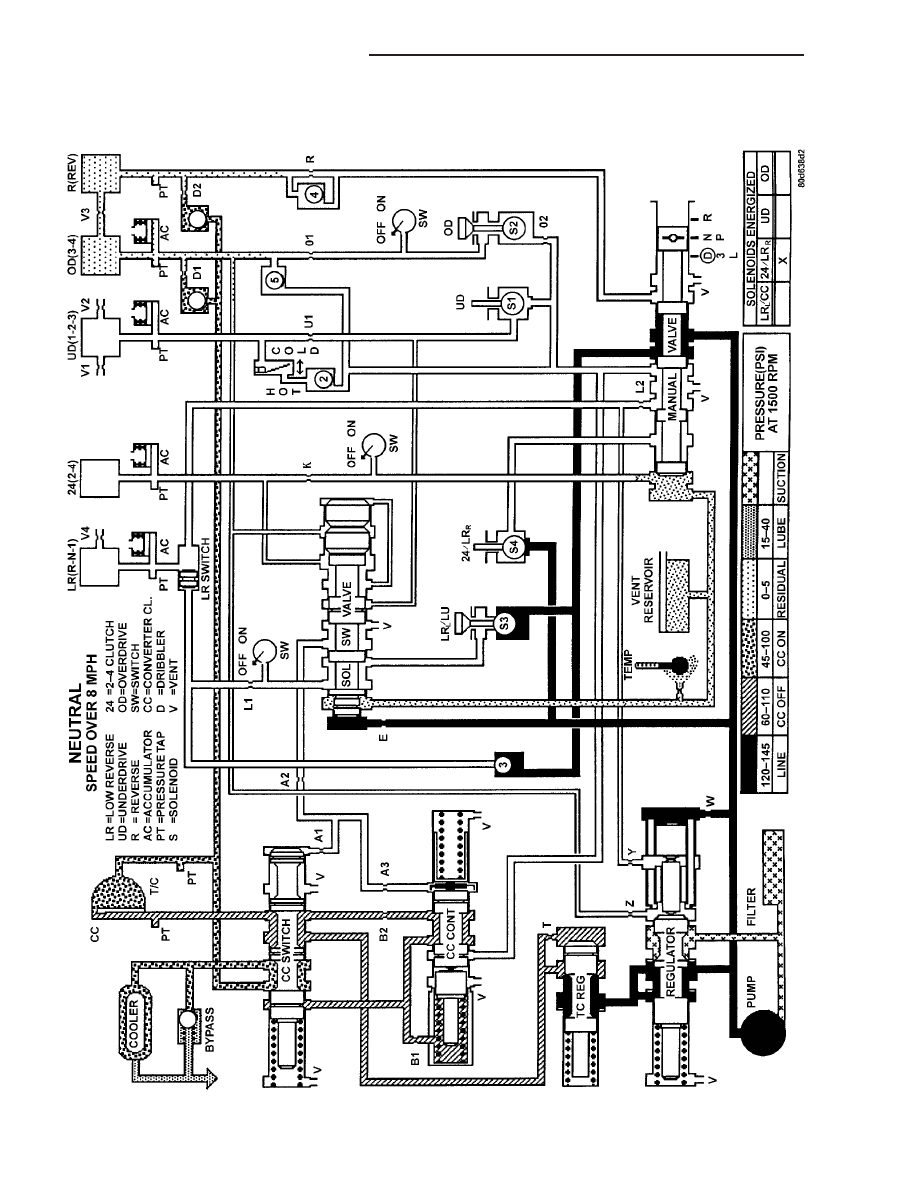

Neutral

(Speed

Over

8

MPH)

21 - 94

40TE AUTOMATIC TRANSAXLE

JR

40TE AUTOMATIC TRANSAXLE (Continued)

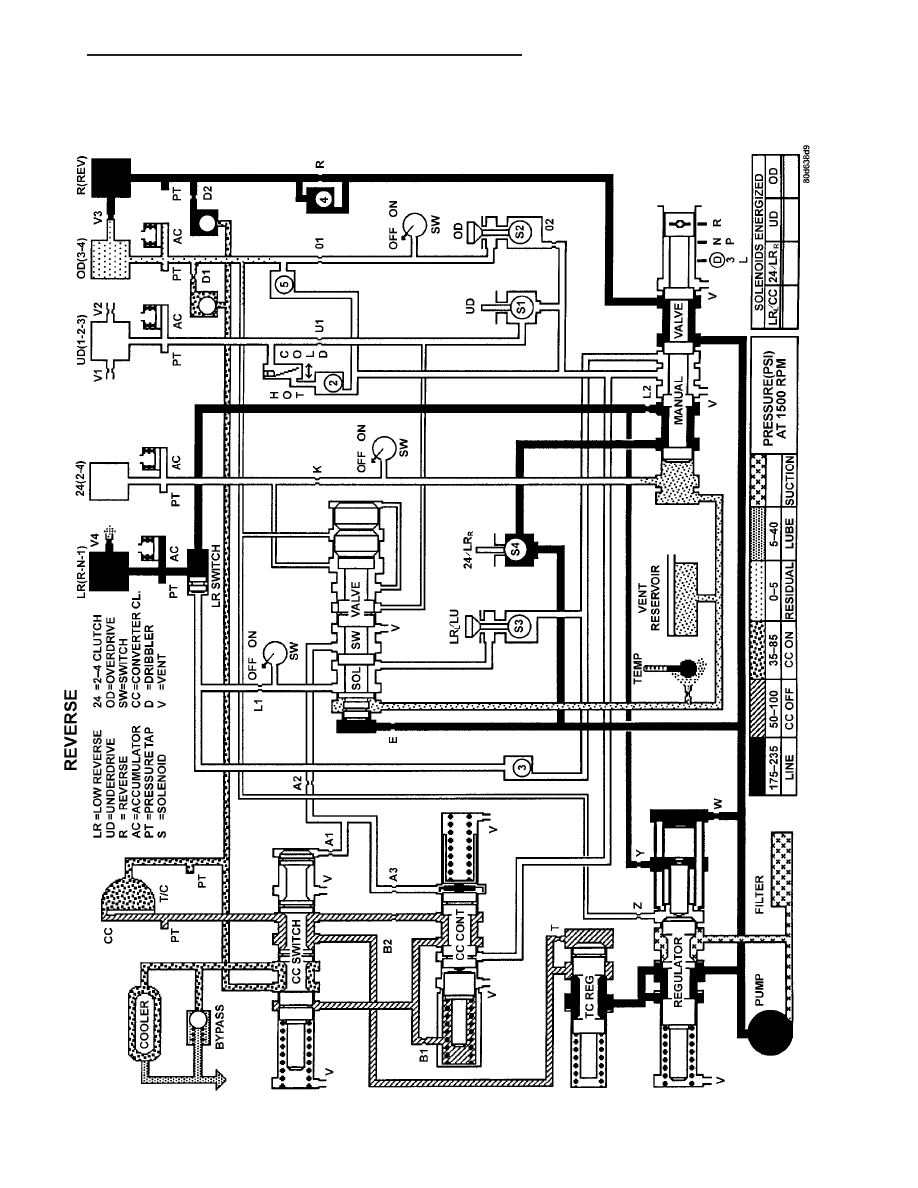

Reverse

JR

40TE AUTOMATIC TRANSAXLE

21 - 95

40TE AUTOMATIC TRANSAXLE (Continued)

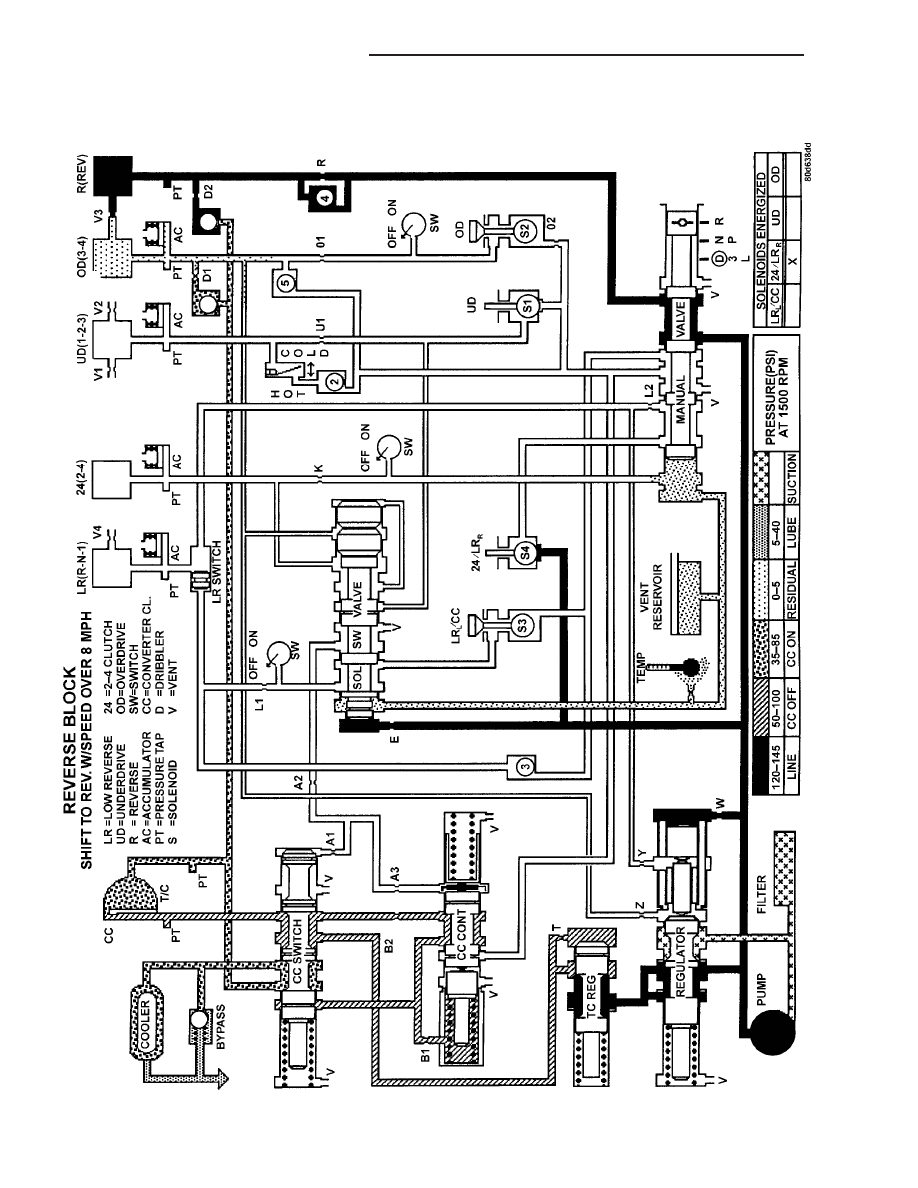

Reverse

Block

(Shift

to

Reverse

W/Speed

Over

8

mph)

21 - 96

40TE AUTOMATIC TRANSAXLE

JR

40TE AUTOMATIC TRANSAXLE (Continued)
