VALVE STEM TO GUIDE CLEARANCE
DESCRIPTION
SPECIFICATION
Metric
Standard
Intake
0.048 - 0.066
mm
0.0018 - 0.0025
in.
Max. Allowable
0.076 mm
0.003 in.
Service Limit
0.25 mm
0.010 in.
Exhaust
0.0736 - 0.094
mm
0.0029 - 0.0037
in.
Max. Allowable
0.101 mm
0.004 in.
Service Limit
0.25 mm
0.010 in.
VALVE SPRINGS
DESCRIPTION
SPECIFICATION
Metric
Standard
Free Length
(Approx.)
49.34 mm
1.943 in.
Nominal Force
(Valve Closed)
311 N @ 38.0
mm
70 lbs. @ 1.496
in.
Nominal Force
(Valve Open)
596 N ± 30.7
N@ 29.25 mm
134 lbs. @
1.152 in.
Installed Height
38.00 mm
1.496 in.
Number of Coils
7.8
Wire Diameter
3.61 mm
0.142 in
OIL PUMP
DESCRIPTION
SPECIFICATION
Metric
Standard
Clearance Over
Rotors (Max.)
0.10 mm
0.004 in.
Cover
Out-of-Flat
(Max.)
0.025 mm
0.001 in.
Inner Rotor
Thickness (Min.)
10.699 mm
0.421 in.
Outer Rotor
Thickness (Min.)
10.699 mm
0.421 in.
Outer Rotor
Clearance
(Max.)
0.039 mm
0.015 in.
Outer Rotor
Diameter (Min.)
85.924 mm
3.383 in.
DESCRIPTION
SPECIFICATION
Metric
Standard
Tip Clearance
Between Rotors
(Max.)
0.20 mm
0.008 in.
OIL PRESSURE
DESCRIPTION
SPECIFICATION
Metric
Standard
At Curb Idle
Speed*
25 kPa
4 psi
At 3000 rpm
170 - 550 kPa
25 - 80 psi
CAUTION:
*If pressure is ZERO at curb idle, DO NOT run engine
at 3000 rpm.

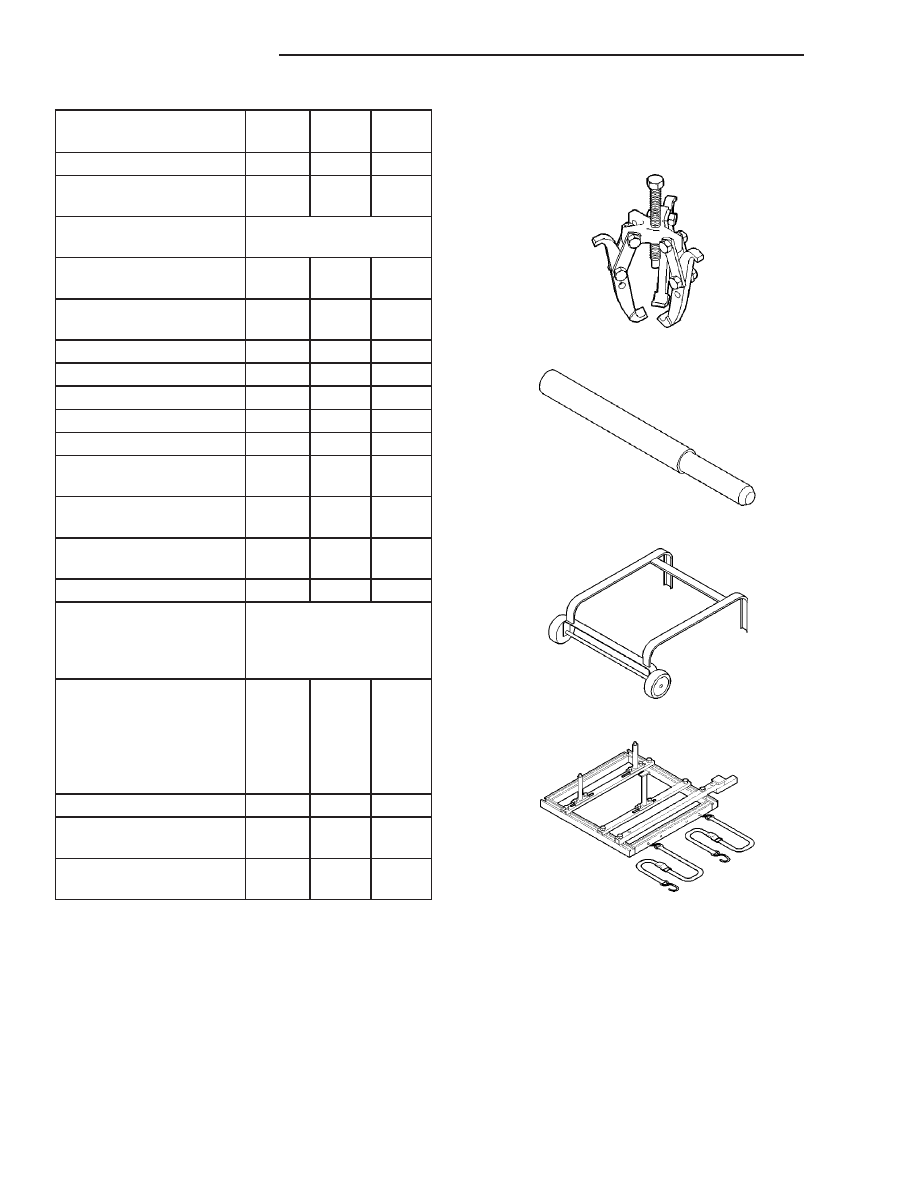

TORQUE
DESCRIPTION
N·m
Ft.
Lbs.
In.
Lbs.
Balance Shaft Carrier to
Block-Bolts
54
40
-
Balance Shaft Gear
Cover-Double Ended
Fastener
12
-
105
Balance Shaft Sprocket-
Bolt
28
-
250
Balance Shaft Chain
Tensioner-Bolts
12
-
105
Balance Shaft Carrier
Cover-Bolts
12
-
105
Camshaft Sprocket-Bolt
115
85
-
Check Valve to Exhaust
Manifold
12
-
105
Connecting Rod
Cap-Bolts
27 +
1
⁄
4
turn
20
+
1
⁄
4
turn
-
Crankshaft Main Bearing
Cap/Bedplate
-M8 Bolts
28
250
-M11 Bolts
75
55
-
Crankshaft Damper
136
100
-
Cylinder Head-Bolts
(Refer to 9 - ENGINE/
CYLINDER HEAD -
INSTALLATION)
Cylinder Head Cover-
Bolts
12
-
105
JR
ENGINE 2.4L DOHC
9 - 91

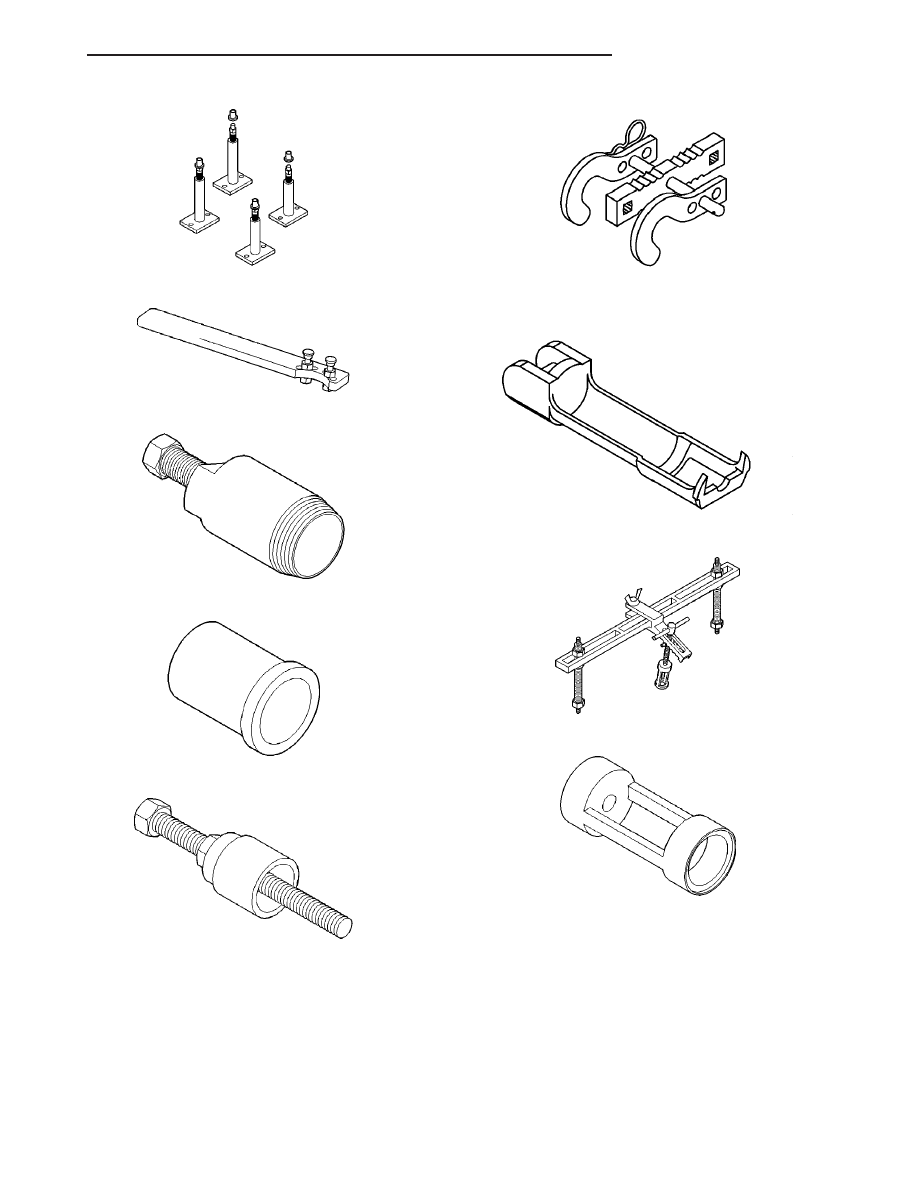

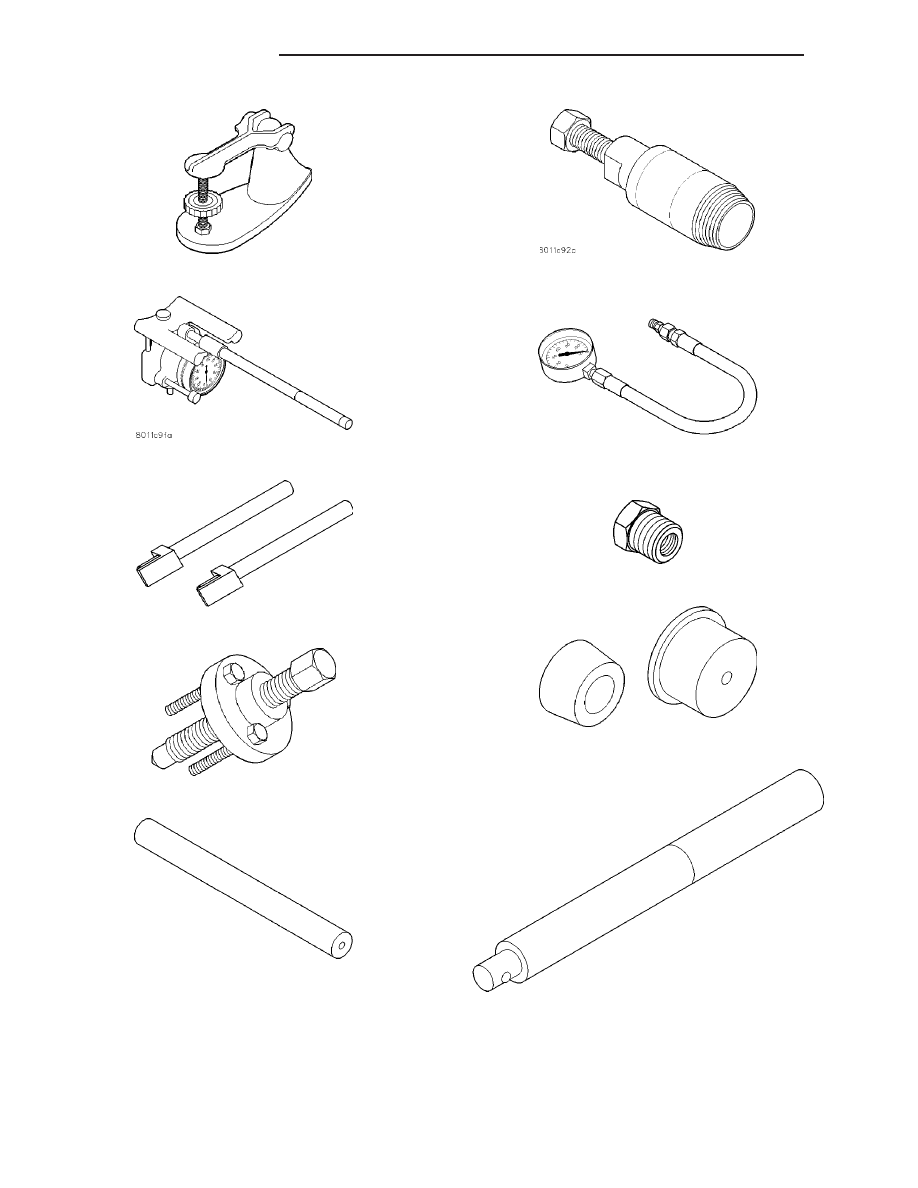

ENGINE 2.4L DOHC (Continued)
