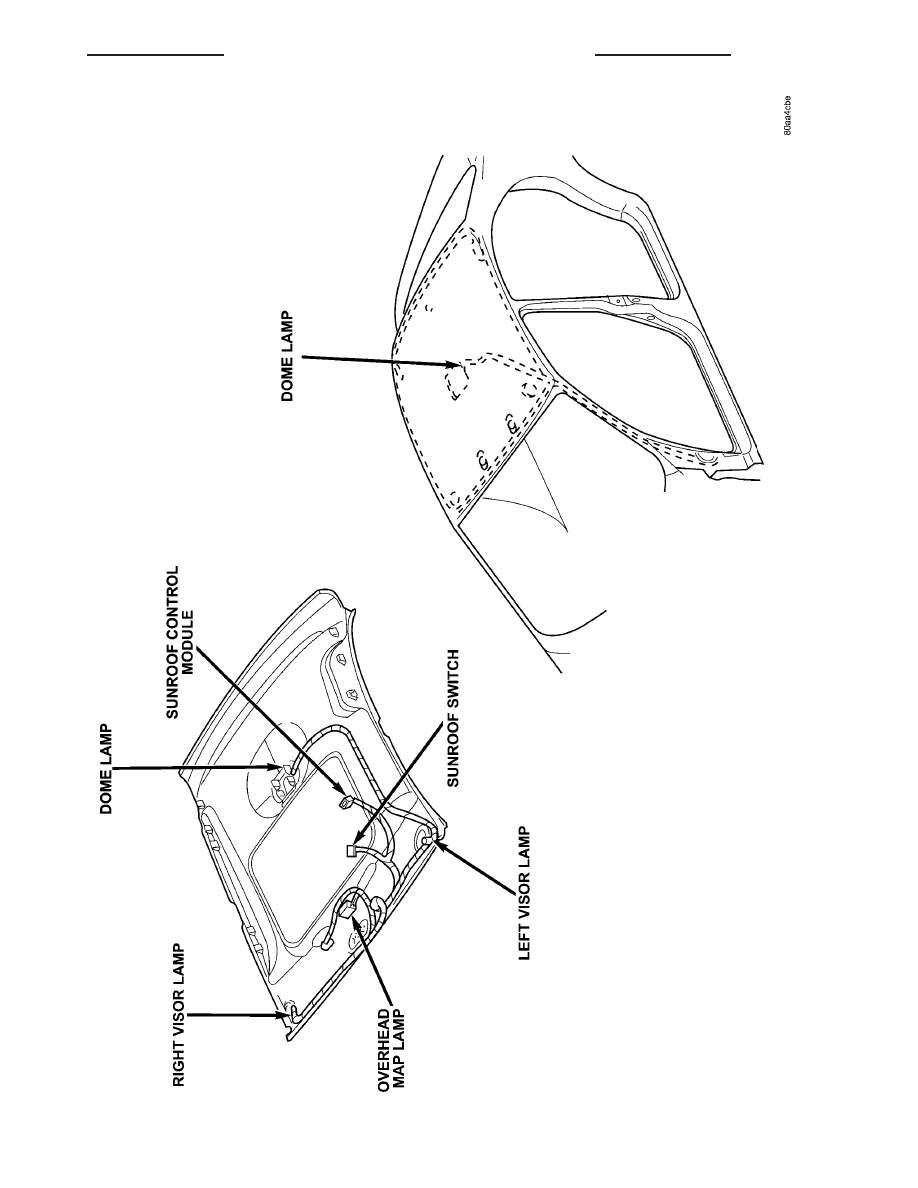

ROOF

CONNECT

ORS

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 51

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

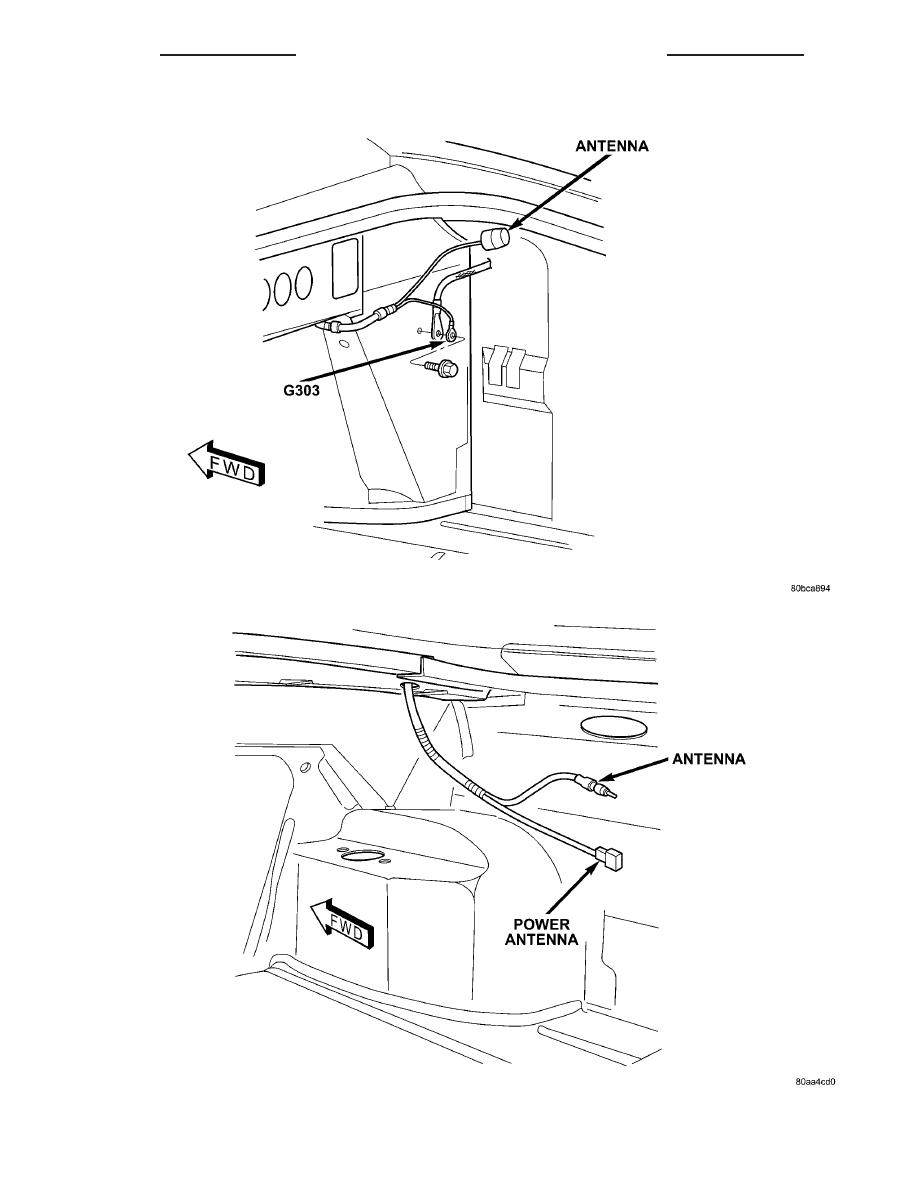

Fig. 53 TRUNK CONNECTORS (JR-27)

Fig. 54 TRUNK CONNECTORS (JR-41)

8W - 91 - 52

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

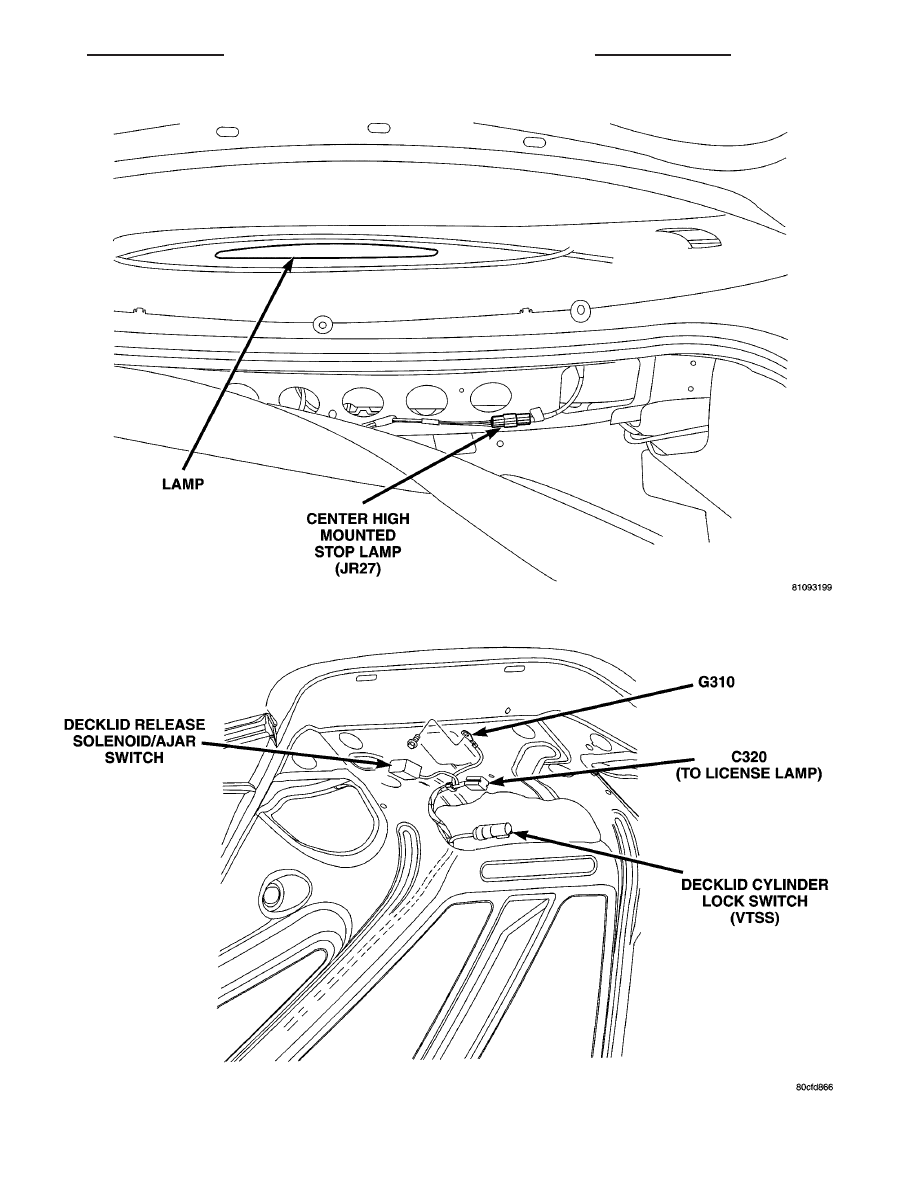

Fig. 55 CENTER HIGH MOUNTED STOP LAMP

Fig. 56 DECKLID CONNECTORS (JR-27)

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 53

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

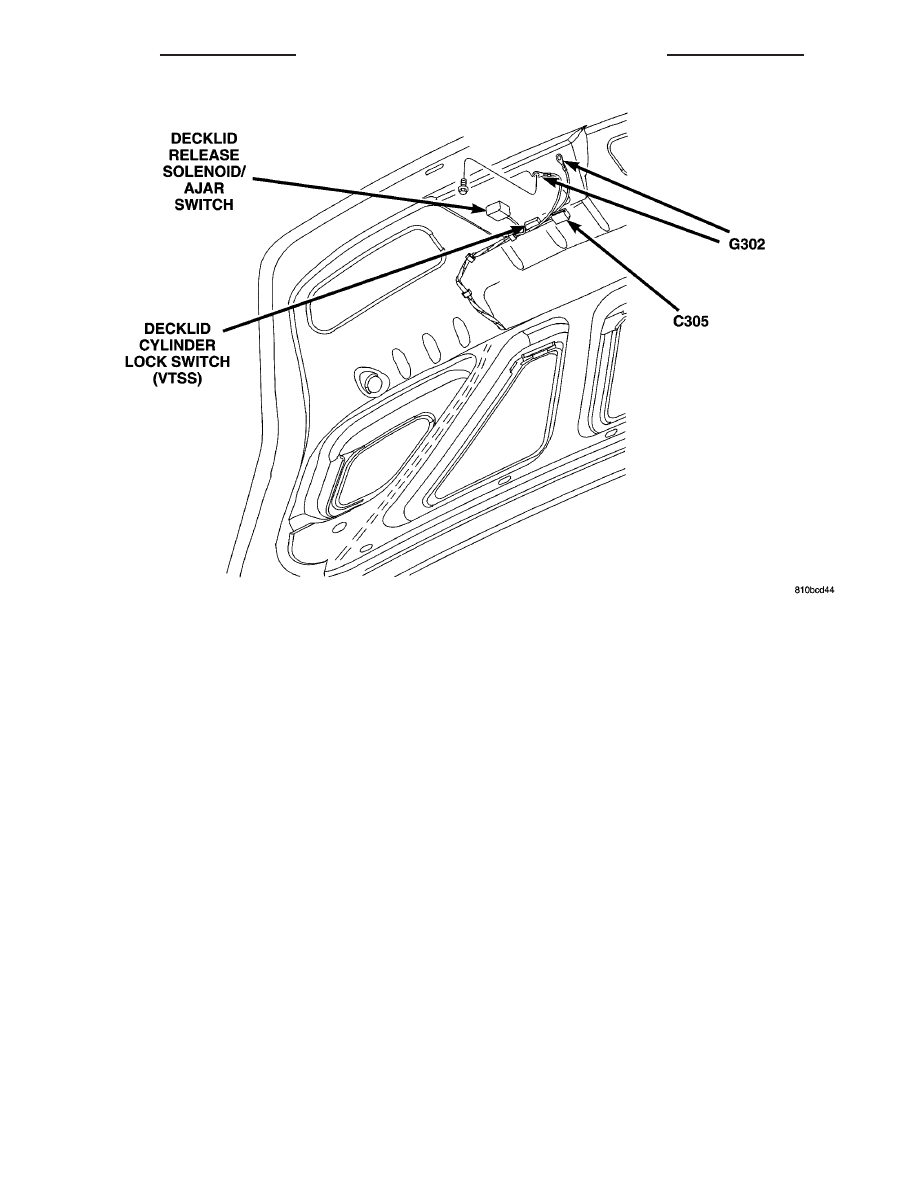

Fig. 57 DECKLID CONNECTORS (JR-41)

8W - 91 - 54

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
