Fig.

43

LEFT

SIDE

BODY

CONNECT

ORS

(JR-41)

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 43

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

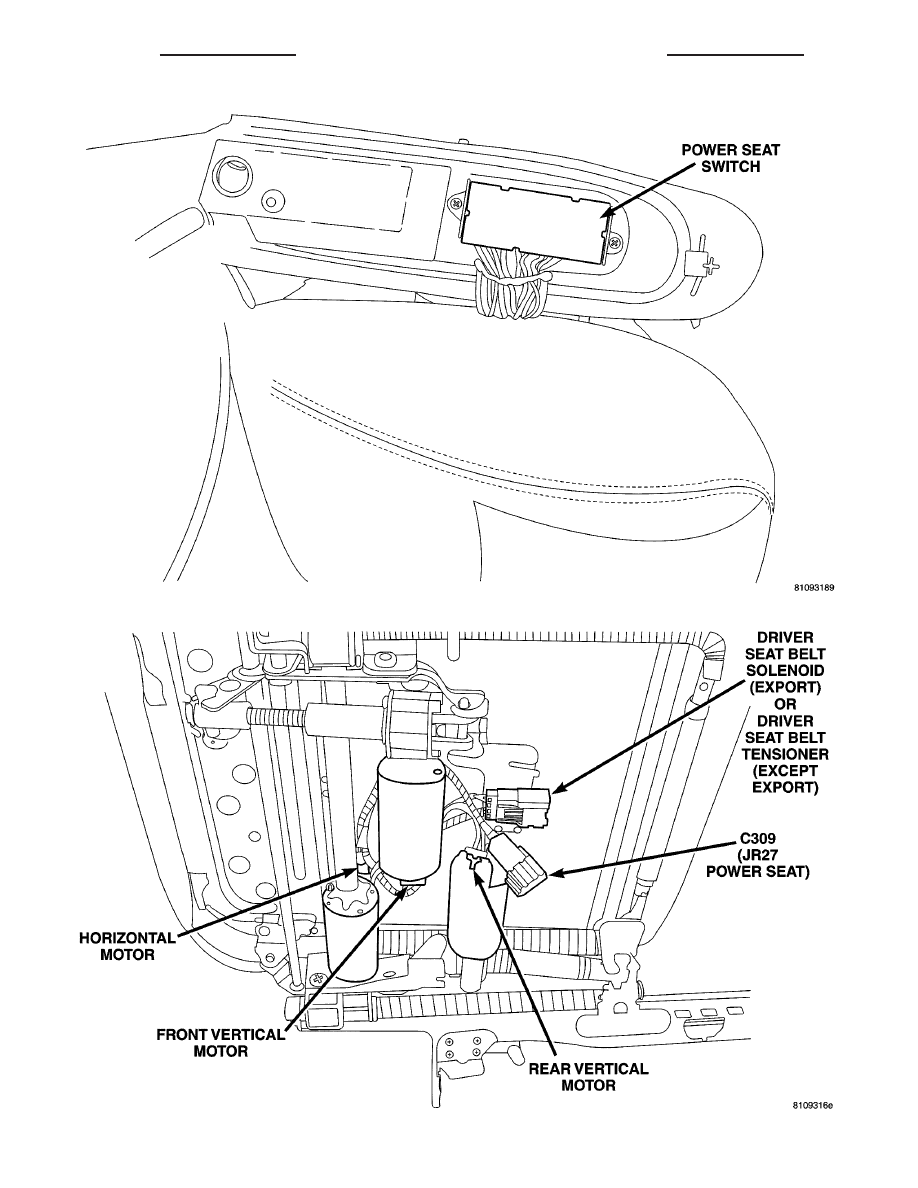

Fig. 44 DRIVER POWER SEAT SWITCH

Fig. 45 DRIVER POWER SEAT MOTORS

8W - 91 - 44

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

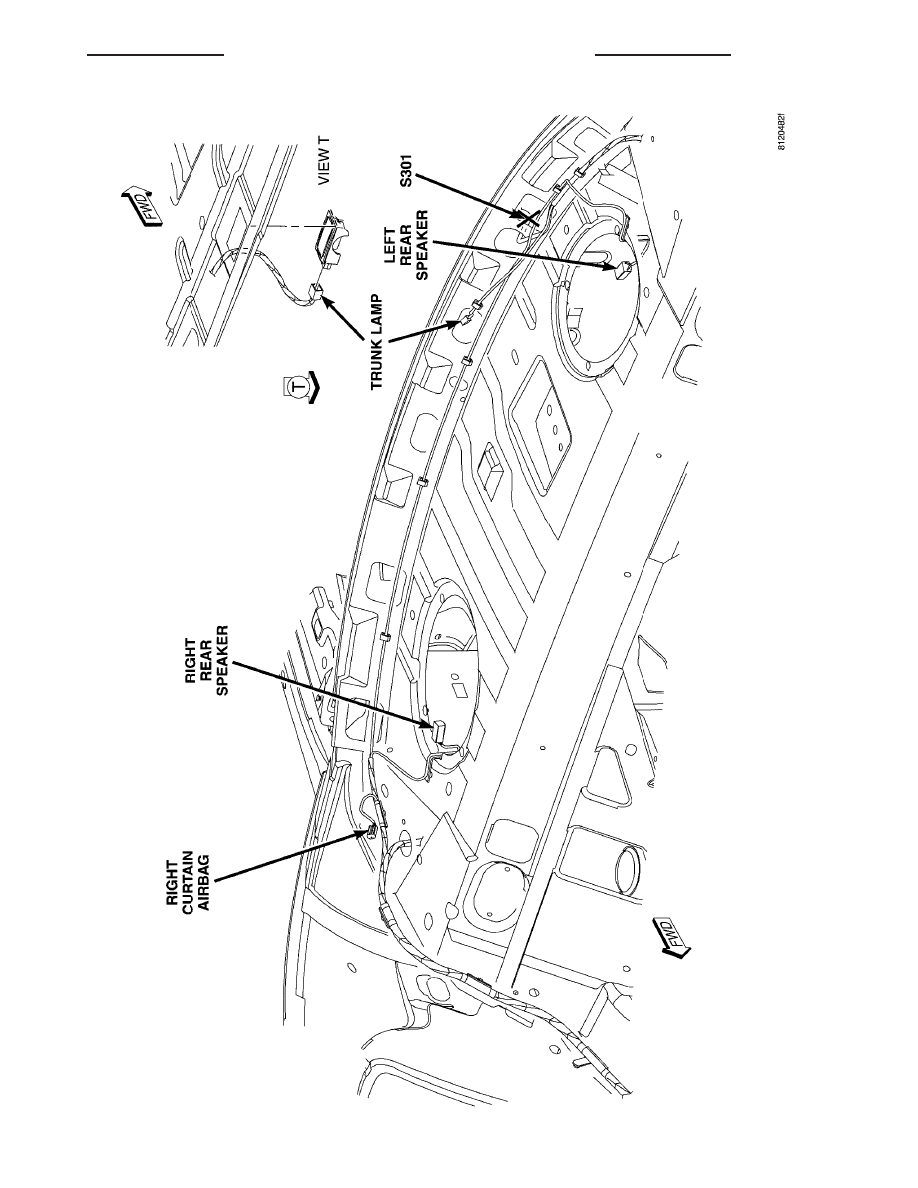

Fig.

46

REAR

BODY

CONNECT

ORS

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 45

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

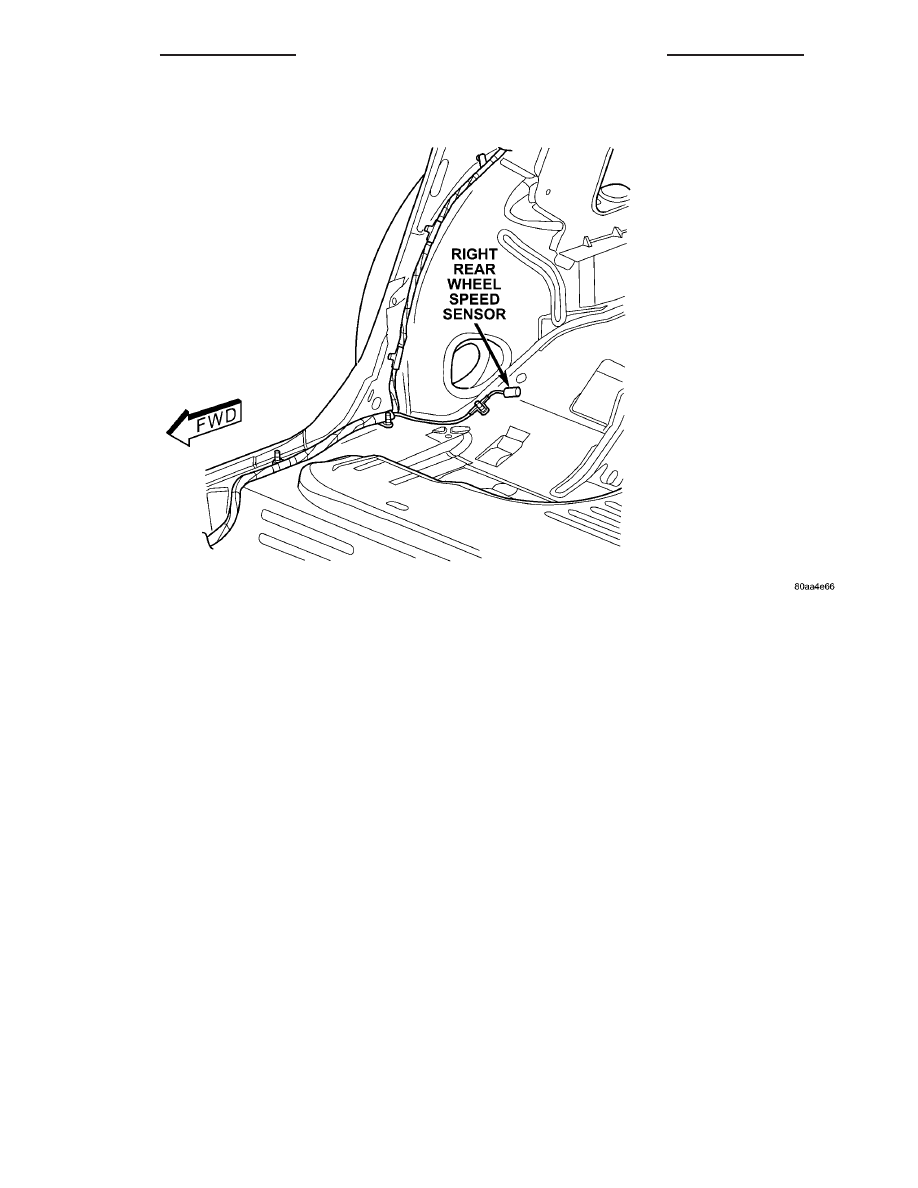

Fig. 47 RIGHT REAR QUARTER PANEL

8W - 91 - 46

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
