securing them in place (Fig. 35). Tighten nut to 12
N·m (105 in. lbs.) torque.

(11) Install drive belt splash shield.
(12) Install tire and wheel assembly (Refer to 22 -

TIRES/WHEELS - INSTALLATION). Tighten wheel
mounting nuts to 135 N·m (100 ft. lbs.) torque.

(13) Lower vehicle.
(14) Install negative (-) battery cable on negative

battery post.

(15) Fill and bleed power steering system using

Power Steering Pump Initial Operation Procedure.
(Refer to 19 - STEERING/PUMP - STANDARD PRO-
CEDURE)

(16) Inspect for leaks.

HOSE - SUPPLY

REMOVAL - 3.5L ENGINE

(1) Remove power steering fluid reservoir. (Refer to

19 - STEERING/PUMP/RESERVOIR - REMOVAL)

(2) Remove clamp, then remove supply hose from

pump (Fig. 42).

INSTALLATION - 3.5L ENGINE

(1) Slide fluid supply hose onto pump fitting and

install clamp securing it in place (Fig. 42).

(2) Install power steering fluid reservoir. (Refer to

19 - STEERING/PUMP/RESERVOIR - INSTALLA-
TION)

(3) Fill and bleed power steering system using

Power Steering Pump Initial Operation Procedure.
(Refer to 19 - STEERING/PUMP - STANDARD PRO-
CEDURE)

(4) Inspect system for leaks.

RESERVOIR

REMOVAL - 3.5L ENGINE

(1) Remove negative (-) battery cable from battery

and isolate cable.

(2) Remove cap from power steering fluid reser-

voir.

(3) Using a siphon pump, remove as much power

steering fluid as possible from power steering fluid
reservoir.

(4) Remove engine appearance cover.
(5) Remove clamp attaching return hose to power

steering fluid reservoir. Remove hose from reservoir
(Fig. 41).

(6) Remove clamp attaching supply hose to power

steering fluid reservoir. Remove hose from reservoir
(Fig. 42).

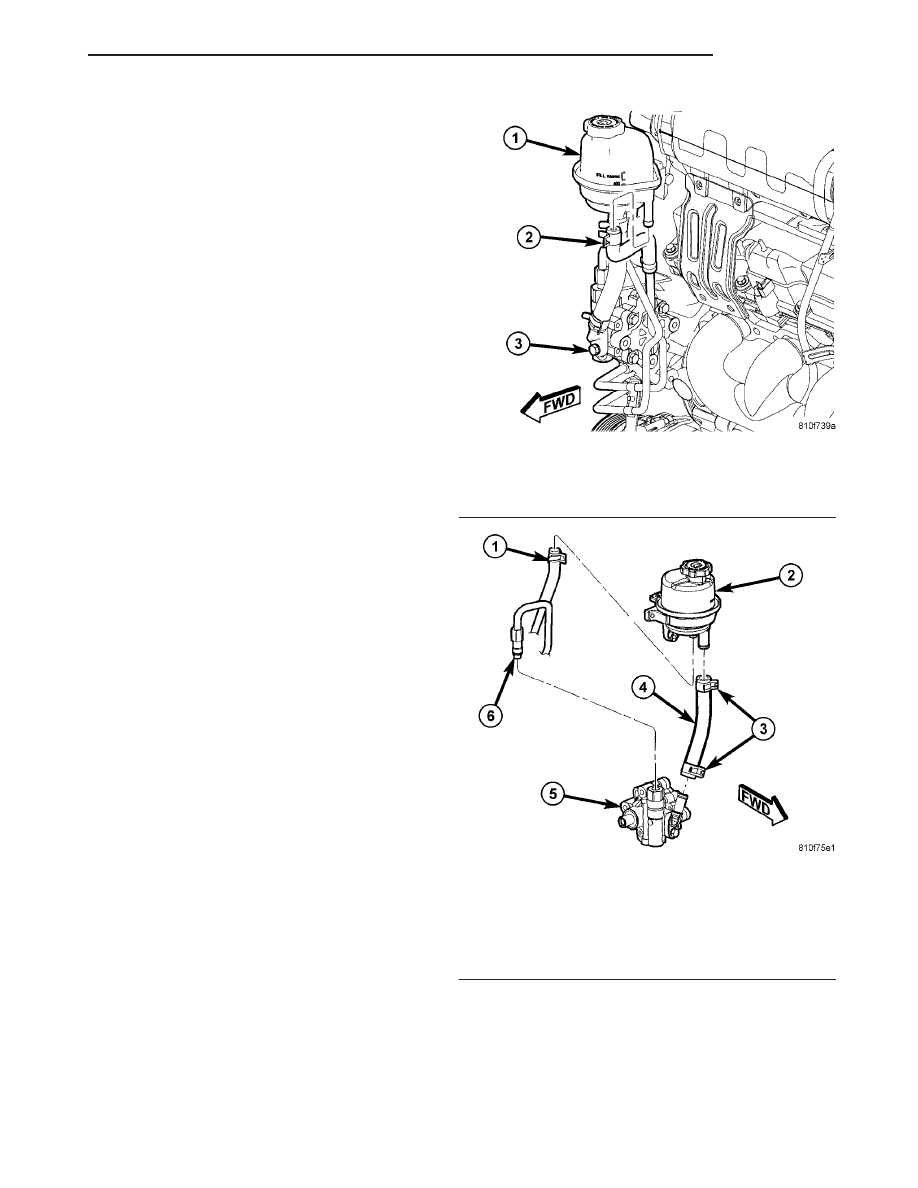

Fig. 41 Return Hose At Reservoir

1 - FLUID RESERVOIR
2 - RETURN HOSE
3 - POWER STEERING PUMP

Fig. 42 Hoses At Pump And Reservoir

1 - RETURN HOSE CLAMP
2 - FLUID RESERVOIR
3 - SUPPLY HOSE CLAMPS
4 - SUPPLY HOSE
5 - POWER STEERING PUMP
6 - PRESSURE HOSE TUBE NUT

CS

PUMP

19 - 39

HOSE - RETURN (Continued)

(7) Remove two upper mounting bolts securing res-

ervoir in place (Fig. 43).

(8) Loosen, but do not remove, lower mounting bolt

securing reservoir in place (Fig. 43).

(9) Slide reservoir upward, off lower mounting

bolt.

INSTALLATION - 3.5L ENGINE

(1) Slide fluid reservoir over lower mounting bolt

and into place on engine.

(2) Install two upper mounting bolts securing res-

ervoir in place (Fig. 43).

(3) Tighten all three reservoir mounting bolts to 12

N·m (105 in. lbs.) torque.

(4) Install supply hose onto reservoir (Fig. 42).

Slide hose clamp into position on fluid reservoir and
attach it. Be sure hose clamp in installed past
bead on fluid reservoir fitting.

(5) Install return hose onto reservoir (Fig. 41).

Slide hose clamp into position on fluid reservoir and
attach it. Be sure hose clamp in installed past
bead on fluid reservoir fitting.

(6) Install engine appearance cover.
(7) Install negative (-) battery cable on negative

battery post.

(8) Fill and bleed power steering system using

Power Steering Pump Initial Operation Procedure.
(Refer to 19 - STEERING/PUMP - STANDARD PRO-
CEDURE)

(9) Inspect system for leaks.

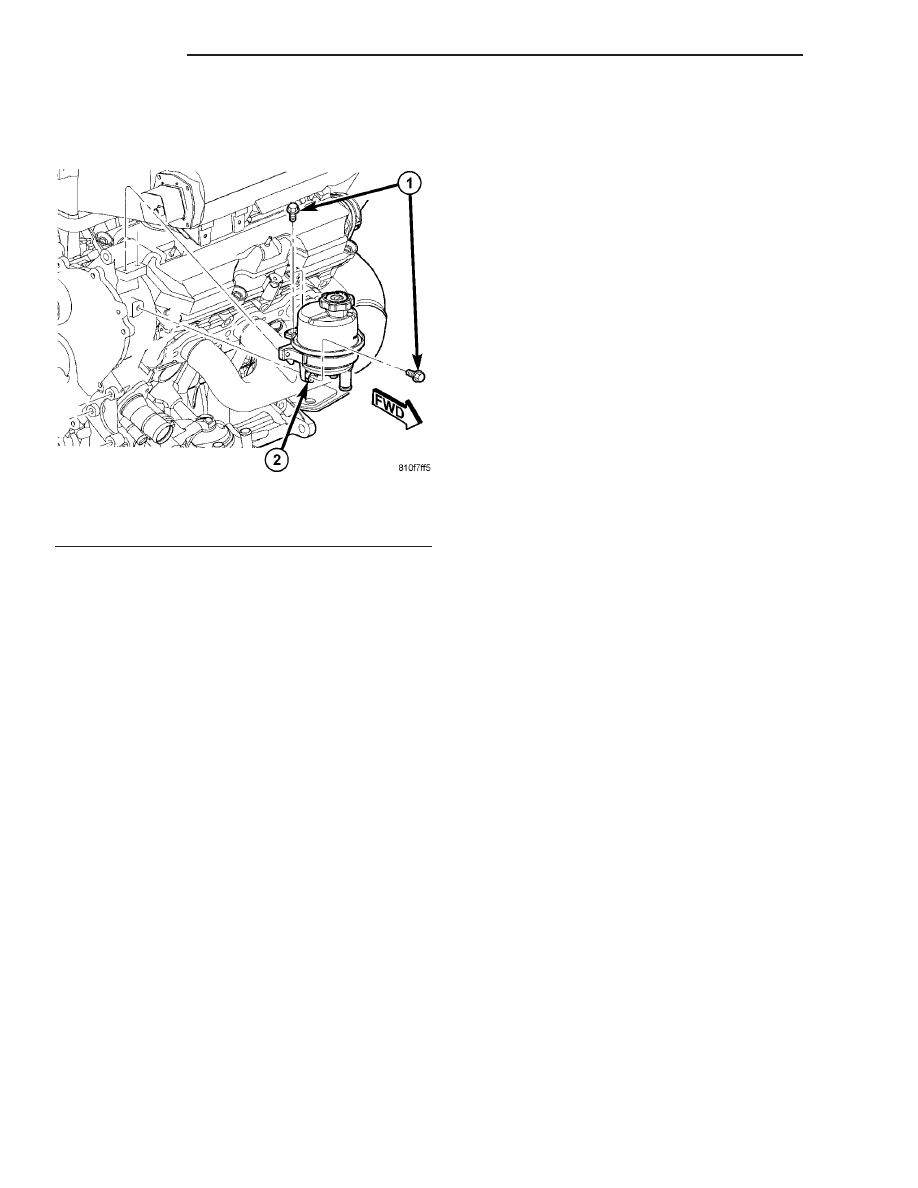

Fig. 43 Reservoir Mounting To Engine

1 - MOUNTING BOLTS
2 - POWER STEERING FLUID RESERVOIR

19 - 40

PUMP

CS

RESERVOIR (Continued)

TRANSMISSION/TRANSAXLE

TABLE OF CONTENTS

page

page

POWER TRANSFER UNIT

. . . . . . . . . . . . . . . . . . 1

41AE/TE AUTOMATIC TRANSAXLE

. . . . . . . . . . . 8

POWER TRANSFER UNIT

TABLE OF CONTENTS

page

page

POWER TRANSFER UNIT

STANDARD PROCEDURE - PTU FLUID

DRAIN/FILL

. . . . . . . . . . . . . . . . . . . . . . . . . . . 1

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 3

SPECIFICATIONS - POWER TRANSFER UNIT

. . 3

SPECIAL TOOLS

. . . . . . . . . . . . . . . . . . . . . . . . 4

DIFFERENTIAL CARRIER SEAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 4

END COVER BALL BEARING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 5

INPUT SHAFT SEAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 6

OUTER HALF SHAFT SEAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 7

POWER TRANSFER UNIT

STANDARD PROCEDURE - PTU FLUID
DRAIN/FILL

(1) Raise vehicle on hoist.
(2) Remove PTU drain plug. Drain fluid into suit-

able container.

(3) Install drain plug and torque to 35 N·m (26 ft.

lbs.).

(4) Remove PTU drain plug.
(5) Fill PTU with 1.0L (2.1 pts.) of Mopar

t 75W-90

Gear and Axle Lubricant.

(6) Install fill plug and torque to 35 N·m (26 ft.

lbs.).

(7) Lower vehicle

REMOVAL

(1) Remove right halfshaft assembly. (Refer to 3 -

DIFFERENTIAL & DRIVELINE/HALF SHAFT -
REMOVAL)

(2) Remove engine cradle crossmember (Refer to

13 - FRAME & BUMPERS/FRAME/ENGINE CRA-
DLE CROSSMEMBER - REMOVAL)

(3) Remove propeller shaft assembly. (Refer to 3 -

DIFFERENTIAL

&

DRIVELINE/PROPELLER

SHAFT - REMOVAL).

(4) Remove PTU/rear mount bracket (Fig. 1).

CS

TRANSMISSION/TRANSAXLE

21 - 1

(5) Remove oil pan-to-transaxle collar (Fig. 2).

(6) Remove heat shield (Fig. 3).
(7) Remove bracket and brace (Fig. 3).
(8) Remove PTU-to-transaxle upper bolts (Fig. 3).

(9) Remove PTU-to-bracket lower bolts (Fig. 4).

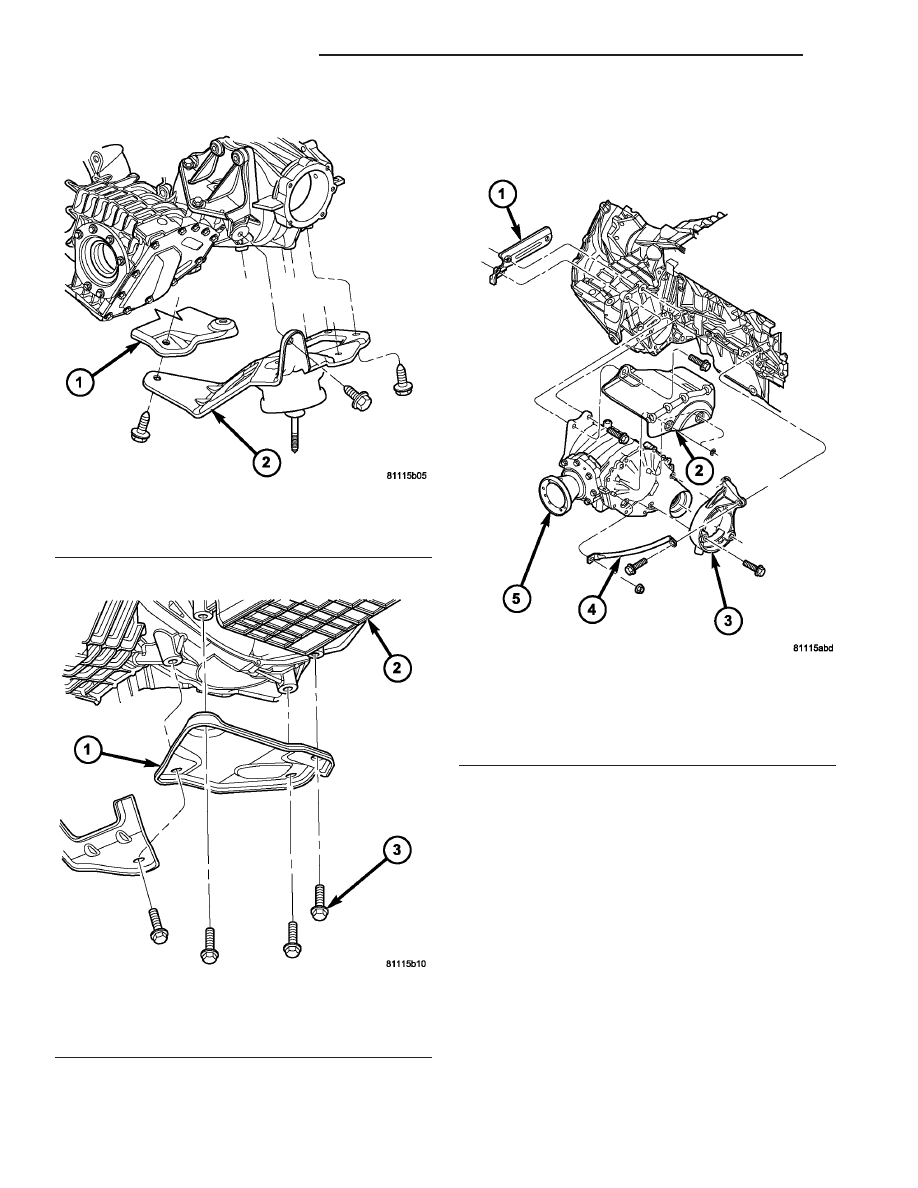

Fig. 1 PTU Bracket/Rear Mount Assembly

1 - COLLAR
2 - BRACKET/REAR MOUNT

Fig. 2 Oil Pan-to-Transaxle Collar

1 - COLLAR
2 - ENGINE OIL PAN
3 - BOLT (4)

Fig. 3 Power Transfer Unit Mounting

1 - BRACKET
2 - HEAT SHIELD
3 - BRACKET
4 - BRACE
5 - POWER TRANSFER UNIT

21 - 2

POWER TRANSFER UNIT

CS

POWER TRANSFER UNIT (Continued)
