(5) Seperate the muffler from the catalytic con-

verter and remove from the vehicle.

INSTALLATION - FRONT

(1) Position the torca clamp on the catalytic con-

verterr.

(2) Install the muffler into the catalytic converter

until the guide pin on the converter seats into the
slot on the muffler.

(3) Install the outlet pipe of the muffler into the

inlet pipe of the resonator/muffler assembly with
44.95mm (1.77 in.) of insertion.

(4) Tighten tocra clamp nut to 54 N·m (40 ft. lbs.).
(5) Install the resonator/muffler assembly (Refer to

11 - EXHAUST SYSTEM/RESONATOR - INSTALLA-
TION).

(6) Start the engine and inspect for exhaust leaks.

Repair exhaust leaks as necessary.

(7) Check the exhaust system for contact with the

body panels. Make the necessary ajustments, if
needed.

RESONATOR

REMOVAL

(1) Raise vehicle on a body contact type hoist.

NOTE: To provide removal clearance between muf-
fler/resonator pipe and rear axle parts, the rear sus-
pension must be relieved of all body weight.

(2) Apply a penetrating oil to torca of component

requiring removal.

CAUTION: When servicing the exhaust system, care
must be exercised not to dent or bend the bellows
of the flex-joint. Should this occur, the flex-joint will
eventually fail, requiring replacement of the cata-
lytic converter.

(3) Loosen the torca clamp nut (Fig. 1).
(4) Support the muffler/resonator assembly.
(5) Remove the insulators from the muffler/resona-

tor assembly and remove from the vehicle.

NOTE: Care must be taken not to scratch the black
paint on the rear of the resonator/muffler assembly.

INSTALLATION

(1) Support the muffler/resonator assembly under

the vehicle.

(2) Install the insulators.
(3) Position torca clamp on the resonator/muffler

assembly.

(4) Align paint marks and insert the resonator/

muffler

assembly

into

the

muffler

outlet

pipe

44.95mm (1.77 in.).

(5) Tighten torca clamp nut to 54 N·m (40 ft. lbs.).
(6) Start the engine and inspect for exhaust leaks.

Repair exhaust leaks as necessary.

(7) Check the exhaust system for contact with the

body panels. Make the necessary adjustments, if
needed.

CS

EXHAUST SYSTEM

11 - 9

MUFFLER (Continued)

FRAME & BUMPERS

TABLE OF CONTENTS

page

page

BUMPERS

SPECIFICATIONS - TIGHTENING

. . . . . . . . . . . . 1

FRONT BUMPER REINFORCEMENT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

FRONT FASCIA

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 4

FRONT LOWER FASCIA

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 5

FRONT UPPER FASCIA

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 5

REAR BUMPER REINFORCEMENT BRACKET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 5

REAR BUMPER REINFORCEMENT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 6

REAR FASCIA

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

REAR FASCIA TO APERTURE BRACKET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 13

FRAME

SPECIFICATIONS

FRAME DIMENSIONS

. . . . . . . . . . . . . . . . . . 14

SPECIFICATIONS - TORQUE

. . . . . . . . . . . . 18

SPECIAL TOOLS

FRAME

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

ENGINE CRADLE CROSSMEMBER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 25

REAR CROSSMEMBER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 32

REAR CROSSMEMBER BUSHING - FRONT

MOUNT
REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 41

REAR CROSSMEMBER BUSHING - REAR

MOUNT
REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 45

REAR CROSSMEMBER BUSHING - SPRING

LINK
REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 47

BUMPERS

SPECIFICATIONS - TIGHTENING

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Front bumper reinforcement attaching nut

20

15

Front fascia to upper crossmember bracket attaching screws

5

43

Lower front fascia bracket to lower radiator crossmember attaching

screws

6

50

Front fascia to fender screws

6

50

Rear bumper attaching bracket screws

95

70

Rear bumper reinforcement attaching nut

27

20

Rear fascia to aperture bracket

3

23

CS

FRAME & BUMPERS

13 - 1

FRONT BUMPER
REINFORCEMENT

REMOVAL

(1) Remove front bumper fascia. (Refer to 13 -

FRAME & BUMPERS/BUMPERS/FRONT FASCIA -
REMOVAL).

(2) Support front bumper reinforcement on a suit-

able lifting device.

(3) Remove the three bolts attaching front bumper

reinforcement to frame rail (Fig. 1).

(4) Remove front bumper reinforcement from vehi-

cle.

INSTALLATION

(1) Place front bumper reinforcement into position

on vehicle.

(2) Install the three bolts attaching front bumper

reinforcement to frame rail and tighten to 20 N·m
(15 ft. lbs.). (Fig. 1).

(3) Install front bumper fascia. (Refer to 13 -

FRAME & BUMPERS/BUMPERS/FRONT FASCIA -
INSTALLATION).

FRONT FASCIA

REMOVAL

(1) Release hood latch and open hood.

(2) Remove the headlamp assemblies (Refer to 8 -

ELECTRICAL/LAMPS/LIGHTING

-

EXTERIOR/

HEADLAMP - REMOVAL).

(3) Hoist vehicle and support with safety stands,

as necessary.

(4) Remove the four screws attaching bottom of

fascia/air dam to radiator closure panel (Fig. 2).

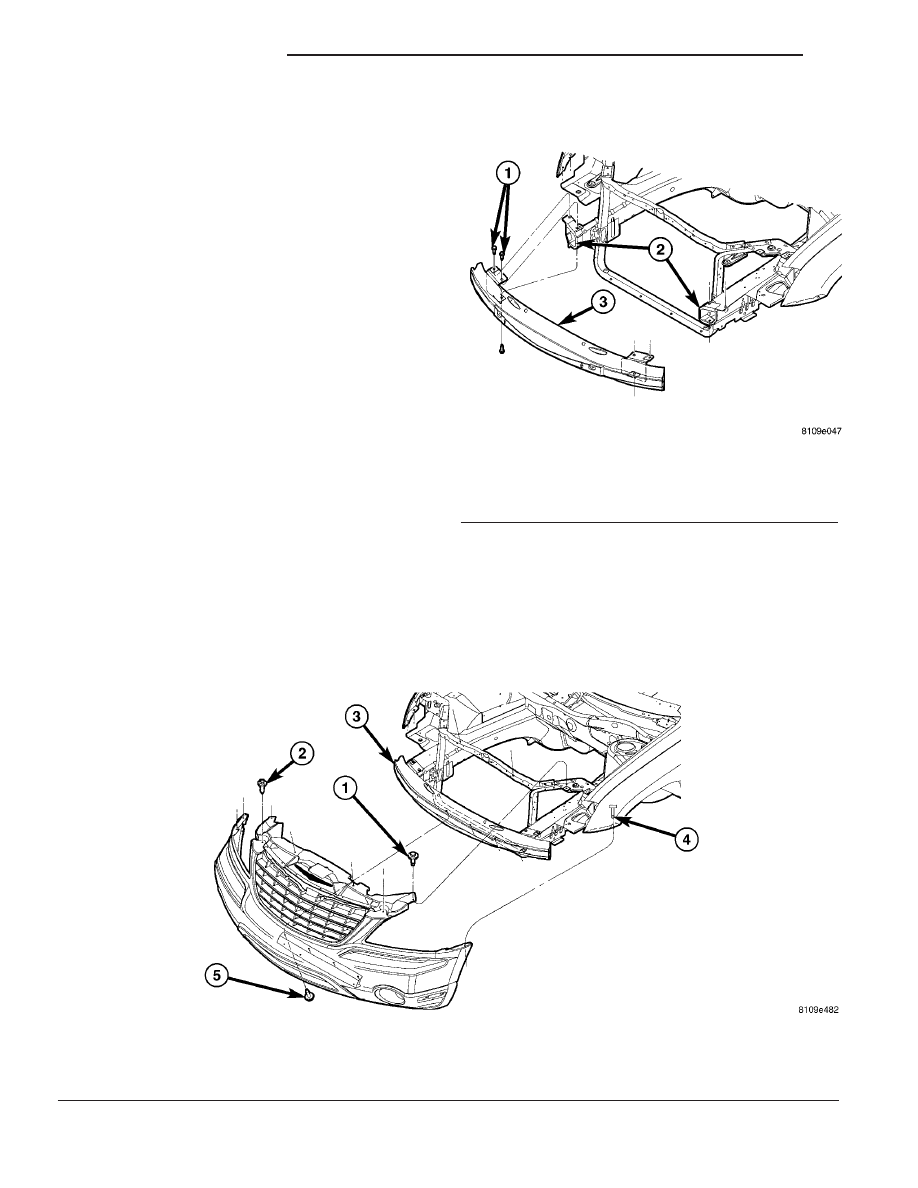

Fig. 1 FRONT BUMPER REINFORCEMENT

1 - ATTACHING SCREW(S)
2 - RAIL ASSEMBLY
3 - BUMPER REINFORCEMENT

Fig. 2 FRONT FASCIA

1 - PUSH PINS (4)
2 - ATTACHING SCREW
3 - FRONT BUMPER REINFORCEMENT

4 - FASCIA TO FENDER ATTACHING SCREW
5 - FASCIA ATTACHING SCREWS

13 - 2

FRAME & BUMPERS

CS
