over all of the vehicle’s courtesy lamps except for the
driver and passenger front courtesy lamps. The
Driver Door Module (DDM) and the Passenger Door
Module (PDM) turn these lamps on based on
requests sent over the PCI Bus from the BCM. The
courtesy lamps will illuminate if:

• Any door is ajar and the courtesy lamp switch

on the headlamp switch is not in the dome OFF posi-
tion.

• The courtesy lamp switch on the headlamp

switch is in the dome ON position.

• A Remote Keyless Entry unlock message is

received.

• The operator unlocks the driver door with the

key (with VTSS only).

ILLUMINATED ENTRY

Illuminated entry will be initiated when the cus-

tomer enters the vehicle by unlocking the doors with
the key fob, or with the key if the vehicle is equipped
with vehicle theft security. Upon exiting the vehicle,
if the lock button is pressed with a door open, illumi-
nated entry will cancel when the door closes. If the
doors are closed and the ignition switch is turned
ON, the illuminated entry also cancels. The illumi-
nated entry feature will not operate if the courtesy
lamp switch is in the dome OFF position.

INTERIOR LIGHTING BATTERY SAVER

If any of the interior lamps are left ON after the

ignition is turned OFF, the BCM will turn them OFF
after fifteen minutes. To return to normal operation,
the courtesy lamps will operate after the dome lamp
switch or door ajar switch changes state. The reading
lamps and glove box lamp operate under the same
conditions as the courtesy lamps.

LAMPS/LIGHTING - INTERIOR

8L - 27

SPECIFICATIONS - INTERIOR LAMPS

BULB APPLICATION TABLE

LAMP

BULB

CENTER AND REAR READING
LAMP

578

FRONT DOOR COURTESY
LAMP

578

LIFTGATE LAMP

578

OVERHEAD CONSOLE
READING LAMPS

578

VISOR VANITY LAMPS

V26377

DOOR COURTESY LAMP

REMOVAL

(1) Open hood, disconnect and isolate the battery

negative cable.

(2) Open door.
(3) Using a trim stick (special tool #C-4755) or

equivalent, gently pry out on door courtesy lamp lens
and remove from trim panel (Fig. 1).

(4) Gently pry up on one end of the door courtesy

lamp and pull out of lamp unit (Fig. 2).

INSTALLATION

(1) Place lamp over retaining clips in door courtesy

lamp unit retaining clips and firmly snap into place
(Fig. 2).

(2) Place the door courtesy lamp lens over the

retaining pins making sure that they are lined up
and them firmly snap into place (Fig. 1).

(3) Close door.
(4) Connect the battery negative cable.
(5) Verify vehicle and system operation.

DOOR COURTESY LAMP UNIT

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the front door trim panel (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - REMOVAL)
and (Fig. 3).

(3) With the trim panel on the bench, push in on

the side retaining clips of the door courtesy lamp
unit and push through trim panel to remove (Fig. 4).

INSTALLATION

(1) Align the door courtesy lamp unit in the door

trim panel opening and firmly snap into place (Fig.
4).

(2) Install the front door trim panel (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - INSTALLA-
TION) and (Fig. 3).

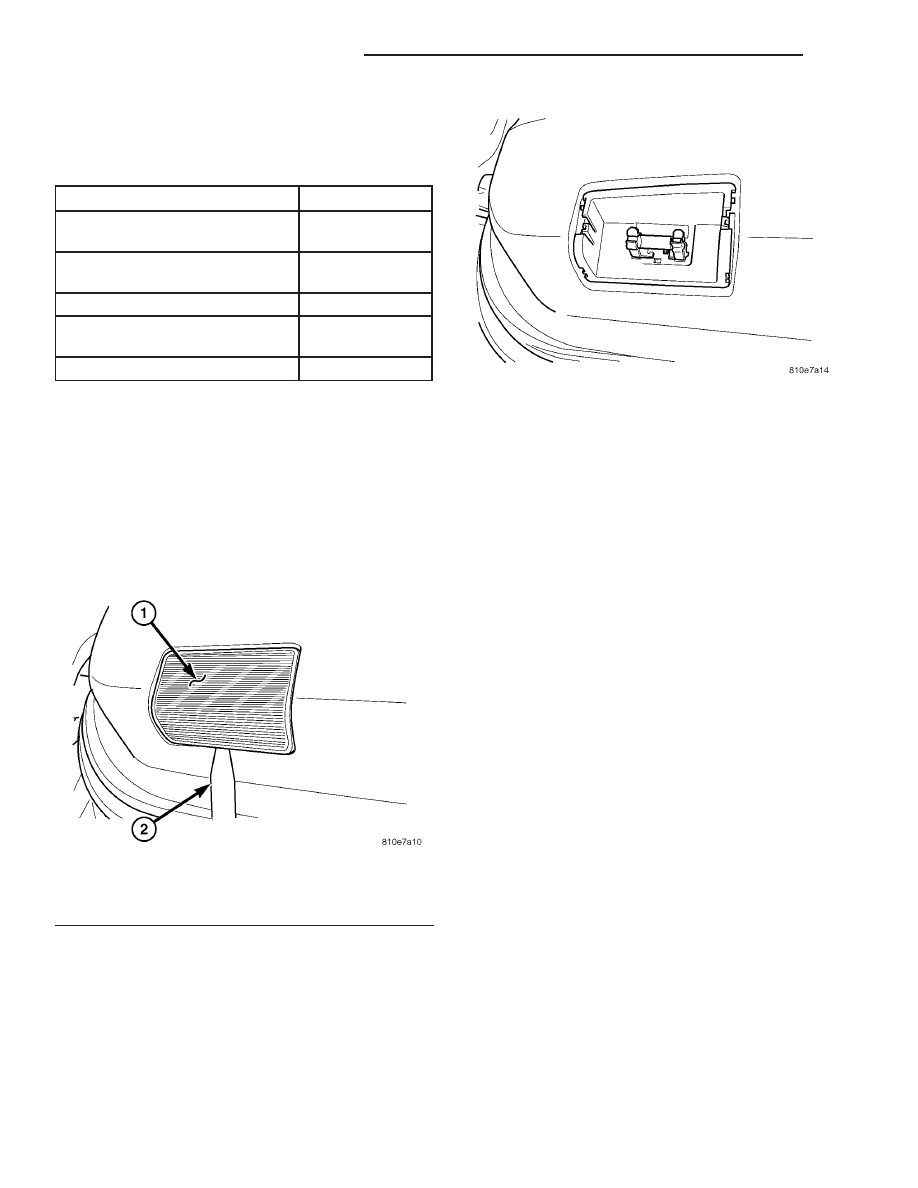

Fig. 1 DOOR COURTESY LAMP LENS - REMOVAL

1 - DOOR COURTESY LAMP LENS
2 - TRIM STICK (SPECIAL TOOL #C-4755)

Fig. 2 DOOR COURTESY LAMP - REMOVAL

8L - 28

LAMPS/LIGHTING - INTERIOR

LAMPS/LIGHTING - INTERIOR (Continued)

(3) Connect the battery negative cable.
(4) Verify vehicle and system operation.

GLOVE BOX LAMP SWITCH

REMOVAL

(1) Open hood, disconnect and isolate the battery

negative cable.

(2) Open right door.
(3) Open glove box.
(4) Reach up behind instrument panel and discon-

nect the glove box lamp switch electrical connector.

(5) Using a trim stick (special tool #C-4755) or

equivalent, gently pry out glove box lamp switch
from glove box opening surround (Fig. 5).

(6) If replacing the lamp, pull straight out of glove

box lamp switch.

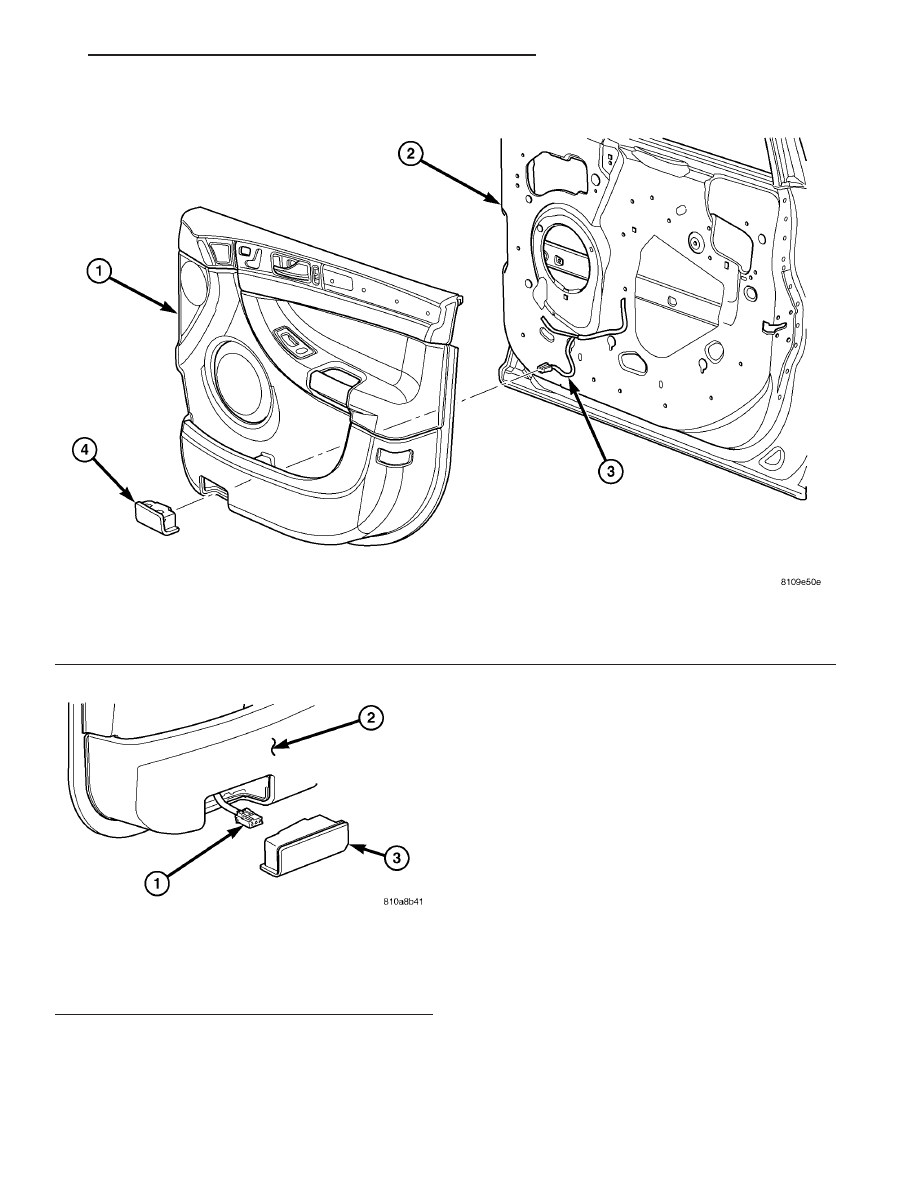

Fig. 3 DOOR COURTESY LAMP UNIT - FRONT - REMOVE/INSTALL

1 - FRONT DOOR TRIM PANEL

3 - DOOR COURTESY LAMP UNIT CONNECTOR

2 - FRONT DOOR PANEL

4 - DOOR COURTESY LAMP UNIT

Fig. 4 DOOR COURTESY LAMP UNIT - REMOVE/

INSTALL

1 - DOOR COURTESY LAMP UNIT CONNECTOR
2 - FRONT DOOR TRIM PANEL
3 - DOOR COURTESY LAMP UNIT

LAMPS/LIGHTING - INTERIOR

8L - 29

DOOR COURTESY LAMP UNIT (Continued)

INSTALLATION

(1) If replacing the lamp, push straight into glove

box lamp switch.

(2) Position lamp switch over retaining hole and

firmly snap into place (Fig. 5).

(3) Reach up behind instrument panel, and con-

nect the electrical connector.

(4) Close glove box.
(5) Close right door.
(6) Connect the battery negative cable.
(7) Close hood.
(8) Verify vehicle and system operation.

ILLUMINATION LAMPS

REMOVAL

The Instrument Panel Switch Pod has two illumi-

nation lamps (Fig. 6). If found to be faulty, the entire
cluster bezel must be removed. The Light Emitting
Diodes (LED’s) are serviceable by turning 1/4 turn
counterclockwise to remove. The cluster bezel must
first be removed to service the LED’s (Refer to 23 -
BODY/INSTRUMENT PANEL/CLUSTER BEZEL -
REMOVAL).

INSTALLATION

(1) Place Light Emitting Diode (LED) into lamp

opening in instrument panel switch pod.

(2) Turn 1/4 turn clockwise.
(3) Install Cluster bezel (Refer to 23 - BODY/IN-

STRUMENT PANEL/CLUSTER BEZEL - INSTAL-
LATION).

(4) Verify vehicle and system operation.

LIFTGATE LAMP

REMOVAL

(1) Open hood, disconnect and isolate the battery

negative cable.

(2) Open liftgate.
(3) Using a trim stick (special tool #C-4755) or

equivalent, gently pry out on door courtesy lamp lens
and remove from trim panel (Fig. 7).

(4) Gently pry up on the edge of the lamp and pull

out of the liftgate lamp unit to remove (Fig. 8).

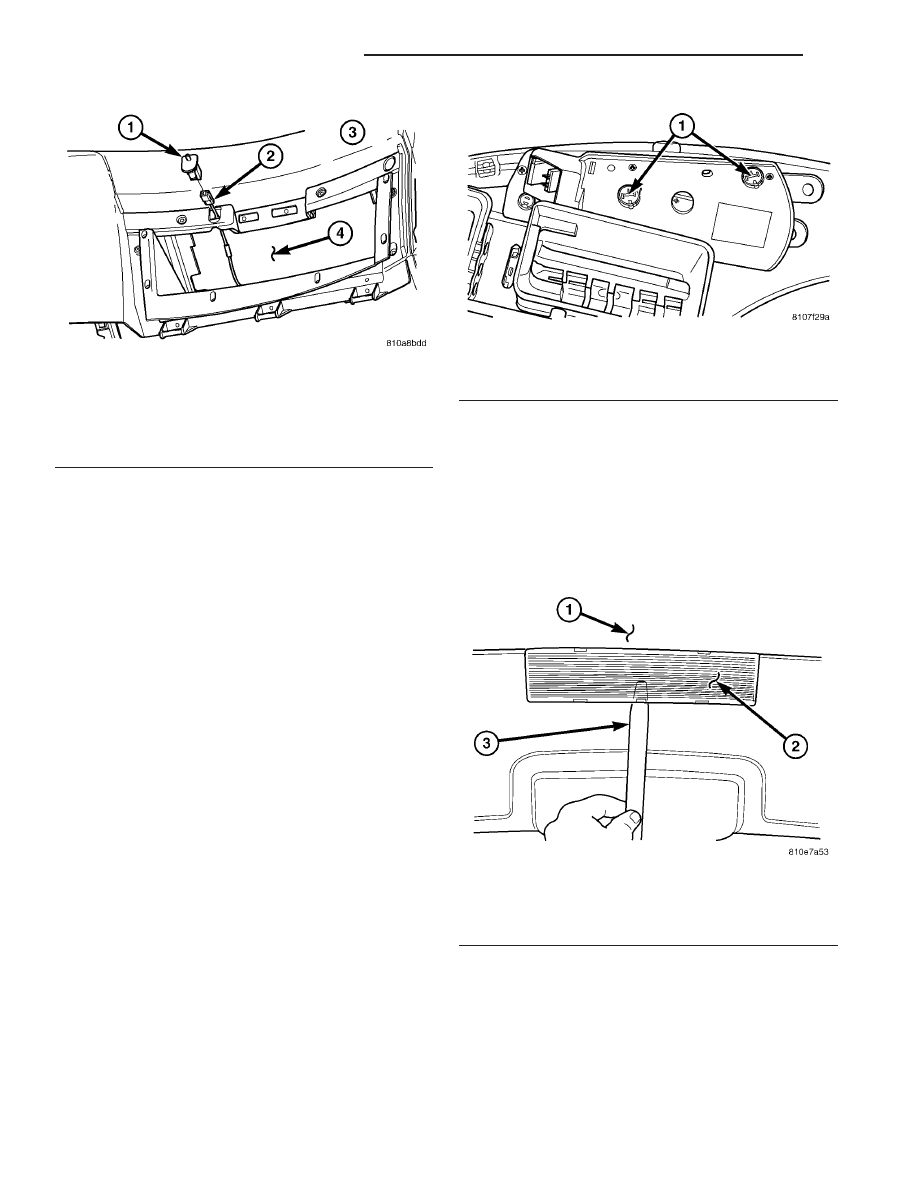

Fig. 5 GLOVE BOX LAMP SWITCH - REMOVE/

INSTALL

1 - GLOVE BOX LAMP SWITCH
2 - GLOVE BOX LAMP SWITCH CONNECTOR
3 - INSTRUMENT PANEL
4 - GLOVE BOX OPENING

Fig. 6 INSTRUMENT PANEL SWITCH POD

ILLUMINATION

1 - INSTRUMENT PANEL SWITCH POD ILLUMINATION

Fig. 7 LIFTGATE LAMP LENS - REMOVAL

1 - LIFTGATE TRIM PANEL
2 - LIFTGATE LAMP UNIT LENS
3 - TRIM STICK (SPECIAL TOOL #C-4755)

8L - 30

LAMPS/LIGHTING - INTERIOR

GLOVE BOX LAMP SWITCH (Continued)
