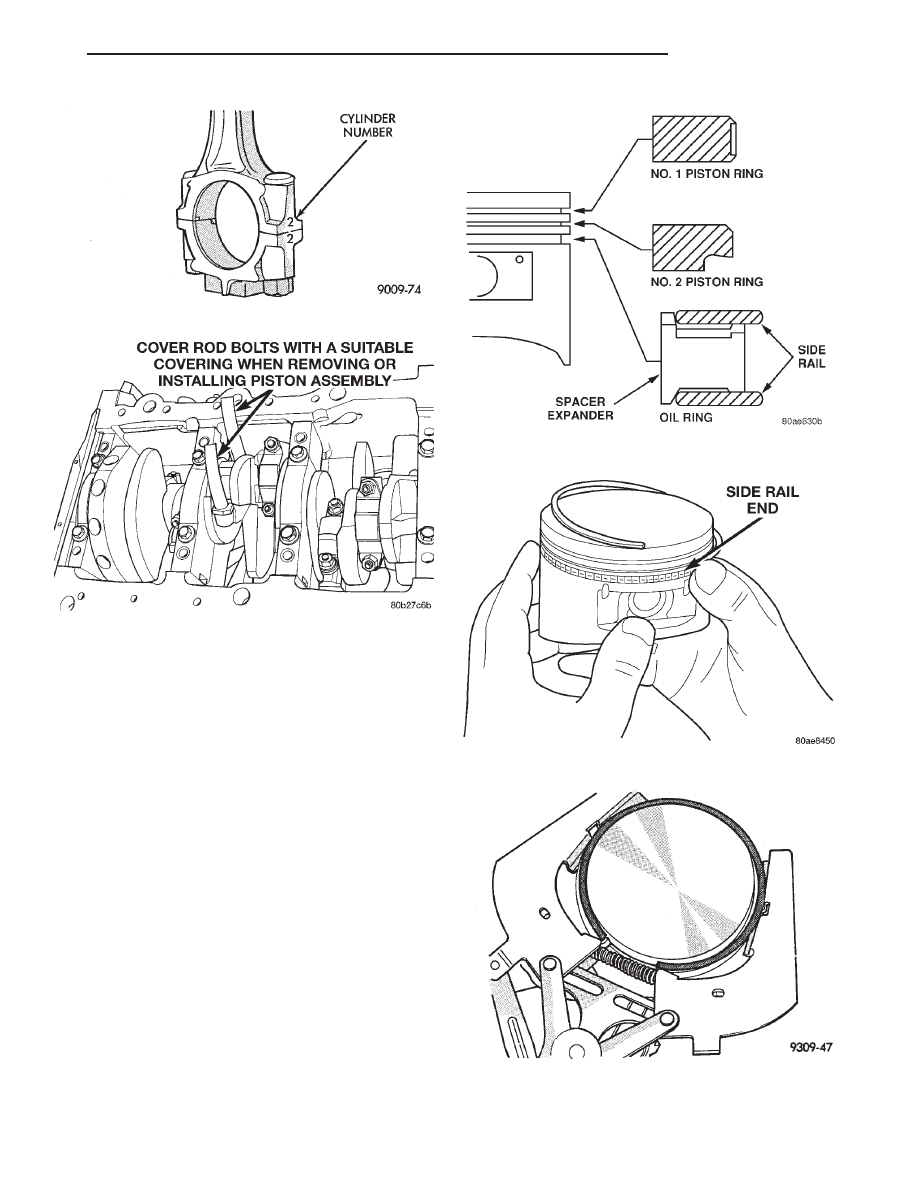

(4) After removal, install bearing cap on the mat- ing rod. PISTON RINGS—INSTALLATION (1) The No. 1 and No. 2 piston rings have a differ- ent cross section. Insure that the No. 2 ring is CAUTION: Install piston rings in the following order: (2) Oil ring expander. the piston ring groove and the expander. Hold end (8) Install upper side rail first and then the lower side rail. (9) Install No. 2 piston ring and then No. 1 piston ring (Fig. 97). Fig. 93 Identify Connecting Rod to Cylinder Fig. 94 Connecting Rod Guides and Crankshaft Protectors Fig. 95 Piston Ring—Installation Fig. 96 Side Rail—Installation Fig. 97 Upper and Intermediate Rings—Installation LH 3.2L ENGINE 9 - 99 REMOVAL AND INSTALLATION (Continued) |
