(2) Using suitable tool install seal by tapping

lightly until seal is in place. (Fig. 24).

(3) Install valve spring with the enamelled ends

facing the rocker arms (Fig. 25).

CAUTION: During reassembly, compressing the
valve spring more than necessary to install valve
spring retainer locks can cause the retainer to be
forced against the stem seal and damaging it.

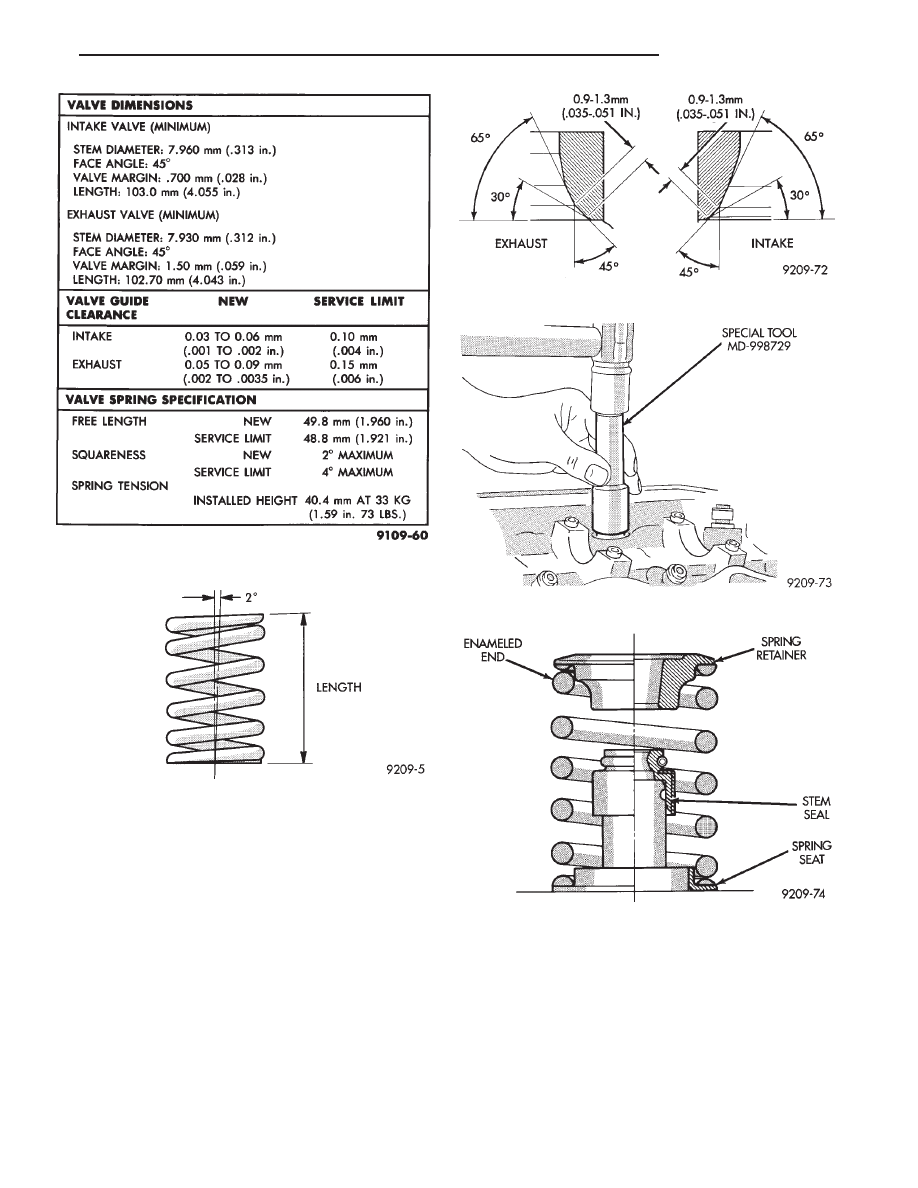

Fig. 21 Valve Specification

Fig. 22 Valve Spring

Fig. 23 Valve Seat Reconditioning

Fig. 24 Install Valve Stem Seals

Fig. 25 Installed Valve Spring Position

Ä

3.0L ENGINE

9 - 81

PISTON AND CONNECTING ROD ASSEMBLY SERVICE

(1) Mark Identify Pistons.The pistons are not in-

terchangeable from bank to bank(Fig. 2). Pistons
with the letter R and arrow toward the front of en-
gine are to be installed in cylinders 1-3-5. Pistons
with the letter L and arrow toward the front of en-
gine are to be installed in cylinders 2-4-6.

(2) Mark connecting rod and cap with cylinder

number (Fig. 3).

(3) Remove piston rings (Fig. 4).

CYLINDER BORE INSPECTION

(1) Measure the cylinder bore at three levels in di-

rections A and B (Fig. 5). Top measurement should

be 12mm (.50 inch) down and bottom measurement
should be 10mm (.38 inch) up.

(2) Standard bore dimension: 91.1mm (3.587 inch)
(3) Maximum out-of-round or taper: 0.02mm (.0008

inch)

FITTING PISTONS

Measure approximately 2mm (.080 inch) above the

bottom of the piston skirt and across the thrust face.
(Fig. 6), See Boring Cylinder in Cylinder Block.

FITTING PISTON RINGS

(1) Wipe cylinder bore clean. Insert ring and push

down with piston to ensure it is square in bore. The
ring gap measurement must be made with the ring
positioning at least 16mm (0.63 inch) from bottom of

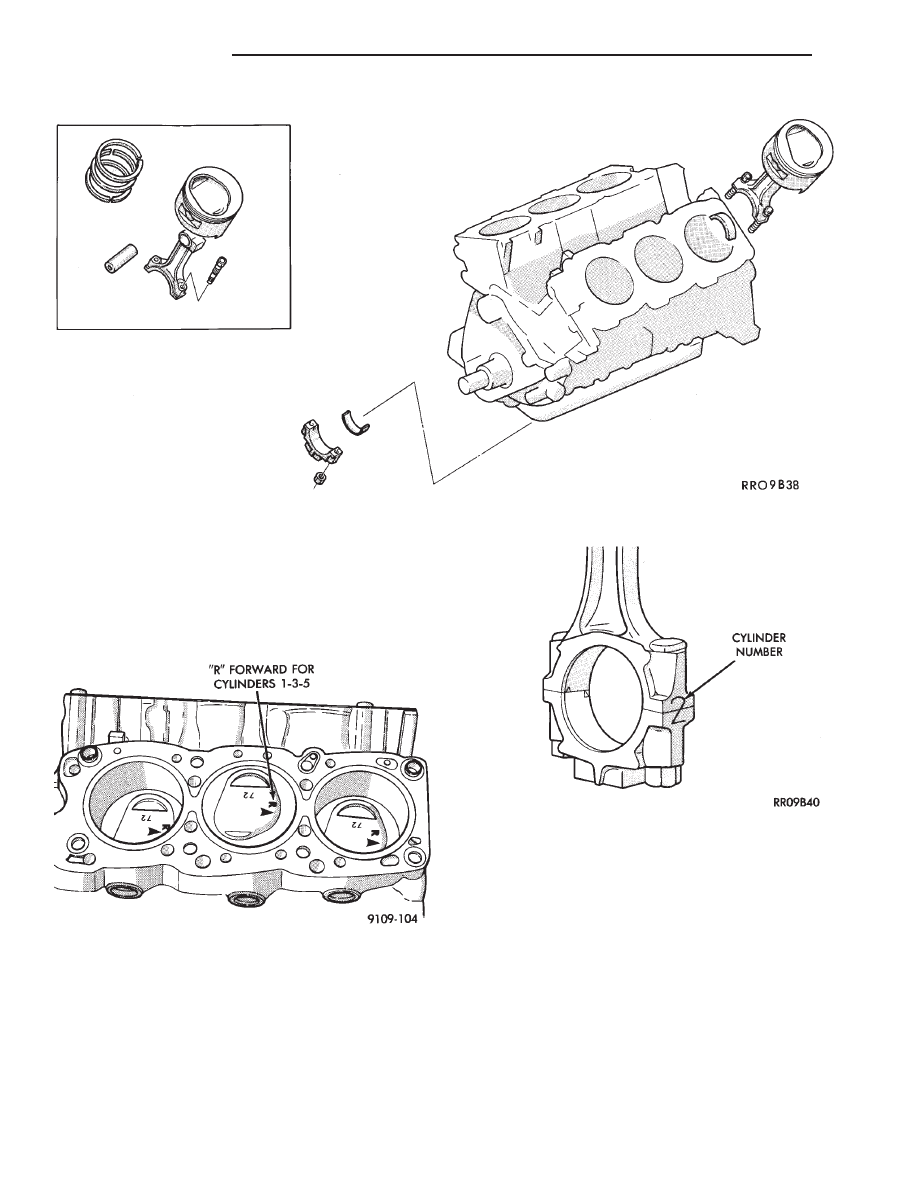

Fig. 1 Pistons, Connecting Rods

Fig. 2 Mark Pistons

Fig. 3 Mark Matching Parts

9 - 82

3.0L ENGINE

Ä

cylinder bore. Check gap with feeler gauge (Fig. 7).
Refer to (Fig. 8) for specification.

(2) Check piston ring to groove clearance; Refer to

Piston Ring Specification Chart (Fig. 8).

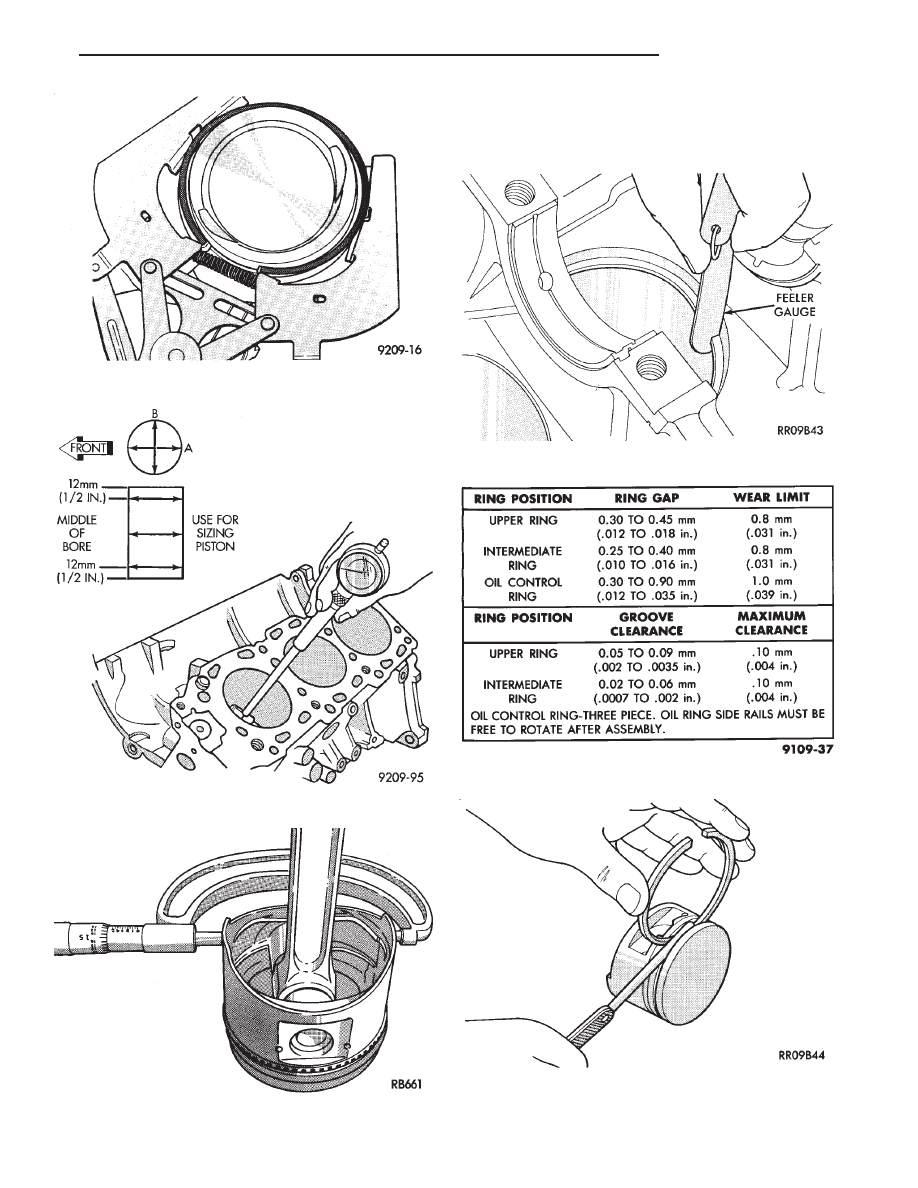

Fig. 4 Remove Piston Rings

Fig. 5 Checking Cylinder Bore Size

Fig. 6 Piston Clearance and Wear

Fig. 7 Check Gap on Piston Rings

Fig. 8 Piston Ring Specification Chart

Fig. 9 Piston Ring Clearance

Ä

3.0L ENGINE

9 - 83

PISTON RINGS—INSTALLATION

(1) The No. 1 and No. 2 piston rings have a differ-

ent cross section. Install rings with manufacturers
mark and size mark facing up, to the top of the pis-
ton (Fig. 10).

CAUTION: Install piston rings in the following or-
der:

(a) Oil ring expander.
(b) Upper oil ring side rail.
(c) Lower oil ring side rail.
(d) No. 2 Intermediate piston ring.
(e) No. 1 Upper piston ring.

(2) Install the side rail by placing one end between

the piston ring groove and the expander. Hold end
firmly and press down the portion to be installed un-
til side rail is in position. Do Not use a piston ring
expander
(Fig. 11).

(3) Install upper side rail first and then the lower

side rail.

(4) Install No. 2 piston ring and then No. 1 piston

ring (Fig. 12).

(5) Position piston ring end gaps as shown in (Fig.

13).

(6) Position oil ring expander gap at least 45° from

the side rail gaps but not on the piston pin center or
on the thrust direction.

(7) Connecting rod front mark 72 must always face

forward, toward timing belt end. (Fig. 14)

(8) Install the piston and connecting rod assembly

into there respective bore from the cylinder block
top.

CAUTION: Piston assemblies are not to be inter-
changed from bank to bank.

(9) Check alignment marks made during disassem-

bly and that bearing position notches new or used
are on the same side as shown in (Fig. 15).

CONNECTING ROD CLEARANCE

(1) Following procedures specified in the Standard

Service Procedures Section for Measuring Main Bear-
ing Clearance and Connecting Rod Bearing Clear-
ance. (Fig. 16). Refer to (Fig. 18) for specifications.

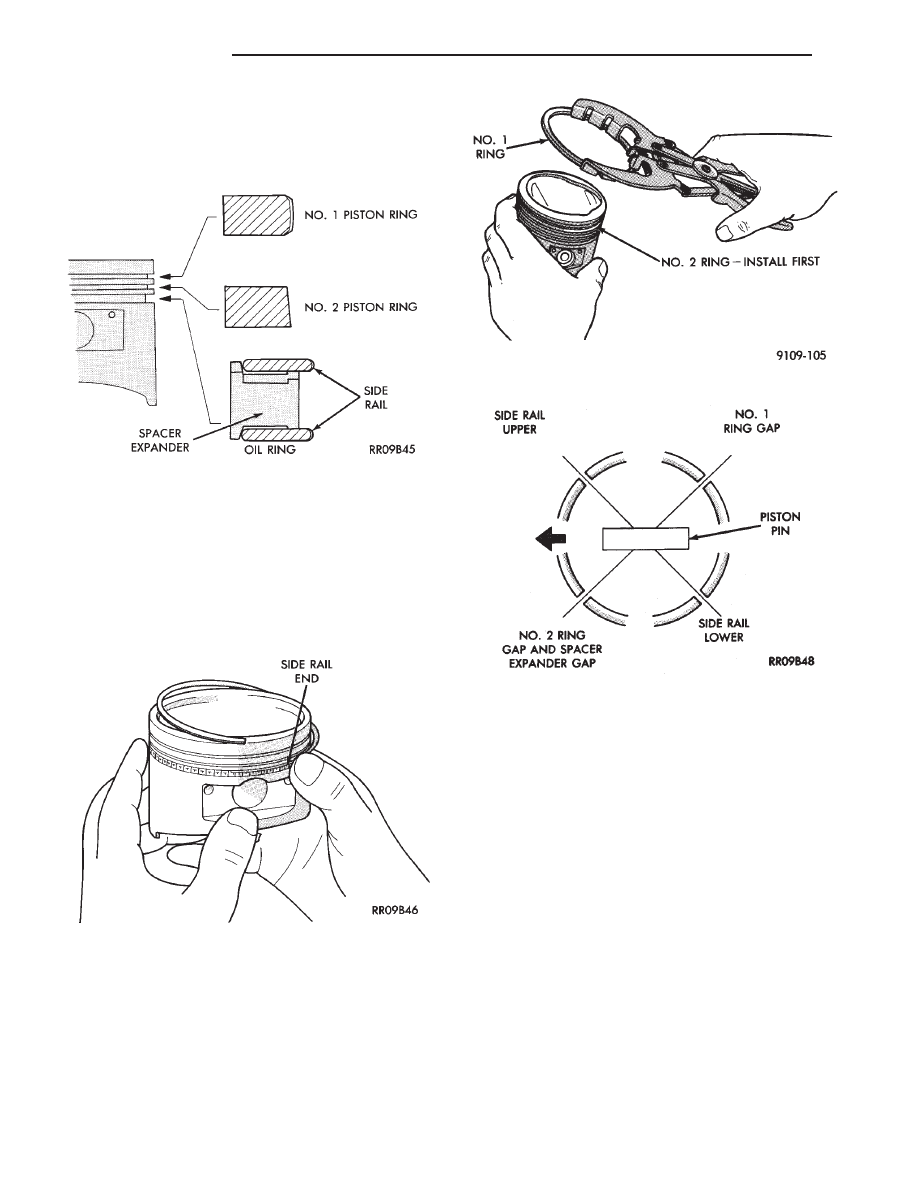

Fig. 10 Piston Ring Installation

Fig. 11 Installing Side Rail

Fig. 12 Installing Upper and Intermediate Rings

Fig. 13 Piston Ring End Gap Position

9 - 84

3.0L ENGINE

Ä
