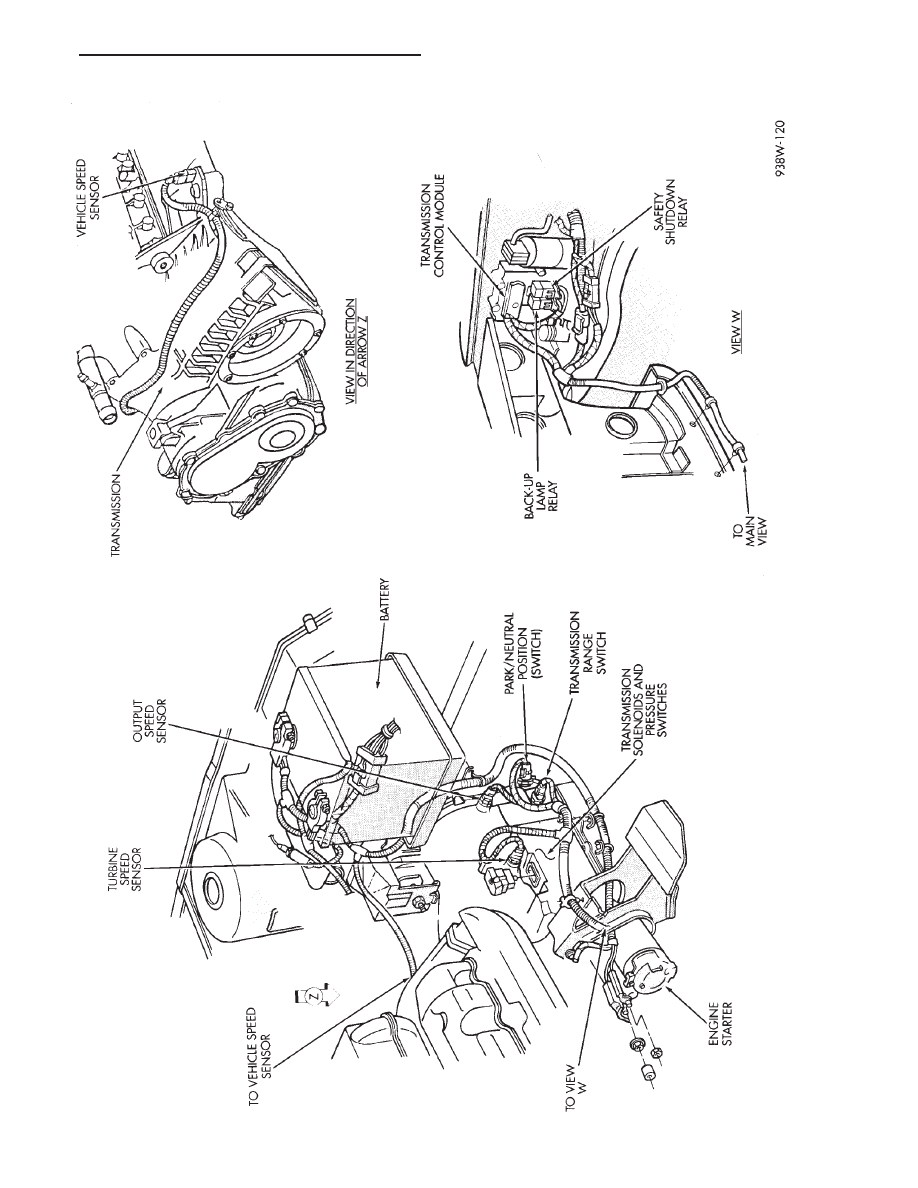

Fig.

17

T

ransmission

W

iring

41TE

AJ-Body

Ä

WIRING AND COMPONENT IDENTIFICATION

8W - 89

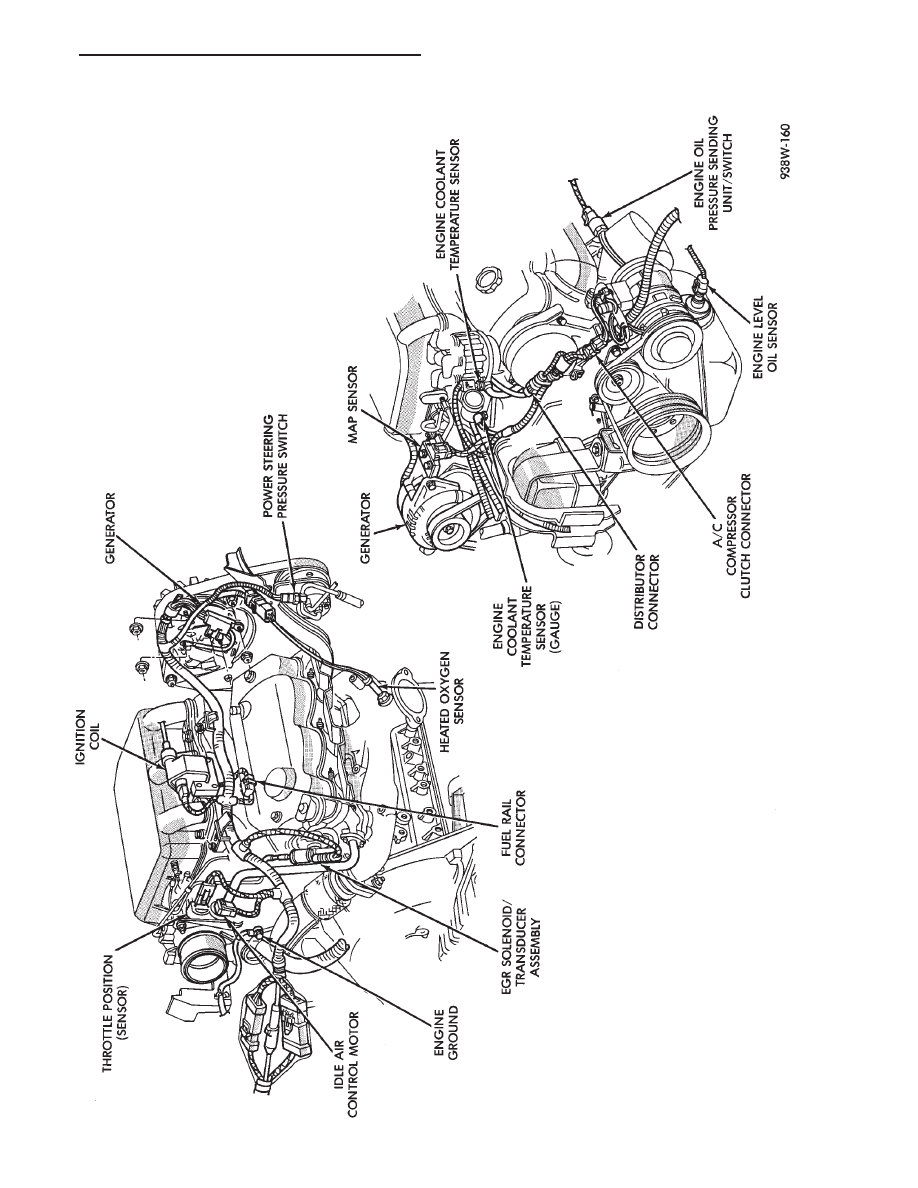

Fig.

18

Engine

W

iring

EFI

AJ-Body

8W - 90

WIRING AND COMPONENT IDENTIFICATION

Ä

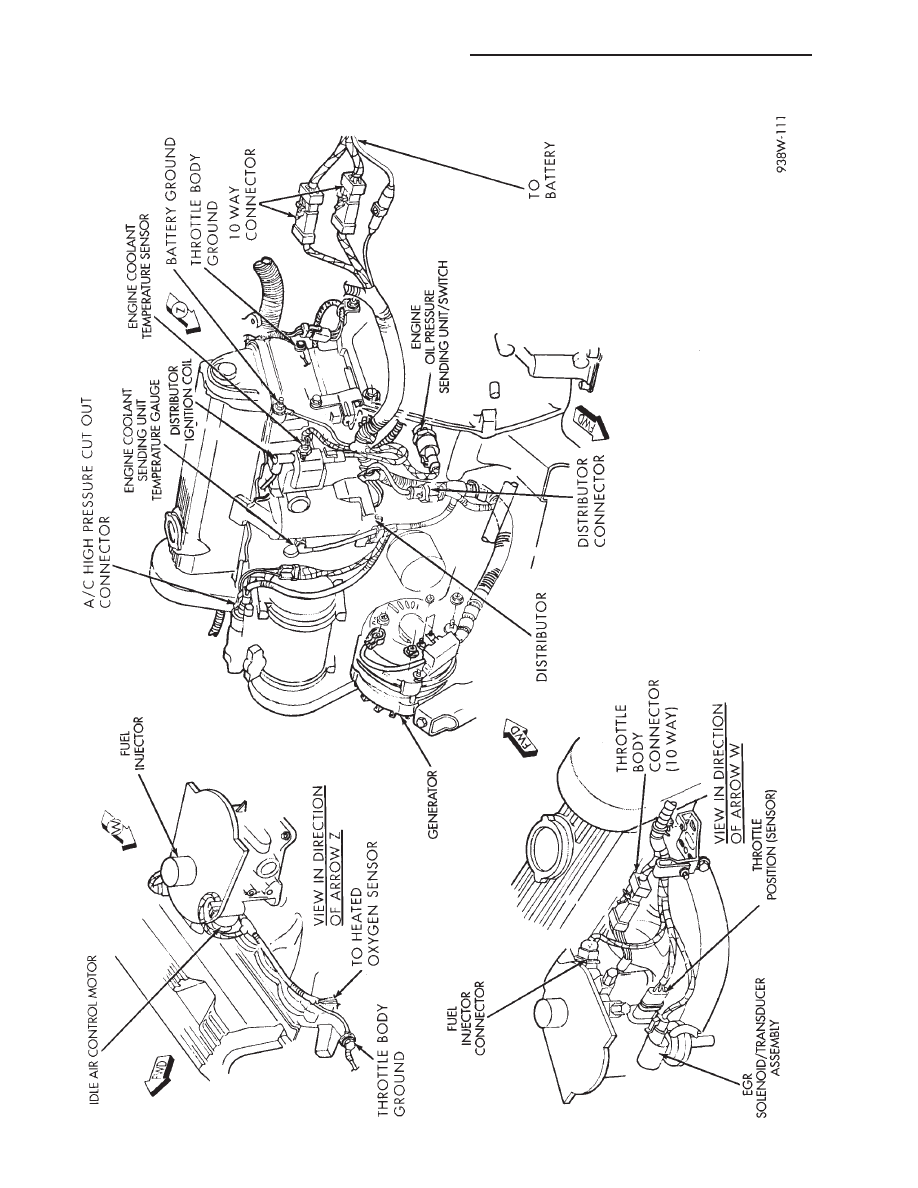

Fig.

19

Engine

W

iring

3.0L

AJ-Body

Ä

WIRING AND COMPONENT IDENTIFICATION

8W - 91

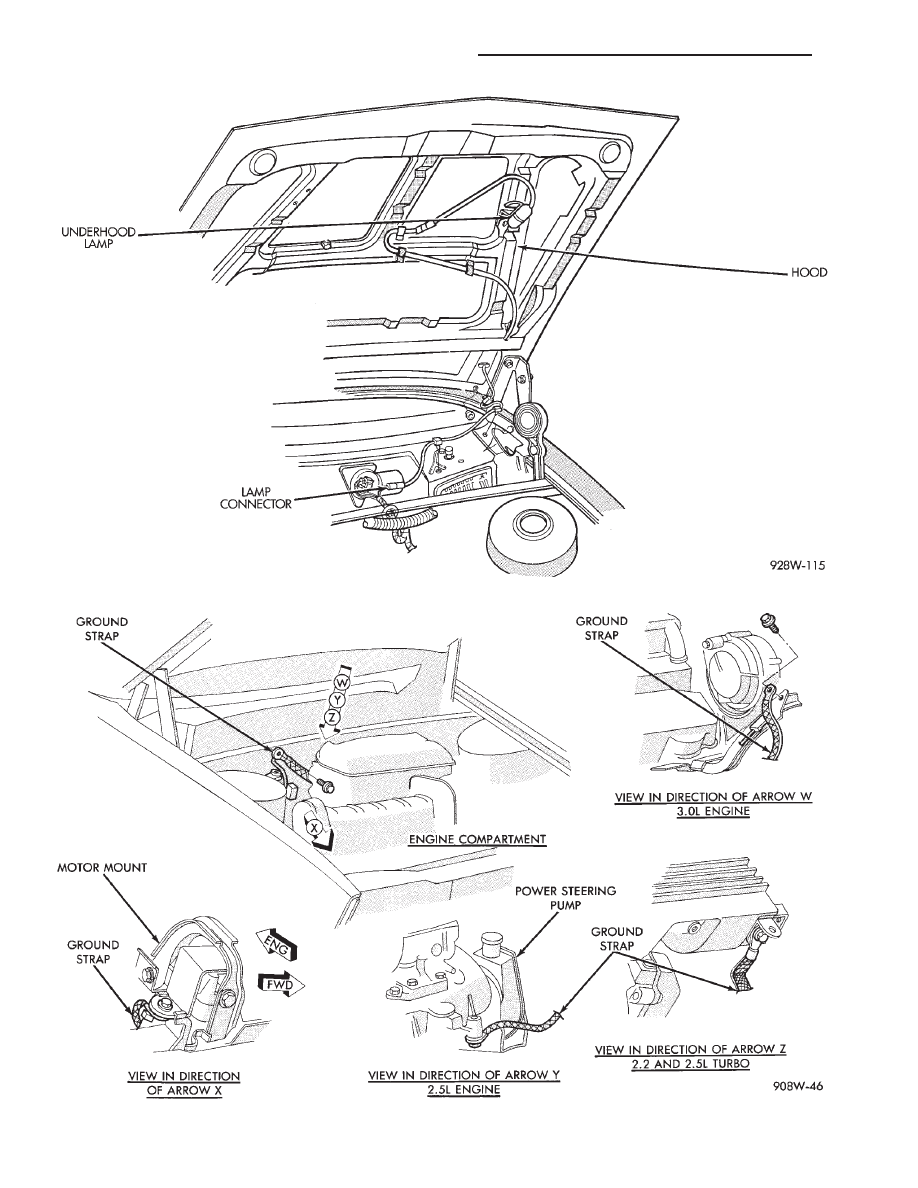

Fig. 20 Underhood Lamp Wiring AJ-Body

Fig. 21 Ground Strap Locations AJ-Body

8W - 92

WIRING AND COMPONENT IDENTIFICATION
