seconds later when battery voltage is normal), or by
turning the ignition switch to the run position,
whichever occurs first. When testing the system, all
vehicle doors must be closed to prevent the door jam
switches from activating the courtesy/dome lamps.

Front door handle switches (Fig. 1), and the Illumi-

nated Entry Module (located behind and above the
glove box (Fig. 2) are used to control the system.

Depending on vehicle options, as many as six dif-

ferent electrical components/relays are located above
the glove box. The Illuminated Entry Module will be
the one mounted the closest to the outside of the in-
strument panel. The Module bracket is also used to
commonly mount the Power Door Lock Inhibitor Re-
lay, if equipped.

Service procedures for door related components can

be found in Group 23, Body.

AC, AG, AJ OR AY BODY

The Illuminated Entry System (AC, AG, AJ or AY

Body) actuates the interior courtesy and/or dome

lamps (except illuminated ignition switch) by lifting
either front door exterior handle. Activation can also
be accomplished with the remote keyless entry sys-
tems hand held module, if equipped.

Lamp illumination is terminated 30 seconds (

6 2

seconds) later, or by turning the ignition switch to
the run position, whichever occurs first. When test-
ing this system, all vehicle doors must be closed to
prevent the operation of the courtesy/dome lamps.

Front door handle switches (Fig. 1), and the Body

Controller (Fig. 3 ) are used to control the system.

Service procedures for door related components can

be found in Group 23, Body.

DIAGNOSTIC PROCEDURES—AA-BODY

For diagnostics and wiring schematics, refer to:

• The Illuminated Entry Diagnosis—AA-Body chart
in this section.
• The Wiring Diagrams Manual.

• Fig. 4 and 5.

DIAGNOSTIC PROCEDURES—AC, AG, AJ AND
AY-BODY

For diagnostics and wiring schematics, refer to:

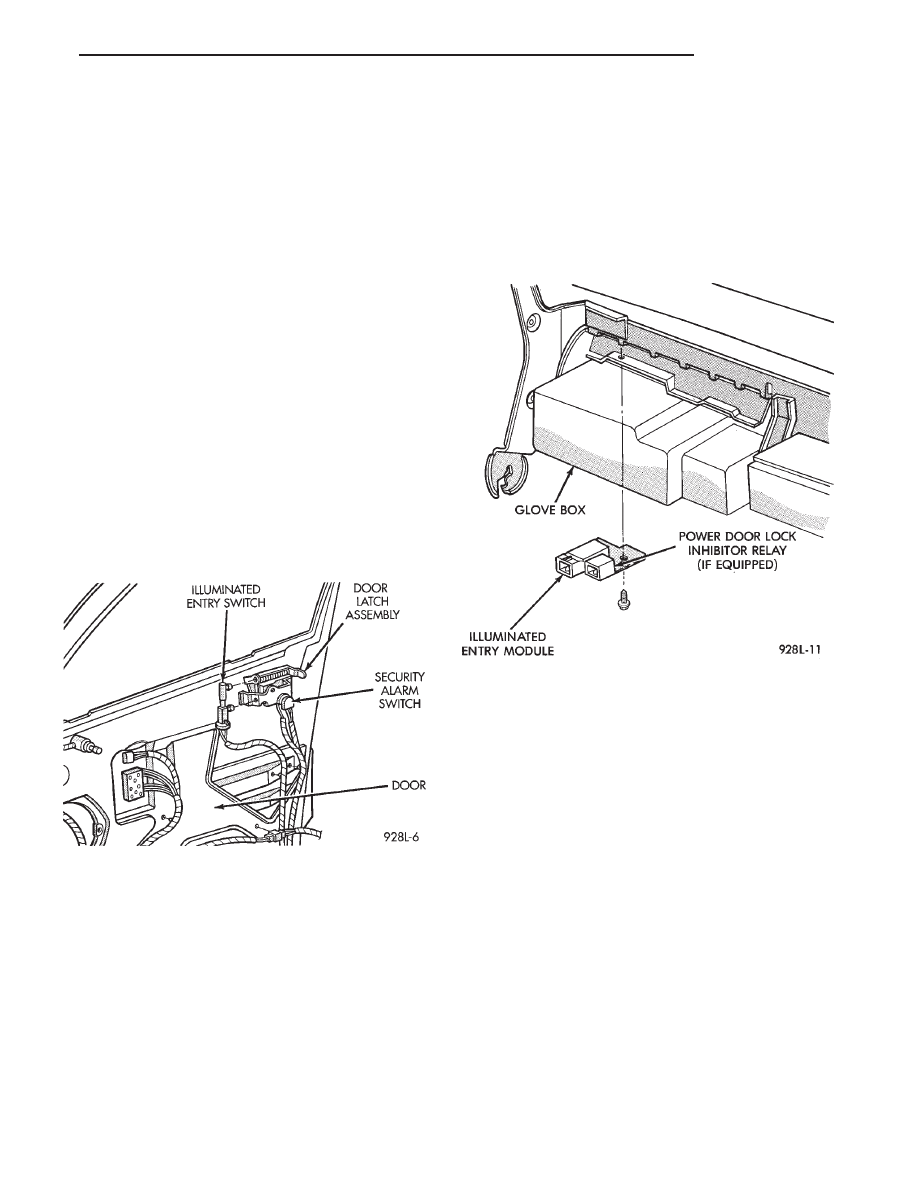

Fig. 1 Illuminated Entry Door Switches—Typical

Fig. 2 Illuminated Entry Module—AA Body

LAMPS

8L - 33

• The Illuminated Entry Diagnosis—AC, AG, AJ
and AY-BODY chart in this section.
• The Illuminated Entry System section of the ap-
propriate Body Diagnostic Procedures Manual.
• The Wiring Diagrams Manual.

ILLUMINATED ENTRY MODULE—AA-BODY

REMOVAL

(1) Disconnect the battery negative cable.
(2) Remove the glove box to gain access to the

module (Fig. 2). Refer to Group 8E, Instrument Panel
and Gauges.

(3) Working through the glove box opening, discon-

nect the wiring connector at the module.

(4) Remove the module bracket mounting screw.
(5) Remove the module bracket from the vehicle.

INSTALLATION

Reverse the preceding operation.

BODY CONTROLLER COMPUTER—AC, AG, AJ and
AY-BODY

REMOVAL

The Body Controller Computer is located at the

right front door opening behind the cowl trim panel
(Fig. 3).

(1) Remove the battery negative cable before re-

moving the Body Controller.

(2) Remove screws holding cowl trim and door

opening scuff plate to cowl panel.

(3) Disconnect wire connectors from body control-

ler.

(4) Remove nuts holding body controller to cowl

panel.

(5) Separate body controller from vehicle.

INSTALLATION

Reverse the preceding operation.

Fig. 3 Body Controller

Fig. 4 Illuminated Entry Circuit Wiring—AA-Body

Fig. 5 Module Pin Outs—AA-Body

8L - 34

LAMPS

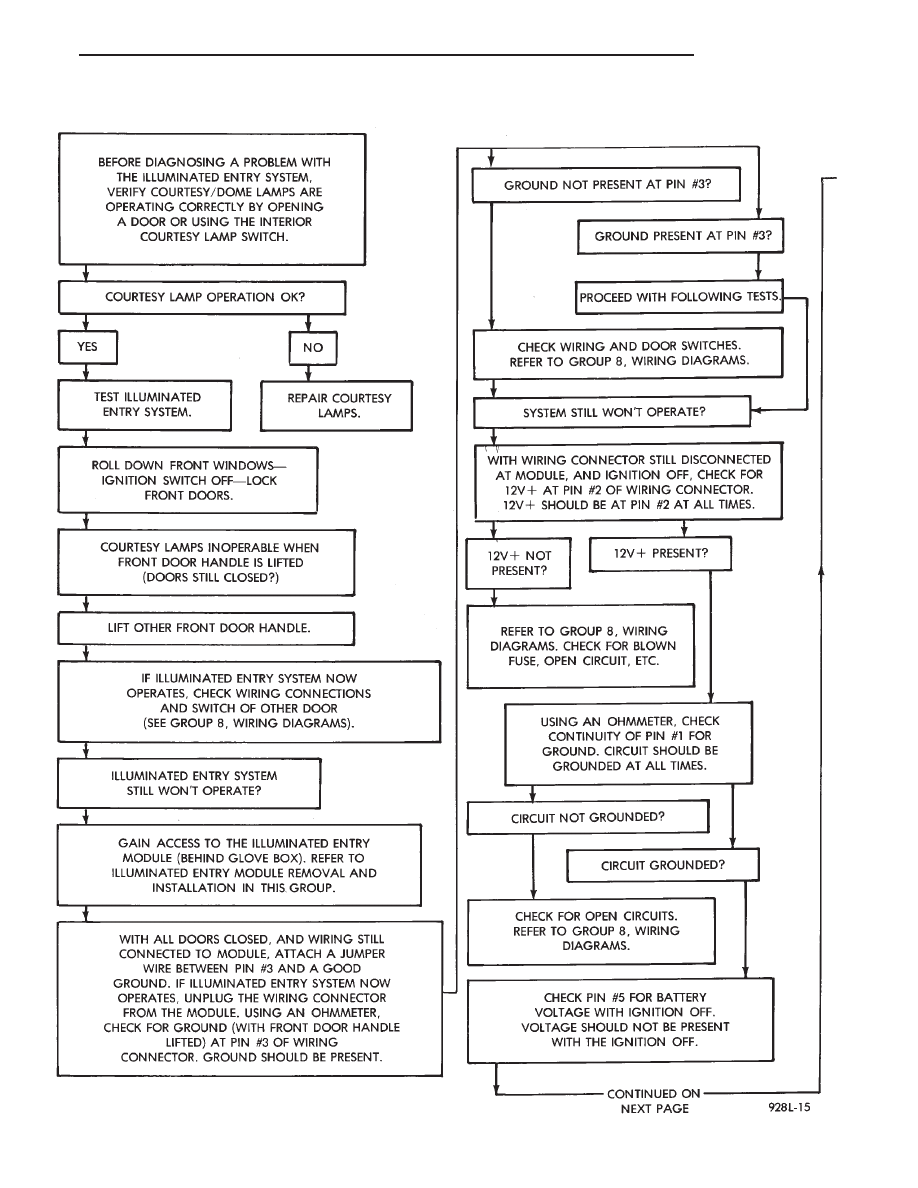

ILLUMINATED ENTRY DIAGNOSIS—AA-BODY

LAMPS

8L - 35

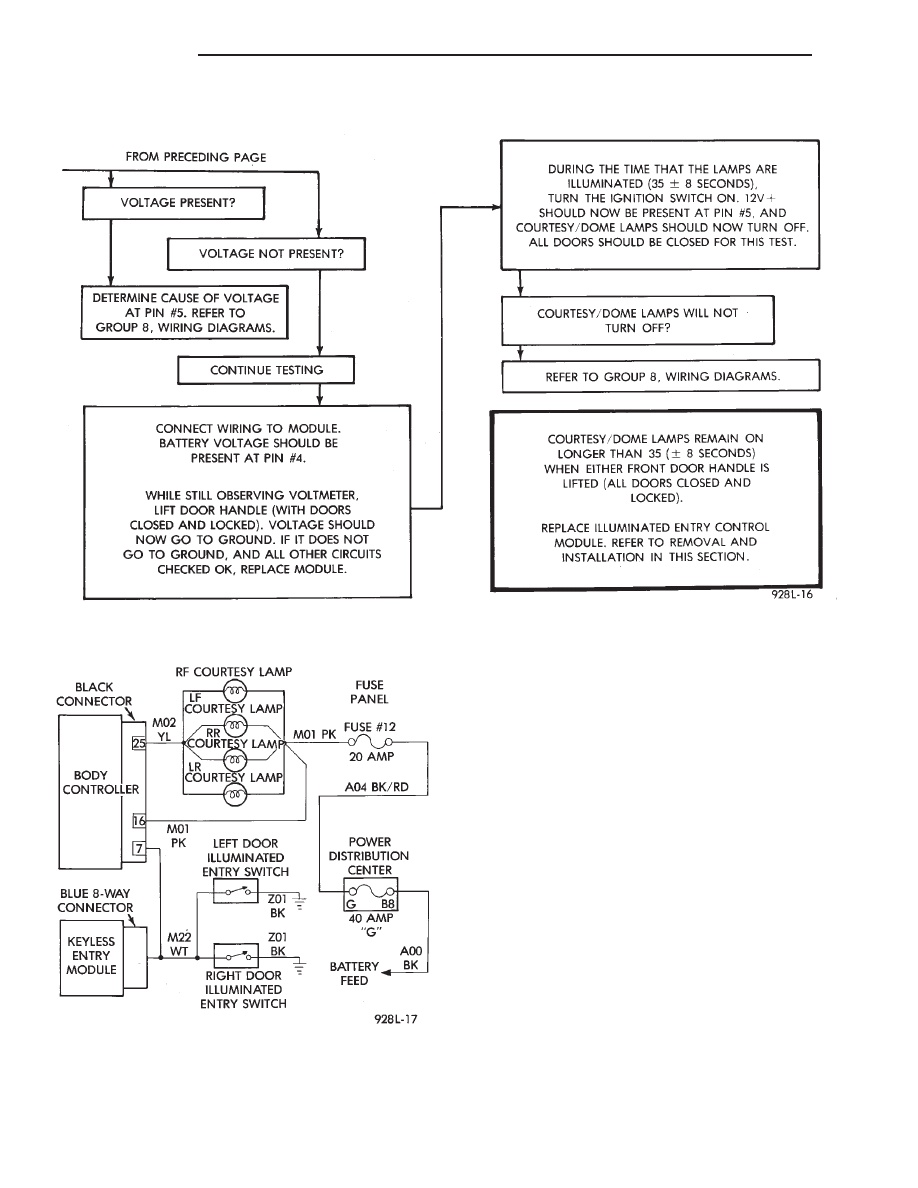

ILLUMINATED ENTRY DIAGNOSIS (CONT.)—AA-BODY

Fig. 6 Illuminated Entry Circuit Wiring—AC, AG, AJ

and AY- Body—Typical

8L - 36

LAMPS
