Chrysler Le Baron, Dodge Dynasty, Plymouth Acclaim. Manual - part 340

CENTER HIGH MOUNTED STOP LAMP BULB—AP/
24-44-BODY

REMOVAL (FIG. 5)

(1) Remove the lower rear glass trim cover. Refer

to Group 23, Body.

(2) Rotate lamp sockets counterclockwise and re-

move them from the lamp assembly.

(3) Remove bulb from the socket.

INSTALLATION

Reverse the preceding operation.

CENTER HIGH MOUNTED STOP LAMP
(CHMSL)—AP/24-44-BODY

REMOVAL (FIG. 5)

(1) Remove the lower rear glass trim cover. Refer

to Group 23, Body.

(2) Remove two attaching nuts from the assembly

mounting and lift the lamp from the bracket.

(3) Remove bulbs from lamp.
(4) Remove lamp attaching nuts.
(5) Remove lamp assembly.

INSTALLATION

Reverse the preceding operation.

FOG LAMP BULB

REMOVAL

(1) From behind the front bumper support, rotate

the socket

counterclockwise one quarter turn, and remove the

socket from lamp assembly.

(2) Disconnect wire connector and remove bulb.

INSTALLATION

Reverse the preceding operation.

FOG LAMPS

REMOVAL (FIG. 6)

(1) Disconnect wire connector from back of lamp.
(2) Remove nut holding fog lamp to mounting

bracket.

(3) Separate fog lamp from bumper fascia.

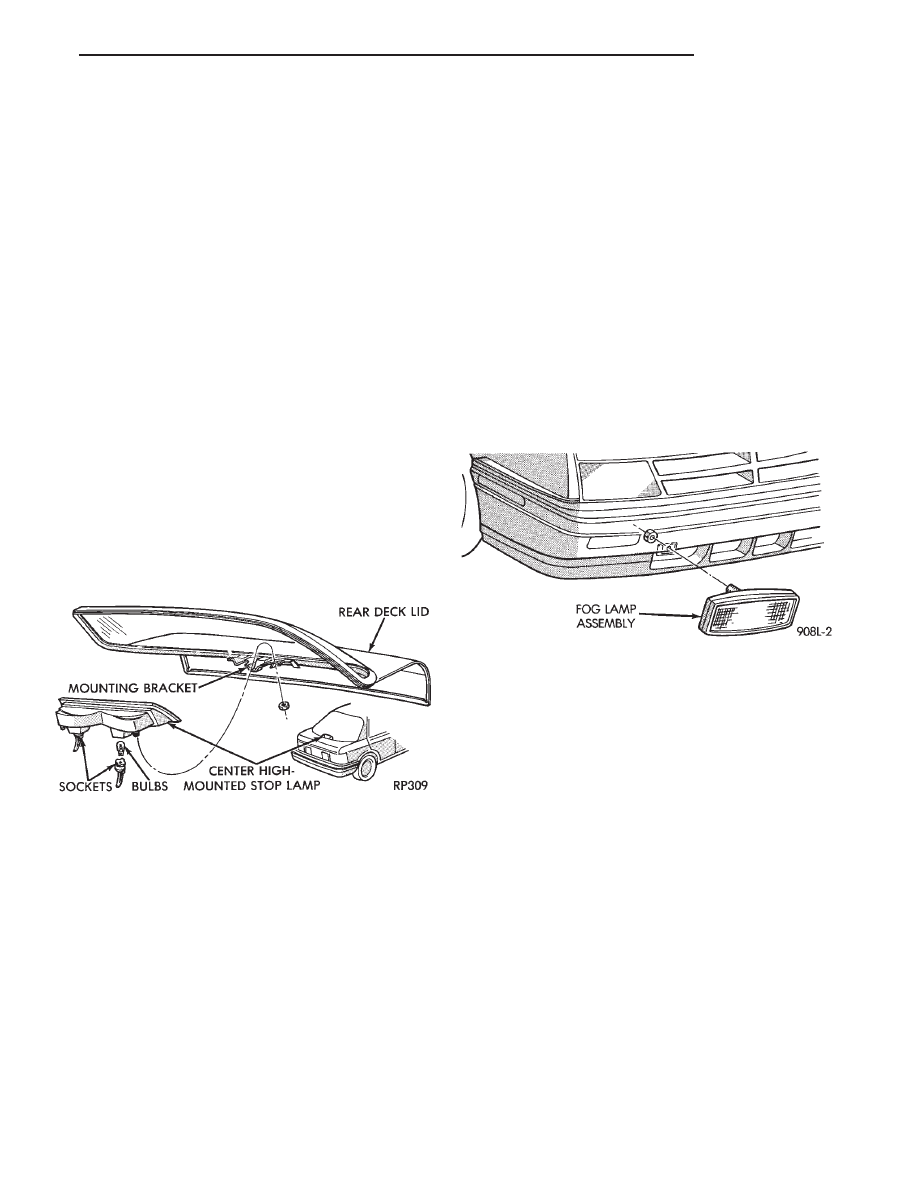

Fig. 5 Center High Mounted Stop Lamp—AP/24-44-

Body

Fig. 6 Fog Lamps

LAMPS

8L - 21

EXTERIOR LAMPS—AY-BODY

INDEX

page

Center High Mounted Stop Lamp

. . . . . . . . . . . . 24

Center High Mounted Stop Lamp Bulb (CHMSL)

. 24

Cornering Lamp or Bulb—AY/C-P-Body

. . . . . . . . 24

Front Side Marker Bulb—AY/C-P-Body

. . . . . . . . 23

Front Side Marker Lamp—AY/C-P-Body

. . . . . . . 23

General Information

. . . . . . . . . . . . . . . . . . . . . . . 22

Headlamp Diagnosis

. . . . . . . . . . . . . . . . . . . . . . 22

Headlamps

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

License Plate Lamp or Bulb—AY/C-P-Body

. . . . . 24

Park, Turn Signal Lamp or Bulb—AY/C-P-Body

. . 22

Sealed Beam

. . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Tail, Stop, Turn Signal, Side Marker and Back-Up

Lamp or Bulb—AY/C-P-Body

. . . . . . . . . . . . . . 24

GENERAL INFORMATION

To service exterior lamps on AY/C-S-Body, refer to

procedures covered in Exterior Lamps—AC-Body sec-
tion. AC/C-S-Body uses the same lamps as AY/C-S-
Body.

HEADLAMPS

Conventional and halogen sealed beams are inter-

changeable, It is not recommended that they be
mixed. The lens, filament and reflector of sealed
beams are molded into one unit.

HEADLAMP DIAGNOSIS

For headlamp diagnosis, refer to the headlamp di-

agnosis chart at the beginning of this Group. Refer to
Wiring Diagrams manual for circuit and component
locations.

SEALED BEAM

REMOVAL

(1) Turn the headlight switch ON.
(2) Open the hood and locate the power distribu-

tion center forward of the left front suspension tower
(Fig. 1). Remove the cover.

(3) Remove the headlamp close relay (Fig. 2) to

prevent the headlamp doors from closing.

(4) Turn the headlight switch OFF.
(5) Remove screws from headlamp bezel and re-

move bezel, if equipped.

Do not disturb the headlamp adjusting screws.
(6) Remove screws from interior retaining ring

(Fig. 3), and remove ring.

(7) Separate sealed beam from seat and disconnect

wire connector.

INSTALLATION

Reverse the preceding operation.

PARK, TURN SIGNAL LAMP OR BULB—AY/C-P-
BODY

REMOVAL

(1) Open the headlamp doors.

(2) Remove push-in fasteners holding lower park

and turn signal lamp shield to grille opening panel
(Fig. 4).

(3) Remove screws holding park and turn signal

lamp grille opening panel (Fig. 5).

(4) Remove sockets from lamp and pull bulbs from

sockets if bulbs replacement is required (Fig. 6).

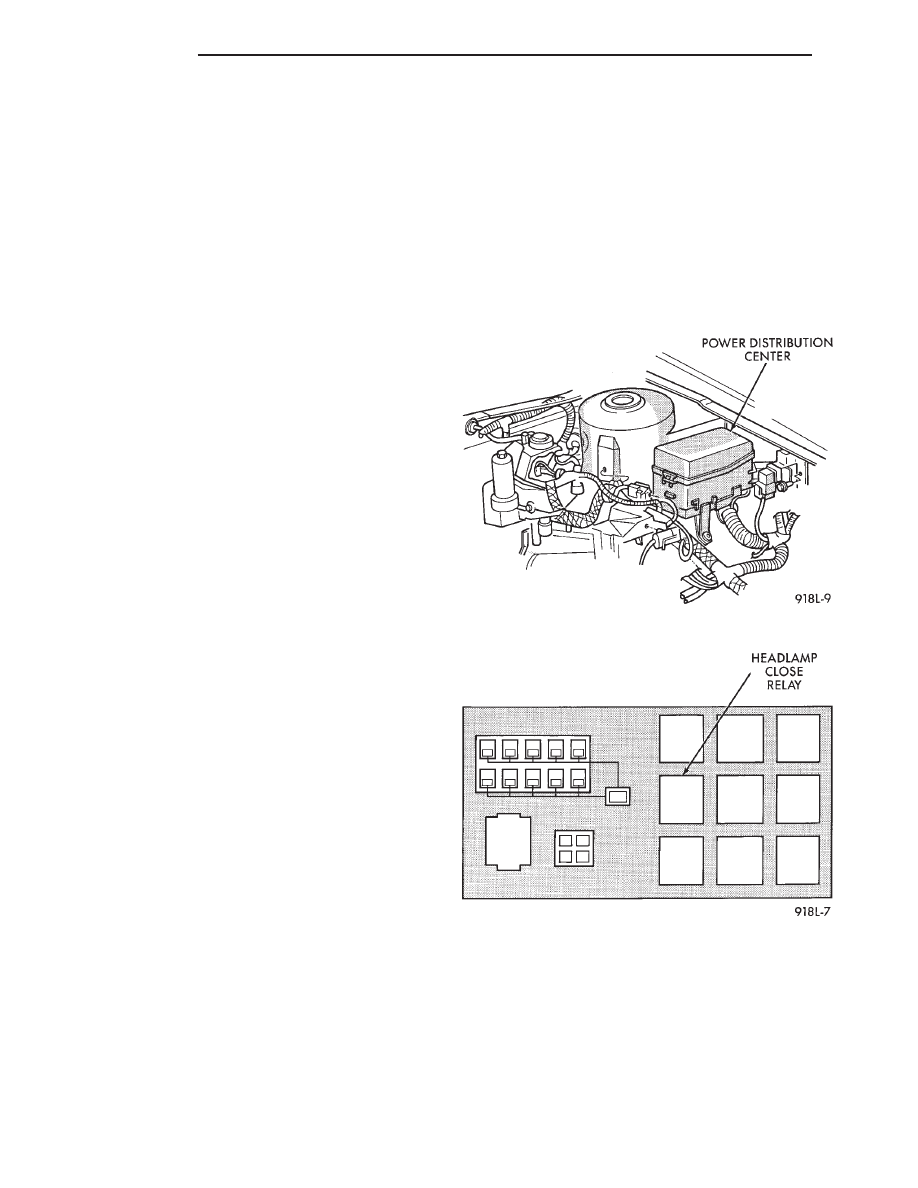

Fig. 1 Power Distribution Center

Fig. 2 Headlamp Close Relay

8L - 22

LAMPS

INSTALLATION

Reverse the preceding operation.

FRONT SIDE MARKER BULB—AY/C-P-BODY

REMOVAL

(1) Raise vehicle.
(2) Reach over the top of cornering lamp (Fig. 7)

and remove bulb/socket (Fig. 8).

INSTALLATION

Reverse the preceding operation.

FRONT SIDE MARKER LAMP—AY/C-P-BODY

REMOVAL (FIG. 7)

(1) Remove the cornering lamp retaining nuts, and

remove cornering lamp.

(2) Remove the four nuts retaining the bumper

trim moulding to the body.

(3) Remove bumper trim moulding.
(4) Remove side marker lamp.

INSTALLATION

Reverse the preceding operation.

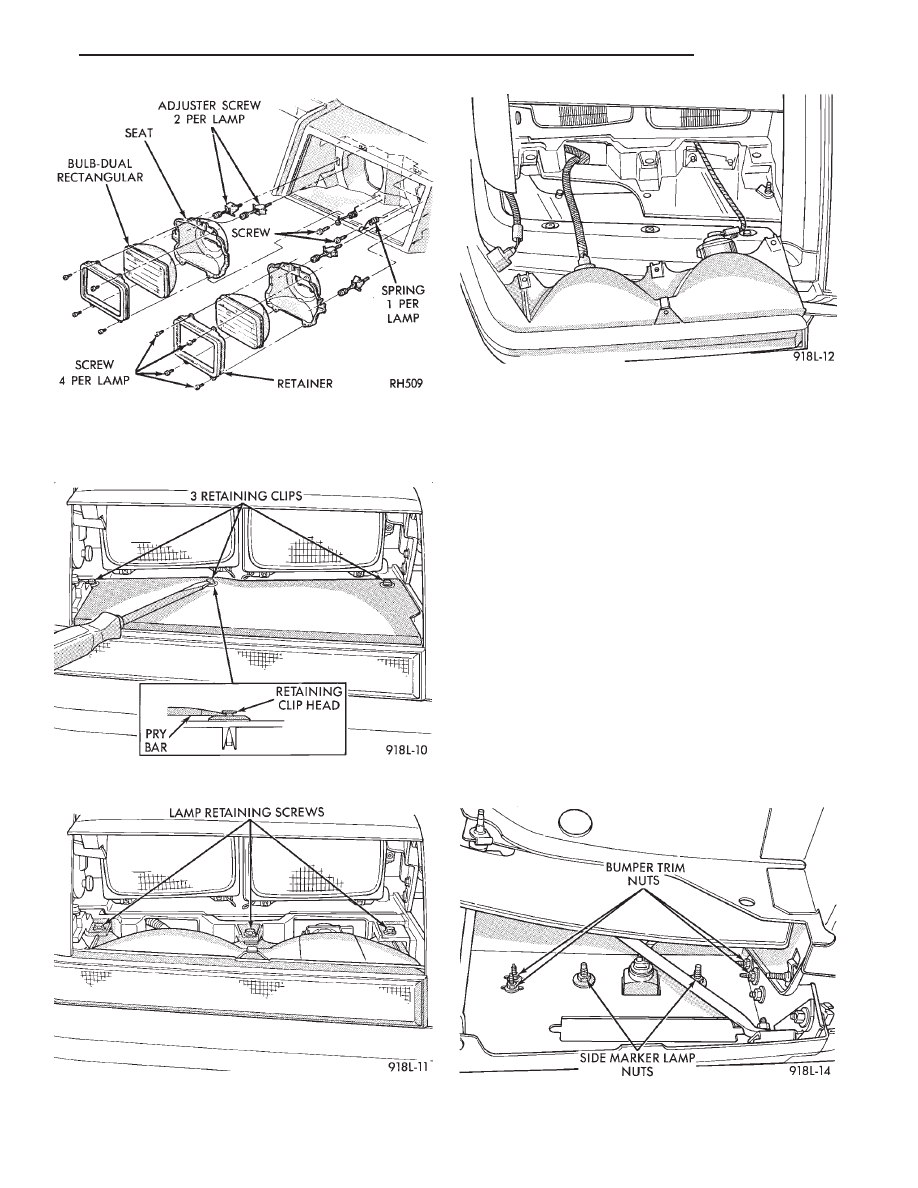

Fig. 3 Sealed Beam Replacement—Typical

Fig. 4 Turn Signal Lamp Shield

Fig. 5 Turn Signal Lamp Mounting Screws

Fig. 6 Turn Signal Lamp

Fig. 7 Bumper Trim Moulding Nuts—AY/C-P-Body

LAMPS

8L - 23

CORNERING LAMP OR BULB—AY/C-P-BODY

REMOVAL (FIG. 8)

(1) Raise vehicle.
(2) Remove bulb.
(3) To remove lamp assembly, remove the two re-

taining nuts.

INSTALLATION

Reverse the preceding operation.

TAIL, STOP, TURN SIGNAL, SIDE MARKER AND
BACK-UP LAMP OR BULB—AY/C-P-BODY

REMOVAL (FIG. 9)

(1) Open the trunk lid and remove the tail panel

trim cover attaching screws and position the trim
cover away from the tail panel.

(2) Disconnect rear end lamp wire connector and

push the harness grommet outward through the tail
panel.

(3) Remove rear lamp assembly attaching screws

and separate the lamp assembly from the body.

(4) Remove bulbs from lamp assembly.

INSTALLATION

Reverse the preceding operation.

LICENSE PLATE LAMP OR BULB—AY/C-P-BODY

REMOVAL

(1) Remove the two screws retaining the lamp to

the bumper guard.

(2) Remove the bulb from the socket assembly.

INSTALLATION

Reverse the preceding operation.

CENTER HIGH MOUNTED STOP LAMP BULB
(CHMSL)

REMOVAL AND INSTALLATION

(1) Open deck lid.
(2) From under the parcel shelf, rotate socket

counterclockwise, and pull the CHMSL socket and
bulb from the lamp.

(3) Pull bulb from the socket.

INSTALLATION

Reverse the preceding operation.

CENTER HIGH MOUNTED STOP LAMP

REMOVAL (FIG. 10)

(1) Remove parcel shelf trim cover. Refer to Group

23, Body.

(2) Remove two CHMSL attaching screws and sep-

arate the lamp from the parcel shelf.

INSTALLATION

Reverse the preceding operation.

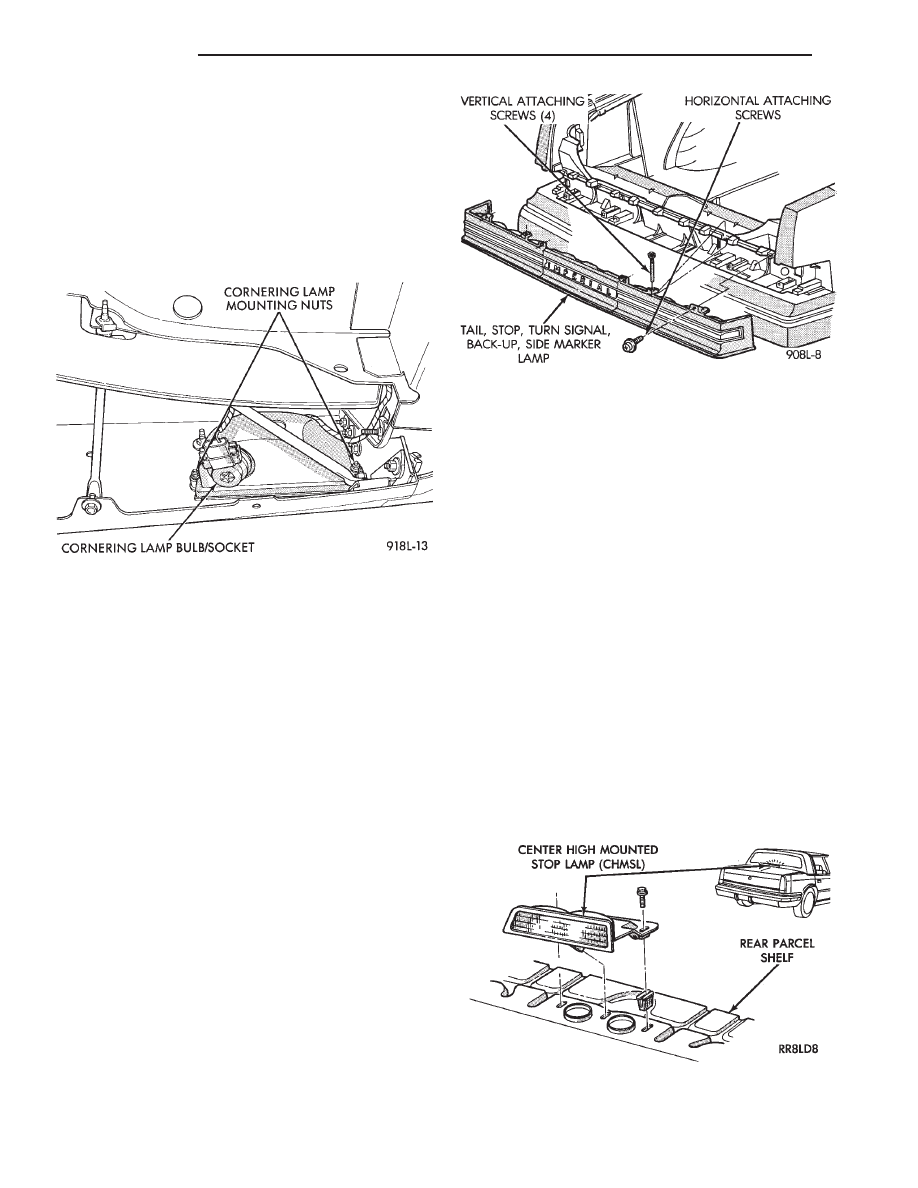

Fig. 8 Cornering Lamp—AY/C-P-Body

Fig. 9 Rear End Lighting—AY/C-P-Body

Fig. 10 Center High Mounted Stop Lamp—Typical

8L - 24

LAMPS
