(3) Connect electrical lead and rubber hose to pump.
(4) Position reservoir into place and install mount-
ing screws.
(5) Fill reservoir.
REAR WASHER RESERVOIR PUMP
REMOVAL
(1) Remove washer reservoir and pump assembly,
refer to Washer Reservoir Removal.
(2) With mechanical fingers, loosen pump filter
and nut through liquid filler opening.
(3) Disconnect the outside portion of the pump.
(4) Remove inner and outer portions of the pump,
and remove pump.
INSTALLATION
(1) Install rubber grommet into place in bottom of
reservoir.
(2) Position pump into place, install nut through
filler opening and tighten with mechanical fingers.
(3) Install reservoir and pump assembly, refer to
Reservoir Installation.
WASHER NOZZLE
FRONT WASHER NOZZLE
These models are equipped with the washer nozzles
attached to the wiper arms. Each arm emit five
streams across the wiper pattern. These washer sys-
tems requires no adjustment. If nozzle performance is
unsatisfactory, they should be replaced. The right
and left nozzles are identical.
REMOVAL
To remove unsnap nozzle from wiper arm and dis-
connect hose.
INSTALLATION
To install make sure that both the nozzle and the
hose guard are securely snapped into position.
REAR WASHER NOZZLE
REMOVAL

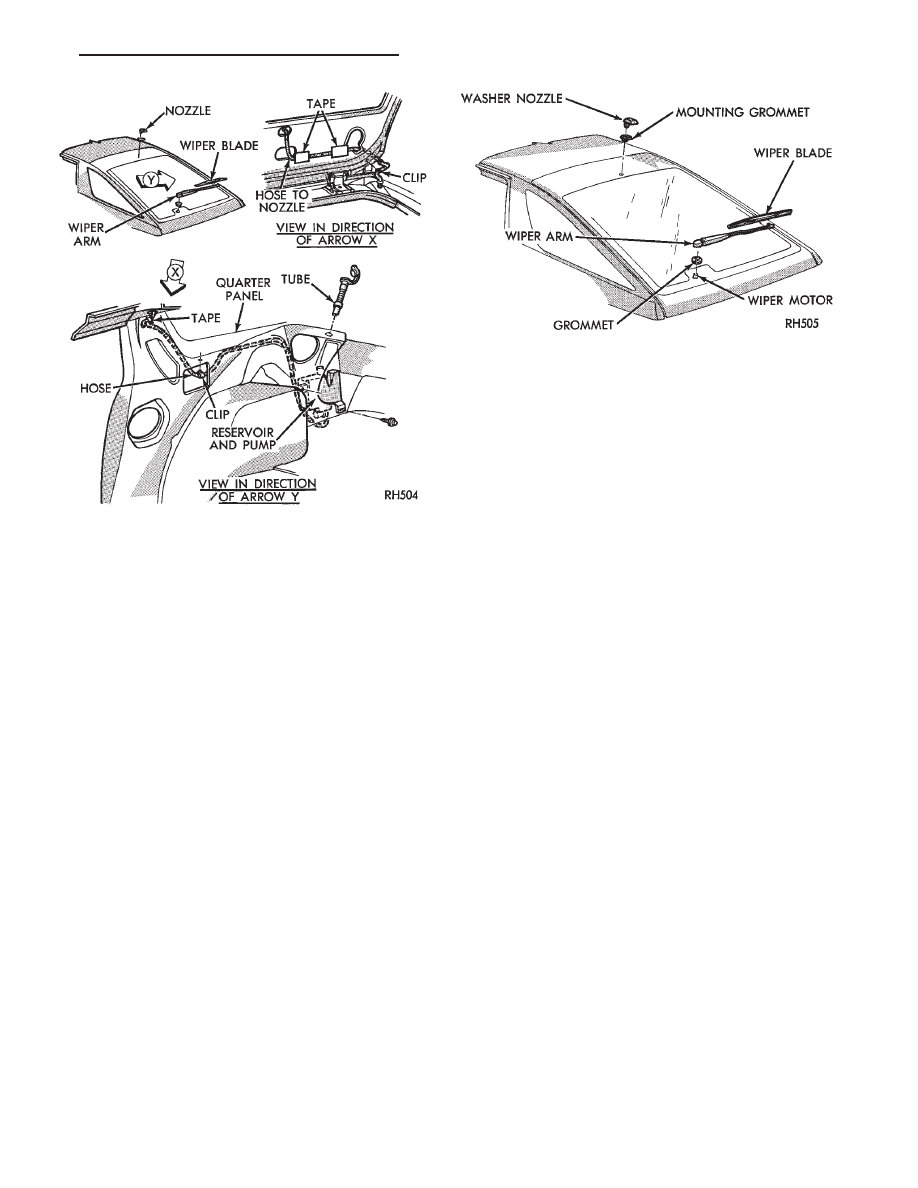

(1) Pull washer nozzle out of mounting grommet
(Fig. 35).
(2) Disconnect hose from nozzle.
INSTALLATION
(1) Connect the hose to the nozzle.
(2) Moisten the nozzle and hose.
(3) Insert nozzle into mounting grommet.
(4) Align nozzle.
(5) Open liftgate.
(6) Verify engagement of hose grommets to vehicle
body and liftgate.

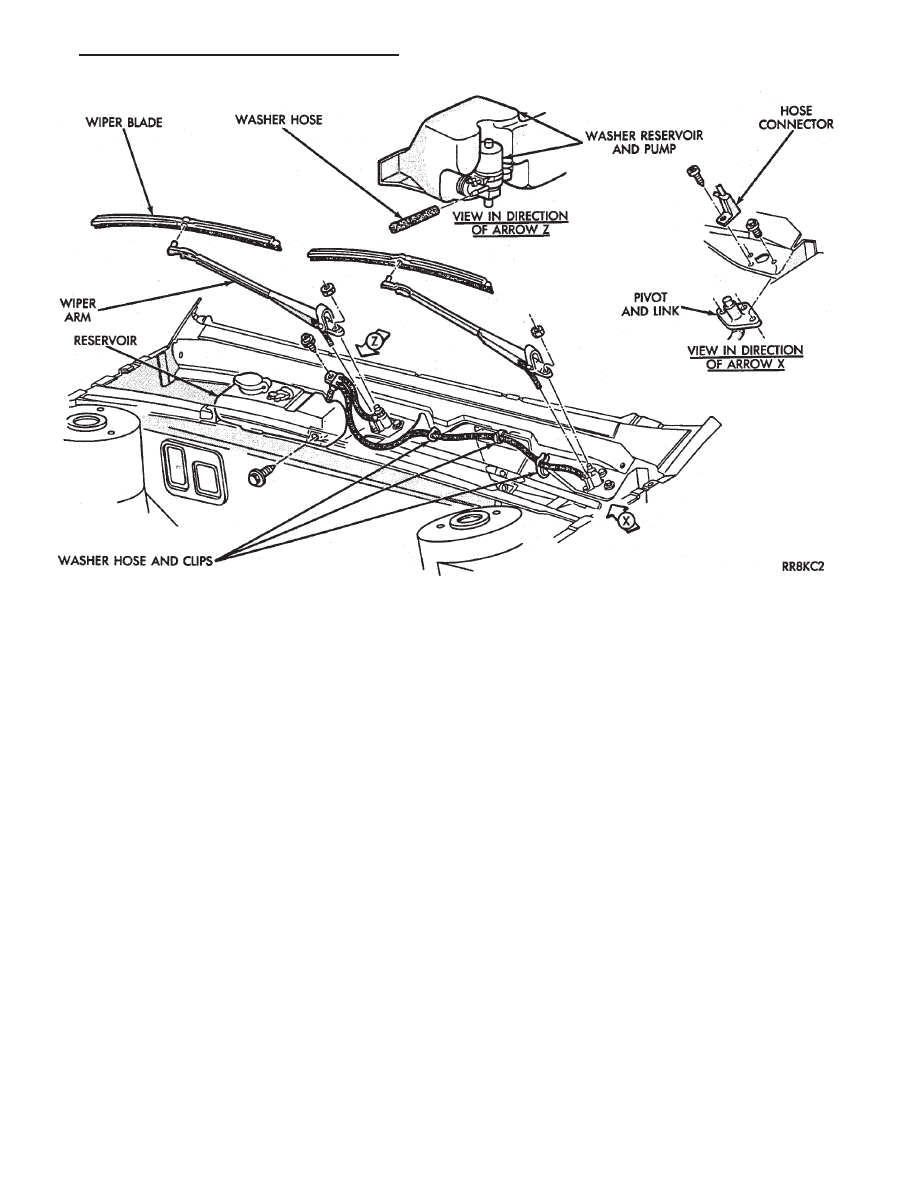

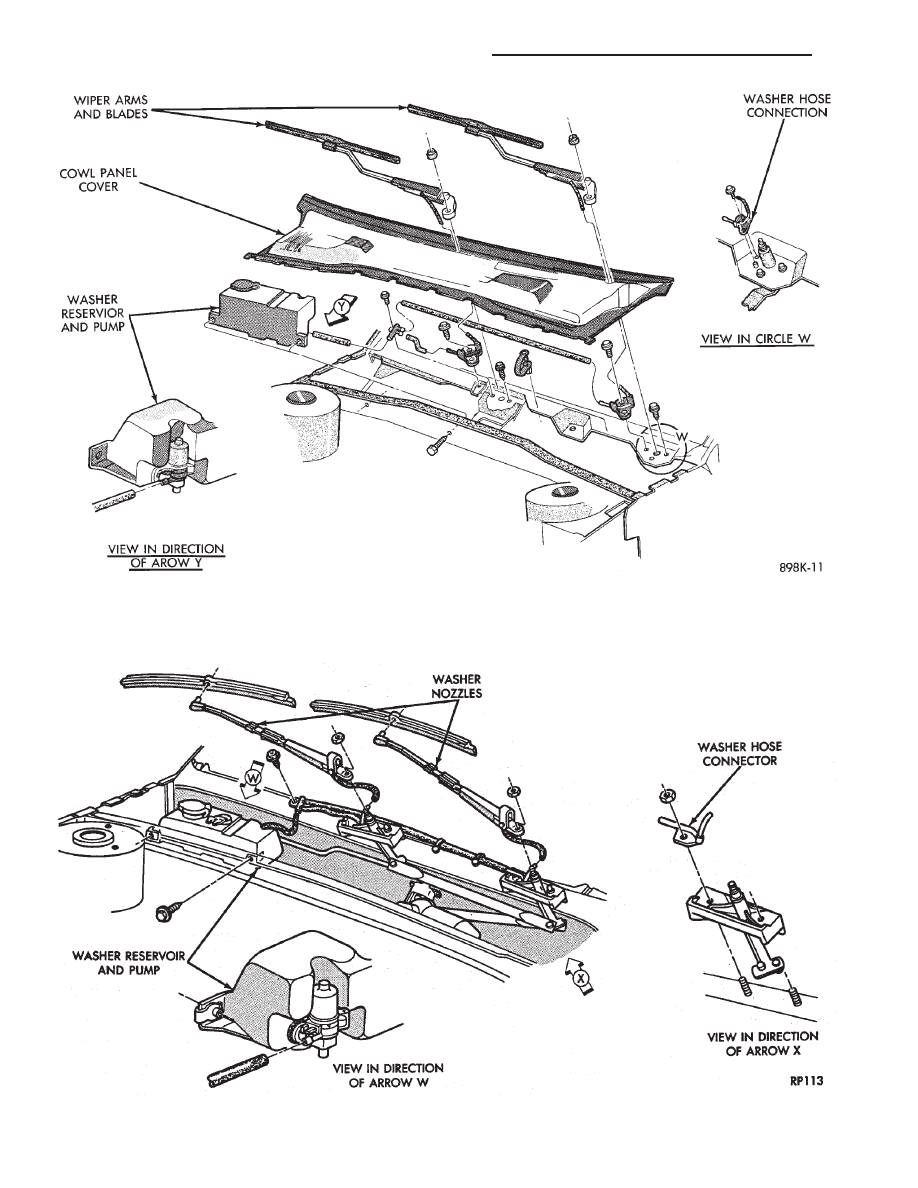

Fig. 31 Windshield Washer System—AC and AY Bodies
Ä
WINDSHIELD WIPER AND WASHER SYSTEMS
8K - 19
