INSTALLATION

(1) Connect the wheel speed sensor connector to

the wiring harness.

(2) Push sensor assembly grommet into hole in

fender shield. Install clip and screw.

(3) Install the 2 screws that fasten the speed sen-

sor routing tube to the frame rail.

(4) Install sensor grommets in brackets on fender

shield and strut damper.

(5) Coat the speed sensor with High Temperature

Multi-purpose E.P. Grease before installing into the
steering knuckle. Install screw tighten to 7 N

Im (60

in. lbs.)

CAUTION: Proper installation of wheel speed sen-
sor cables is critical to continued system operation.
Be sure that cables are installed in retainers. Fail-
ure to install cables in retainers, as shown in this
section, may result in contact with moving parts
and/or over extension of cables, resulting in an
open circuit.

REAR WHEEL SPEED SENSOR (FIGS. 13 AND
14)

REMOVAL

(1) Raise vehicle and remove wheel and tire as-

sembly.

(2) Remove sensor assembly grommet from under-

body and pull harness through hole in underbody.

(3) Unplug connector from harness.
(4) Remove

sensor

assembly

grommets

from

bracket which is screwed into the body hose bracket,
just forward of trailing arm bushing (batwing brack-
et.)

(5) Remove sensor and brake tube assembly clip,

located on the inboard side of trailing arm.

(6) Remove sensor wire fastener from rear brake

hose bracket.

(7) Remove outboard sensor assembly retainer nut.

This nut also is used to capture the brake tube clip.

(8) Remove sensor head screw.
(9) Carefully, remove sensor head from adapter as-

sembly. If the sensor has seized, due to corrosion, DO
NOT USE PLIERS ON SENSOR HEAD. Use a ham-
mer and a punch and tap edge of sensor ear, rocking
the sensor side to side until free.

INSTALLATION

Installation is reverse order of removal. Be sure to

coat sensor with High Temperature Multi-purpose
E.P. Grease before installing into adapter assembly.
Tighten screw to 7 N

Im (60 in. lbs.) torque.

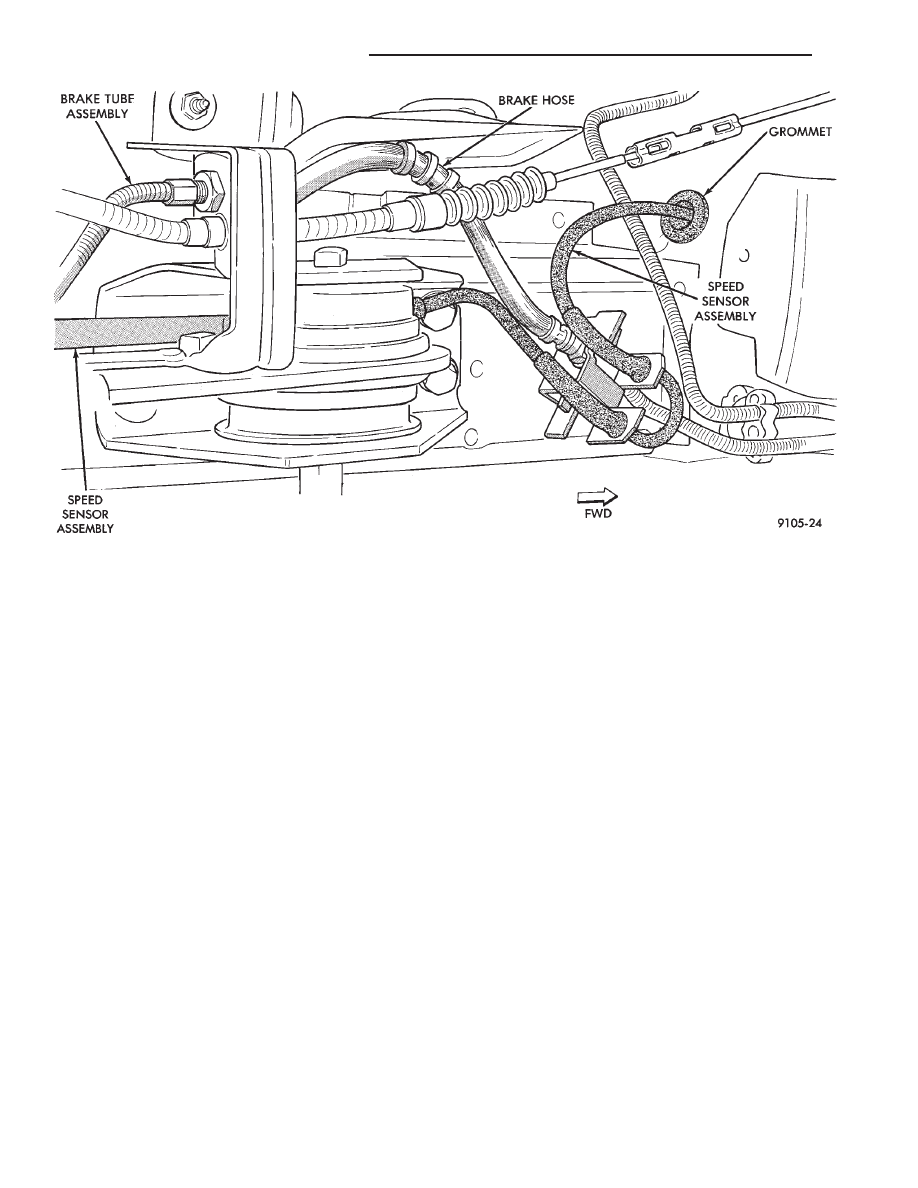

Fig. 13 Rear Wheel Speed Sensor Routing at Trailing Arm

Ä

ANTI-LOCK 6 BRAKE SYSTEM

5 - 133

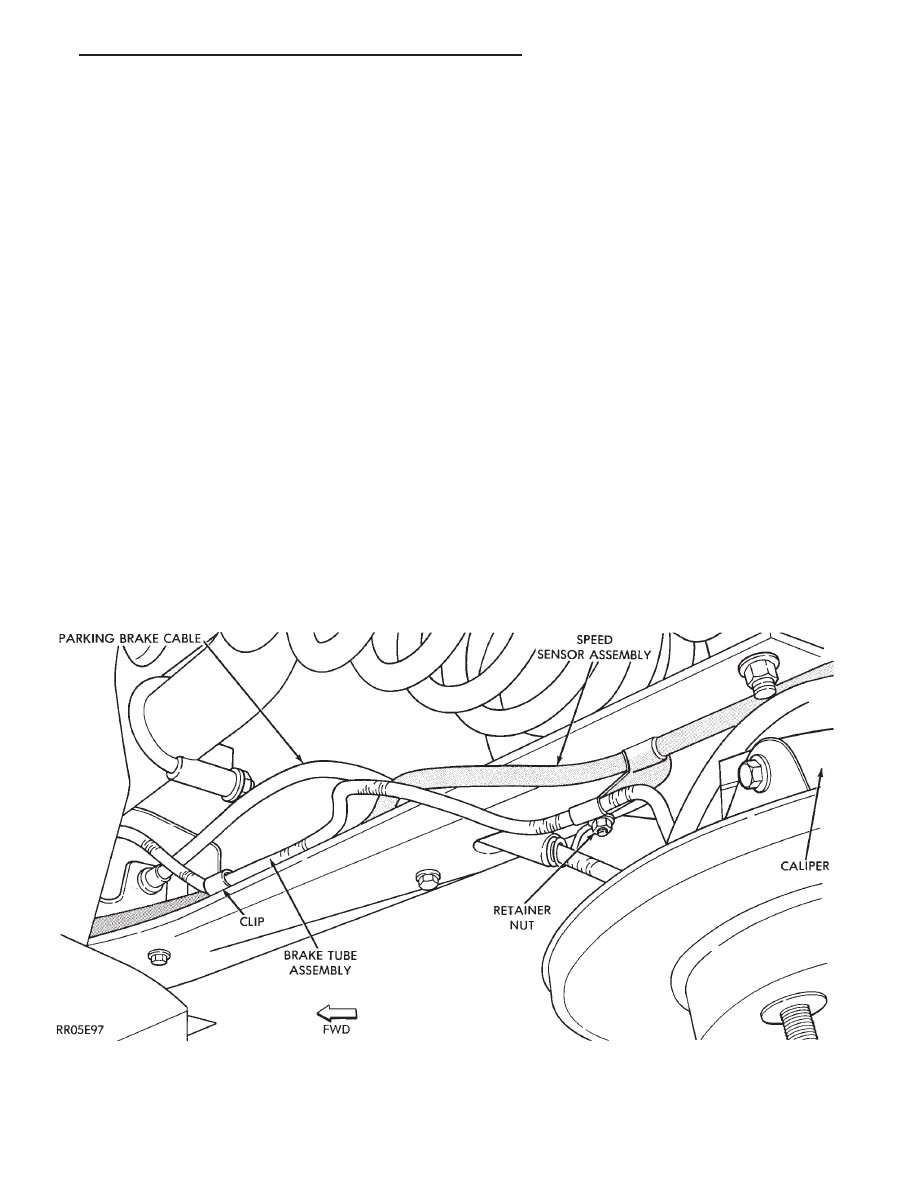

Fig. 14 Body Routing of Rear Speed Sensor Wiring

5 - 134

ANTI-LOCK 6 BRAKE SYSTEM

Ä

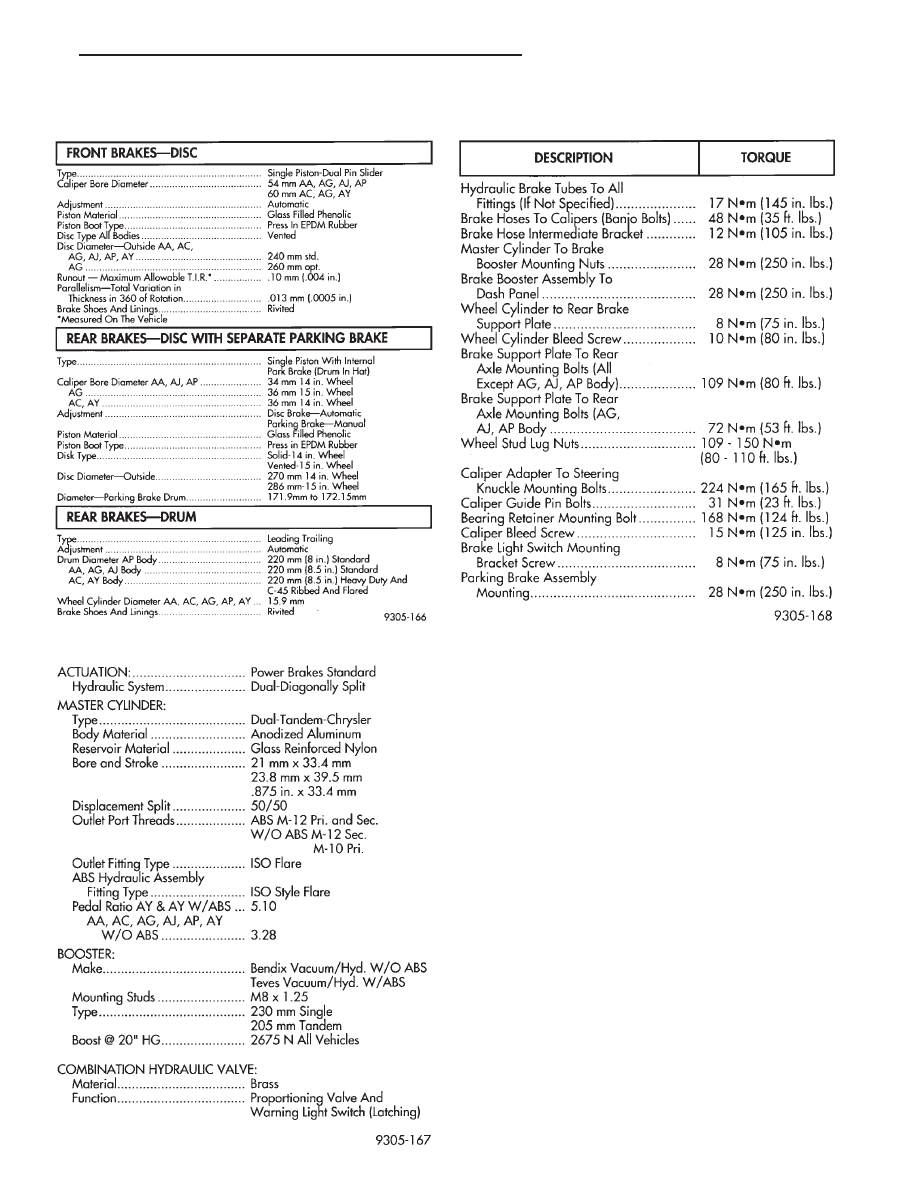

SPECIFICATIONS

SPECIFICATIONS METRIC

BRAKE ACTUATION SYSTEM

TIGHTENING REFERENCE

Ä

ANTI-LOCK 6 BRAKE SYSTEM

5 - 135
