EMISSION CONTROL SYSTEMS
CONTENTS
page
page
EVAPORATIVE EMISSION CONTROLS
. . . . . . . 1
EXHAUST EMISSION CONTROLS
. . . . . . . . . . 17
GENERAL INFORMATION
Throughout this group, references may be made to
a particular vehicle by letter designation. The Intro-
duction Section at the front of this manual contains a
chart showing the breakdown of the designations.
EVAPORATIVE EMISSION CONTROLS
INDEX
page
page
Canister Purge Solenoid—Except 3.0L and
2.5L MPI
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Crankcase Vent Filter
. . . . . . . . . . . . . . . . . . . . . 16
Duty Cycle EVAP Purge Solenoid
. . . . . . . . . . . . 13
Evaporation Control System
. . . . . . . . . . . . . . . . 13
PCV Valve Test
. . . . . . . . . . . . . . . . . . . . . . . . . 15
Positive Crankcase Ventilation (PCV) Systems
. . 15
Pressure-Vacuum Filler Cap
. . . . . . . . . . . . . . . . 14
Vacuum Schematics
. . . . . . . . . . . . . . . . . . . . . . . 2
Vehicle Emission Control Information Label
. . . . . . 1
VEHICLE EMISSION CONTROL INFORMATION
LABEL
All models have a Vehicle Control Information
(VECI) Label. Chrysler permanently attaches the la-

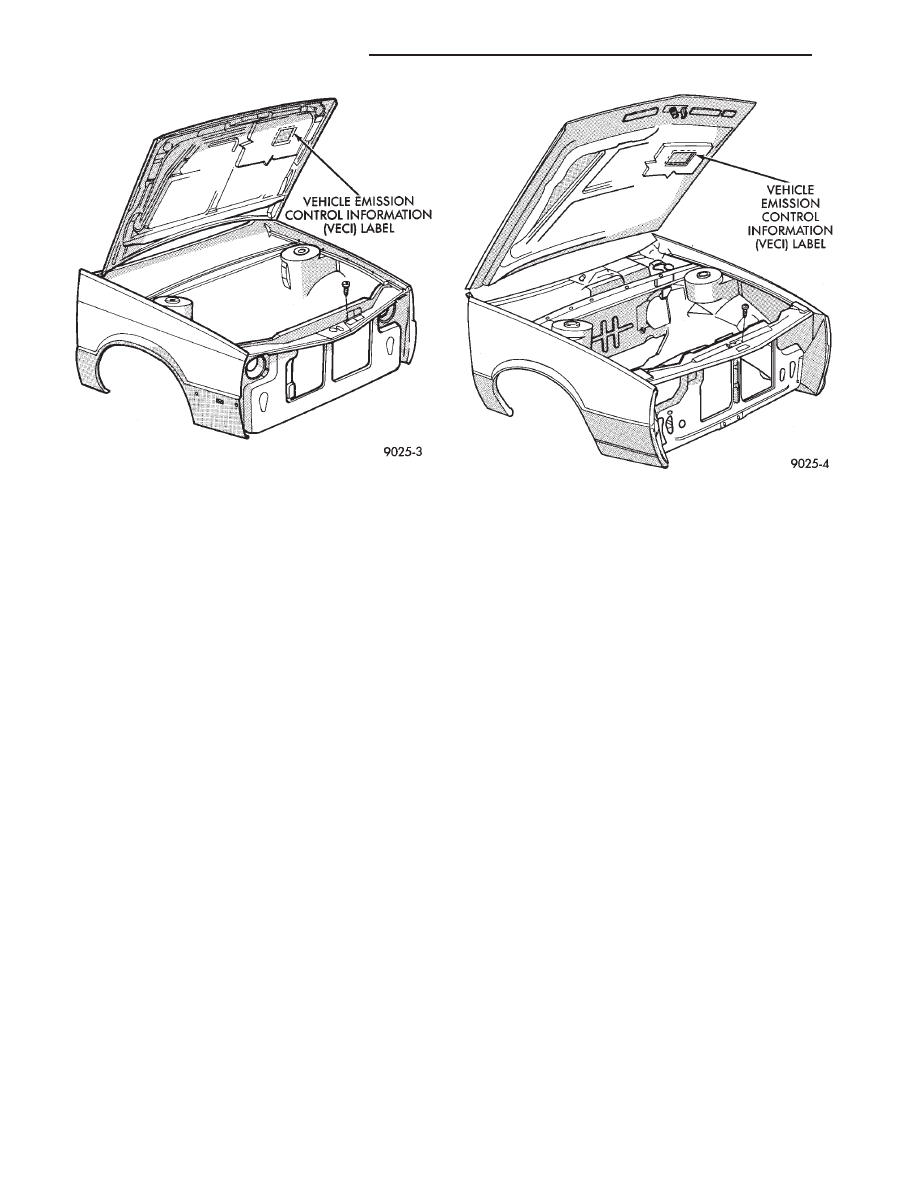

bel to the middle of the hood (Fig. 1, 2, or 3). It can-
not be removed without defacing information and
destroying the label.

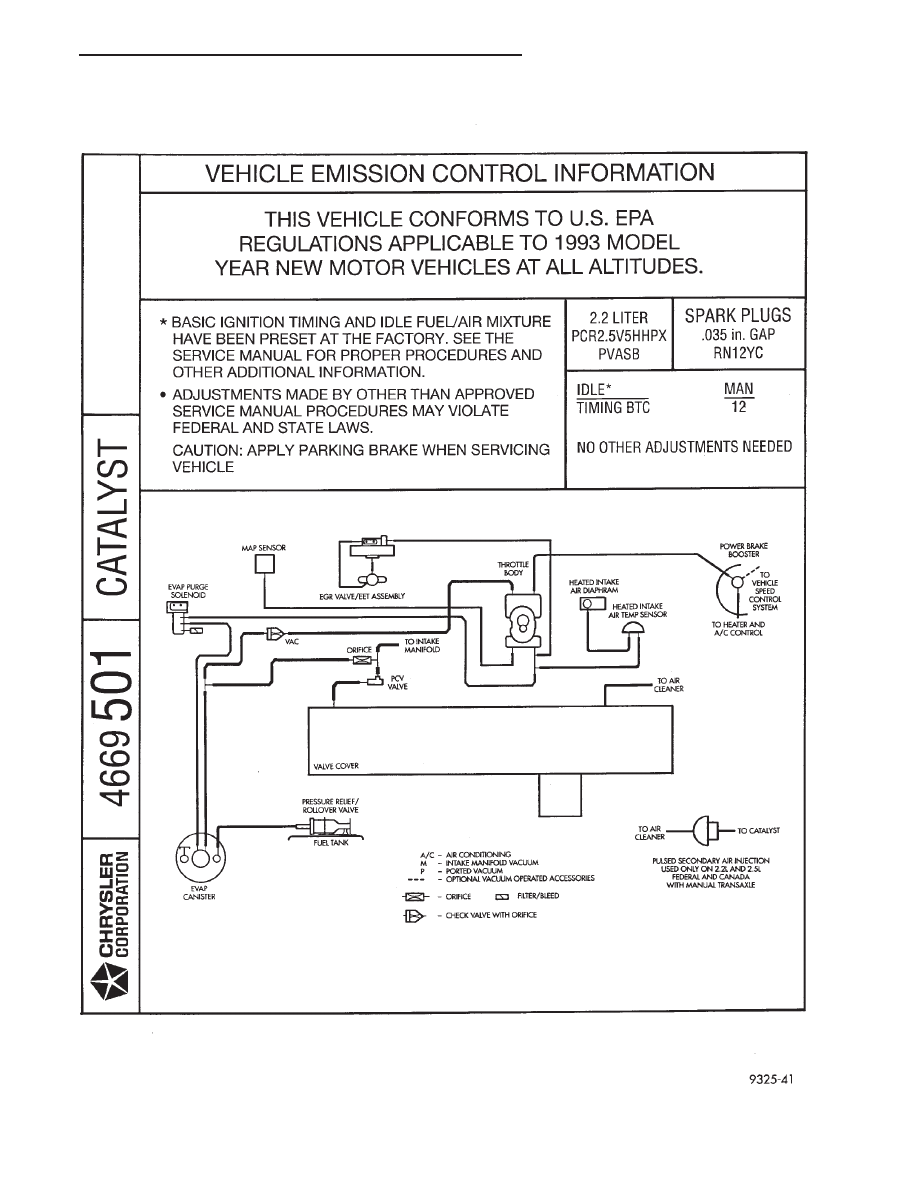

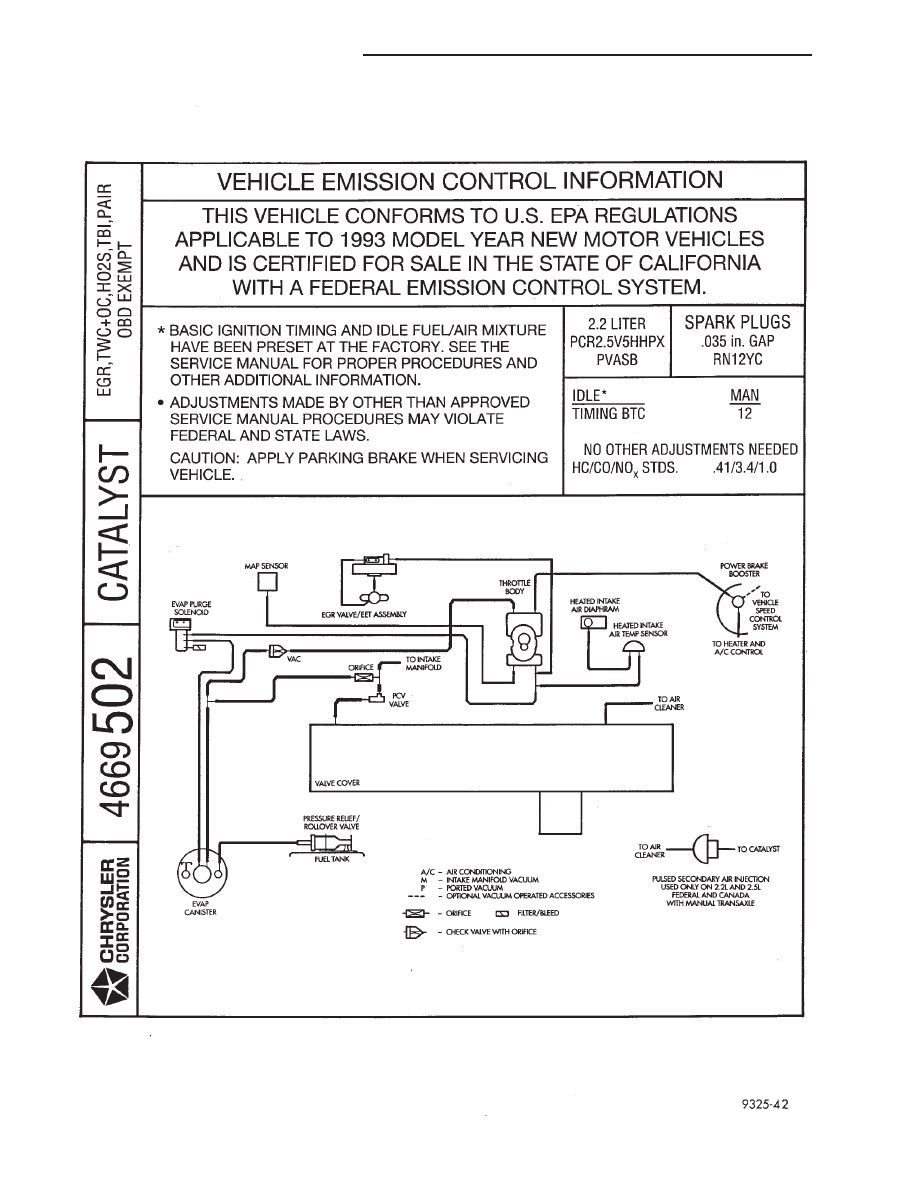

The label contains the vehicle’s emission specifica-
tions and vacuum hose routings. Route all hoses ac-
cording to the diagram on the VECI label.
If any difference exists between the label and the
Service Manual, refer to the label. The labels
shown are examples.

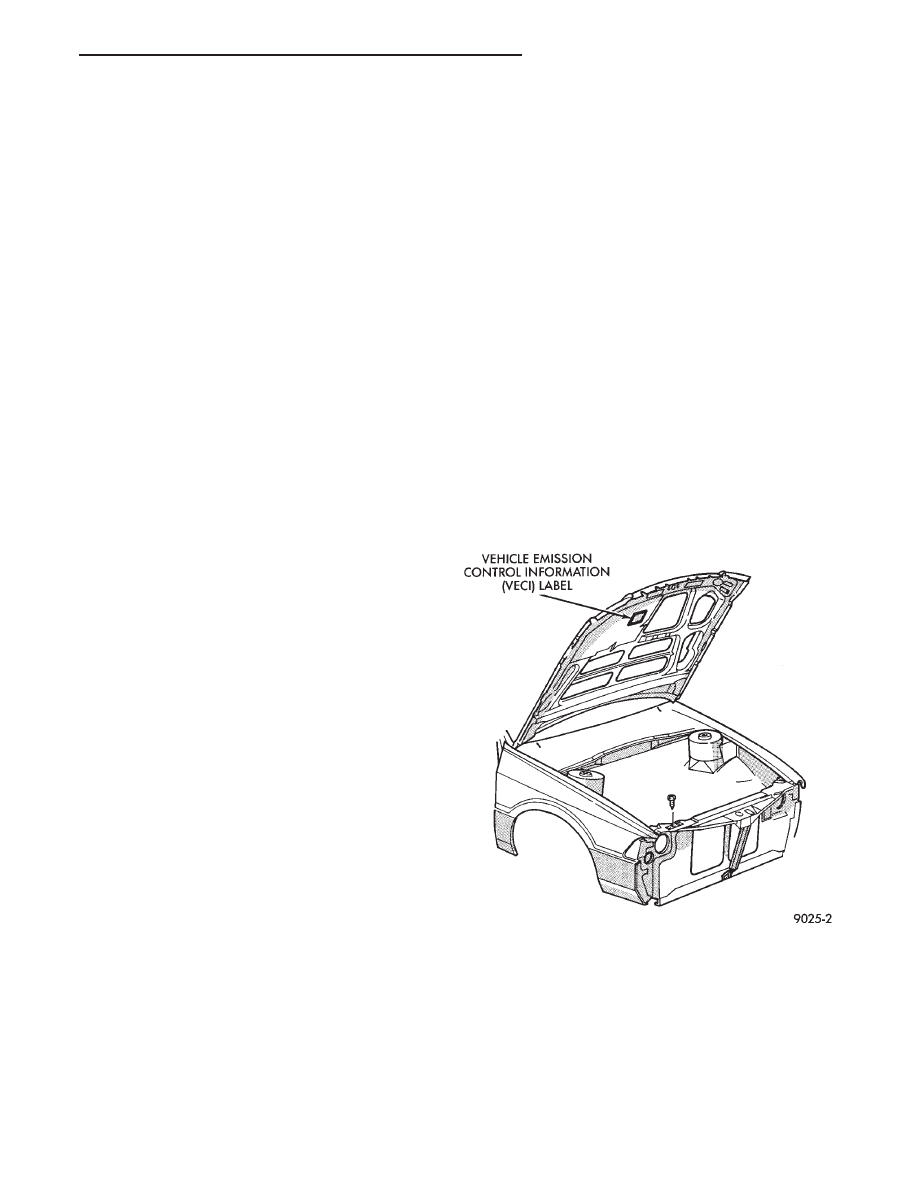

Fig. 1 Underhood Label Location—AA Body
Ä
EMISSION CONTROL SYSTEMS
25 - 1
