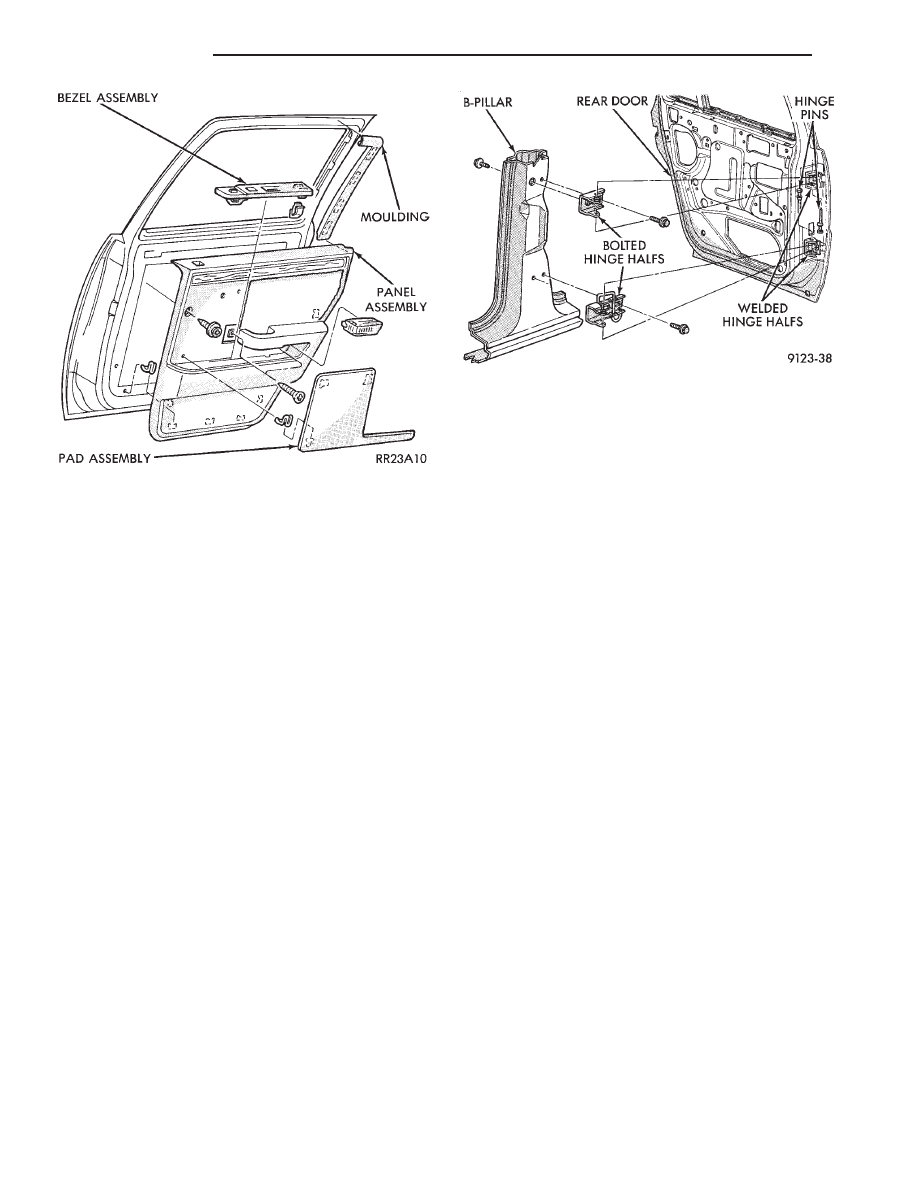

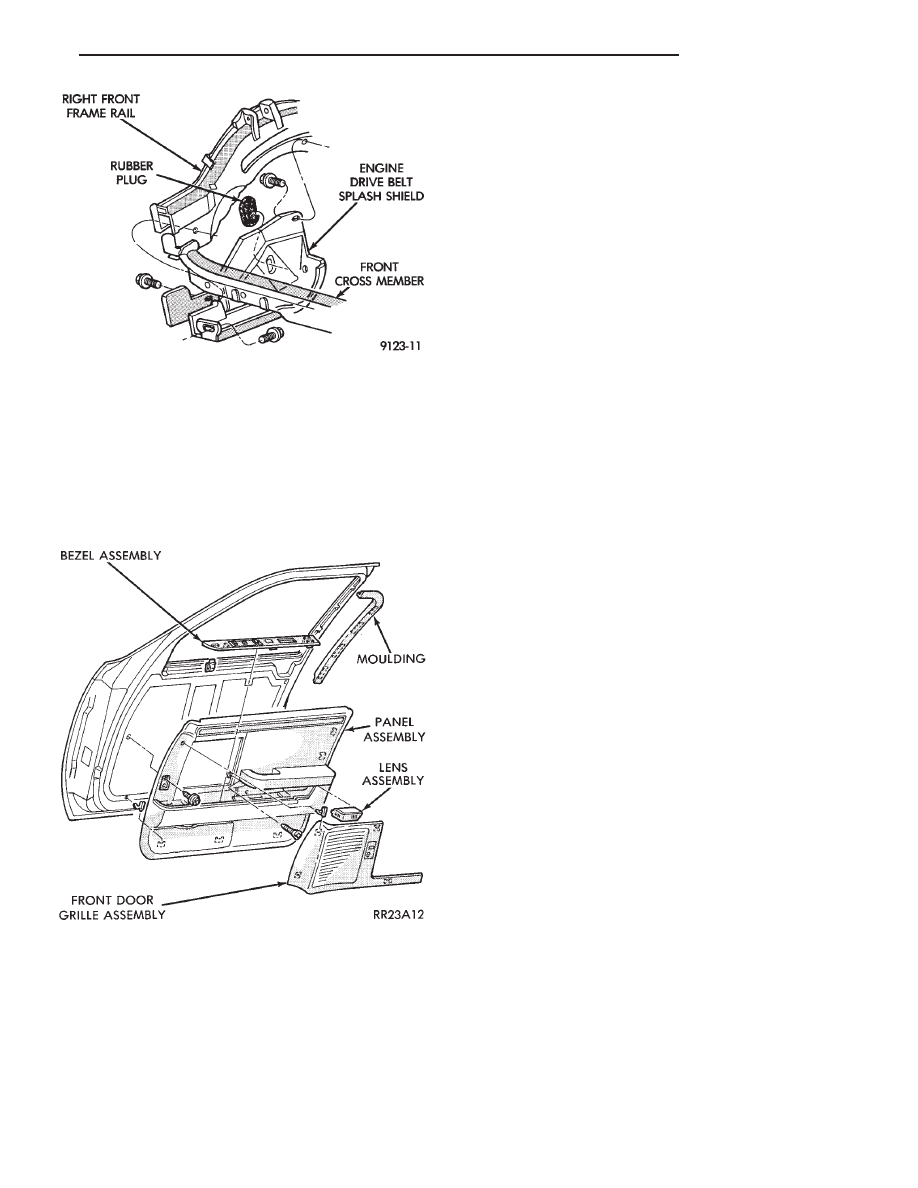

(5) Disengage trim clips holding switch bezel to trim panel and disconnect switch wire connectors. (6) Disengage frog-leg fasteners from around trim panel and lift trim panel from door. Disconnect cour- TRIM PANEL INSTALLATION Reverse the preceding operation. SIDE VIEW MIRROR TRIM COVER REMOVAL (1) Remove front door trim panel. door frame. INSTALLATION Reverse the preceding operation. DOOR FRAME TRIM MOULDING REMOVAL (FIG. 11) (1) Remove front door trim panel. dow opening frame and separate moulding from door. INSTALLATION Reverse the preceding operation. FRONT DOOR WATER SHIELD REMOVAL (1) Remove front door trim panel. eter of door inner panel. INSTALLATION Reverse the preceding operation. FRONT DOOR AND HINGE The front door hinge is welded to the door and bolted to the hinge pillar. The door half of the hinge FRONT DOOR REMOVAL (FIG. 12) (1) Remove door trim panel, silencer pad, and wa- ter shield. (2) Disconnect all wire connectors and wire har- ness hold downs inside door and push wire harness (3) Open door and support door on a suitable lift- ing device. (4) Drive bottom hinge pin upward and remove pin from hinge. (5) Drive top hinge pin downward and remove pin from hinge. FRONT DOOR INSTALLATION Reverse the preceding operation. The door should not require re-alignment. If door does need align- FRONT DOOR HINGE REMOVAL (FIG. 12) (1) Remove front fender wheelhouse splash shield. Refer to Front Wheelhouse Splash Shield Removal (2) Support door on a suitable lifting device. Fig. 10 Engine Drive Belt Splash Shield—Typical Fig. 11 Front Door Trim Panel Ä AC-BODY 23 - 41 |
