Chrysler Le Baron, Dodge Dynasty, Plymouth Acclaim. Manual - part 98





REAR (STUB) AXLE ALIGNMENT ALL MODELS

INDEX

page

page

General Information

. . . . . . . . . . . . . . . . . . . . . . . 89

Rear Wheel Alignment

. . . . . . . . . . . . . . . . . . . . . 89

GENERAL INFORMATION

Because front wheel drive vehicles are equipped with

rear suspension incorporating stub axles (or wheel
spindles). It is possible to align both the camber and toe
of the rear wheels.

REAR WHEEL ALIGNMENT

Alignment adjustment if required. Is made by adding

0.010 inch shims (from the service package kit) be-
tween the spindle mounting surface and axle mounting
plate. Each shim equals wheel change by .3° as shown
(for all car lines) in (Figs. 3 to 6).

If rear wheel alignment is required, place vehicle on

alignment rack and check alignment specifications.
When recording rear toe-in (vehicle backed onto
alignment rack) REMEMBER to reverse sign
convention; a total toe-in on direct reading
charts is actually toe-out while driving.
Maintain
rear alignment within Chrysler Motors recommenda-
tions, found in Specifications.

INSTALLATION OF REAR ALIGNMENT SHIMS

(1) Block front tires so vehicle will not move.
(2) Release parking brake.
(3) Hoist vehicle so that rear suspension is in full

rebound and tires are off the ground. See Hoisting in
Lubrication and Maintenance, Group 0.

(4) Remove wheel and tire assembly.
(5) Pry off grease cap.
(6) Remove cotter pin and castle lock.
(7) Remove adjusting nut.
(8) Remove brake drum (Fig. 1).

(9) Loosen four (4) brake assembly and spindle

mounting bolts enough to allow clearance for shim
installation (Fig. 2). Do not remove mounting
bolts.

(10) Install shims as shown in Figs. 3, 4, 5 and 6

for desired wheel change. No more than two shims
on each spindle should be used to bring alignment
within acceptable range.

Wheel change by .3° per shim.
(11) Tighten down the 4 brake support plate and

spindle to axle mounting bolts until they are snug.
Then tighten the 4 bolts to the torque values listed
for the vehicle line which is being serviced.
• AA, AG, AJ, AP Bodies 75 NIm (55 ft. lbs.)

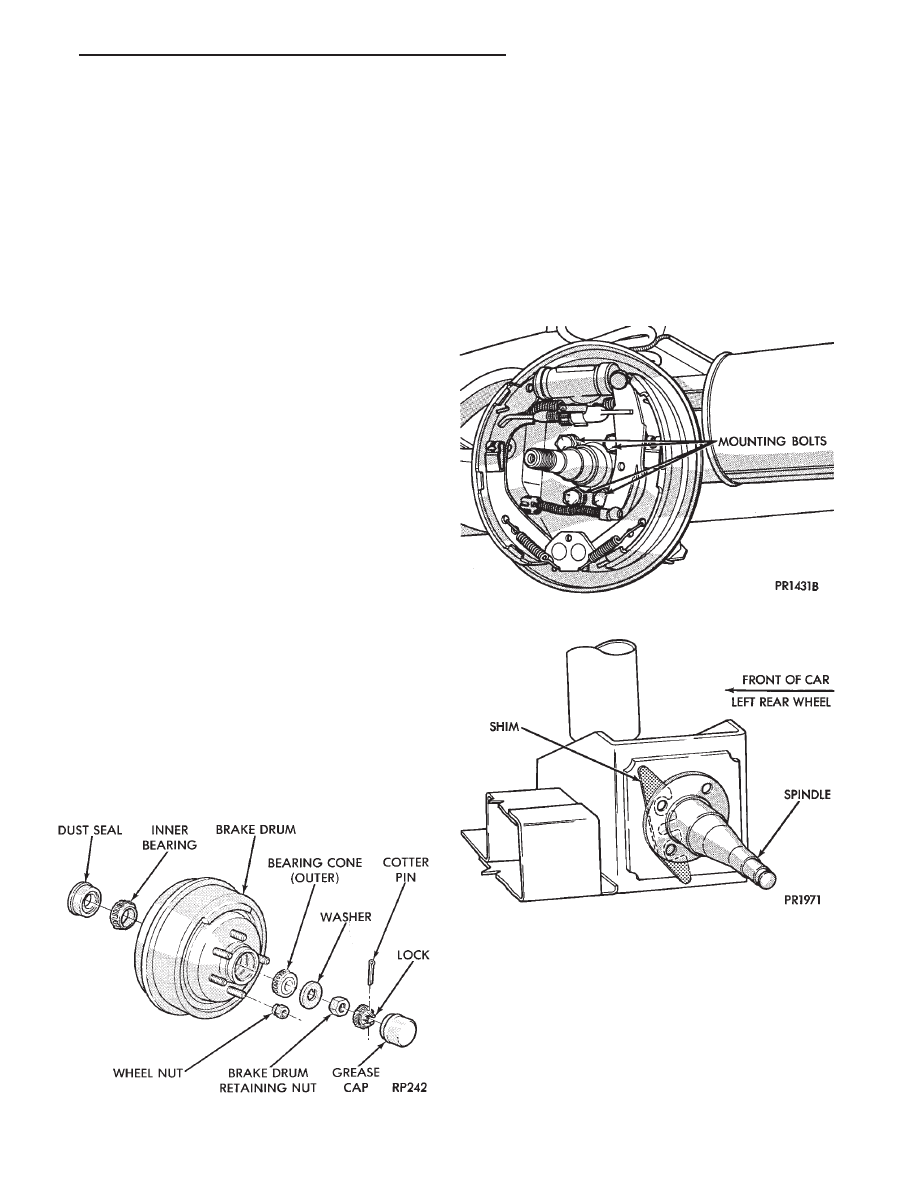

Fig. 2 Loosen Mounting Bolts

Fig. 3 Shim Installation for Toe-Out

Fig. 1 Remove Brake Drum

Ä

SUSPENSION AND DRIVESHAFTS

2 - 89

• AC, AY Bodies 108 NIm (80 ft. lbs.)

(12) Install brake drum (Fig. 1).
(13) Install washer and nut. Tighten adjusting nut

to 27-34 N

Im (240-300 in. lbs.) torque while rotating

wheel. Back off adjusting nut with wrench to com-
pletely release bearing preload. Finger tighten ad-
justing nut.

(14) Position nut lock with one pair of slots in-line

with cotter pin hole. Install cotter pin. The end play
should be 0.025-0.076 mm (0.001-0.003 inch). Clean
and install grease cap.

(15) Install wheel and tire assembly. Tighten

wheel nut to 129 N

Im (95 ft. lbs.) torque.

(16) Lower vehicle.
(17) Check alignment specifications.

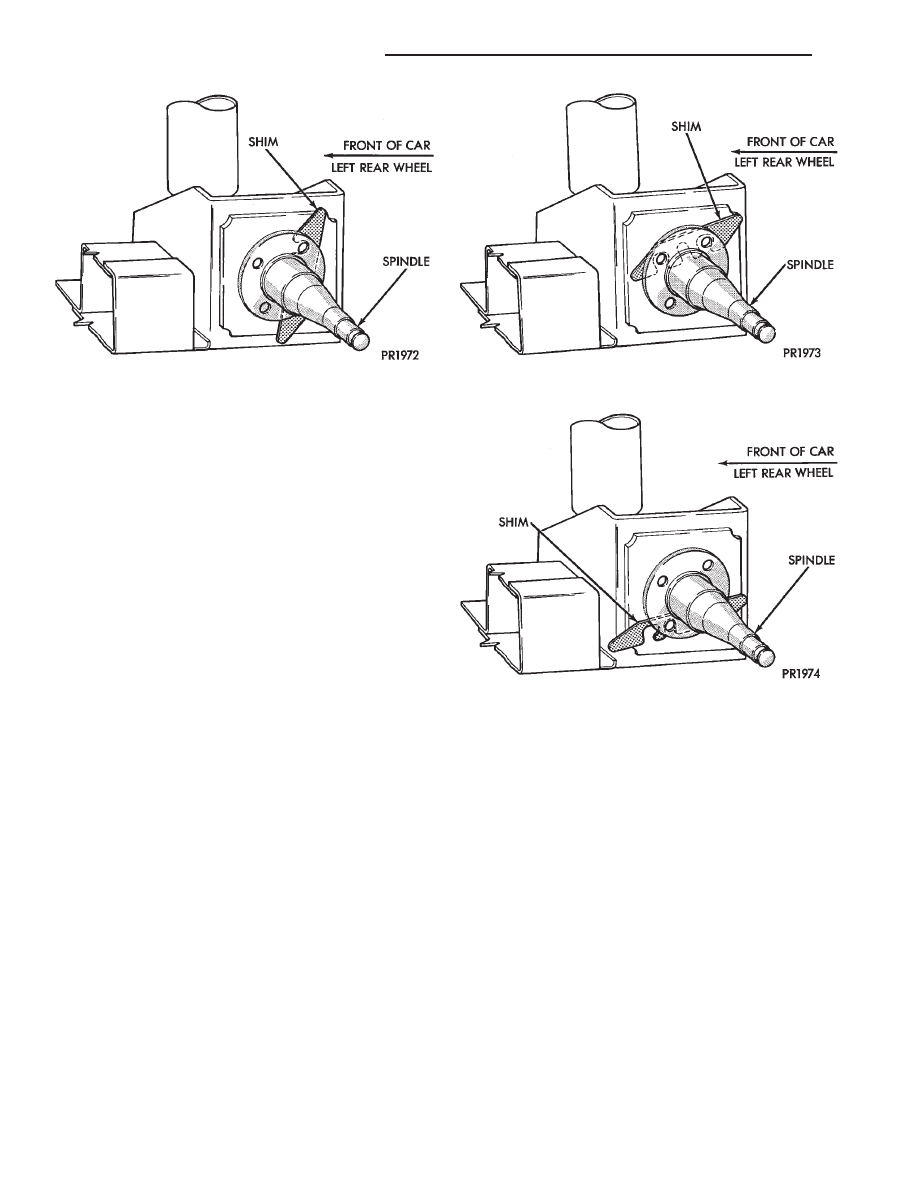

Fig. 4 Shim Installation for Toe-In

Fig. 5 Shim Installation for Positive Camber

Fig. 6 Shim Installation for Negative Camber

2 - 90

SUSPENSION AND DRIVESHAFTS

Ä

SPECIFICATIONS

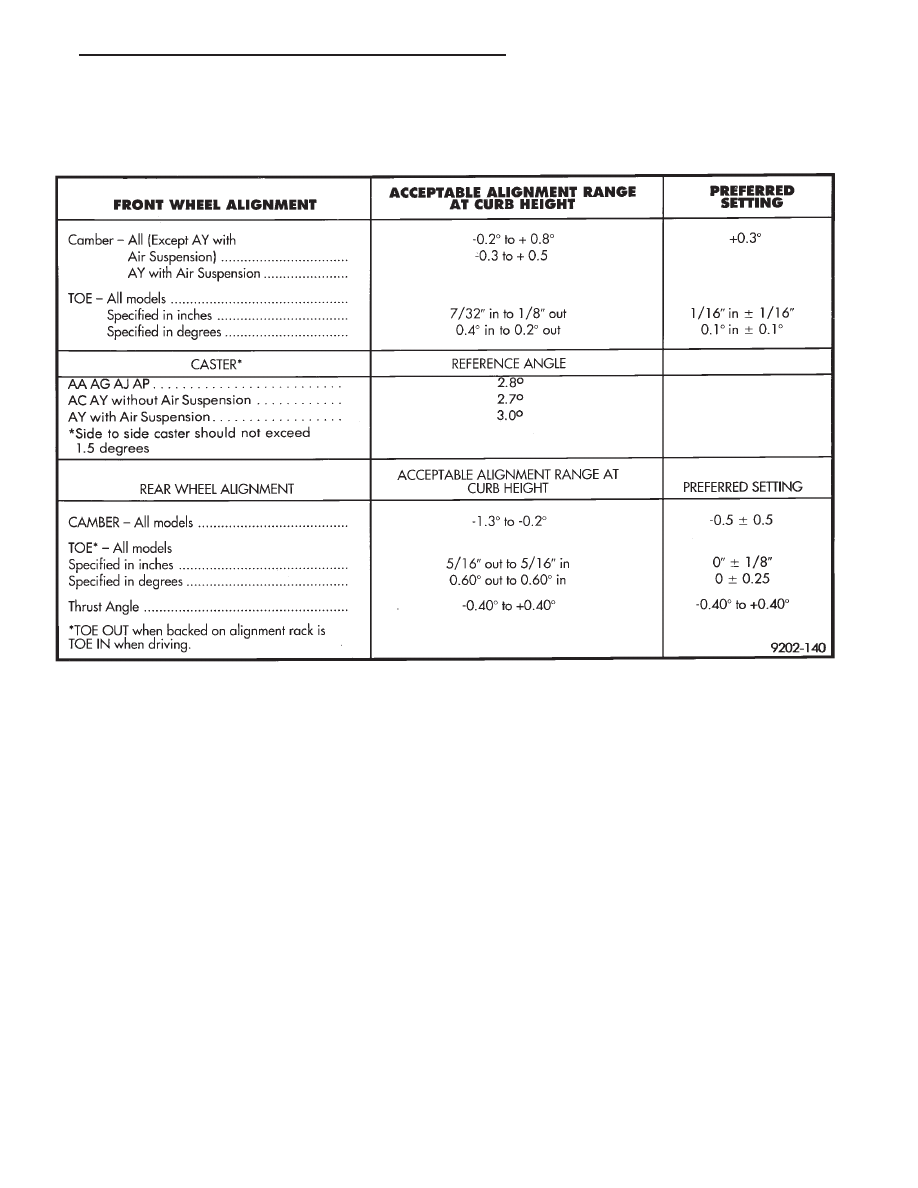

ALIGNMENT SPECIFICATIONS AT CURB HEIGHT

Ä

SUSPENSION AND DRIVESHAFTS

2 - 91

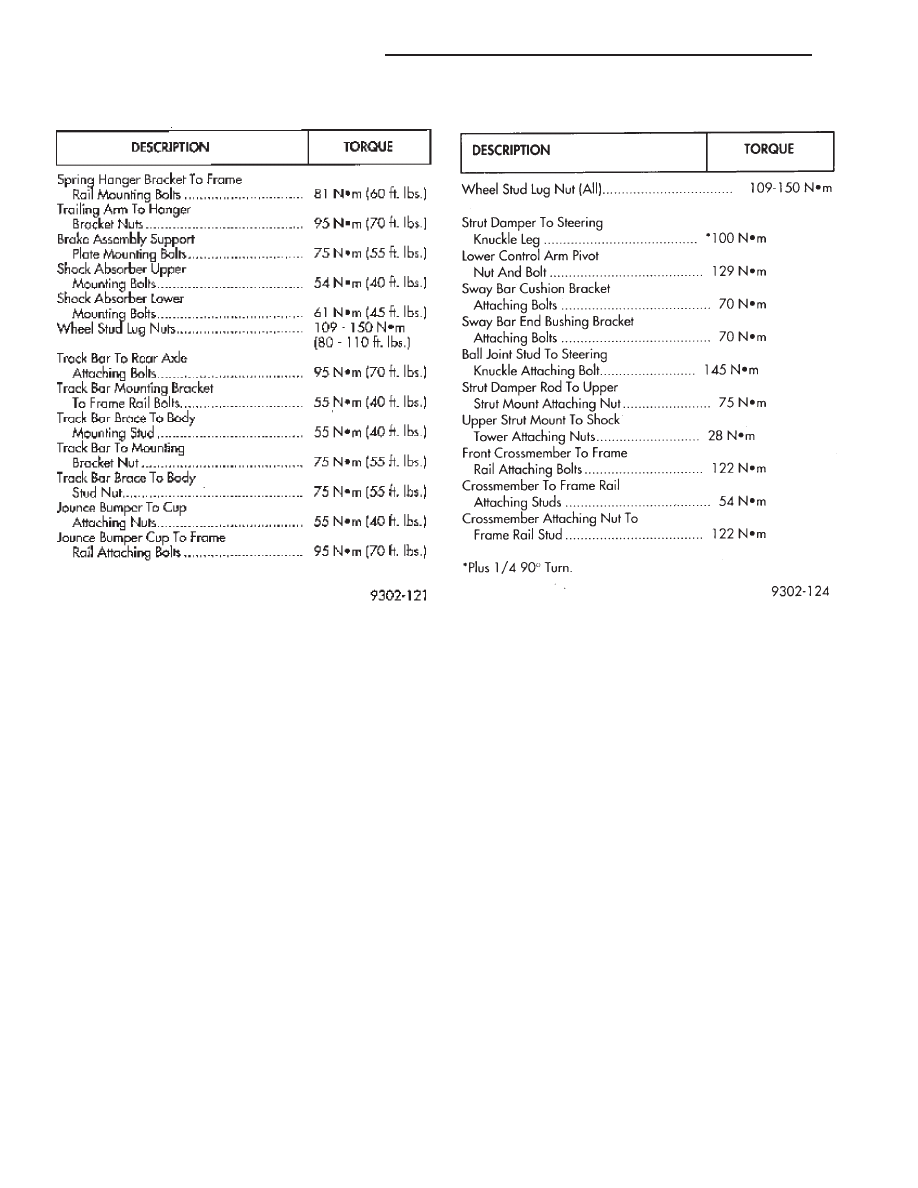

REAR SUSPENSION TORQUE

SPECIFICATIONS

FRONT SUSPENSION TORQUE

SPECIFICATIONS

2 - 92

SUSPENSION AND DRIVESHAFTS

Ä
