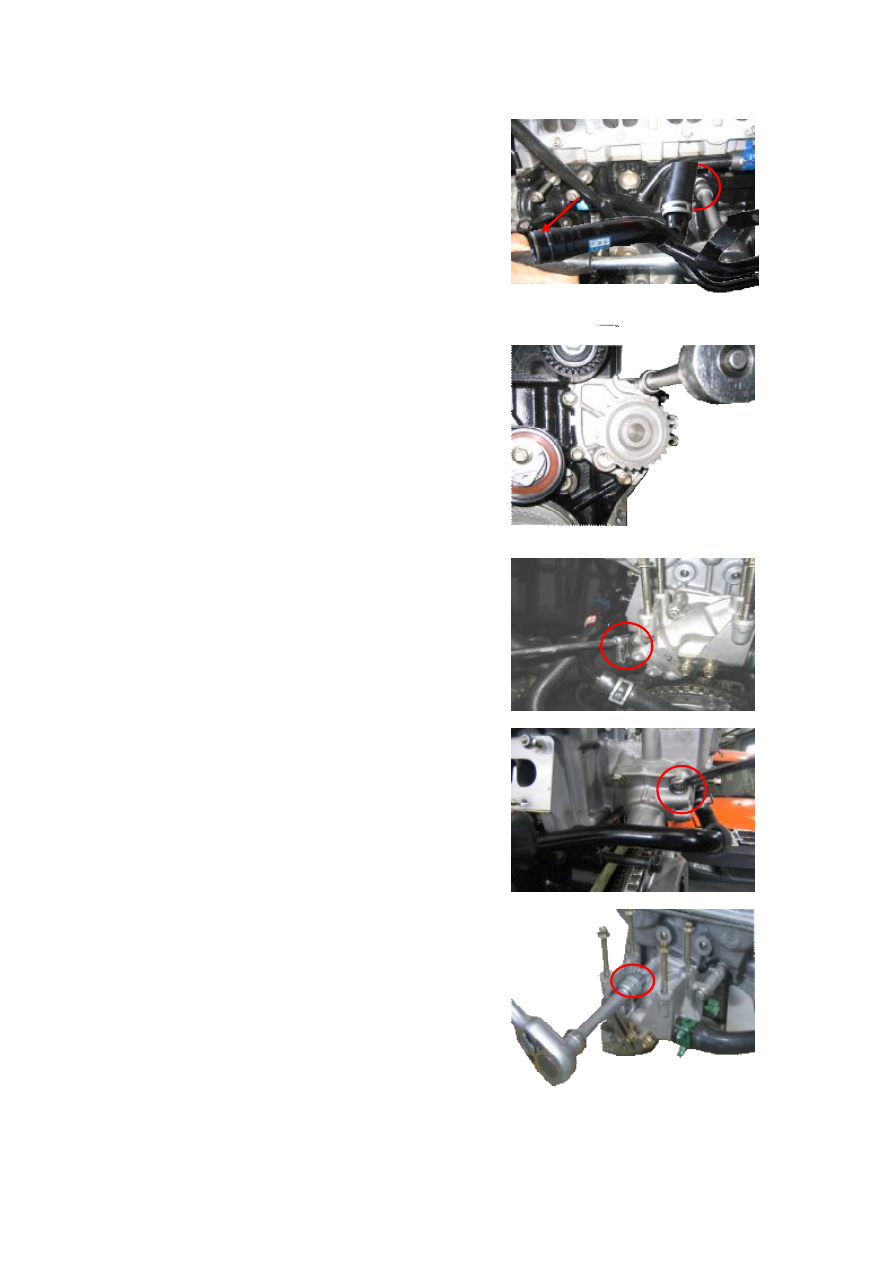

5.3  Use  a  10mm  sleeve  to  remove  the  fixing  bolt  of

discharging  tube  of  water  pump  and  then  pull  out  the

discharging tube.

Note:  in  case  the  O-ring  on  discharging  tube  of  water

pump is loose, broken or aging, be sure to replace.













5.4  Use  a  10mm  sleeve  to  remove  the  fixing  bolt  of

water pump and then take out the water pump assembly;

when removing, be careful not to damage cushion of the

water  pump,  if  damaged,  replace  with  a  new  one.  The

water pump can not be decomposed to maintain.

5.5 Check water seal of the water pump for water leak; if

water  pump  bearing  is  loose,  replace  the  assembly.

Follow  the  order  adverse  to  that  for  disassembly  of  the

water pump to install it.



5.6 Disassembly and installation of thermostat

5.7  Use  a  caliper  to  take  off  the  clamps  on  the  two

discharging tubes and then pull out the rubber hoses.





5.8  Use  a  10mm  sleeve  to  remove  the  fixing  bolt  of

thermostat cover and then take out the thermostat.





5.9 Use a 10mm socket wrench to remove the thermostat

seat. Be careful not to damage the thin sheet gasket.

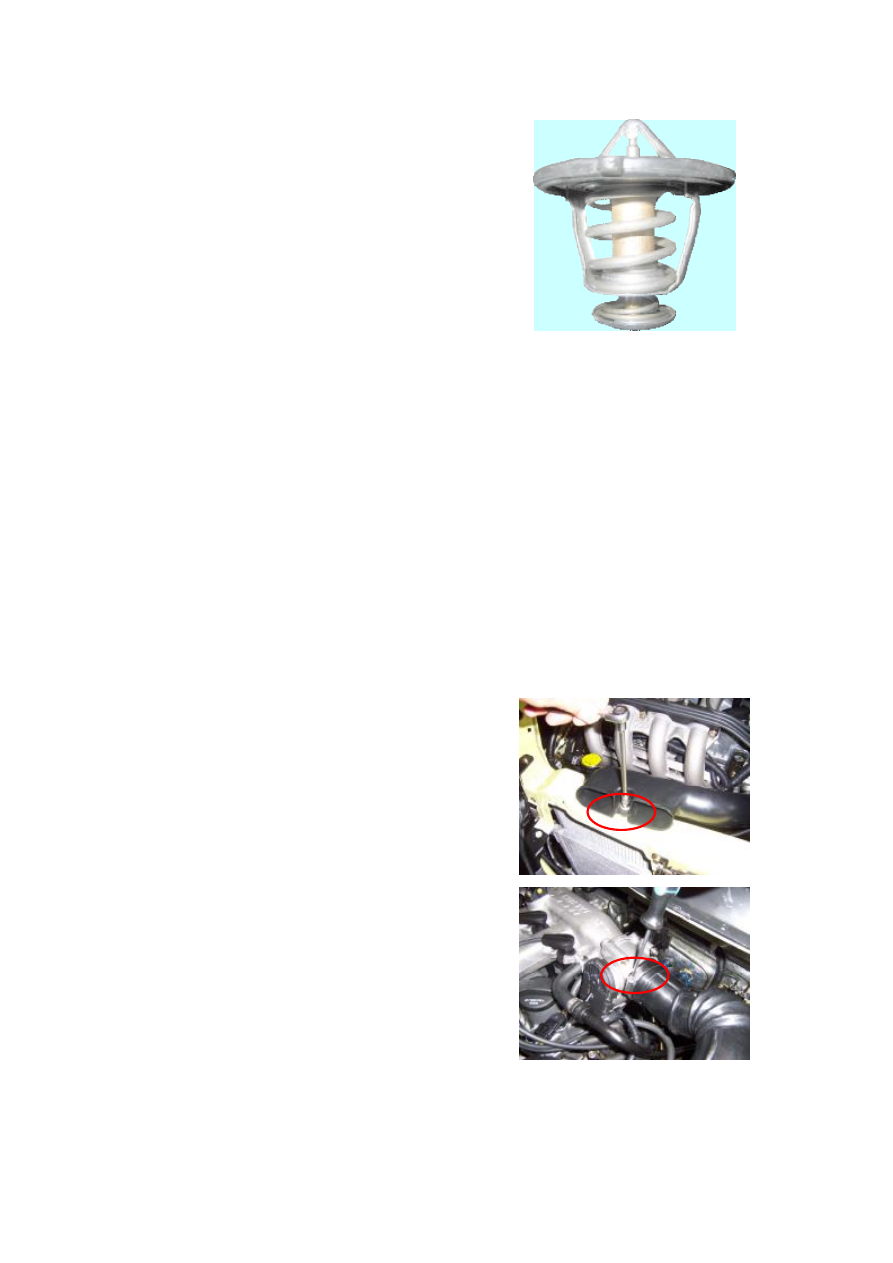

6. Inspection of thermostat:

(1)  Under  normal  temperature,  inspect  seating  status  of

the valve and it should tightly seat.

(2)  Inspect opening temperature and maximum stroke of

the valve.

Opening temperature of the valve is 87±2℃

Maximum stroke of the valve is 8mm

Full opening temperature of the valve is 104℃

(3)  Then  check  if  the  valve  closes  at  the  temperature

5

  lower  than  the  opening  t

emperature.  If  not

compliant,  replacement  with  a  new  thermostat  is

required.  Follow  the  order  adverse  to  that  for

disassembly  of  the  thermostat  to  install  it.  When

installing,  check  if  the  gasket  of  the  thermostat  is

damaged,  if  thermostat  seat  and  thermostat  cover

casing  plane  are  satisfactory.  Check  the  sealing

gasket  for  damage,  if  damaged,  replace  with  new

sealing element.

7. Disassembly of A/C pipeline

See  Disassembly  of  A/C  Compressor  for  disassembly

of A/C pipeline.

8. Disassembly of power-assisted steering pipeline.

See Disassembly of Power-assisted Steering Oil Pump

for disassembly of power-assisted steering pipeline.

9. Disassembly of intake and exhaust manifold.

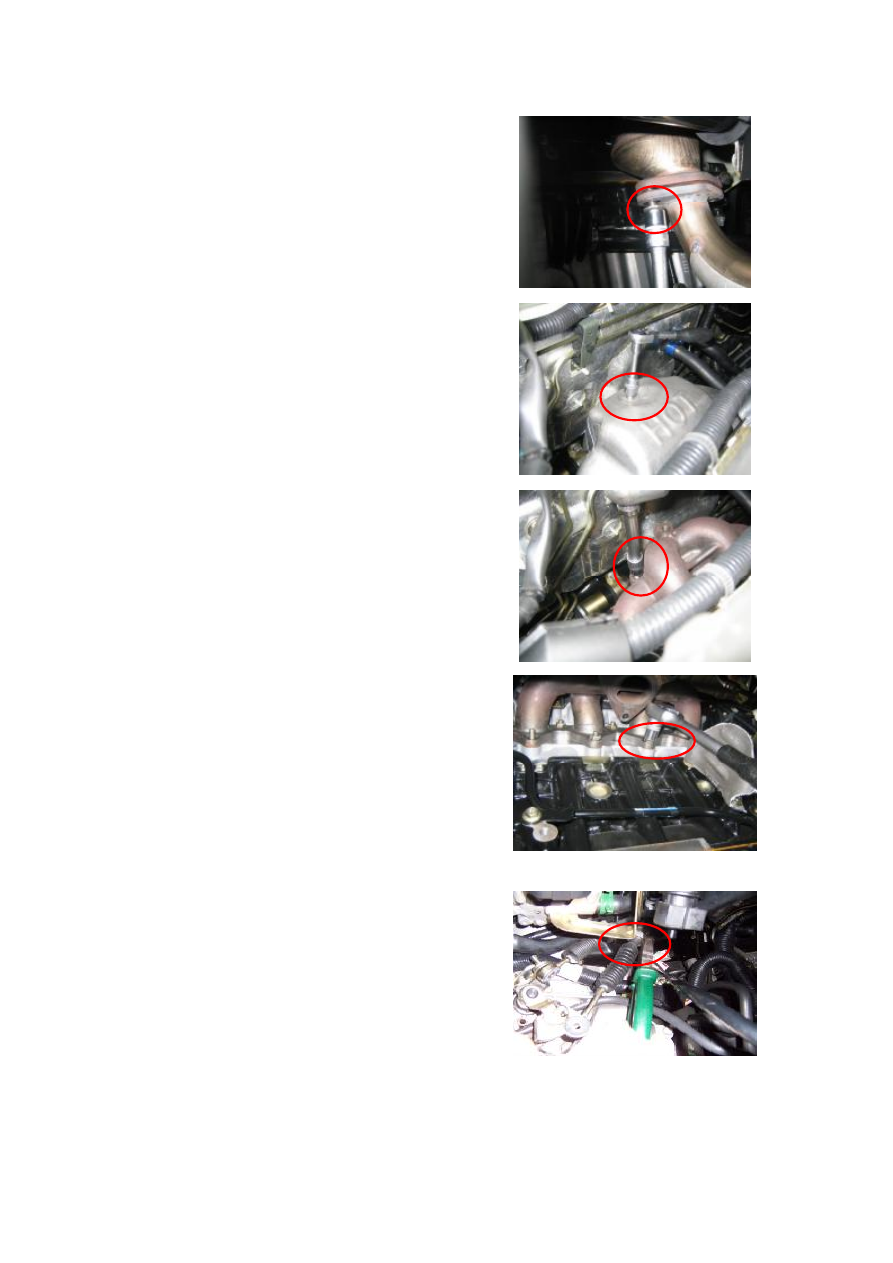

9.1  Use  a  10#  sleeve  to  remove  the  fixing  bolt  of  air

intake pipe.



9.2  Use  a  cross-head  screwdriver  to  loosen  the  clamp

connecting intake hose and electronic throttle body.







9.3  Use  a  13#  sleeve  to  remove  the  connecting  bolt  of

three-way  catalytic  converter  and  exhaust  intermediate

pipe.

Torque: 60±5 Nm.





9.4 Use a 10# sleeve to remove heat insulating  mattress

of exhaust pipe.





9.5  Use  a  13#  sleeve  to  remove  the  connecting  bolt  of

exhaust manifold and three-way catalytic converter.

Torque: 60±5 Nm.





9.6 Use a 13# sleeve to remove the fixing bolt of exhaust

manifold.





10. Disassembly of connecting portion of transmission

case.

10.1  Use  pliers  to  remove  the  fixing  steel  wire  clip  of

gearshift control cable.







10.2  Use  pliers  to  remove  the  fixing  clip  of  gearshift

control  cable  outer  case  and  then  take  off  the  gearshift

control cable.







10.3  Use  a  13#  sleeve  to  loosen  the  adjusting  screw  of

clutch  control  cable  and  then  take  off  the  clutch  control

cable.







10.4 Use a 13# sleeve to loosen the fixing bolt of clutch

control cable on the transmission case.

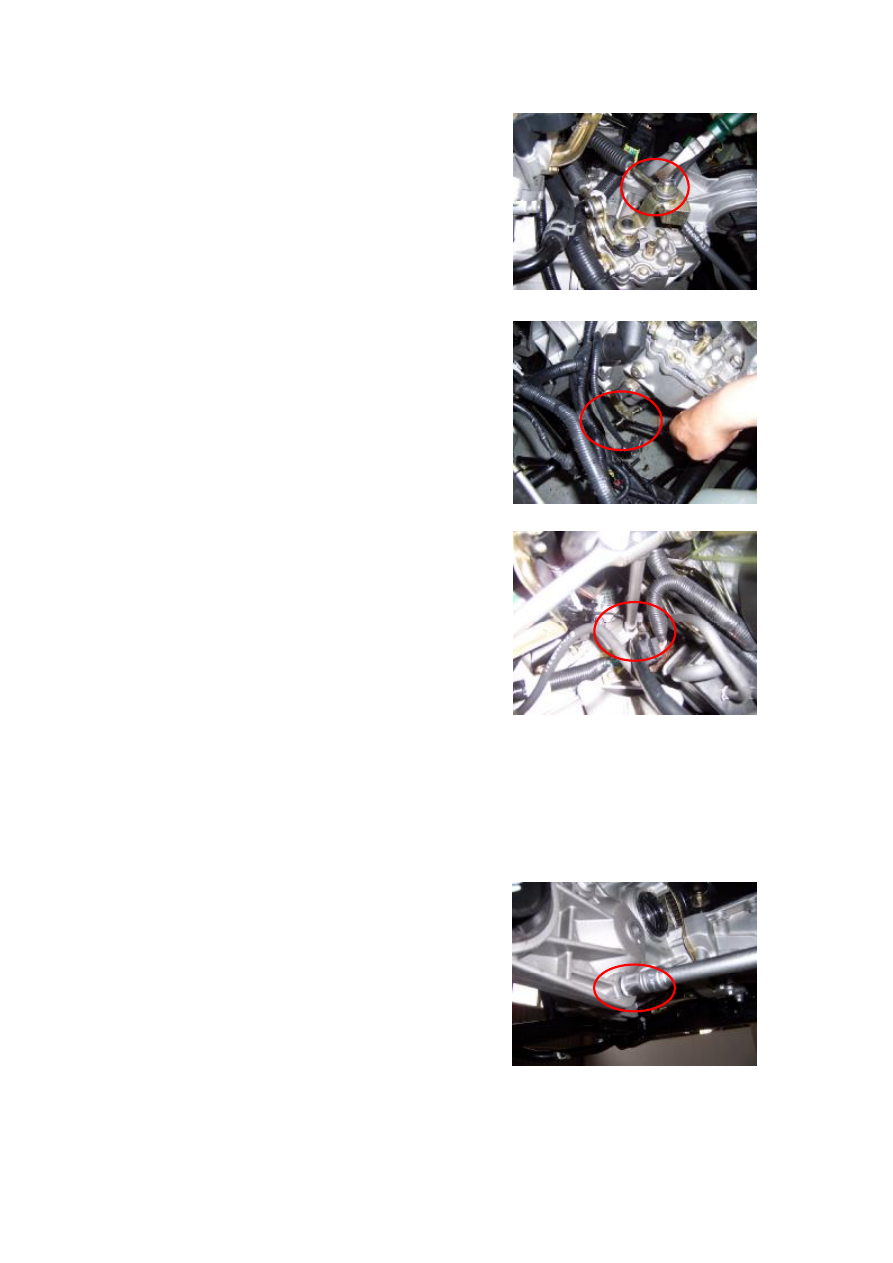

10.5  Use  a  17#  wrench  to  loosen  the  bleeding  bolt  of

transmission case to discharge the gear oil.

10.6  See  Service  Manual  for  Chassis  for  disassembly

of suspension travel portion.

10.7 Use a crow to pry out the half shaft.

11. Disassembly of suspension portion



11.1 Use a 13# sleeve to remove the fixing bolt  for rear

engine mount bracket of transmission case.

Torque: 60±5Nm.
