Chery A18. Manual - part 123





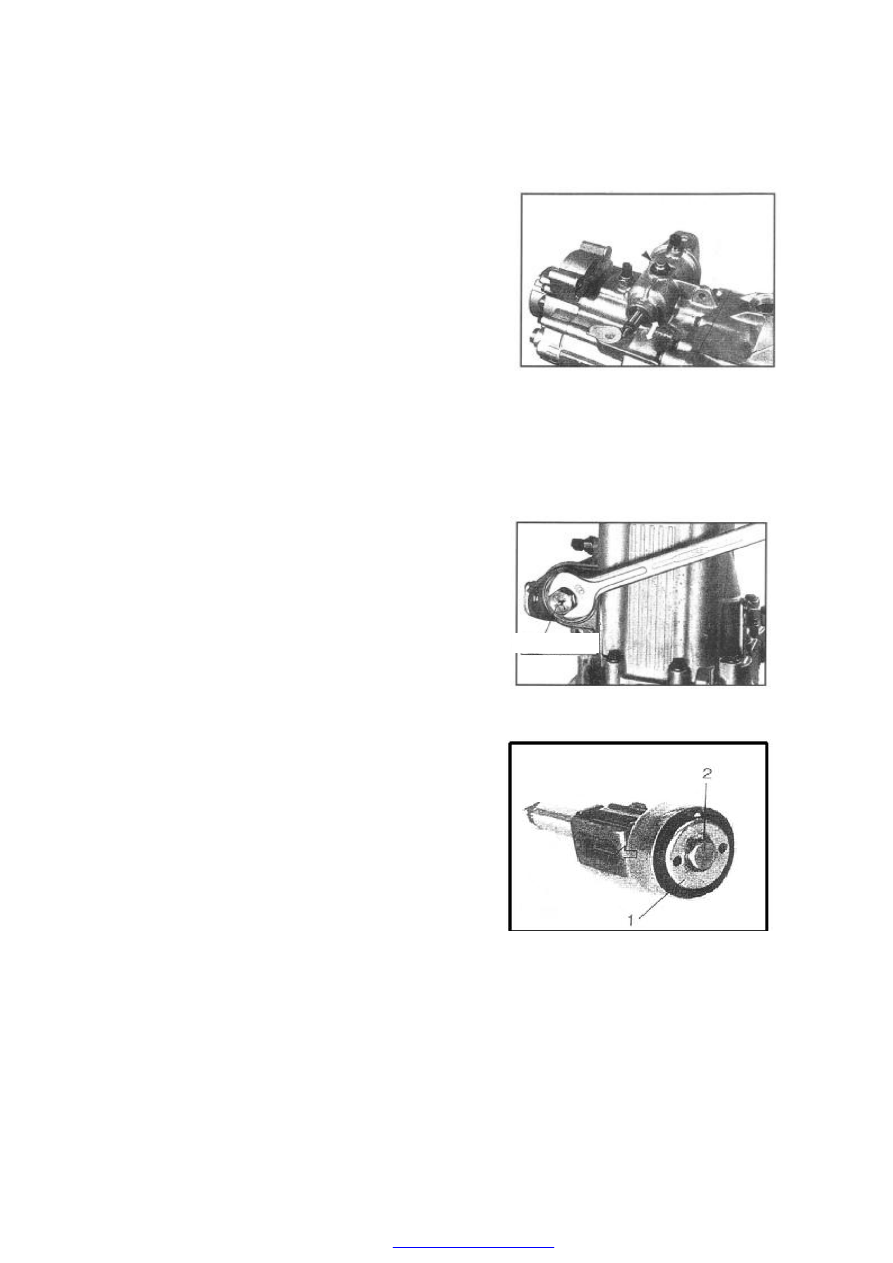

DISASSEMBLY AND ASSEMBLY OF THE GEARSHIFT SHAFT



——It  need  not  to  break  down  the  transmission

assembly.



Disassembly:



——Put  transmission  assembly  on  the  shelf  or

workbench.

— — Leave  it  on  the  neutral  position.  (The

gearshift  shaft  move  smoothly  on  arrowhead
direction)

—— Screw  off  the  gearshift  positioning  holder

assembly.






——Unscrew  the  bolt  cover  by  special  tool  and

take off gearshift shaft.








——See the picture, press the spring holder to the

arrowhead  direction  to  compress  the  internal
spring. Keep at this position until disassemble
the snap ring No.2.

Assembly:

——The  assemble  process  is  opposite  to  above

process.

Main point:

——Make sure the fork system on neutral gear.

——Moment to fasten bolt cover is 50Nm.

——Moment of fastening the gearshift shaft

positioning holder is 40Nm.




G-32

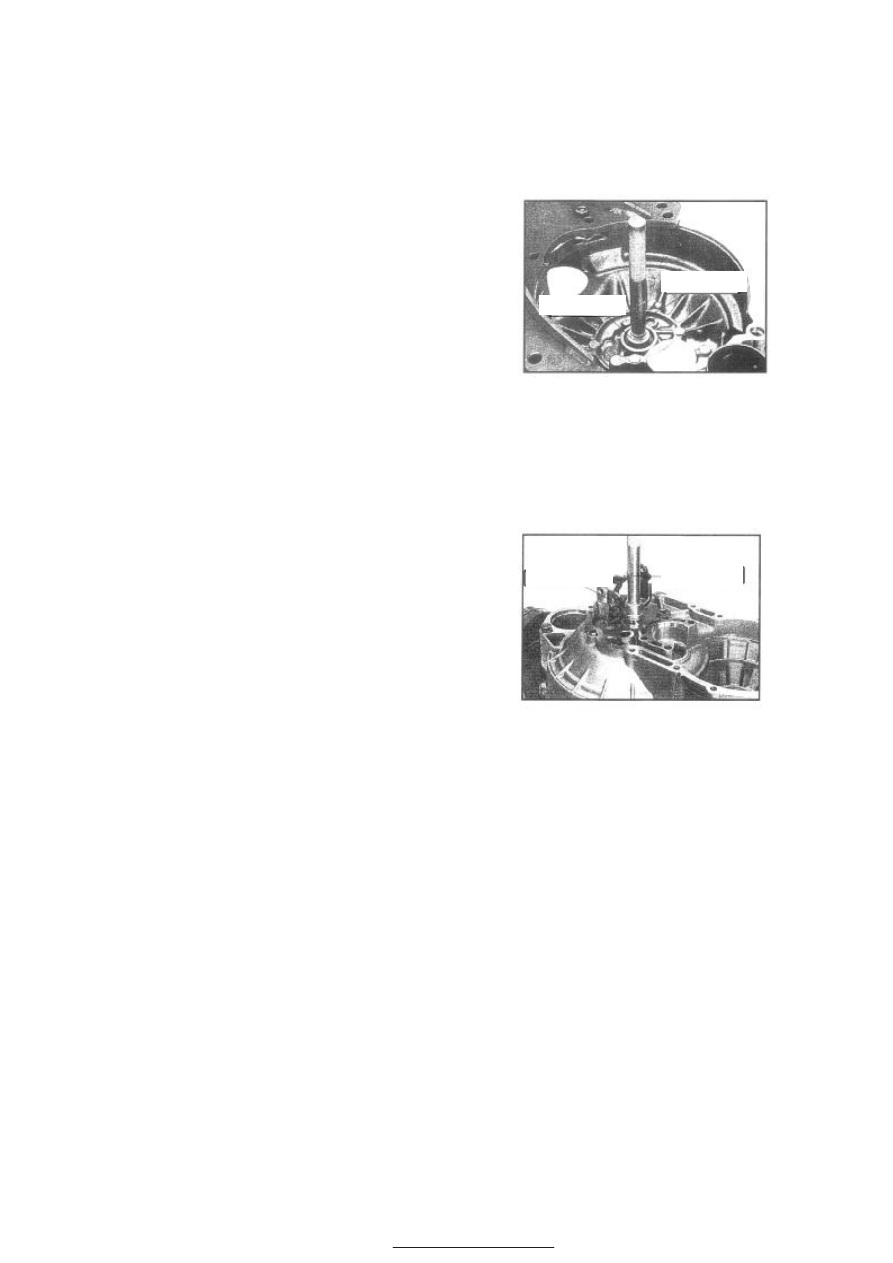

DISASSEMBLY AND ASSEMBLY OF INPUT SHAFT NEEDLE BEARING



Disassembly:

——See  the  picture,  dismantle  the  needle  bearing

by special tool.












Assembly:

——See the picture, assemble the input shaft

needle bearing by special tool, and make sure
press it to the right position.

























Special Tool

Special Tool


Special Tool

G-33

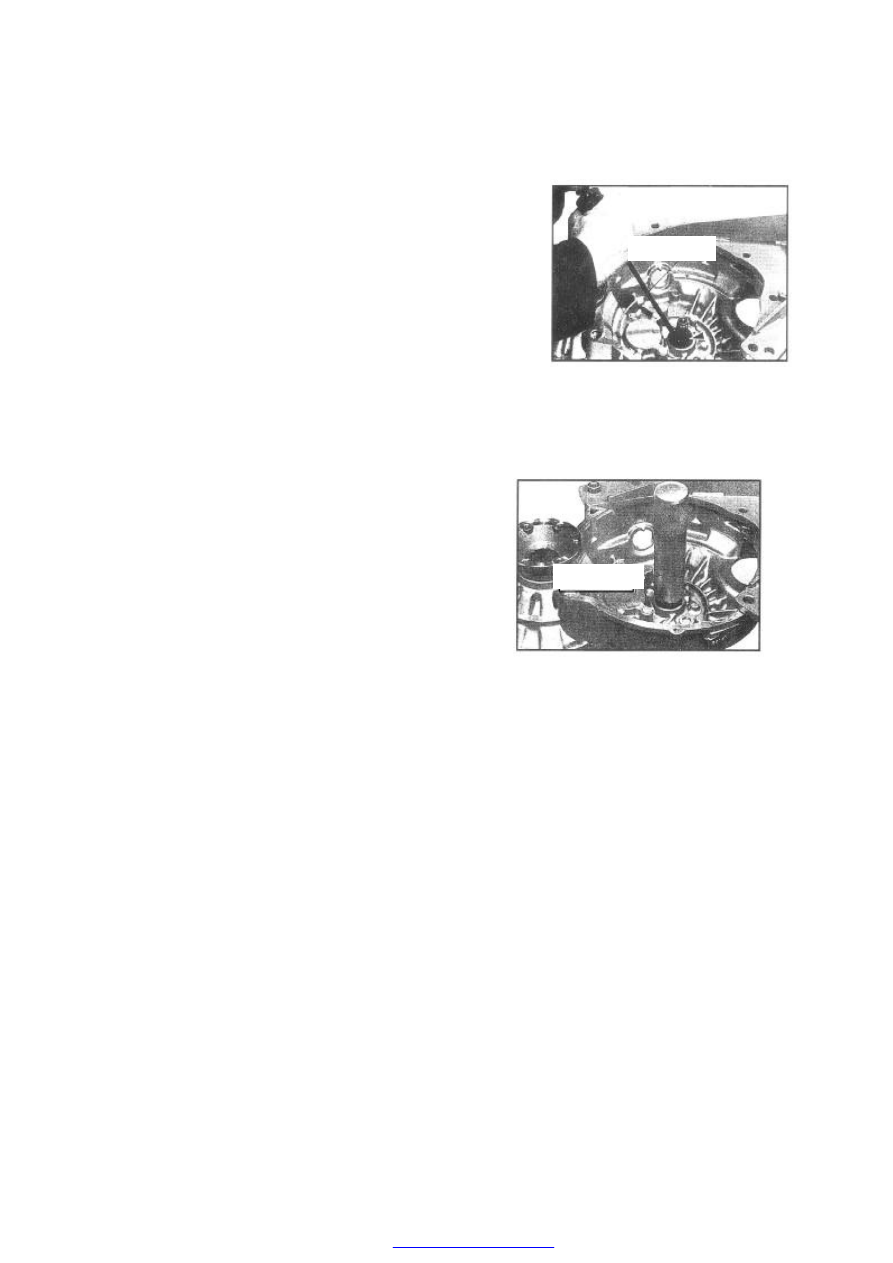

DISASSEMBLY AND ASSEMBLY OF THE INPUT SHAFT OIL SEAL



Disassembly:

——It  need  not  to  break  down  the  transmission

when disassemble the input shaft oil seal.

See  the  picture,  disassemble  the  input  oil  seal

according  to  the  arrowhead  direction  by  special
tool





Assembly:

——See the picture, lubricate the lip of the oil seal

and  press  the  oil  seal  to  its  right  position  by
special tool.





























Special Tool


Special Tool

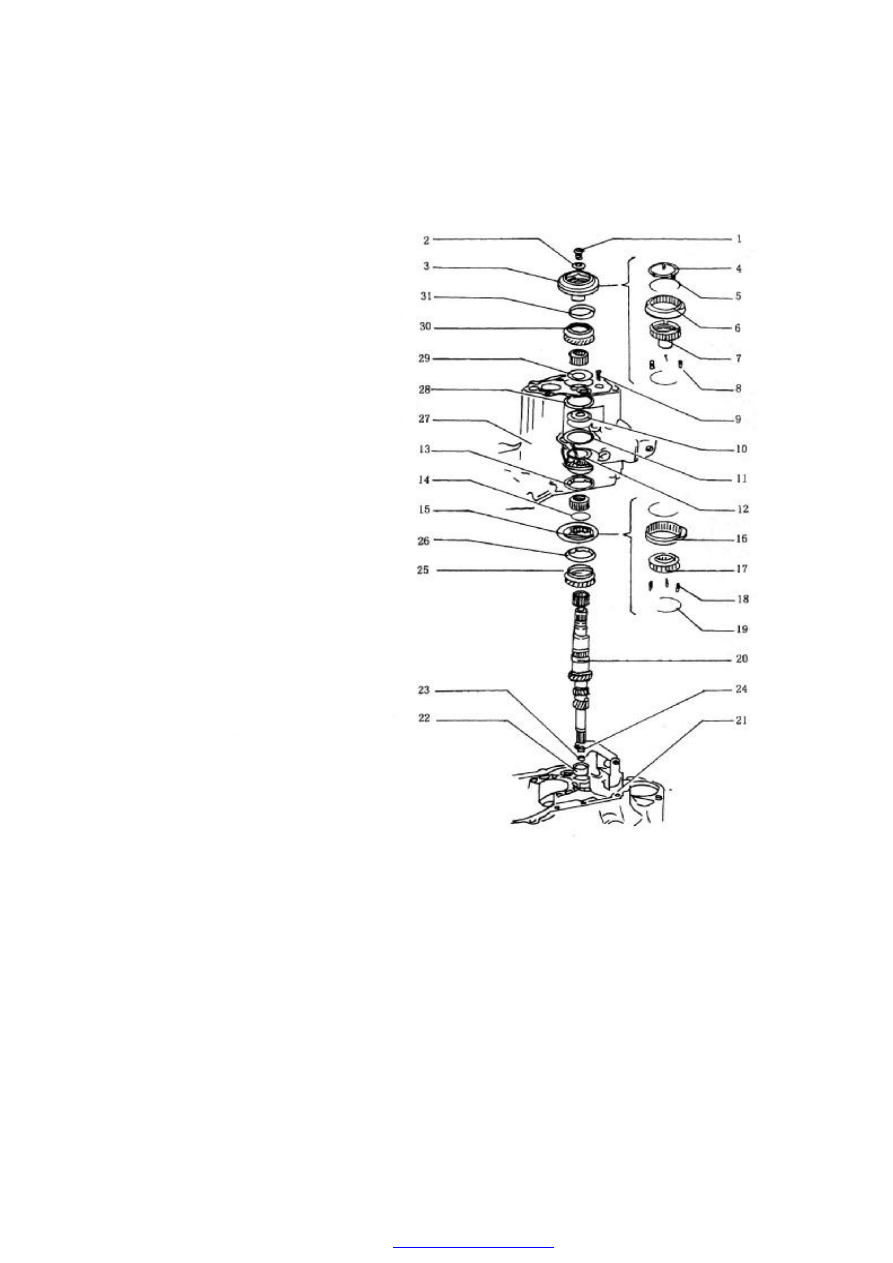

RESOLUTION GRAPH OF INPUT SHAFT







1.  5

th

  Synchronizer  fixing  bolt    2.

Fixing bolt shim 3. 5

th

 Synchronizer

assembly    4.  5

th

  Synchronizer  gate

bracket 5. 19 Steel spring 6. 5

th

 Hub

sleeve  7.  5

th

  Clutch  hub  8.  18  Gate

9. Fixing screw of rear bearing plate
10.  Input  shaft  rear  bearing    11.
Rear  bearing  plate  12.  4

th

  Driving

gear  13.  4

th

  Synchronizer  ring    14.

Snap ring 15.    3

rd

-4

th

 Synchronizer

assembly  16.    3

rd

-4

th

  Hub  sleeve

17.    3

rd

-4

th

  Clutch  hub  20.  Input

shaft  21.  Clutch  housing  22.
Needle  bearing  23.  Oil  seal  of
clutch  tappet  24.  Bushing  of  clutch
tappet  25.    3

rd

  Driving  gear  26.  3

rd

Synchronizer

27.

Transmission

housing  28.  Adjustment  shim  (may
not  use)  29.  5

th

  Driving  gear  plate

30.  5

th

  Driving  gear  31.  5

th

Synchronizer ring

Resolution Of Input Shaft
