Chery A18. Manual - part 104

4.6

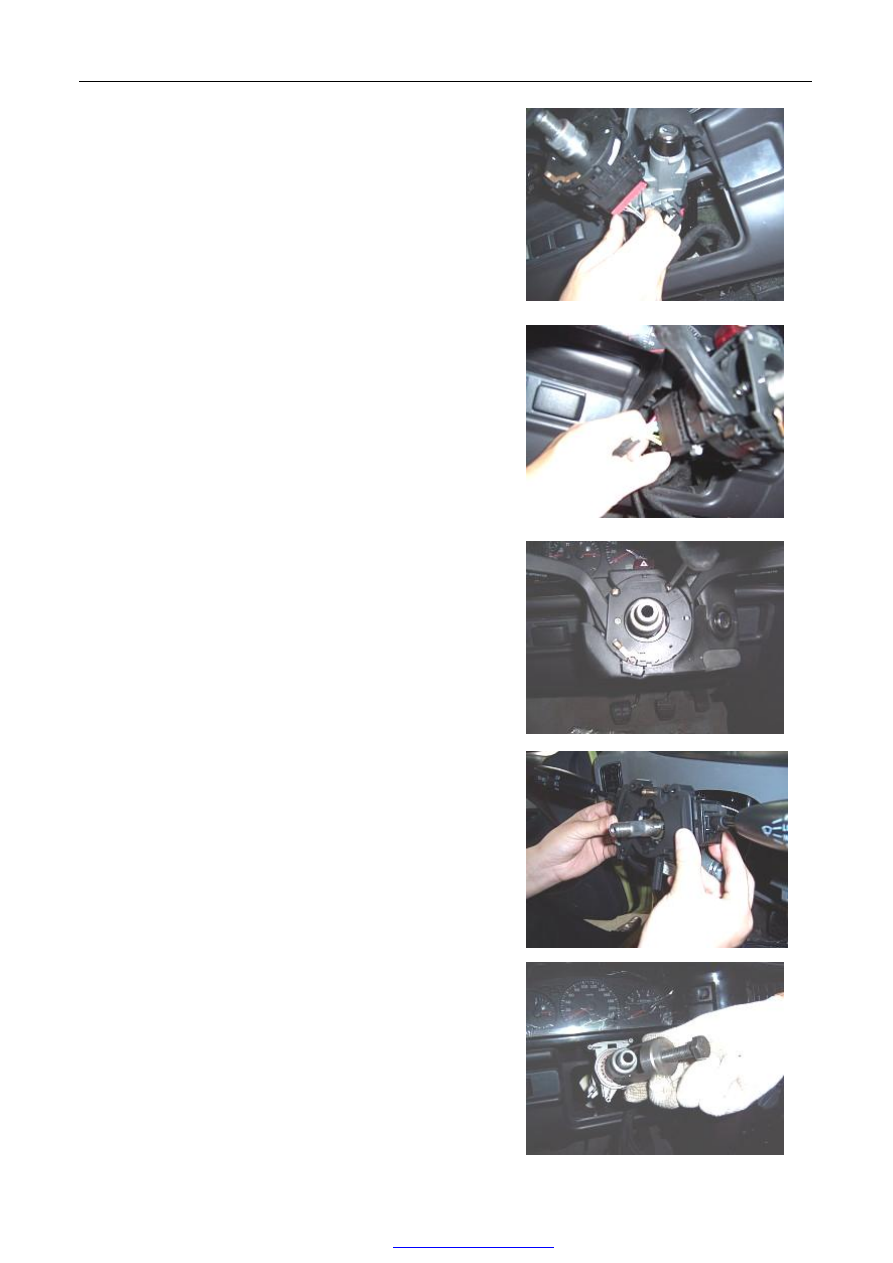

Pull out pin of combination switch.

4.7

Disassemble fixed bolt of combination switch with

Philips driver.

4.8

Take out combination switch.

Disassembly and assembly of body and core of

ignition lock

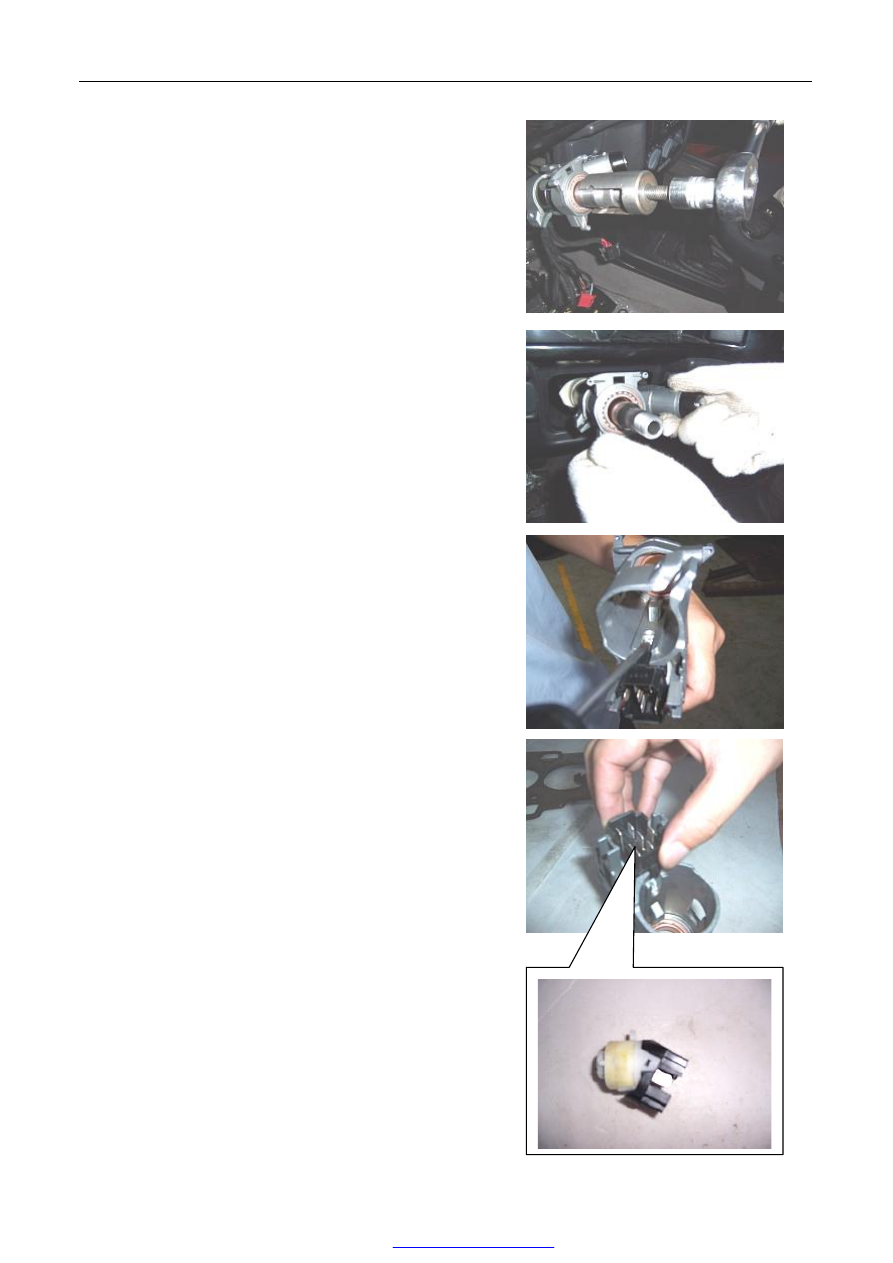

5.1

Fit special tools over steering shaft from side face.

5.2

Disassemble tooth profile sleeve and compression

spring with socket wrench.

5.3

Take out ignition lock assembly.

5.4

Disassemble fixed screw of backseat of ignition

switch with Philips driver, and take backseat of

ignition switch out.

5.5

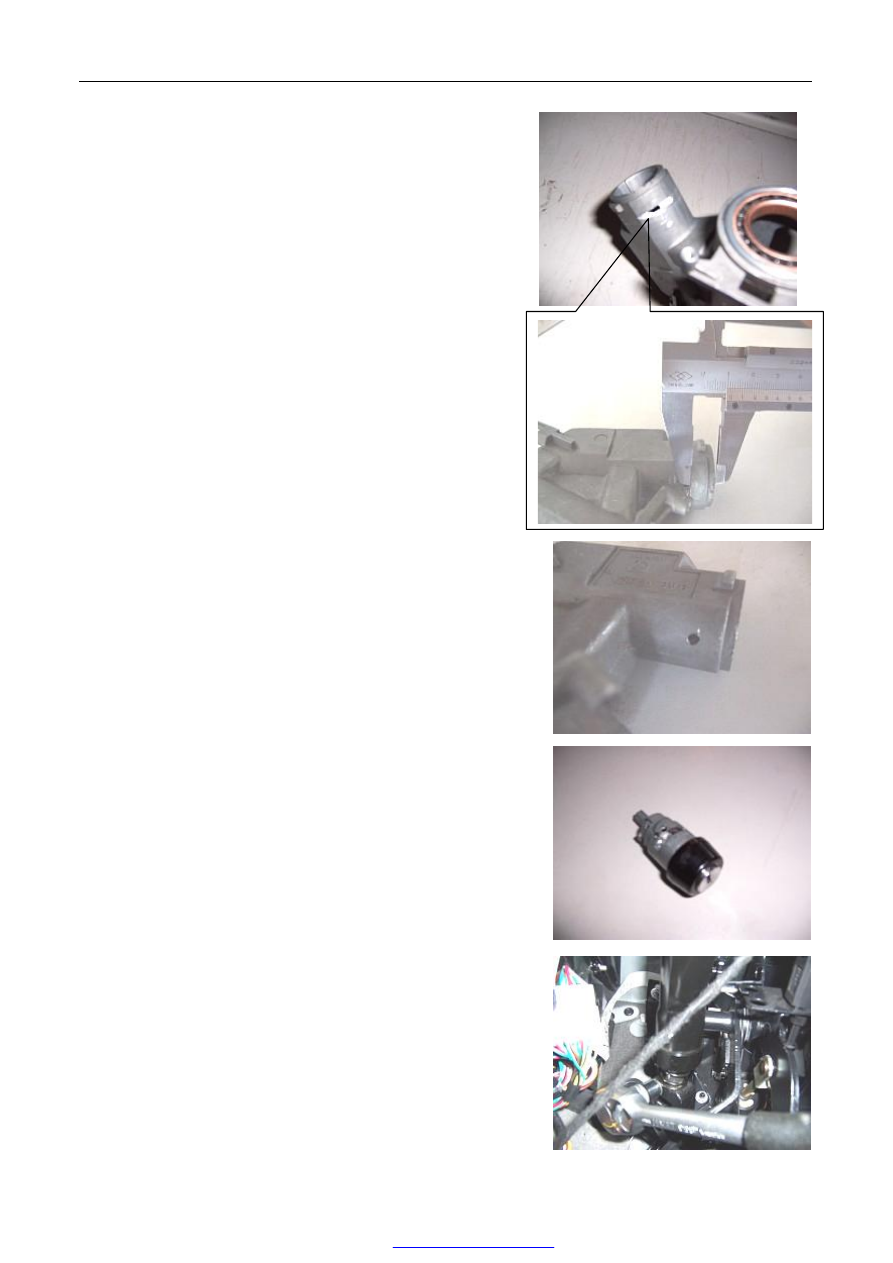

Open a bore on one side of ignition lock body 9cm

from lock core, it is possible to take ignition lock

core out by pressing spring of lock core via the bore.

5.6

Some ignition lock body already has the bore, which

is used for taking out ignition lock core by pressing

spring of lock core.

5.7

Take out ignition lock core.

Disassembly and assembly of steering shaft

6.1

Disassemble bolt and nut connecting universal joint

under steering shaft with socket wrench.

6.2

Take out steering shaft.

Disassembly and assembly of steering column

7.1

Disassemble assembly of instrument desk (refer to

disassembly and assembly of instrument desk),

disassemble fixed bolt from steering column with

socket wrench

7.2

Take down assembly of steering column.

Assembling step

Conduct assembly by referring to disassembling step.
