Chery A18. Manual - part 71





Chapter VIII Air Conditioner System

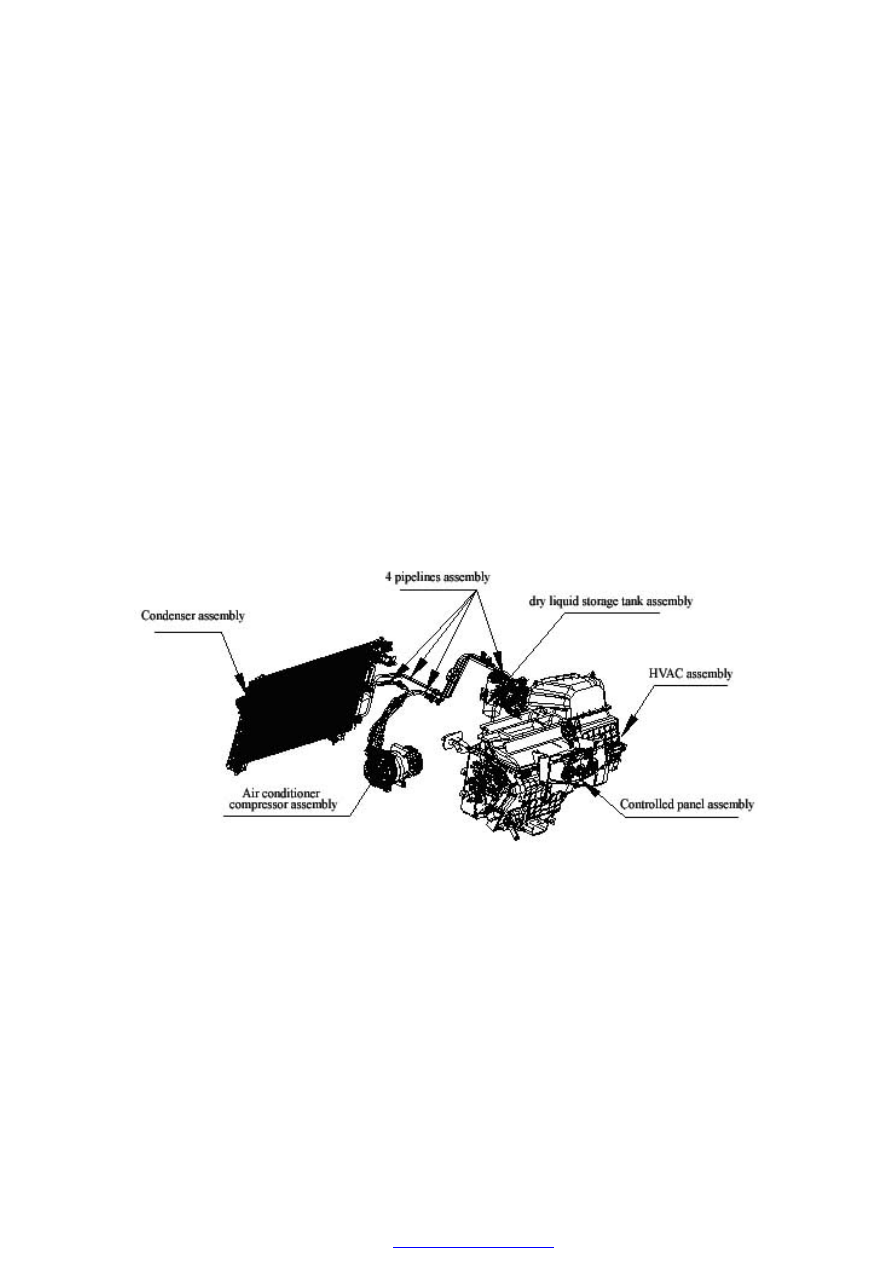

I. System combination

Air adjustment & distribution system: HVAC air mix & dispatcher parts, interior & exterior

cycling air inlet & outlet, air cleaner.

Control system: Control panel assembly, wire-drawing, micro-motor, blower, speed controlled

module, high pressure & low pressure switch, each temperature sensor of the air conditioner

Heating system: Heater, hot water piper, and engine cooling water system

Refrigeration system: Compressor, condenser, dry liquid storage tank, expansion valve,

evaporator and pipelines



II. Disassembly & assembly of the evaporator assembly

1. Preparation

Tools:  Slotted  &  Phillips  screwdriver,  slip  joint  pliers,  socket  wrench  10#  &  12#,  ratchet

wrench, ring wrench 10#, inner hexagon spanner 5#

2. Disassembly steps

2.1. Recover the refrigerant with the refrigerant recoverer

Attention:

(1)  Do not deal with the refrigerant at the close place

or near the open fire.

(2)  Do not make the refrigerant splash on the eye and

skin.

2.2. Disassemble the instrument panel assemble, cross bar and

upper & down parts bolts & bolt covers of the evaporator. Then

take out plug-in units of related electrical apparatus and plug-in

units

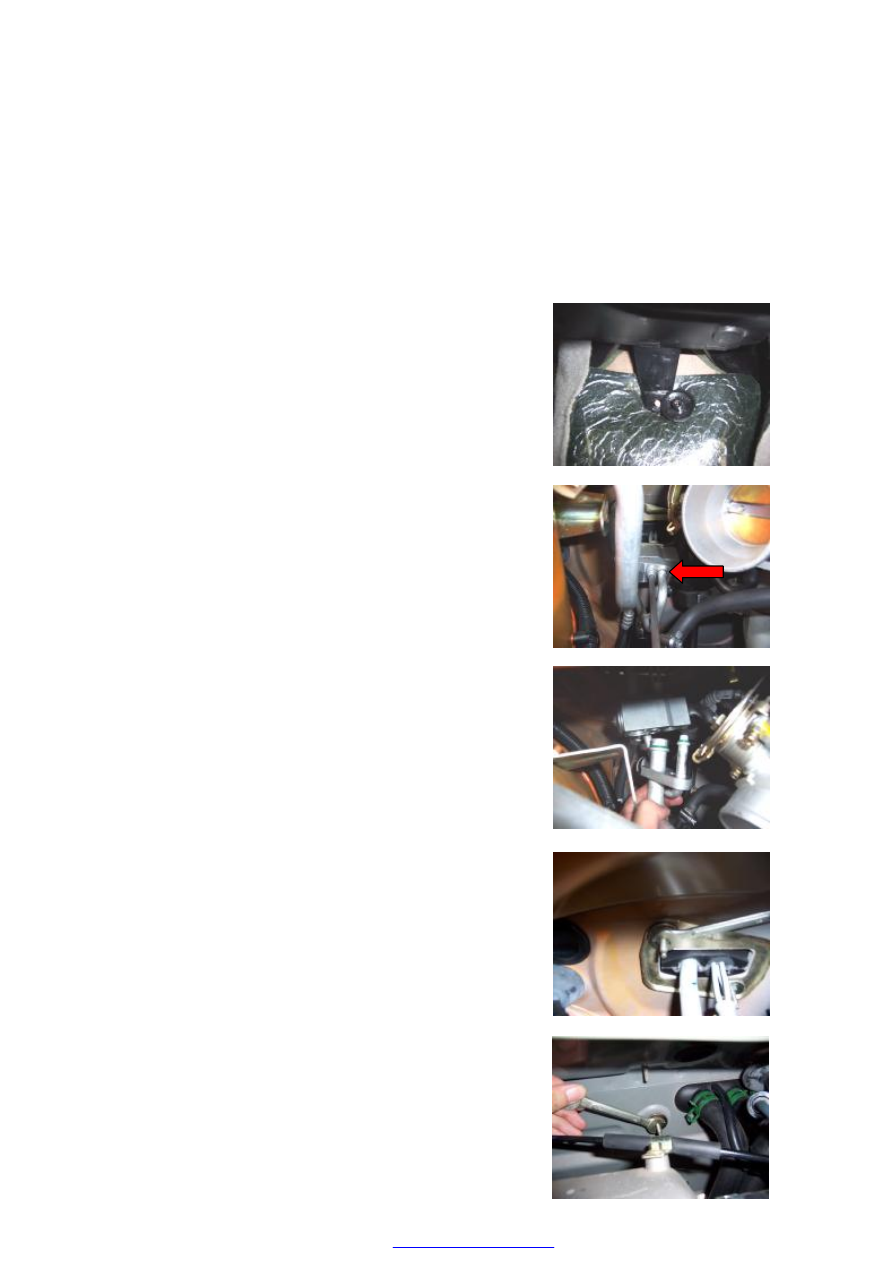

2.3.  Unscrew  fixing  bolts  of  the  high  pressure  &  low  pressure

pipes with the inner

hexagonal spanner

Shown as the figure:

Moment:8±1 Nm









2.4.  Unscrew  2  fixing  bolts  from  the  high  pressure  &  low

pressure pipes to the expansion valve, pull out the high pressure

&  low  pressure  pipes  and  then  take  out  the  on  the  expansion

valve.

Attention:  Wrap  the  pipe  mouth  of  the  disassembled  high

pressure  &  low  pressure  pipes  and  interface  of  the  expansion

valve with the clean plastic bag in order to avoid entering of the

foreign objects.

2.5. Loosen 3 fixing bolts of the evaporating tank & front wall

Moment:10±1 Nm

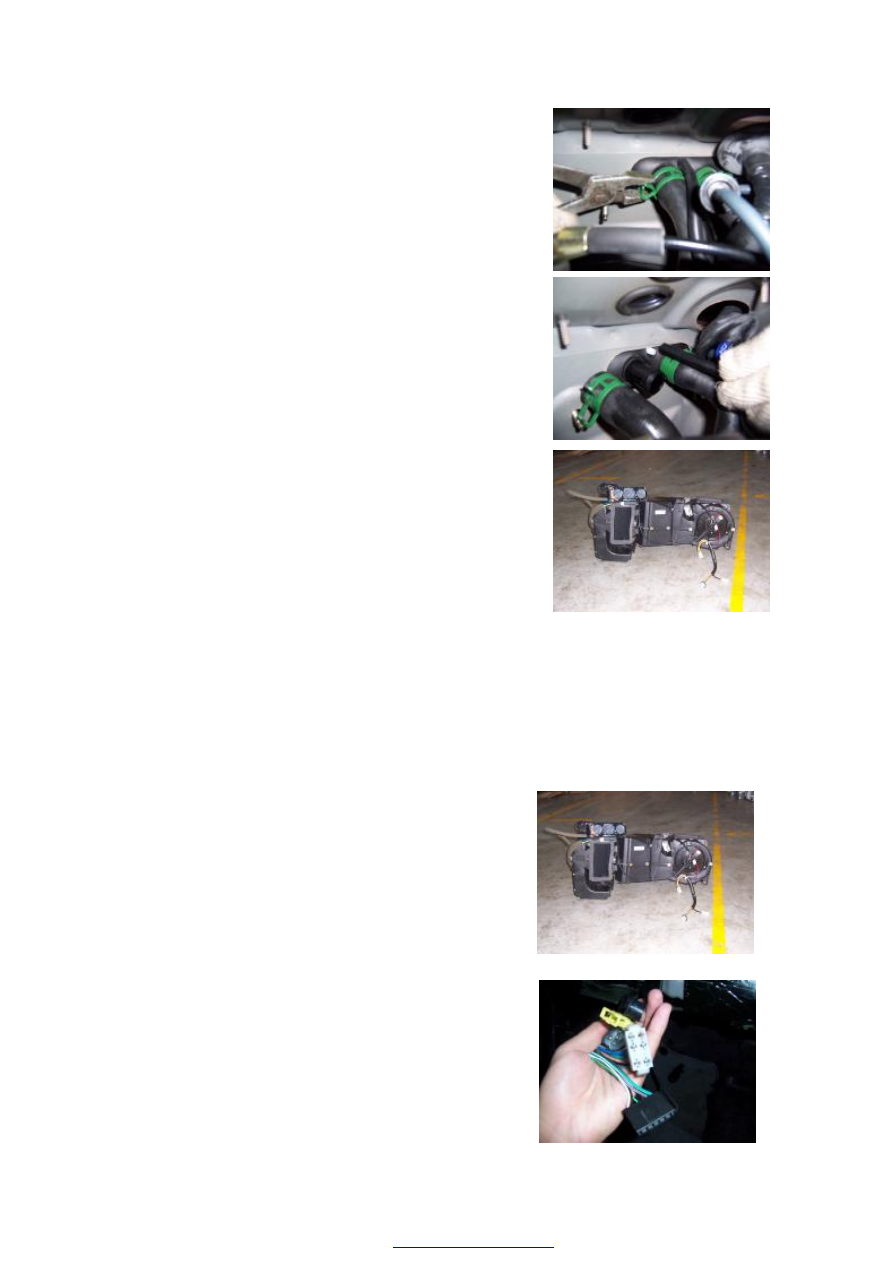

2.6. Disassemble the water pipe clasps of the evaporating water

tank with pinchers and take out the water pipe and vacuum pipe

above it. Shown as the figure

Attention:  Coolant  may  flow  out  of  the  water  pipe  and  pay

attention to the recovery of the coolant

Moment:11±1 Nm

















2.7. Take out the wiring harness assembly of the evaporating

tank and air conditioner from the cab







3. Assembly of the evaporator assembly

Assemble according to the inverted sequence of the disassembly

4. Disassembly & assembly of the interior evaporating tank

Preparation tools: Slotted & Phillips screwdriver, socket wrench 8#, ratchet wrench

4.1.

 Disassembly steps



4.1.1.  Take  out  the  evaporating  tank  assembly  according  to

the disassembly of the evaporating tank assembly













4.1.2. Take  out  the  wiring  harness  &  plug  of  the  evaporating

tank

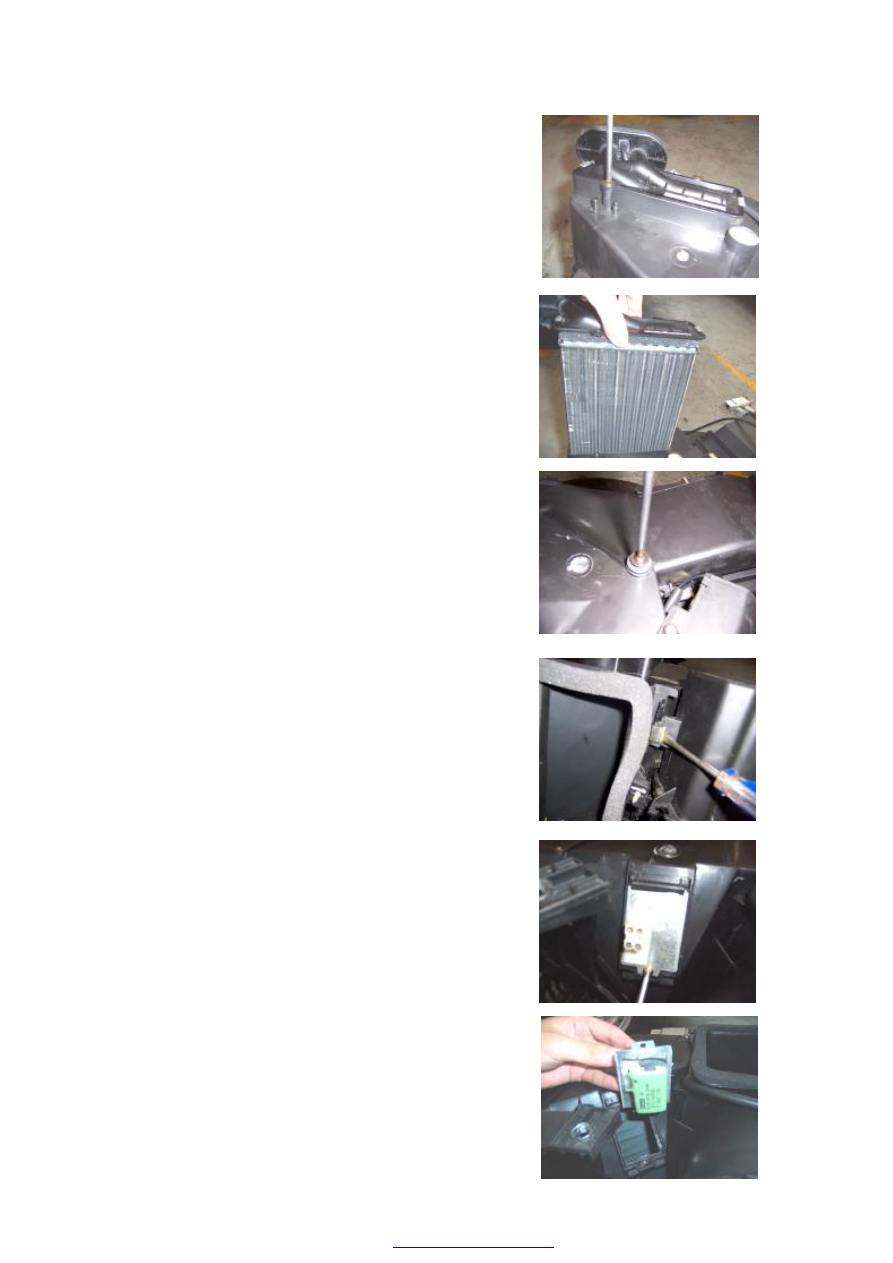

4.1.3.  Unscrew  2  bolts  on  the  dispatcher  with  the  Phillips

screwdriver and take out the heater core (Shown as the figure)

Moment:1.5±0.5 Nm



























4.1.4. Prize up all the buckles of the central evaporating  tank

with  the  slotted  screwdriver,  and  then  take  out  all  bolts  with

the  Phillips  screwdriver  to  separate  the  evaporating  tank  into

2 parts























4.1.5. Take out the evaporator, and then  unscrew bolts  of the

sensor  with  the  Phillips  screwdriver  and  the  sensor  can  be

taken out
