3.3 Selection of tilting height

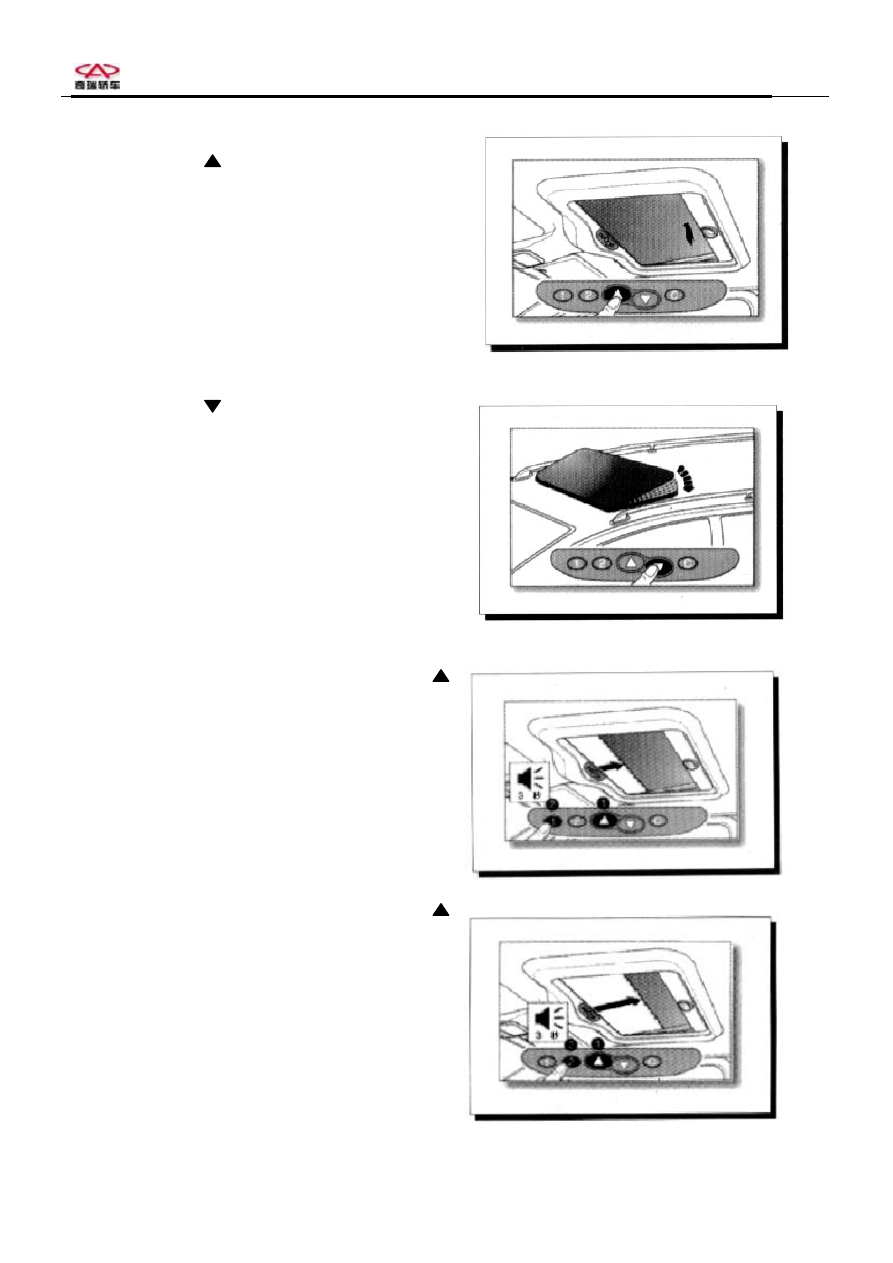

3.3.1 Press and hold   button when sunroof is shut,

glass plate will automatically tilt to the highest

position.















3.3.2 Press and hold   button when sunroof is at the

highest tilting position, glass plate will shut by

level, making 4 positions available for adjustment.

















3.4 Presetting two memory positions

3.4.1 First open sunroof to a desired position by pressing

button, then press and hold  ①  button (for a period

of time longer than 3 seconds). When a “beep”

sound is given by sunroof, this position is

automatically saved as preset position 1.











3.4.2 First open sunroof to a desired position by pressing

button, then press and hold ②  button (for a

period of time longer than 3 seconds). When a

“beep” sound is given by sunroof, this position is

automatically saved as preset position 2.



Page 5 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





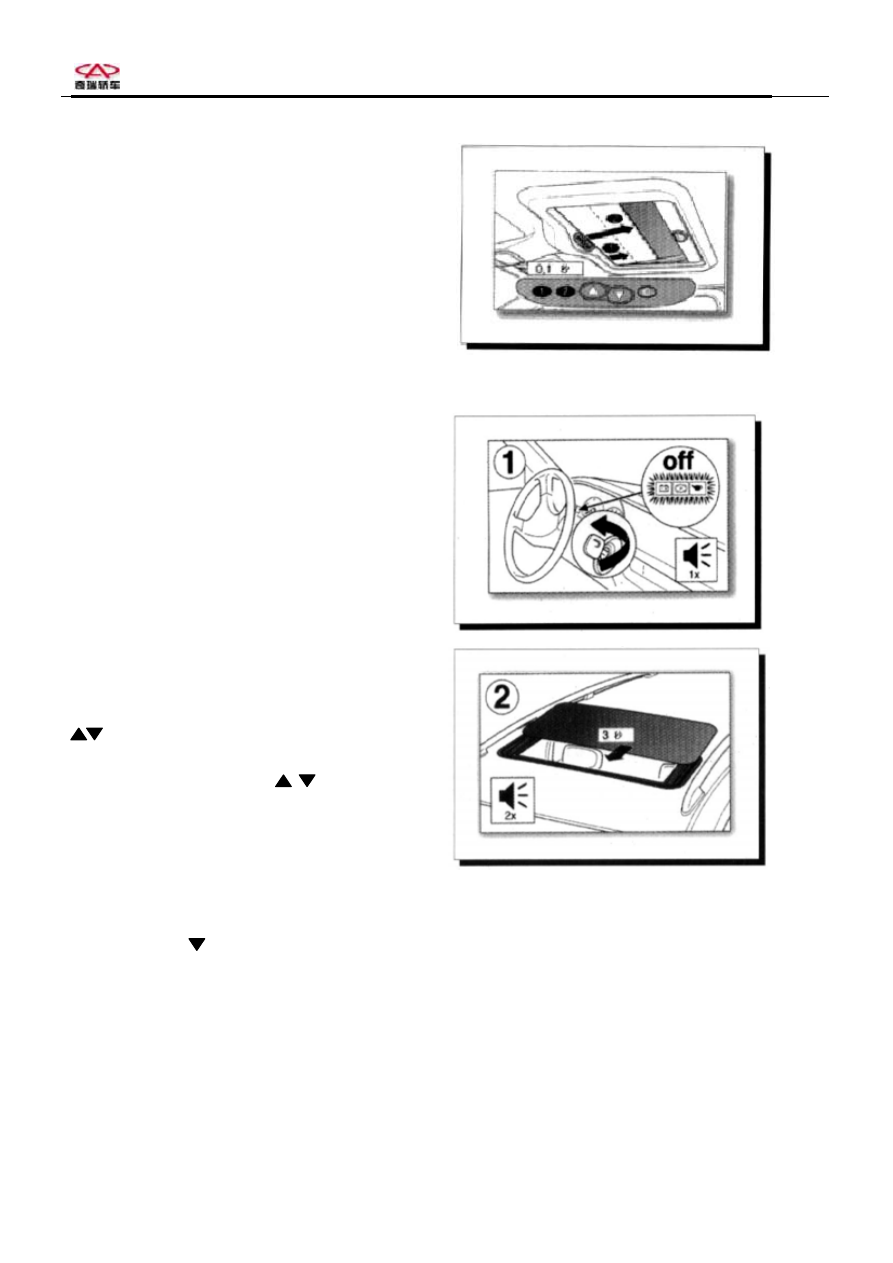

3.4.3 Lightly press ① or ② button (for a period of

time less than 0.1 second), sunroof will

automatically resume the preset position 1 or 2.

Setting can be done repeatedly.















3． 5 Automatic shutting

3.5.1 Turn off vehicle power when the sunroof is at any

position, a “beep” sound will be given by sunroof.

















3.5.2 Three seconds after vehicle power is turned off,

two “beep” sounds will be given by sunroof, and it

begins to shut off automatically. Pressing









buttons before sunroof is fully shut will cancel

automatic shutting. At this time sunroof is still

controllable by pressing     buttons without

turning on vehicle power. However, after sunroof

is completely shut, such controlling will not be

possible until vehicle power is turned on.





3． 6 Anti-clamping protection

3.6.1 Lightly press   button (for a period of time less

than 0.1 second), sunroof will automatically begin

to shut.

















Page 6 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





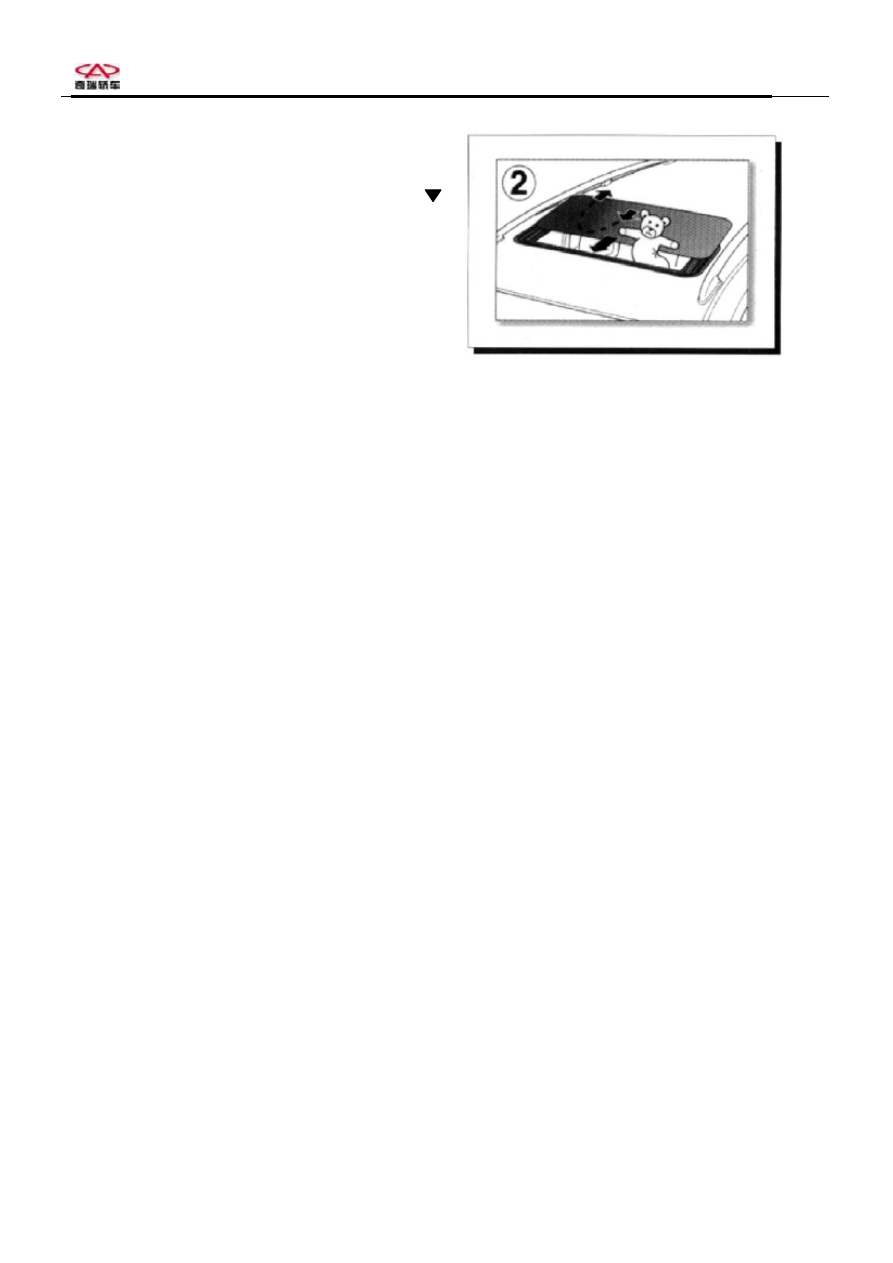

3.6.2 If any obstacle occurs during automatic shutting,

sunroof will fully reopen and repeat trying to shut

until the obstacle is removed. Pressing and holding

button will cancel anti-clamping function.













Page 7 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





4. Maintenance Instruction

4.1 Replacing module/motor assembly



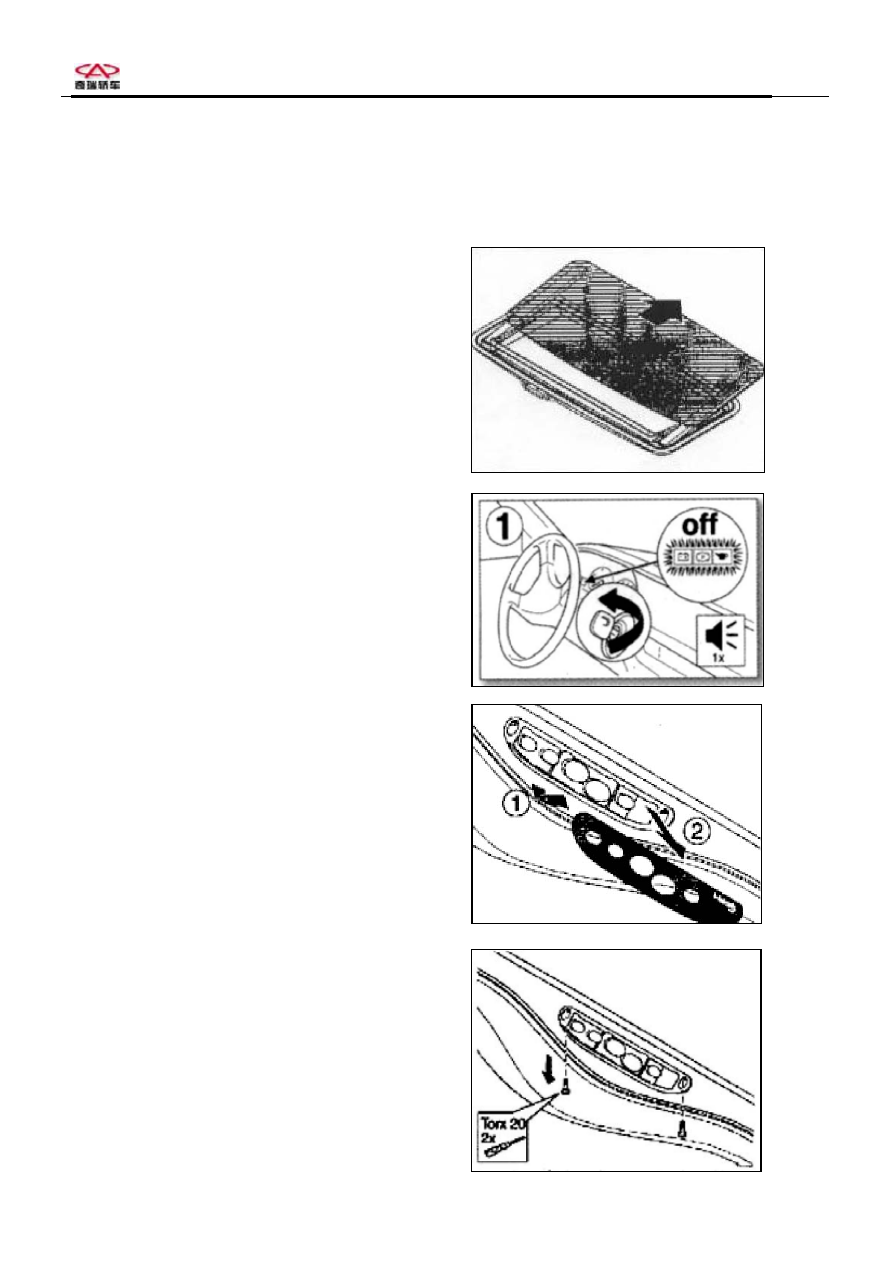

4.1.1 Open sunroof.





















4.1.2 Turn off ignition switch and press and hold control

button to prevent sunroof from automatically

shutting.













4.1.3 Take off the control panel cover plate.



















4.1.4 Remove the two fixing bolts in front part of interior

decorative frame.
