Without any adjusting shim, put the differential  gear assy.,

then mount the transmission housing onto clutch housing, screw

the joining bolt and fasten it with 25Nm torque alternately.

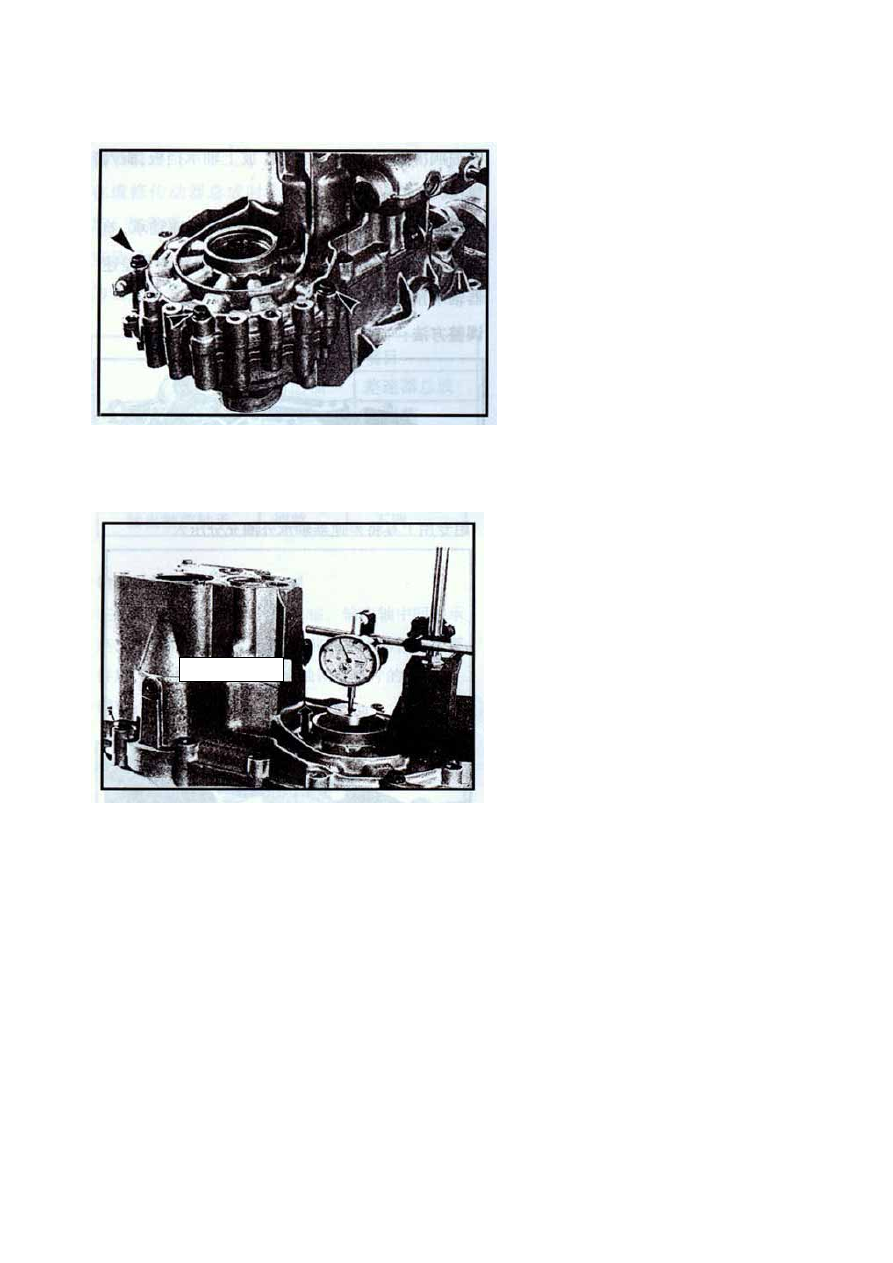

Put the special tool on the minor half axle, then put the

micrometer with magnetic base on the platform; set zero at

1mm pre-tightening force. Move the differential assy. up and

down from the other side, and record the readings on

micrometer (i.e. 0.90mm)

Note: When measuring, never rotate the

differential assy. to avoid affecting the

accuracy of measurement.

Calculate the thickness of adjusting shim to

be installed.

When pre-tightening the bearing here, the

thickness of adjusting shim should be

0.40mm. If the micrometer reads 0.90mm,

the thickness of adjusting shim to be installed

should be:

0.4mm+0.9mm=1.30mm

Unscrew the joining bolts of differential

housing and clutch housing, take out the

outer loop of differential bearing on the

clutch housing; use minimum number of

shims to form the needed thickness and put

them onto the corresponding positions on

clutch, then fully press in the loop of

differential bearing. Mount the gasket and

differential housing, screw and tighten the

fastening bolts with 25Nm torque alternately.

Special tool





27

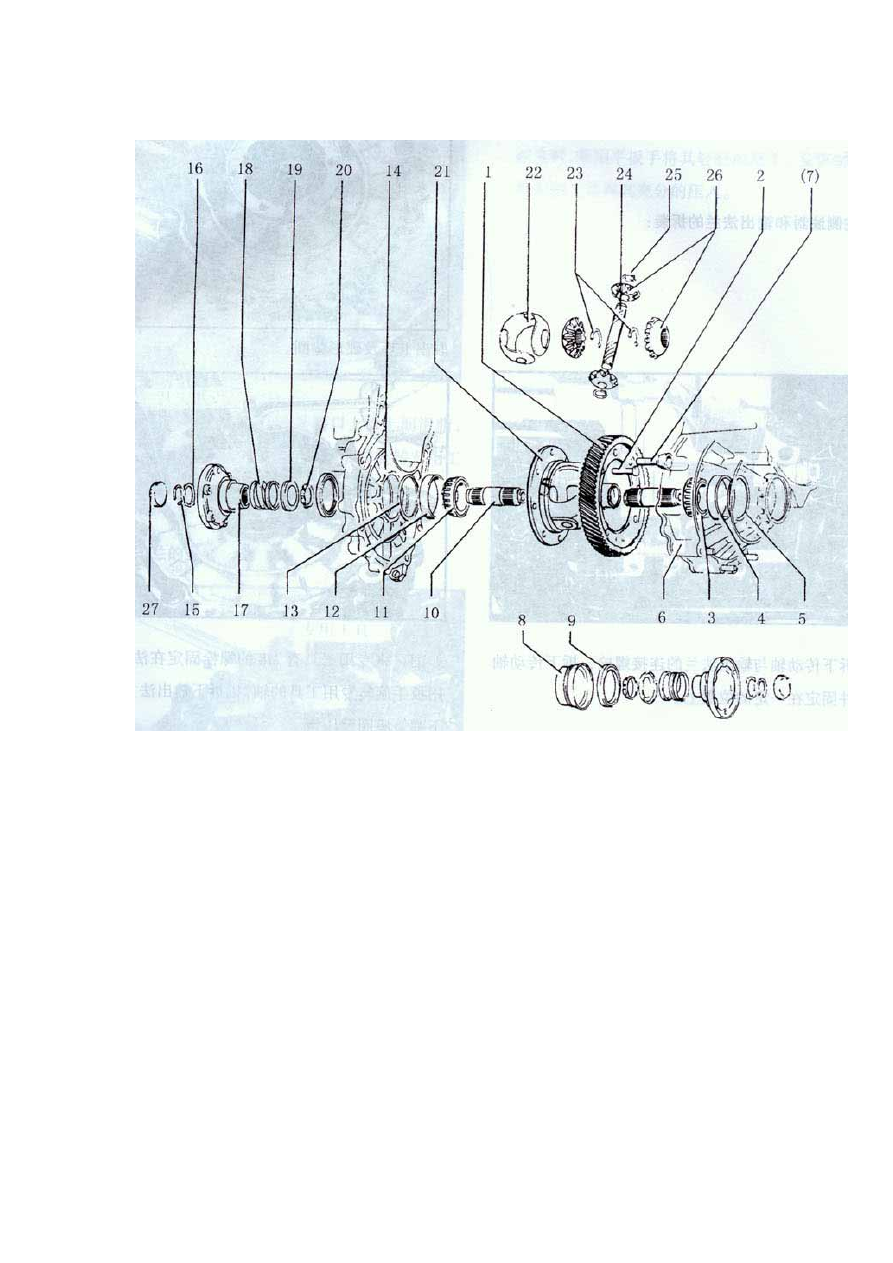

Disassembly of Differential Gear Assy.



1.  Driven gear of master speed reducer

2. Rivet

3.  Needle roller bearing

4.  Outer loop of needle roller bearing

5. Adjusting

shim

6. Clutch

housing

7.  Rivet (not necessary to be used)

8.  Oil seal seat

9. Oil

seal

10.  Minor half axle

11.  Needle roller bearing

12.  Outer loop of needle roller bearing

13. Adjusting shim

14. Differential housing

15.  Snap ring of output flange

16.  Disk-shape washer of output flange

17. Output flange

18. Spreader spring

19. Spring ling

20. Damping ring

21. Differential housing

22. Ball gasket

23. Snap ring

24.  Planetary gear shaft

25.  Planetary gear snap ring

26.  Half gear and planetary gear

27.  Blind cover of output flange









28

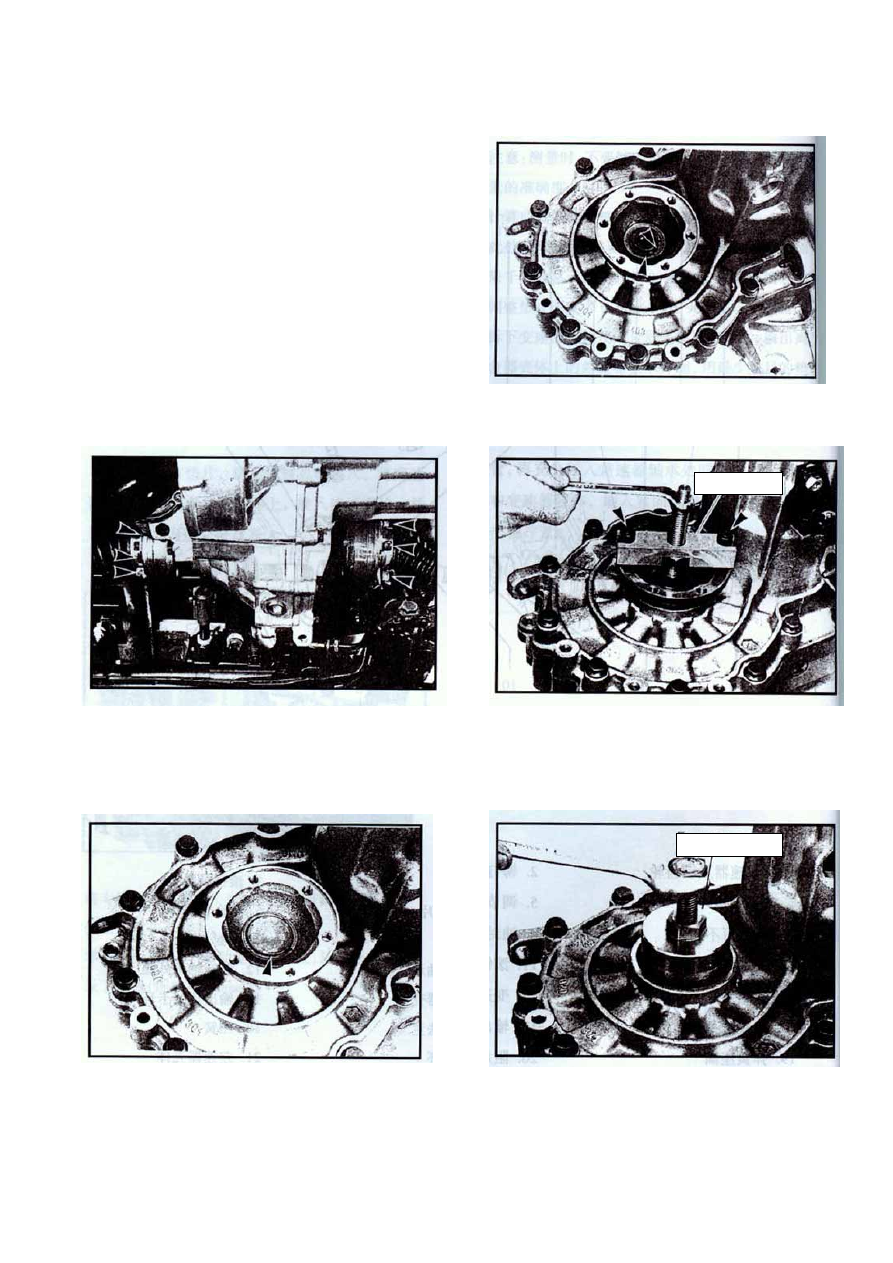

Dismantlement and Assembly of Oil Seal and Output

Flange

It can be done without disassembling the transmission assy.



Dismantlement and Assembly of Left Oil Seal and Output

Flange





Take out snap ring and disk-shape washer



Remove the joining bolts of driving shaft and output flange,

remove the driving shaft and fix it at given position.

As indicated in figure, fix M8 bolt onto the flange with

special tool, rotate the shaft of the special tool with

wrench to remove the output flange. Remove spring lint

and spreader spring.



Flush down the blind cover of flange wit grafter or deift

punch.

Fasten the special tool onto oil seal, wrench the screw

spindle of the tool with wrench as indicated in figure,

until the oil seal is unscrewed.

Special tool

Special tool



29

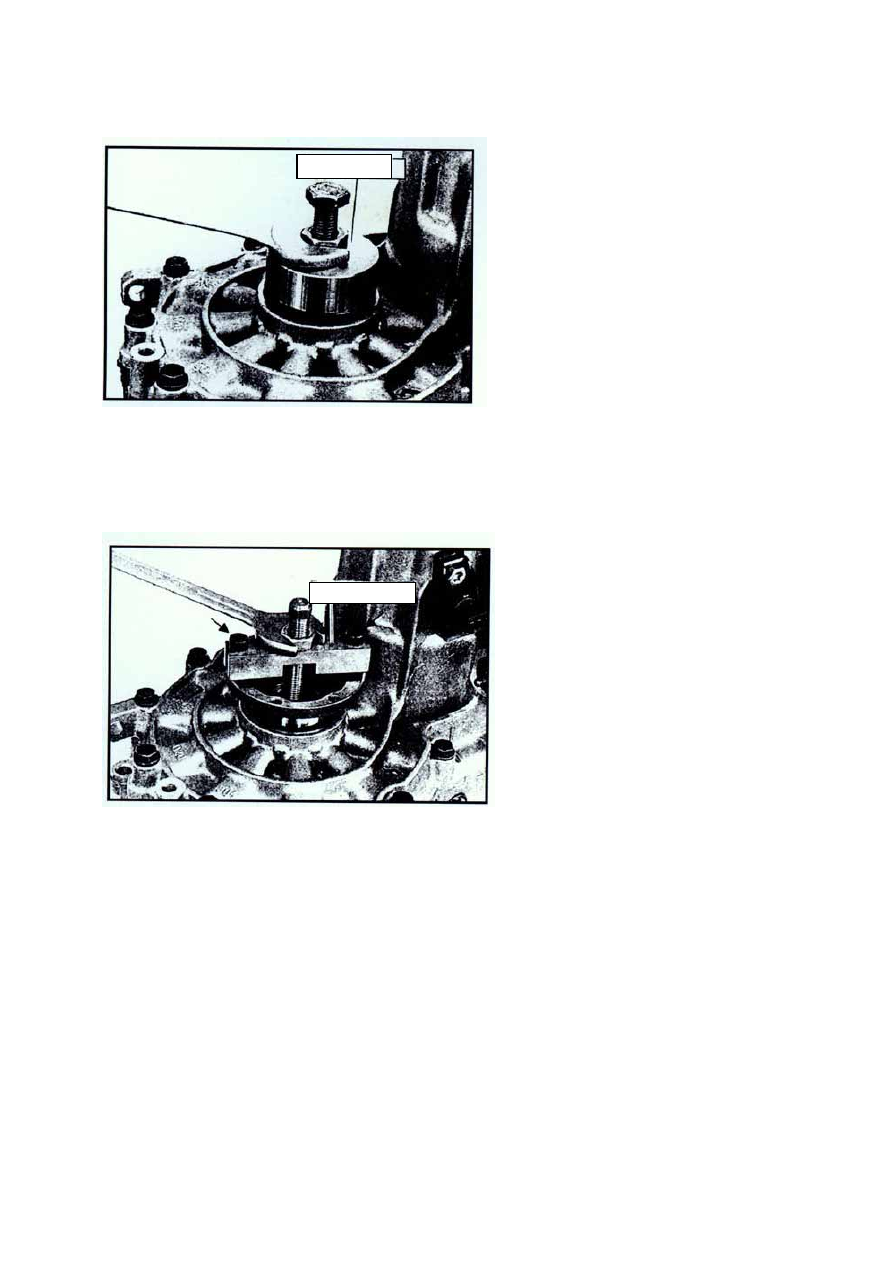

  Assembly of Left Oil Seal



Take the oil seal of correct type, apply grease on its lips, put it

on the due position with special tool, rotate the nut of special

tool until the oil seal is installed firmly onto its proper

position.

Assembly of Output Flange

When mounting output flange, press it in with presser or

special tool, as indicated in figure.

When mounting disk-shape washer, check it to see whether it

is at its due position.

When mounting snap ring, ensure it is in the groove.

Mount a new flange blind cover.

Connect the driving shaft and output flange. If necessary,

re-apply lubricant onto the given position.

Note:

The right oil seal of output flange is fixed on oil

seal seat. When dismantling the seat, knock it

down slightly with end wrench. When mounting,

press it fully in with special tool.

Special tool

Special tool
