The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

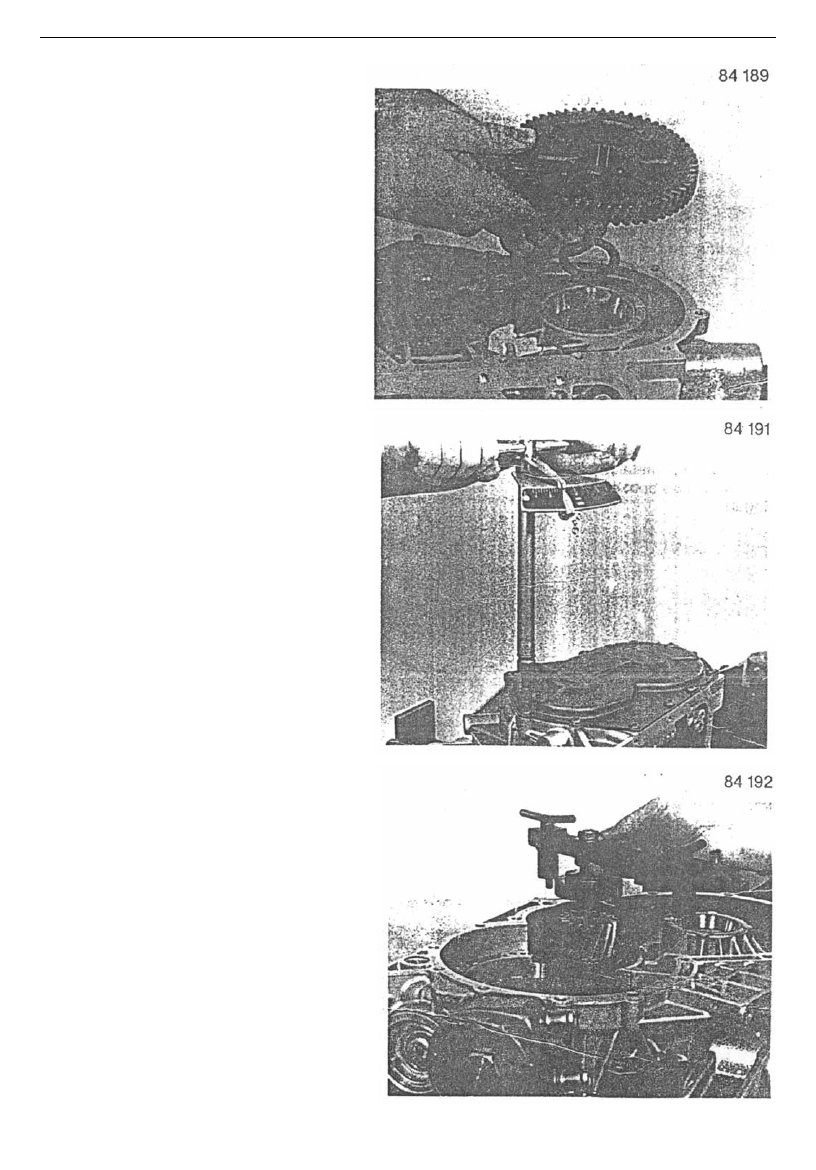

As shown on right figure, install washer 09 022

and sub rear output rear onto driven shaft.

Tighten bolt 09 030.

NOTE:

The whole output gear mechanism needs

adjusting by procedures in section 1.4.2 in page

5/2.

Lubricating gasket 09 210 and then install it.

Install side cover 09 220, and tighten with 11

bolts.

Tool: 27# socket spanner

Torque: 10Nm

Turn differential by 180℃ , and remove two

mounting carriers.

-87-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

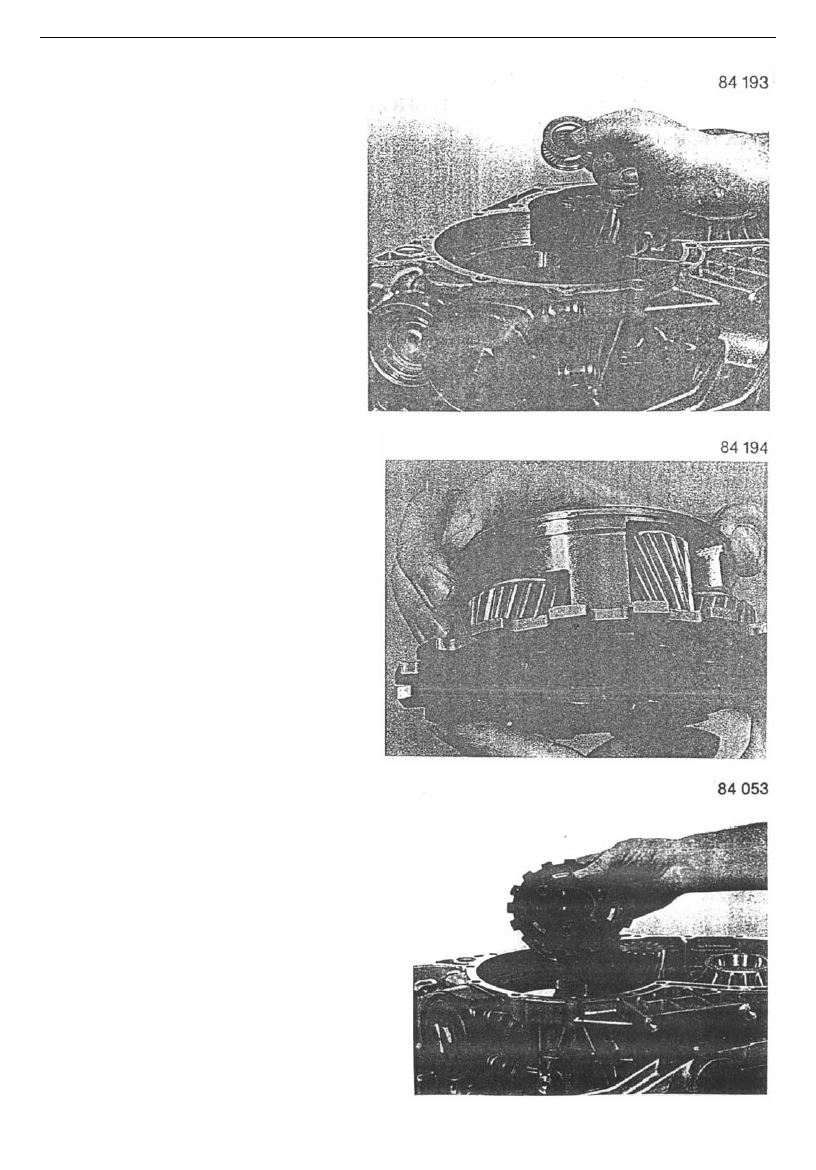

Install washer 14 020, thrust bearing 14 030

and thrust washer14 040.

Install snap ring 32 020 into groove of

planetary carrier, and suddenly press both ends

of the snap ring for self-locking.

Install planetary gear mechanism into housing.

-88-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

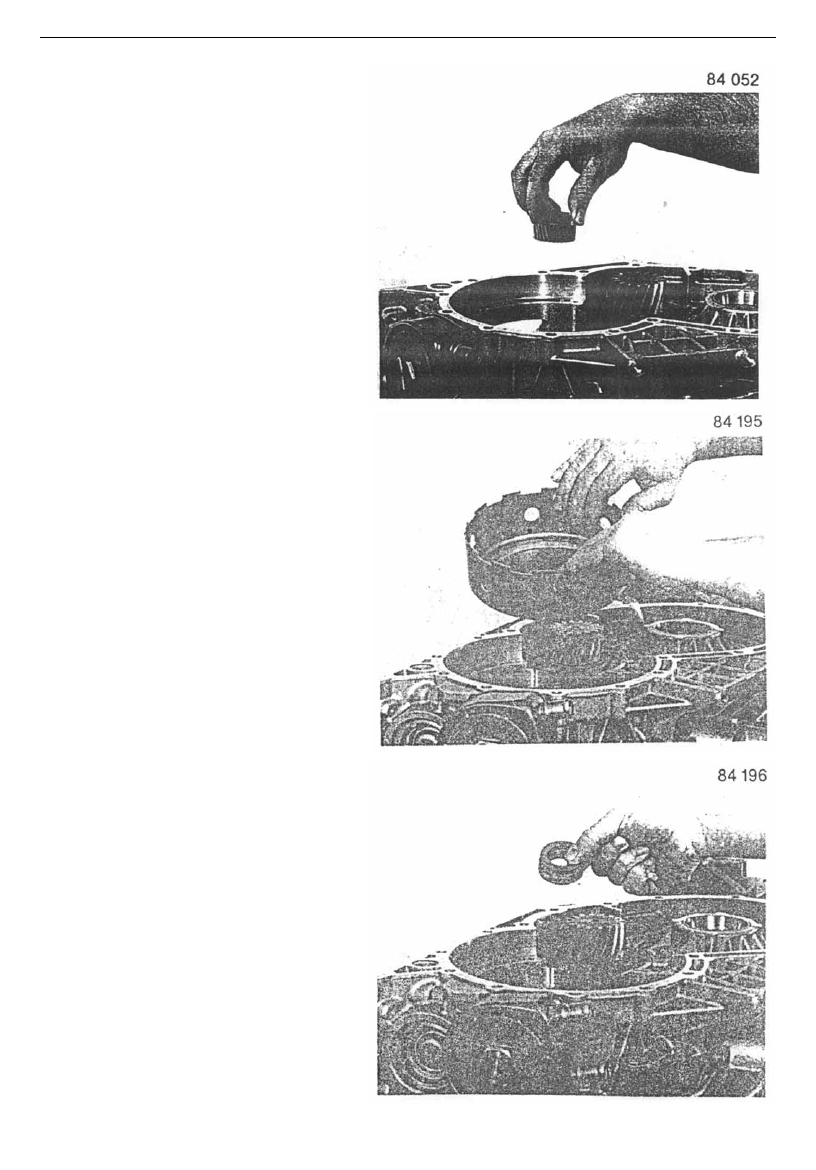

Install the sun gear 32 030 in the planetary

mechanism.

Install drive wheel drum 30 310 and make it

engaged with the sun gear.

Install washer 02 190, thrust bearing 02 180 and

thrust washer 02 170 onto drive wheel drum.

-89-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

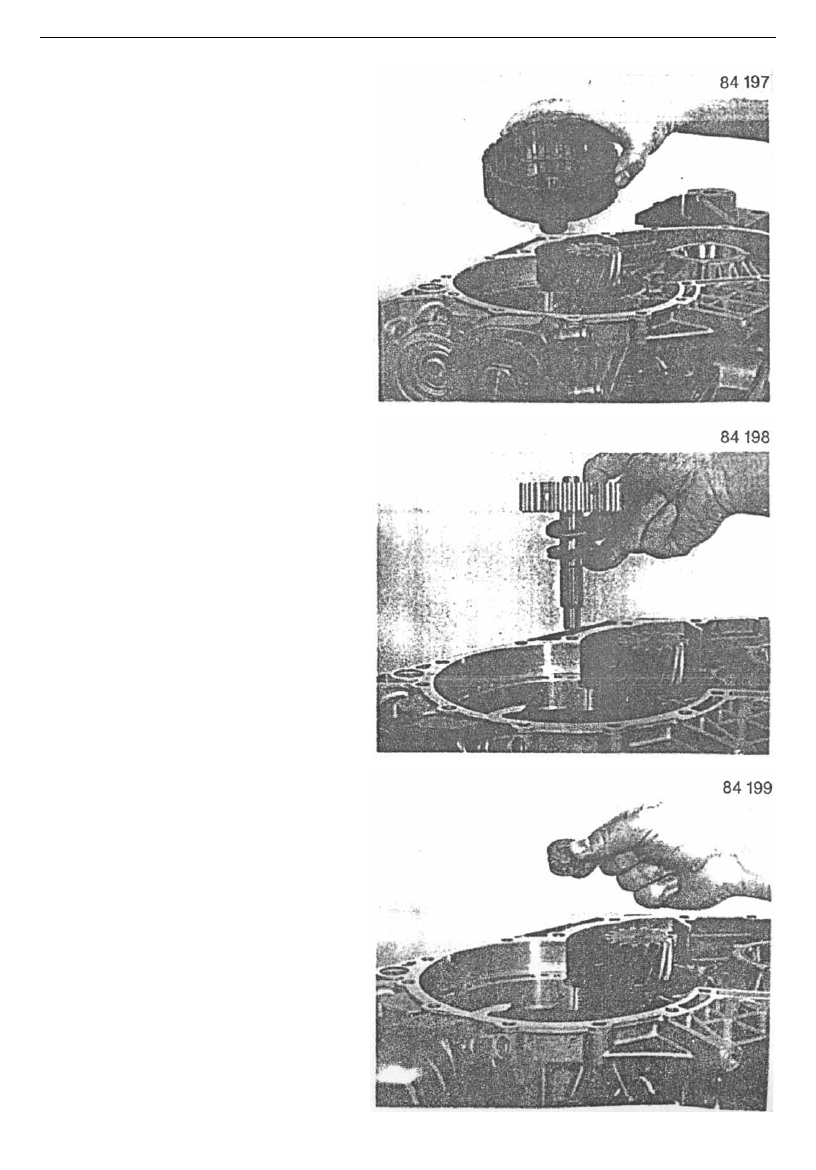

Install sun gear shaft 02 160, and inspect its

engagement condition.

If the installation is right, drive drum shall turn

towards the sun gear.

Install thrust washer 30 170, thrust bearing 30

180 and washer 30 190 onto intermediate shaft

30 160, and then install the intermediate shaft in

the housing.

Install 2 washers 30 140 and one thrust bearing

30 150 onto intermediate shaft.

-90-
